024 - Lubrication System - Tank

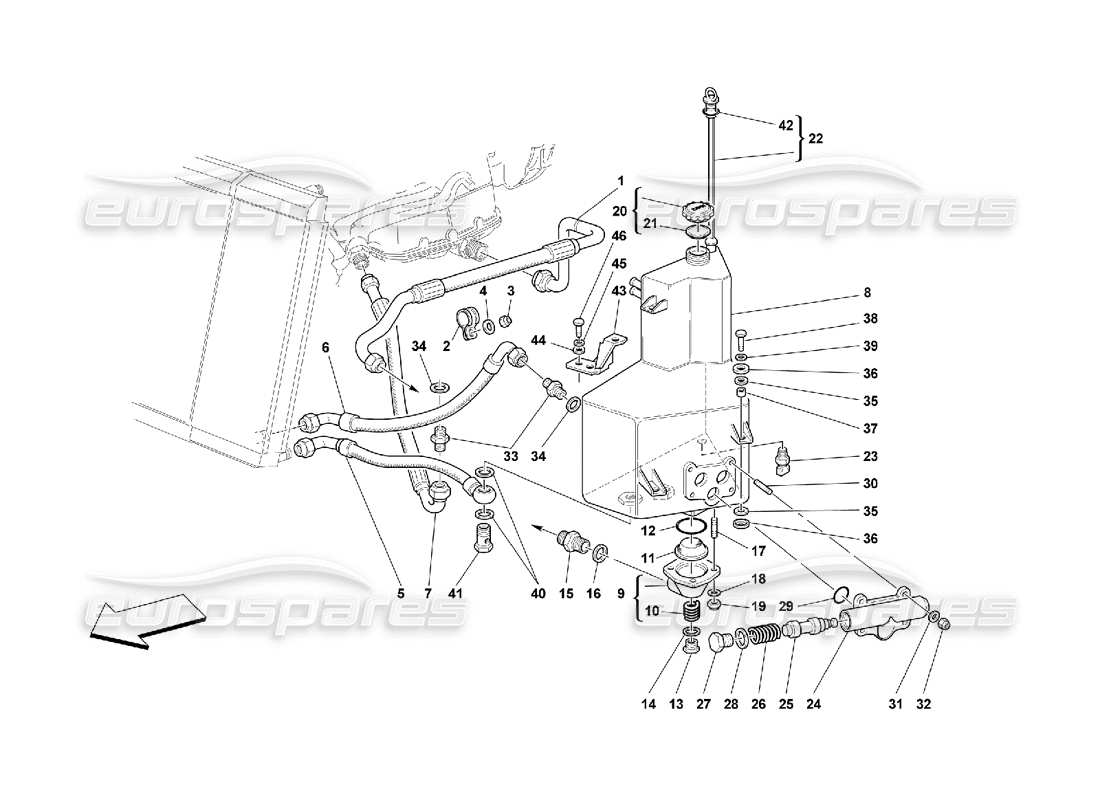

Ferrari 550 Maranello Lubrication System - Tank Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165910
DELIVERY HOSE FROM TANK TO PUMP
from £966.76
from £966.76
# 002
MPN: 106195
CLIP BRACKET
from £16.67
from £16.67
# 003
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 004
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 005
MPN: 180809
DELIVERY HOSE FROM RESERVOIR TO RADIATOR
from £206.27
from £206.27
This part replaces part number 168330
# 006
MPN: 168329
RETURN HOSE FROM RADIATOR TO RESERVOIR
- Valid till stock exhaustion
Supersession
Supersession
# 006
MPN: 180810
RETURN HOSE FROM RADIATOR TO RESERVOIR
- Valid after stock exhaustion of 168329
from £626.48
from £626.48
This part replaces part number 168329
# 007
MPN: 180811
RETURN HOSE FROM OIL SUMP TO TANK
from £417.90
from £417.90
This part replaces part number 168328

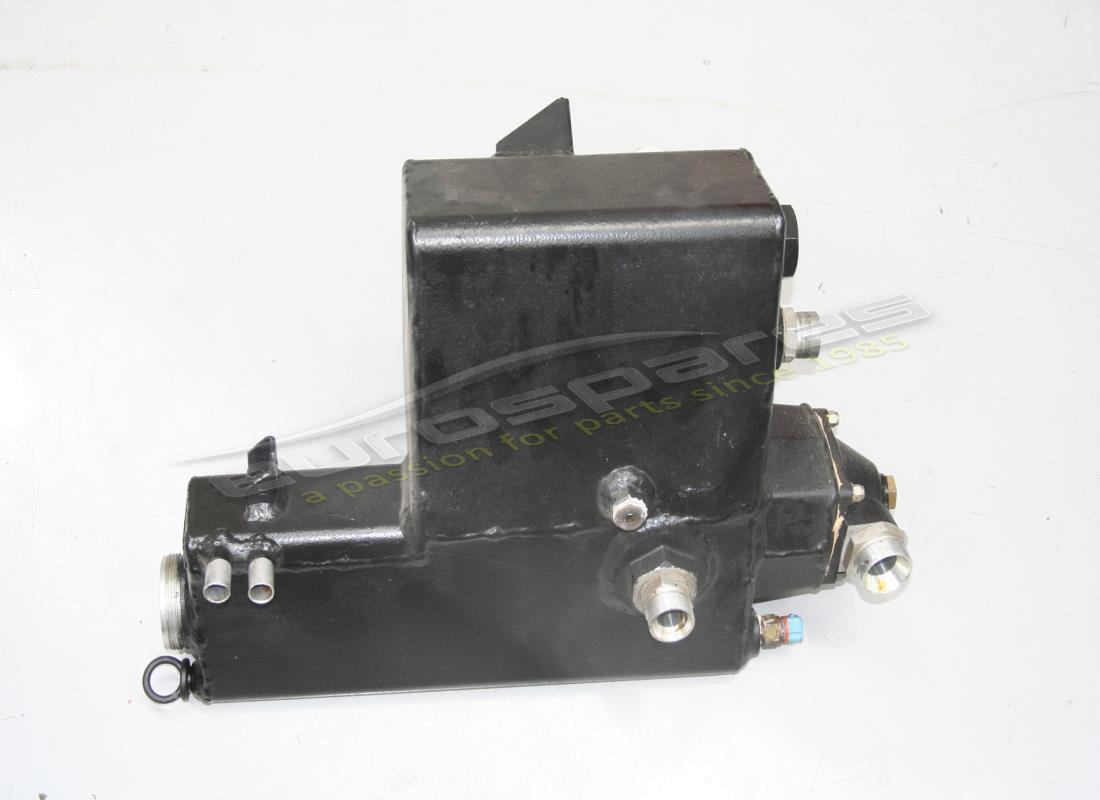

# 008
MPN: 167832
OIL TANK
from £945.00
from £945.00
# 009
MPN: 151684
OIL SUCTION FAN
from £73.47
from £73.47
# 010
MPN: 111352
THREADED INSERT
use part number: 111352/A
from £67.48
from £67.48
# 011
MPN: 100332
SUMP FILTER
from £9.15
from £9.15
This part replaces part number 240387 - and 9 more. Click to view details
# 012
MPN: 125521
O.R. GASKET
(minimum order quantity = 2)
from £7.42
from £7.42
# 013
MPN: 10300771
FUEL DRAIN PLUG
from £0.69
from £0.69
# 014
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 015
MPN: 138149
UNION
from £17.64
from £17.64
# 016
MPN: 144485
GASKET
from £12.40
from £12.40
# 017
MPN: 11500424
STUD
from £0.48
from £0.48
This part replaces part number 11500421
# 018
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 019
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 020
MPN: 180320
FUEL CAP
from £95.00
from £95.00
# 020
MPN: 180320
FUEL CAP
- Valid after stock exhaustion of 142790 - Not as spare part now - Replaced by 180590
from £95.00
from £95.00
# 020
MPN: 180590
COMPLETE PLUG
from £60.93
from £60.93
# 021
MPN: 175709
GASKET
from £21.92
from £21.92
This part replaces part number 142792
# 022
MPN: 156667
COMPLETE OIL LEVEL INDICATOR ROD
from £3.35
from £3.35
# 023
MPN: 148676
OIL TEMPERATURE TRANSMITTER
from £99.20
from £99.20

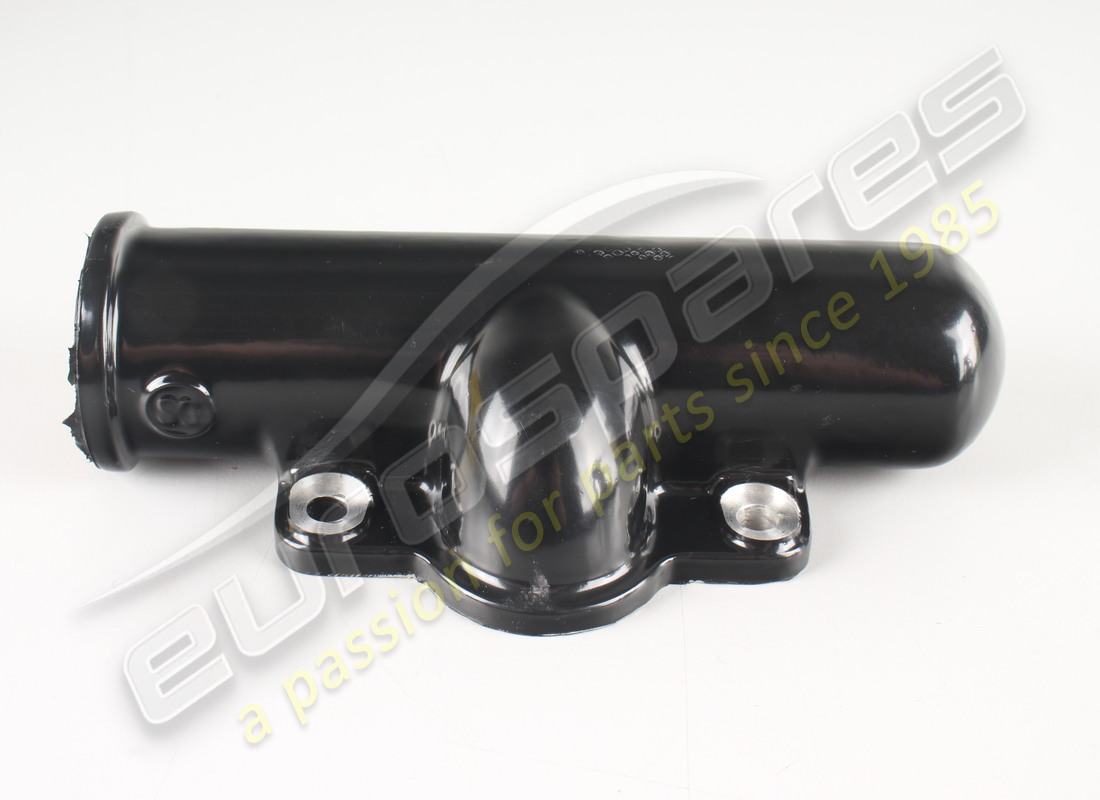

# 024
MPN: 160759
VALVE BODY
from £97.89
from £97.89
This part replaces part number 145043 - and 3 more. Click to view details
# 025
MPN: 163951
THERMOSTAT VALVE
not as spare part - use part number: 235648
Supersession
Supersession
This part replaces part number 157413
# 025
MPN: 235648
THERMOSTAT VALVE
replaces: 163951
from £419.45
from £419.45
This part replaces part number 163951
# 026
MPN: 136867
SPRING
from £5.23
from £5.23
# 027
MPN: 136868
PLUG
from £20.20
from £20.20
# 028
MPN: 10303460
GASKET
from £0.47
from £0.47
# 029
MPN: 139934
O.R. GASKET
from £0.48
from £0.48
# 030
MPN: 13540924
STUD
from £0.69
from £0.69
This part replaces part number 13540921
# 031
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 032
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 033
MPN: 138150
UNION
from £17.34
from £17.34
# 034
MPN: 144487
GASKET
from £18.15
from £18.15
# 035
MPN: 107978
PAD
from £1.07
from £1.07
# 036
MPN: 107979
CAP
from £1.08
from £1.08
# 037
MPN: 107980
SPACER
from £1.55
from £1.55
# 038
MPN: 16043834
SCREW
from £0.52
from £0.52
This part replaces part number 16043824
# 039
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 040
MPN: 144487
GASKET
from £18.15
from £18.15
# 041
MPN: 129809
UNION
from £33.73
from £33.73
# 042
MPN: 166432
O.R. GASKET
from £0.53
from £0.53
# 043
MPN: 166931
BRACKET
from £5.38
from £5.38
# 044
MPN: 14496524
WASHER
from £0.53
from £0.53
This part replaces part number 14496525 - and 1 more. Click to view details
# 045
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 046
MPN: 16043434
SCREW
from £0.53
from £0.53
This part replaces part number 13825824 - and 1 more. Click to view details
