ferrari 550 maranello water pump parts diagram

028 - WATER PUMP

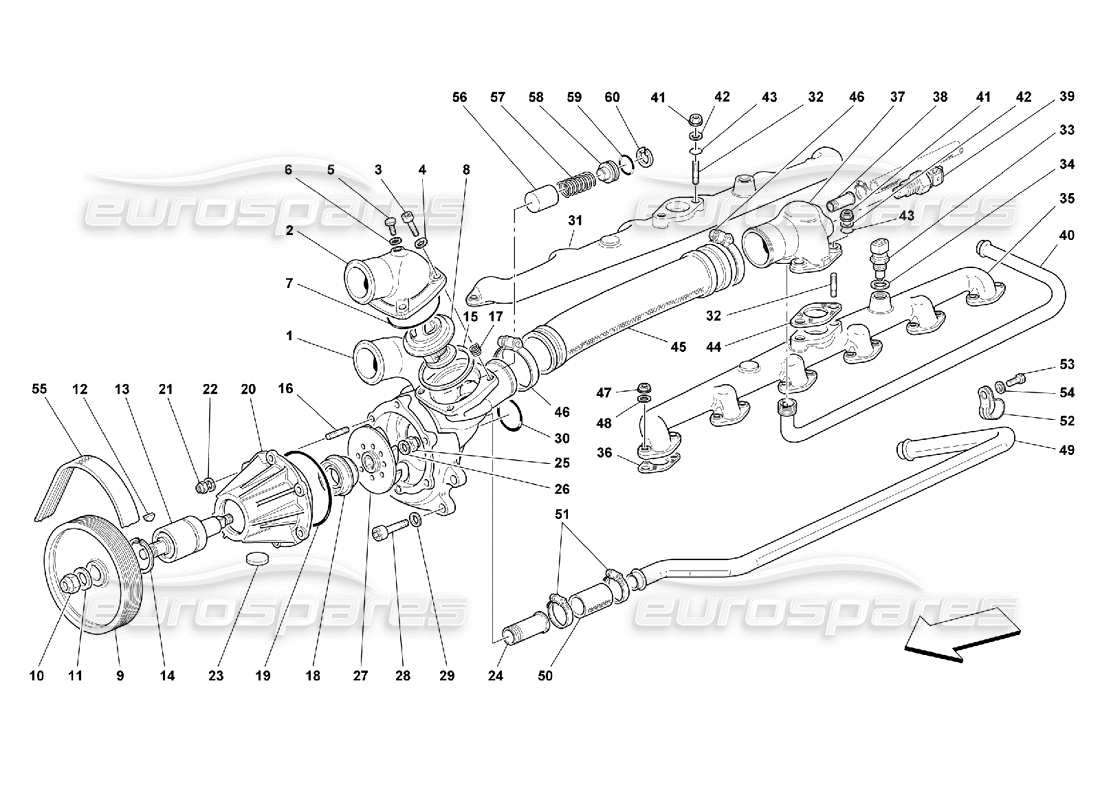

Ferrari 550 Maranello Water Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 000
                                                                                          MPN: 153199
                                                                                          WATER PUMP BODY COMPLETED WITH STUDS
                                                                                          - Valid till engine Nr. 53755
                                                                                          from £595.00
                                                                                          from £595.00
                                                                                          This part replaces part number 156081 - and 5 more. Click to view details
                                                                                          # 000
                                                                                          MPN: 163875/A
                                                                                          WATER PUMP ASSY (UP TO ENGINE N.53755)
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 181841/A
                                                                                          WATER PUMP ASSY (FROM ENGINE N.53756)
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 183760
                                                                                          # 000
                                                                                          MPN: 182693
                                                                                          WATER PUMP BODY COMPLETED WITH STUDS
                                                                                          - Valid from engine Nr. 53756
                                                                                          # 000
                                                                                          MPN: 183760
                                                                                          COMPLETE WATER PUMP
                                                                                          (thermostat housing included) - Not for 456M GTA
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 166497 - and 1 more. Click to view details
                                                                                          # 001
                                                                                          MPN: 156081
                                                                                          WATER PUMP BODY
                                                                                          - Not as spare part - With complete pump body - Valid till engine Nr. 53755
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 001
                                                                                          MPN: 174668
                                                                                          WATER PUMP BODY
                                                                                          - Not as spare part - With complete pump body - Valid from engine Nr. 53756
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 002
                                                                                          MPN: 163952
                                                                                          THERMOSTATIC VALVE COVER
                                                                                          from £41.49
                                                                                          from £41.49
                                                                                          This part replaces part number 157565 which we have in stock - and 1 more. Click to view details
                                                                                          # 003
                                                                                          MPN: 14432224
                                                                                          SCREW
                                                                                          - Valid till engine Nr. 53755
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 14432221
                                                                                          # 003
                                                                                          MPN: 14433124
                                                                                          SCREW
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 14433121
                                                                                          # 004
                                                                                          MPN: 12601274
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                          # 005
                                                                                          MPN: 130282
                                                                                          UNION
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 006
                                                                                          MPN: 10297760
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 007
                                                                                          MPN: 149279
                                                                                          O.R. GASKET
                                                                                          from £2.41
                                                                                          from £2.41
                                                                                          # 008
                                                                                          MPN: 183758

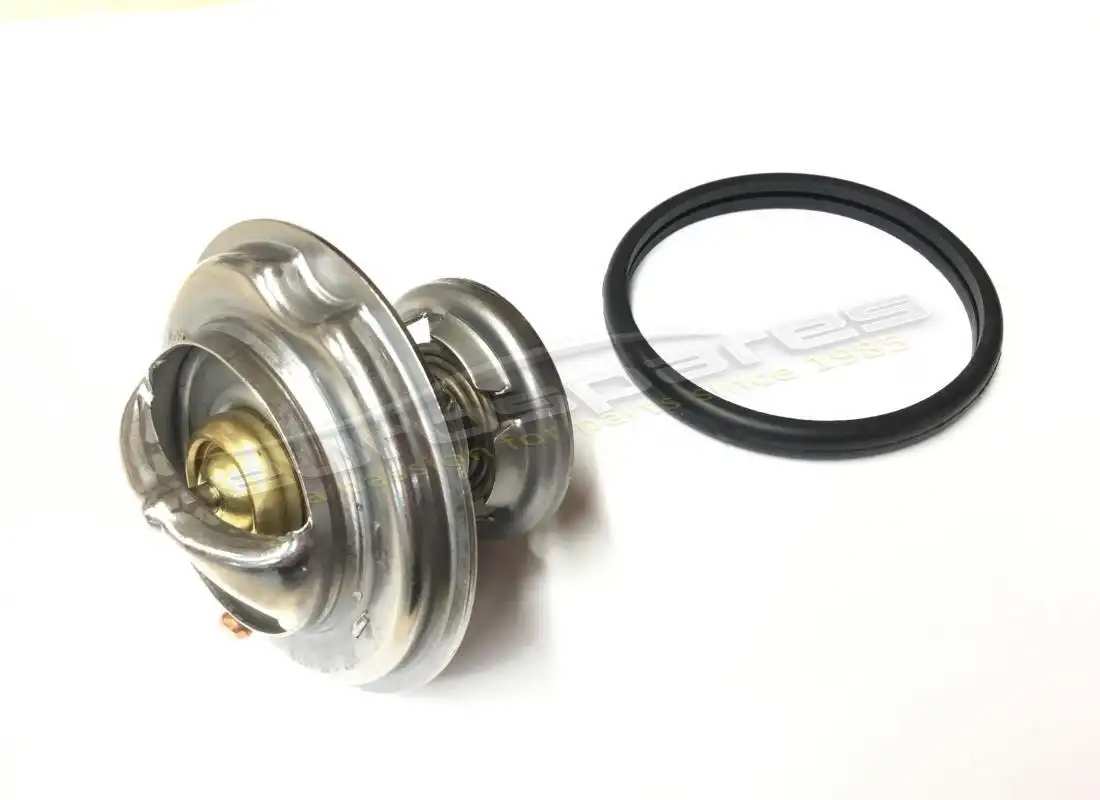

                                                                                          THERMOSTAT
                                                                                          from £50.59
                                                                                          from £50.59
                                                                                          This part replaces part number 167473
                                                                                          # 008
                                                                                          MPN: 183758
                                                                                          THERMOSTAT
                                                                                          from £50.59
                                                                                          from £50.59
                                                                                          This part replaces part number 167473
                                                                                          # 009
                                                                                          MPN: 166454
                                                                                          PULLEY
                                                                                          from £111.26
                                                                                          from £111.26
                                                                                          This part replaces part number 154526
                                                                                          # 010
                                                                                          MPN: 102742
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                          # 011
                                                                                          MPN: 12646824
                                                                                          WASHER
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 012
                                                                                          MPN: 10202320
                                                                                          DISC KEY
                                                                                          from £0.58
                                                                                          from £0.58
                                                                                          # 013
                                                                                          MPN: 143742
                                                                                          BEARING WITH SHAFT
                                                                                          from £137.20
                                                                                          from £137.20
                                                                                          # 014
                                                                                          MPN: 11059976
                                                                                          SEEGER RING
                                                                                          from £0.56
                                                                                          from £0.56
                                                                                          This part replaces part number 11059975
                                                                                          # 015
                                                                                          MPN: 137873
                                                                                          GASKET
                                                                                          from £2.86
                                                                                          from £2.86
                                                                                          # 016
                                                                                          MPN: 13540924
                                                                                          STUD
                                                                                          from £0.70
                                                                                          from £0.70
                                                                                          This part replaces part number 13540921
                                                                                          # 017
                                                                                          MPN: 13525470
                                                                                          THREADED INSERT
                                                                                          from £0.48
                                                                                          from £0.48
                                                                                          This part replaces part number 107333
                                                                                          # 018
                                                                                          MPN: 183759
                                                                                          SEAL RING
                                                                                          from £23.06
                                                                                          from £23.06
                                                                                          This part replaces part number 130932 - and 1 more. Click to view details
                                                                                          # 019
                                                                                          MPN: 137868
                                                                                          O.R. GASKET
                                                                                          from £7.24
                                                                                          from £7.24
                                                                                          # 020
                                                                                          MPN: 176173
                                                                                          WATER PUMP COVER
                                                                                          use part number: 163875/A (till ass. 53762) or 176173/A (from ass. 53763) for complete pump (change pulley)
                                                                                          from £269.18
                                                                                          from £269.18
                                                                                          This part replaces part number 154546
                                                                                          # 021
                                                                                          MPN: 102741
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                          # 022
                                                                                          MPN: 12601274
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                          # 023
                                                                                          MPN: 10158801
                                                                                          PLUG
                                                                                          from £0.73
                                                                                          from £0.73
                                                                                          This part replaces part number 10158800
                                                                                          # 024
                                                                                          MPN: 141068
                                                                                          UNION
                                                                                          from £120.06
                                                                                          from £120.06
                                                                                          # 025
                                                                                          MPN: 100436
                                                                                          CAP NUT
                                                                                          from £7.41
                                                                                          from £7.41
                                                                                          This part replaces part number 92896
                                                                                          # 026
                                                                                          MPN: 11194074
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 11194077 - and 1 more. Click to view details
                                                                                          # 027
                                                                                          MPN: 154542
                                                                                          WATER PUMP IMPELLER
                                                                                          - Valid till engine Nr. 53755
                                                                                          from £66.63
                                                                                          from £66.63
                                                                                          # 027
                                                                                          MPN: 176045
                                                                                          WATER PUMP IMPELLER
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £81.29
                                                                                          from £81.29
                                                                                          # 028
                                                                                          MPN: 14306424
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 14306324 - and 2 more. Click to view details
                                                                                          # 029
                                                                                          MPN: 11193874
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 11193879 which we have in stock
                                                                                          # 030
                                                                                          MPN: 141250
                                                                                          O.R. GASKET
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 227203
                                                                                          # 031
                                                                                          MPN: 142088
                                                                                          RH HEAD WATER MANIFOLD
                                                                                          from £212.99
                                                                                          from £212.99
                                                                                          # 032
                                                                                          MPN: 13516724
                                                                                          STUD
                                                                                          from £1.62
                                                                                          from £1.62
                                                                                          # 033
                                                                                          MPN: 125769
                                                                                          WATER TEMPERATURE SENSOR
                                                                                          from £17.50
                                                                                          from £17.50
                                                                                          # 034
                                                                                          MPN: 10298460
                                                                                          GASKET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 93353
                                                                                          # 035
                                                                                          MPN: 143323
                                                                                          LH HEAD WATER MANIFOLD
                                                                                          from £191.93
                                                                                          from £191.93
                                                                                          # 036
                                                                                          MPN: 141332
                                                                                          GASKET WATER OUTLET MANIFOLD
                                                                                          (minimum order quantity = 8)
                                                                                          from £0.80
                                                                                          from £0.80
                                                                                          # 037
                                                                                          MPN: 154198
                                                                                          CONNECTION DUCT
                                                                                          from £187.72
                                                                                          from £187.72
                                                                                          # 039
                                                                                          MPN: 148677
                                                                                          WATER TEMPERATURE
                                                                                          from £358.83
                                                                                          from £358.83
                                                                                          # 040
                                                                                          MPN: 170165
                                                                                          PIPE FROM DUCT
                                                                                          - Not for GD
                                                                                          from £44.36
                                                                                          from £44.36
                                                                                          # 040
                                                                                          MPN: 173895
                                                                                          PIPE FROM DUCT
                                                                                          - Valid for GD
                                                                                          from £33.88
                                                                                          from £33.88
                                                                                          # 041
                                                                                          MPN: 101139
                                                                                          NUT
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 16104425
                                                                                          # 042
                                                                                          MPN: 12601374
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                          # 043
                                                                                          MPN: 103039
                                                                                          O.R. GASKET
                                                                                          (minimum order quantity = 10)
                                                                                          from £1.62
                                                                                          from £1.62
                                                                                          This part replaces part number 95860041
                                                                                          # 044
                                                                                          MPN: 142103
                                                                                          GASKET
                                                                                          from £2.00
                                                                                          from £2.00
                                                                                          # 045
                                                                                          MPN: 181599
                                                                                          CONNECTION SLEEVE BEETWEN MANIFOLD AND WATER PUMP
                                                                                          from £183.85
                                                                                          from £183.85
                                                                                          This part replaces part number 154480
                                                                                          # 045
                                                                                          MPN: 181599
                                                                                          CONNECTION SLEEVE BEETWEN MANIFOLD AND WATER PUMP
                                                                                          - Valid after stock exhaustion of 154480
                                                                                          from £183.85
                                                                                          from £183.85
                                                                                          This part replaces part number 154480
                                                                                          # 046
                                                                                          MPN: 134109
                                                                                          SCREW COLLAR
                                                                                          from £2.78
                                                                                          from £2.78
                                                                                          This part replaces part number 178203 - and 1 more. Click to view details
                                                                                          # 046
                                                                                          MPN: 178203
                                                                                          SCREW COLLAR
                                                                                          - Not as spare part now - Replaced by 134109
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 047
                                                                                          MPN: 132877
                                                                                          NUT
                                                                                          from £1.54
                                                                                          from £1.54
                                                                                          This part replaces part number 67190100
                                                                                          # 048
                                                                                          MPN: 12604274
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12604271 - and 1 more. Click to view details
                                                                                          # 049
                                                                                          MPN: 154716
                                                                                          PIPE FROM WATER PUMP
                                                                                          - Not for GD
                                                                                          from £263.33
                                                                                          from £263.33
                                                                                          # 049
                                                                                          MPN: 160833
                                                                                          PIPE FROM WATER PUMP
                                                                                          - Valid for GD
                                                                                          from £19.21
                                                                                          from £19.21
                                                                                          # 050
                                                                                          MPN: 175223
                                                                                          SLEEVE
                                                                                          from £5.05
                                                                                          from £5.05
                                                                                          This part replaces part number 122842
                                                                                          # 050
                                                                                          MPN: 175223
                                                                                          RUBBER PIPE
                                                                                          from £5.05
                                                                                          from £5.05
                                                                                          This part replaces part number 122842
                                                                                          # 051
                                                                                          MPN: 13000490
                                                                                          SCREW COLLAR
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                          # 052
                                                                                          MPN: 145661
                                                                                          BRACKET WITH SHEATH
                                                                                          from £4.67
                                                                                          from £4.67
                                                                                          # 053
                                                                                          MPN: 16043224
                                                                                          SCREW
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 054
                                                                                          MPN: 127496
                                                                                          WASHER
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                          # 055
                                                                                          MPN: 199834
                                                                                          Water & Power Steering Belt
                                                                                          Use on Exhaustion of 171094
                                                                                          from £15.68
                                                                                          from £15.68
                                                                                          This part replaces part number 171093
                                                                                          # 055
                                                                                          MPN: 199834
                                                                                          BELT
                                                                                          - Valid till engine Nr. 51922
                                                                                          from £15.68
                                                                                          from £15.68
                                                                                          This part replaces part number 171093
                                                                                          # 055
                                                                                          MPN: 199834
                                                                                          BELT
                                                                                          - Valid from engine Nr. 51923
                                                                                          from £15.68
                                                                                          from £15.68
                                                                                          This part replaces part number 171093
                                                                                          # 056
                                                                                          MPN: 176046
                                                                                          BUSHING FOR BY-PASS
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £16.63
                                                                                          from £16.63
                                                                                          # 057
                                                                                          MPN: 176047
                                                                                          SPRING FOR BY-PASS
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £8.12
                                                                                          from £8.12
                                                                                          # 058
                                                                                          MPN: 176048
                                                                                          PLUG FOR BY-PASS SPRING
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £8.49
                                                                                          from £8.49
                                                                                          # 059
                                                                                          MPN: 147278
                                                                                          O.R. GASKET
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £0.94
                                                                                          from £0.94
                                                                                          # 060
                                                                                          MPN: 11058376
                                                                                          SEEGER RING
                                                                                          - Valid from engine Nr. 53756
                                                                                          from £1.50
                                                                                          from £1.50
