029 - Clutch - Controls

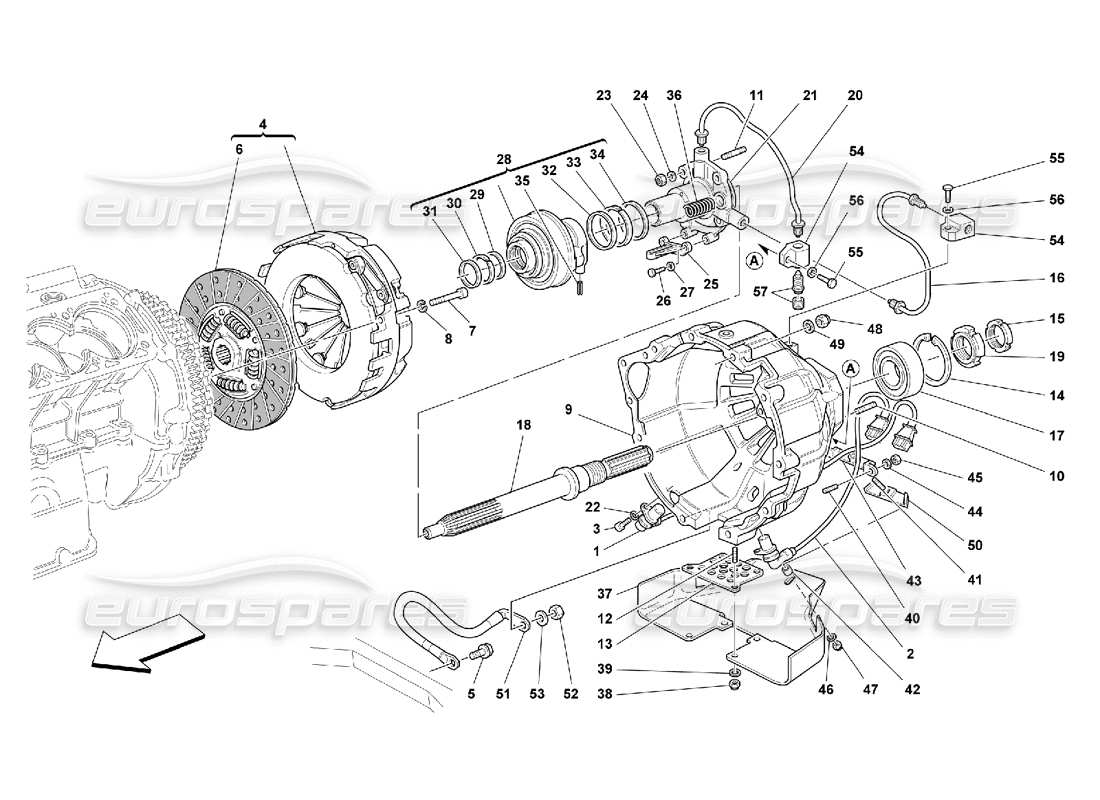

Ferrari 550 Maranello Clutch - Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 164082

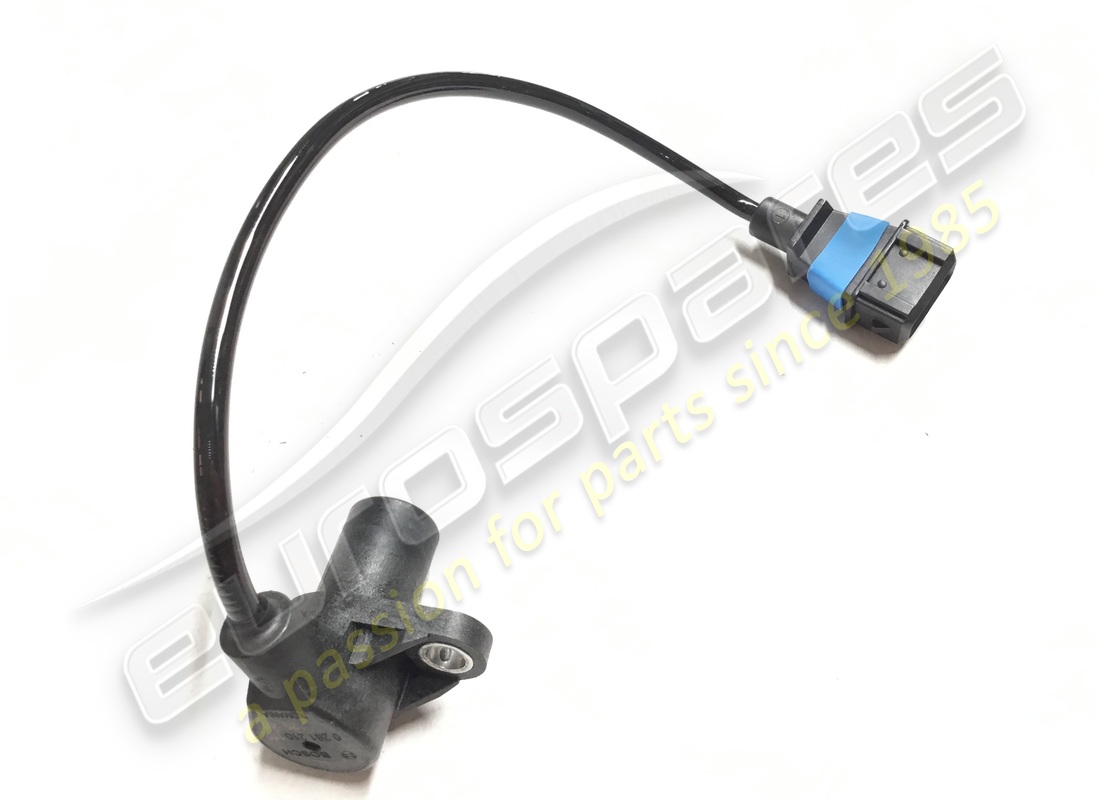

                                                                                                    RH SIDE ANGOLAR SPEED SENSOR
                                                                                                    from £109.43
                                                                                                    from £109.43
                                                                                                    This part replaces part number 152262
                                                                                                    # 002
                                                                                                    MPN: 164083

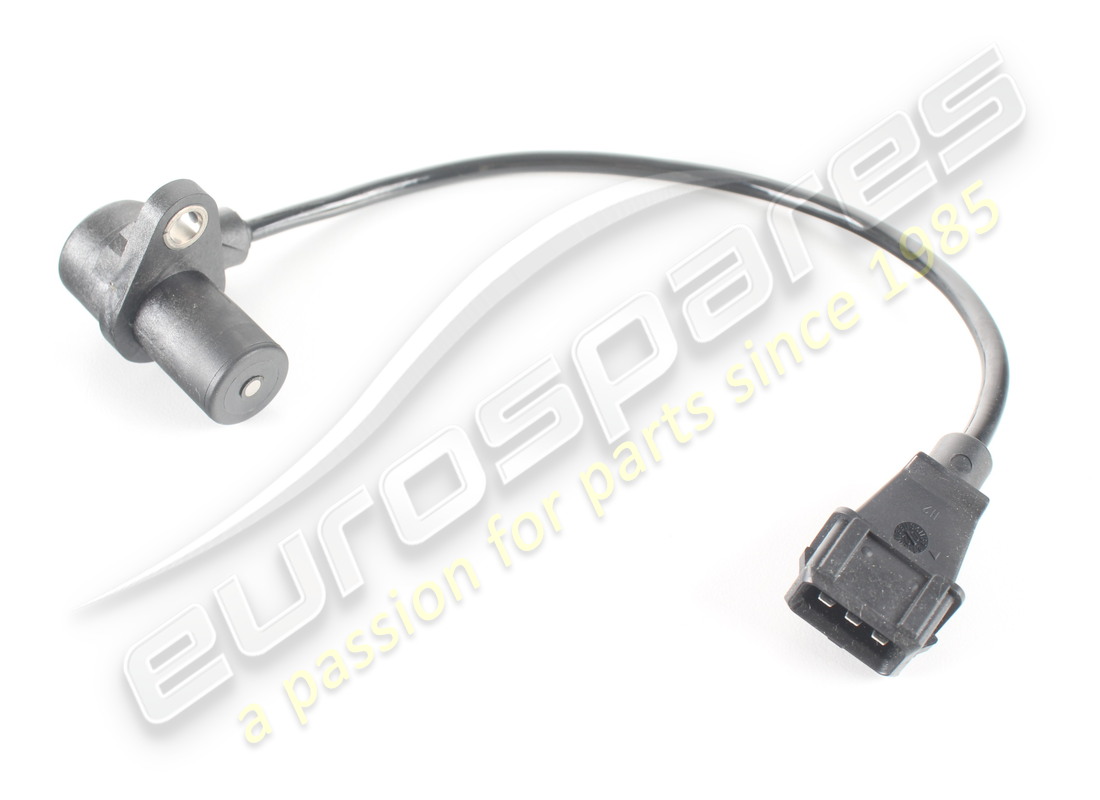

                                                                                                    LH SIDE ANGOLAR SPEED SENSOR
                                                                                                    from £104.63
                                                                                                    from £104.63
                                                                                                    This part replaces part number 158729
                                                                                                    # 003
                                                                                                    MPN: 14305124
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 14305121
                                                                                                    # 004
                                                                                                    MPN: 194775
                                                                                                    COMPLETE CLUTCH
                                                                                                    from £1,567.58
                                                                                                    from £1,567.58
                                                                                                    This part replaces part number 153724 - and 1 more. Click to view details
                                                                                                    # 005
                                                                                                    MPN: 16296421
                                                                                                    SCREW
                                                                                                    from £37.16
                                                                                                    from £37.16
                                                                                                    # 006
                                                                                                    MPN: 138961
                                                                                                    CLUTCH DISC
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 006
                                                                                                    MPN: 194776
                                                                                                    CLUTCH DISC
                                                                                                    from £659.56
                                                                                                    from £659.56
                                                                                                    This part replaces part number 153721
                                                                                                    # 007
                                                                                                    MPN: 14305934
                                                                                                    SCREW
                                                                                                    from £0.78
                                                                                                    from £0.78
                                                                                                    This part replaces part number 14305931
                                                                                                    # 008
                                                                                                    MPN: 127494
                                                                                                    WASHER
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                    # 009
                                                                                                    MPN: 151601
                                                                                                    COMPLETE CLUTCH HOUSING
                                                                                                    from £2,524.58
                                                                                                    from £2,524.58
                                                                                                    # 009
                                                                                                    MPN: 168915
                                                                                                    CLUTCH HOUSING
                                                                                                    - With complete clutch housing
                                                                                                    # 010
                                                                                                    MPN: 13546334
                                                                                                    STUD
                                                                                                    from £0.60
                                                                                                    from £0.60
                                                                                                    This part replaces part number 13546331
                                                                                                    # 011
                                                                                                    MPN: 13543124
                                                                                                    STUD
                                                                                                    from £3.66
                                                                                                    from £3.66
                                                                                                    This part replaces part number 13543121
                                                                                                    # 012
                                                                                                    MPN: 11001024
                                                                                                    STUD
                                                                                                    (minimum order quantity = 5)
                                                                                                    from £1.34
                                                                                                    from £1.34
                                                                                                    This part replaces part number 11001011 - and 1 more. Click to view details
                                                                                                    # 013
                                                                                                    MPN: 144441
                                                                                                    CLUTCH HOUSING SMALL COVER
                                                                                                    from £0.99
                                                                                                    from £0.99
                                                                                                    # 014
                                                                                                    MPN: 144511
                                                                                                    STOP RING
                                                                                                    from £1.55
                                                                                                    from £1.55
                                                                                                    # 015
                                                                                                    MPN: 165576
                                                                                                    RING NUT
                                                                                                    from £29.79
                                                                                                    from £29.79
                                                                                                    # 016
                                                                                                    MPN: 165759
                                                                                                    OIL DELIVERY TUBE
                                                                                                    from £120.41
                                                                                                    from £120.41
                                                                                                    # 017
                                                                                                    MPN: 145805
                                                                                                    BEARING
                                                                                                    - Valid till stock exhaustion
                                                                                                    from £73.60
                                                                                                    from £73.60
                                                                                                    This part replaces part number 125934
                                                                                                    # 017
                                                                                                    MPN: 174470
                                                                                                    BEARING
                                                                                                    - Valid after stock exhaustion of 145805
                                                                                                    from £29.78
                                                                                                    from £29.78
                                                                                                    This part replaces part number 174469
                                                                                                    # 018
                                                                                                    MPN: 165573
                                                                                                    CLUTCH SHAFT
                                                                                                    from £379.44
                                                                                                    from £379.44
                                                                                                    # 019
                                                                                                    MPN: 165575
                                                                                                    RING NUT
                                                                                                    from £13.29
                                                                                                    from £13.29
                                                                                                    # 020
                                                                                                    MPN: 165733
                                                                                                    VENT PIPE
                                                                                                    from £36.90
                                                                                                    from £36.90
                                                                                                    # 021

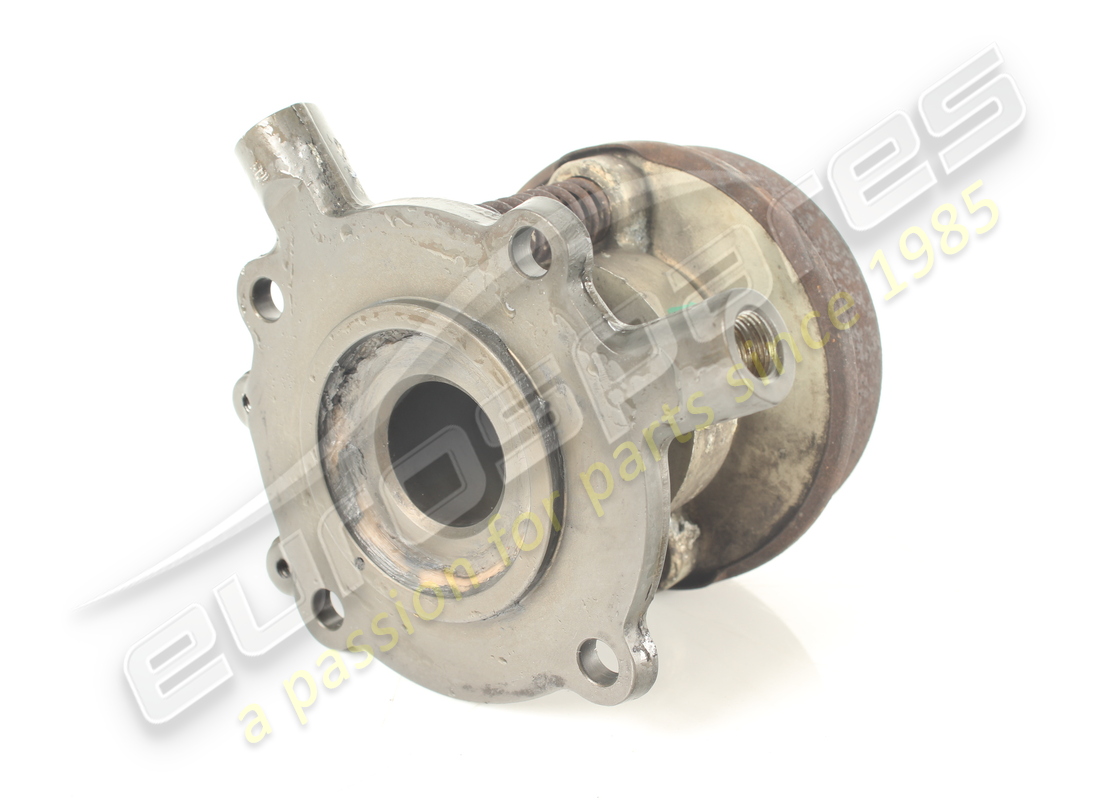

                                                                                                    MPN: 169137
                                                                                                    FLANGE WITH SLEEVE
                                                                                                    from £677.96
                                                                                                    from £677.96
                                                                                                    # 022
                                                                                                    MPN: 12601274
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                    # 023
                                                                                                    MPN: 133989
                                                                                                    NUT
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 8 D 4-UNI 207
                                                                                                    # 024
                                                                                                    MPN: 127496
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                    # 025
                                                                                                    MPN: 151693
                                                                                                    PLATE
                                                                                                    from £65.93
                                                                                                    from £65.93
                                                                                                    # 026
                                                                                                    MPN: 10977524
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 027
                                                                                                    MPN: 127493
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                    # 028
                                                                                                    -
                                                                                                    THRUST BEARING
                                                                                                    (with seals)
                                                                                                    # 028
                                                                                                    MPN: 177201
                                                                                                    COMPLETE THRUST BEARING
                                                                                                    (without seals)
                                                                                                    from £495.00
                                                                                                    from £495.00
                                                                                                    This part replaces part number 177202
                                                                                                    # 028
                                                                                                    MPN: 177201
                                                                                                    THRUST BEARING
                                                                                                    (without seals)
                                                                                                    from £495.00
                                                                                                    from £495.00
                                                                                                    This part replaces part number 177202
                                                                                                    # 029
                                                                                                    MPN: 154505
                                                                                                    SEAL RING
                                                                                                    from £6.89
                                                                                                    from £6.89
                                                                                                    # 030
                                                                                                    MPN: 154504
                                                                                                    RING
                                                                                                    from £3.63
                                                                                                    from £3.63
                                                                                                    # 031
                                                                                                    MPN: 154550
                                                                                                    SCRAPER RING
                                                                                                    from £12.51
                                                                                                    from £12.51
                                                                                                    This part replaces part number 144550
                                                                                                    # 032
                                                                                                    MPN: 154508
                                                                                                    SEAL RING
                                                                                                    from £22.87
                                                                                                    from £22.87
                                                                                                    # 033
                                                                                                    MPN: 154507
                                                                                                    RING
                                                                                                    from £2.01
                                                                                                    from £2.01
                                                                                                    This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
                                                                                                    # 034
                                                                                                    MPN: 154551
                                                                                                    SCRAPER RING
                                                                                                    from £16.63
                                                                                                    from £16.63
                                                                                                    # 035
                                                                                                    MPN: 14163970
                                                                                                    FLEXIBLE PIN
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 036
                                                                                                    MPN: 155207
                                                                                                    PRELOAD SPRING
                                                                                                    from £2.24
                                                                                                    from £2.24
                                                                                                    # 037
                                                                                                    MPN: 170115
                                                                                                    SHIELD FOR FASE SENSOR PROTECTION
                                                                                                    from £253.16
                                                                                                    from £253.16
                                                                                                    # 038
                                                                                                    MPN: 15896470
                                                                                                    NUT
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.77
                                                                                                    from £0.77
                                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                    # 039
                                                                                                    MPN: 12601174
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                                                                    # 040
                                                                                                    MPN: 13540824
                                                                                                    STUD
                                                                                                    from £14.21
                                                                                                    from £14.21
                                                                                                    This part replaces part number 13540821
                                                                                                    # 041
                                                                                                    MPN: 155177
                                                                                                    STUD
                                                                                                    from £4.22
                                                                                                    from £4.22
                                                                                                    # 042
                                                                                                    MPN: 155175
                                                                                                    SPACER
                                                                                                    from £1.18
                                                                                                    from £1.18
                                                                                                    # 043
                                                                                                    MPN: 154464
                                                                                                    SUPPORT
                                                                                                    from £14.60
                                                                                                    from £14.60
                                                                                                    # 044
                                                                                                    MPN: 12639724
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                    # 045
                                                                                                    MPN: 102741
                                                                                                    NUT
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                    # 046
                                                                                                    MPN: 11199274
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 047
                                                                                                    MPN: 15896470
                                                                                                    NUT
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.77
                                                                                                    from £0.77
                                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                    # 048
                                                                                                    MPN: 16100814
                                                                                                    NUT
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                    # 049
                                                                                                    MPN: 12601374
                                                                                                    WASHER
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                    # 050
                                                                                                    MPN: 146654
                                                                                                    SUPPORT
                                                                                                    from £46.33
                                                                                                    from £46.33
                                                                                                    # 051
                                                                                                    MPN: 155918
                                                                                                    GROUND CABLE
                                                                                                    from £7.27
                                                                                                    from £7.27
                                                                                                    # 052
                                                                                                    MPN: 15896470
                                                                                                    NUT
                                                                                                    (minimum order quantity = 20)
                                                                                                    from £0.77
                                                                                                    from £0.77
                                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                    # 053
                                                                                                    MPN: 11199274
                                                                                                    WASHER
                                                                                                    from £0.54
                                                                                                    from £0.54
                                                                                                    # 054
                                                                                                    MPN: 139471
                                                                                                    UNION
                                                                                                    from £12.84
                                                                                                    from £12.84
                                                                                                    # 055
                                                                                                    MPN: 10902624
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10902621
                                                                                                    # 056
                                                                                                    MPN: 11181874
                                                                                                    WASHER
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    # 057
                                                                                                    MPN: 121699
                                                                                                    BLEEDER SCREW
                                                                                                    from £11.64
                                                                                                    from £11.64
