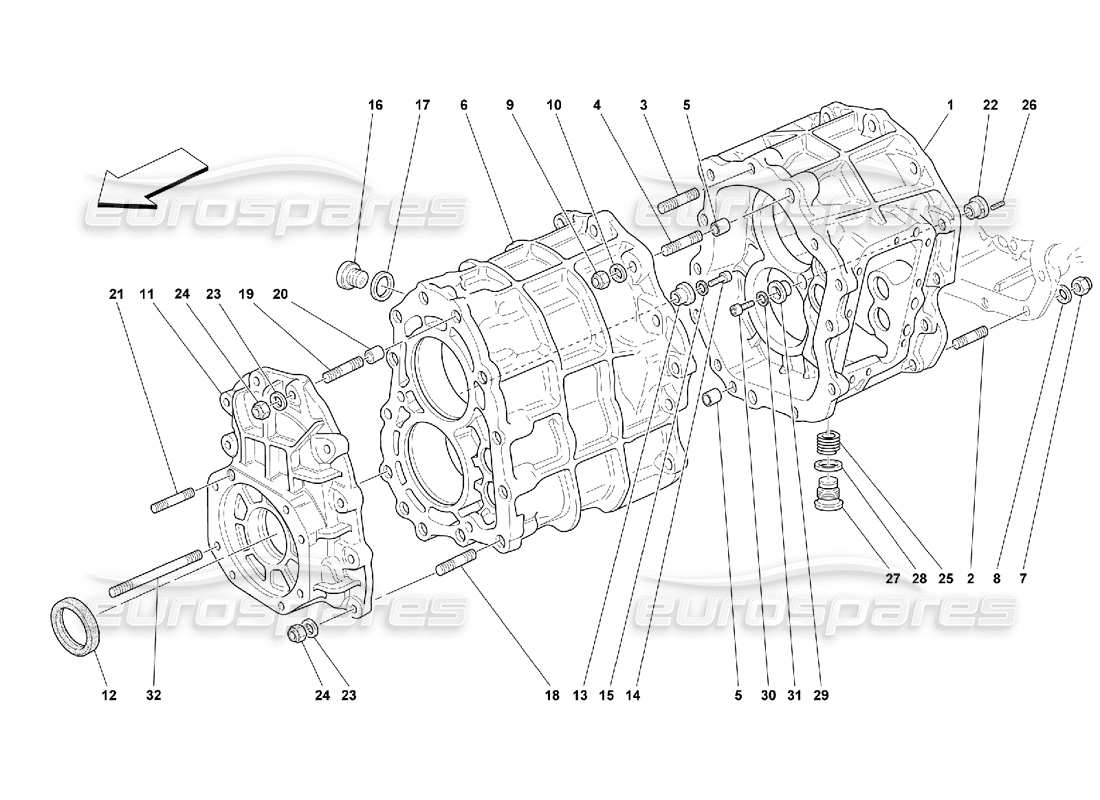

030 - GEARBOX

Ferrari 550 Maranello Gearbox Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 000
                                                              MPN: 172617
                                                              GEARBOX CASING
                                                              from £1,815.15
                                                              from £1,815.15
                                                              # 001
                                                              MPN: 168634

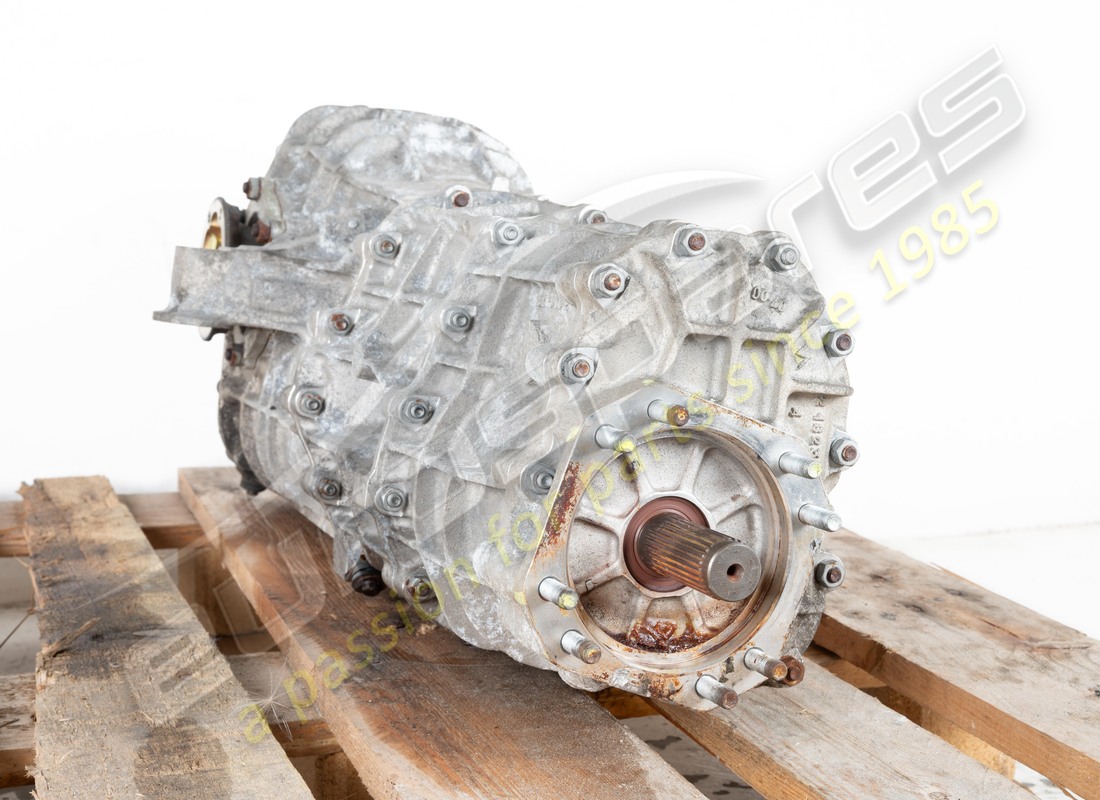

                                                              COMPLETE GEARBOX (MANUAL)
                                                              Vaild for Manual
                                                              from £13,899.48
                                                              from £13,899.48
                                                              # 001
                                                              MPN: 172620
                                                              GEAR BOX 3RD ELEMENT
                                                              - With the complete gearbox 172617
                                                              # 002
                                                              MPN: 13543524
                                                              STUD
                                                              from £2.00
                                                              from £2.00
                                                              This part replaces part number 13543521
                                                              # 003
                                                              MPN: 13543524
                                                              STUD
                                                              from £2.00
                                                              from £2.00
                                                              This part replaces part number 13543521
                                                              # 004
                                                              MPN: 13543624
                                                              STUD
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 13543621
                                                              # 005
                                                              MPN: 102704
                                                              CENTERING DOWEL
                                                              from £1.77
                                                              from £1.77
                                                              This part replaces part number 500805
                                                              # 006
                                                              MPN: 162306
                                                              GEAR BOX 2ND ELEMENT
                                                              - With the complete gearbox 172617
                                                              # 007
                                                              MPN: 16100814
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 16100811 - and 1 more. Click to view details
                                                              # 008
                                                              MPN: 12601374
                                                              WASHER
                                                              from £0.52
                                                              from £0.52
                                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                                              # 009
                                                              MPN: 16100814
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 16100811 - and 1 more. Click to view details
                                                              # 010
                                                              MPN: 12601374
                                                              WASHER
                                                              from £0.52
                                                              from £0.52
                                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                                              # 011
                                                              MPN: 162308
                                                              GEAR BOX 1ST ELEMENT
                                                              - With the complete gearbox 172617
                                                              Supersession
                                                              Supersession
                                                              # 012
                                                              MPN: 162311
                                                              GASKET
                                                              from £10.32
                                                              from £10.32
                                                              # 013
                                                              MPN: 131757
                                                              BUSHING
                                                              from £3.63
                                                              from £3.63
                                                              # 014
                                                              MPN: 14305724
                                                              SCREW
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 11567624 - and 2 more. Click to view details
                                                              # 015
                                                              MPN: 10569273
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 016
                                                              MPN: 10275011
                                                              PLUG
                                                              from £1.08
                                                              from £1.08
                                                              This part replaces part number 10275001 - and 3 more. Click to view details
                                                              # 017
                                                              MPN: 10263460
                                                              GASKET
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 95119
                                                              # 018
                                                              MPN: 13543424
                                                              STUD
                                                              from £1.04
                                                              from £1.04
                                                              This part replaces part number 13543421
                                                              # 019
                                                              MPN: 13543624
                                                              STUD
                                                              from £0.51
                                                              from £0.51
                                                              This part replaces part number 13543621
                                                              # 020
                                                              MPN: 102704
                                                              CENTERING DOWEL
                                                              from £1.77
                                                              from £1.77
                                                              This part replaces part number 500805
                                                              # 021
                                                              MPN: 13546334
                                                              STUD
                                                              from £0.61
                                                              from £0.61
                                                              This part replaces part number 13546331
                                                              # 022
                                                              MPN: 157010
                                                              BUSHING
                                                              from £5.34
                                                              from £5.34
                                                              # 023
                                                              MPN: 12601374
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 10615474 - and 6 more. Click to view details
                                                              # 024
                                                              MPN: 16100814
                                                              NUT
                                                              from £0.71
                                                              from £0.71
                                                              This part replaces part number 16100811 - and 1 more. Click to view details
                                                              # 025
                                                              MPN: 112254
                                                              THREADED INSERT
                                                              from £2.41
                                                              from £2.41
                                                              # 026
                                                              MPN: 14159470
                                                              PIN
                                                              from £2.85
                                                              from £2.85
                                                              # 027
                                                              MPN: 104280
                                                              OIL OUTLET PLUG
                                                              from £4.95
                                                              from £4.95
                                                              This part replaces part number 523977
                                                              # 028
                                                              MPN: 10263460
                                                              GASKET
                                                              from £0.53
                                                              from £0.53
                                                              This part replaces part number 95119
                                                              # 029
                                                              MPN: 157009
                                                              BUSHING
                                                              from £4.48
                                                              from £4.48
                                                              # 030
                                                              MPN: 14305724
                                                              SCREW
                                                              from £0.54
                                                              from £0.54
                                                              This part replaces part number 11567624 - and 2 more. Click to view details
                                                              # 031
                                                              MPN: 10569273
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 032
                                                              MPN: 13547334
                                                              STUD
                                                              from £3.67
                                                              from £3.67
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
