034 - Inside Gearbox Controls

Ferrari 550 Maranello Inside Gearbox Controls Parts Diagram

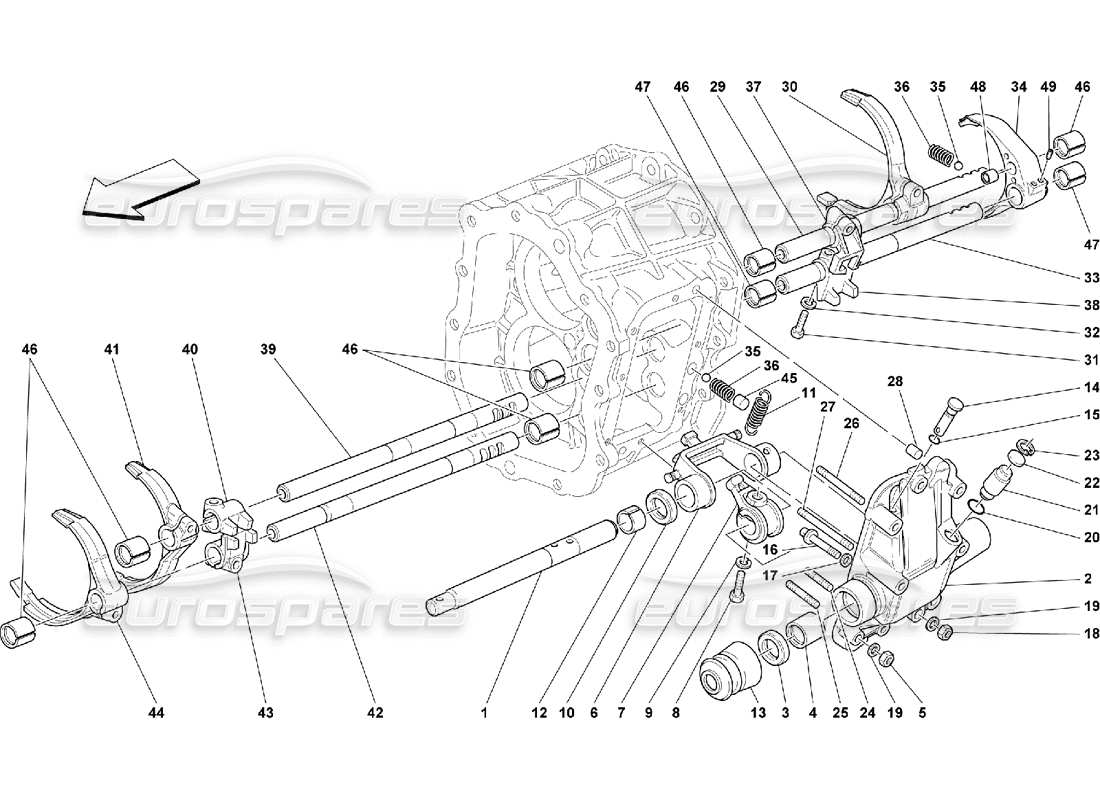

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 146224
                                                                                        CONTROL ROD FOR GEARBOX
                                                                                        from £47.81
                                                                                        from £47.81
                                                                                        # 002
                                                                                        MPN: 153697
                                                                                        INSIDE GEARBOX CONTROLS COVER
                                                                                        from £5,605.24
                                                                                        from £5,605.24
                                                                                        # 003
                                                                                        MPN: 146306
                                                                                        GASKET
                                                                                        from £1.67
                                                                                        from £1.67
                                                                                        # 004
                                                                                        MPN: 149907
                                                                                        BUSHING
                                                                                        from £19.42
                                                                                        from £19.42
                                                                                        This part replaces part number 143775 - and 1 more. Click to view details
                                                                                        # 005
                                                                                        MPN: 15896214
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 15896211
                                                                                        # 006
                                                                                        MPN: 157623
                                                                                        ROCKER
                                                                                        from £204.76
                                                                                        from £204.76
                                                                                        # 007
                                                                                        MPN: 157624
                                                                                        SMALL LEVER
                                                                                        - Valid till stock exhaustion
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 007
                                                                                        MPN: 171832
                                                                                        SMALL LEVER
                                                                                        - Valid after stock exhaustion of 157624
                                                                                        from £65.51
                                                                                        from £65.51
                                                                                        This part replaces part number 157624
                                                                                        # 008
                                                                                        MPN: 11306934
                                                                                        SCREW
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 11306921
                                                                                        # 009
                                                                                        MPN: 127497
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                        # 010
                                                                                        MPN: 147346
                                                                                        WASHER
                                                                                        from £3.09
                                                                                        from £3.09
                                                                                        # 011
                                                                                        MPN: 150737
                                                                                        SPRING
                                                                                        from £57.33
                                                                                        from £57.33
                                                                                        # 012
                                                                                        MPN: 103226
                                                                                        BUSHING
                                                                                        from £2.48
                                                                                        from £2.48
                                                                                        # 013
                                                                                        MPN: 147572
                                                                                        RUBBER BOOT
                                                                                        from £79.05
                                                                                        from £79.05
                                                                                        # 014
                                                                                        MPN: 154714
                                                                                        PIN
                                                                                        from £66.50
                                                                                        from £66.50
                                                                                        # 015
                                                                                        MPN: 132934
                                                                                        GASKET
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 016
                                                                                        MPN: 150692
                                                                                        PIN
                                                                                        from £8.02
                                                                                        from £8.02
                                                                                        # 017
                                                                                        MPN: 10297760
                                                                                        GASKET
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 018
                                                                                        MPN: 10720111
                                                                                        NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        # 019
                                                                                        MPN: 12601274
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                        # 020
                                                                                        MPN: 134232
                                                                                        O.R. GASKET
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        This part replaces part number 153718 which we have in stock
                                                                                        # 021
                                                                                        MPN: 153719
                                                                                        PIN
                                                                                        from £15.14
                                                                                        from £15.14
                                                                                        # 022
                                                                                        MPN: 154698
                                                                                        PAD
                                                                                        from £2.08
                                                                                        from £2.08
                                                                                        This part replaces part number 153709
                                                                                        # 023
                                                                                        MPN: 11057476
                                                                                        STOP RING
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 024
                                                                                        MPN: 13541224
                                                                                        STUD
                                                                                        from £37.51
                                                                                        from £37.51
                                                                                        This part replaces part number 13541221
                                                                                        # 025
                                                                                        MPN: 13541524
                                                                                        STUD
                                                                                        from £0.95
                                                                                        from £0.95
                                                                                        This part replaces part number 13541521
                                                                                        # 026
                                                                                        MPN: 13541624
                                                                                        STUD
                                                                                        from £8.22
                                                                                        from £8.22
                                                                                        This part replaces part number 13541621
                                                                                        # 027
                                                                                        MPN: 13542024
                                                                                        STUD
                                                                                        from £15.41
                                                                                        from £15.41
                                                                                        This part replaces part number 13542021
                                                                                        # 028
                                                                                        MPN: 125717
                                                                                        CENTERING DOWEL
                                                                                        from £1.66
                                                                                        from £1.66
                                                                                        # 029
                                                                                        MPN: 159676
                                                                                        CONTROL ROD FOR REVERSE
                                                                                        from £304.17
                                                                                        from £304.17
                                                                                        # 030
                                                                                        MPN: 159854
                                                                                        CONTROL FORK FOR REVERSE
                                                                                        from £84.77
                                                                                        from £84.77
                                                                                        # 031
                                                                                        MPN: 16043634
                                                                                        SCREW - L. 25
                                                                                        from £0.49
                                                                                        from £0.49
                                                                                        # 031
                                                                                        MPN: 176212
                                                                                        SCREW - L. 22
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 032
                                                                                        MPN: 127496
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                        # 033
                                                                                        MPN: 159530
                                                                                        ROD FOR 1ST AND 2ND GEAR
                                                                                        from £54.81
                                                                                        from £54.81
                                                                                        # 034
                                                                                        MPN: 181952
                                                                                        CONTROL FORK FOR 1ST AND 2ND GEAR
                                                                                        from £242.23
                                                                                        from £242.23
                                                                                        This part replaces part number 159110 - and 1 more. Click to view details
                                                                                        # 035
                                                                                        MPN: 101612
                                                                                        BALL
                                                                                        from £0.74
                                                                                        from £0.74
                                                                                        This part replaces part number 93309
                                                                                        # 036
                                                                                        MPN: 100750
                                                                                        SPRING
                                                                                        from £1.05
                                                                                        from £1.05
                                                                                        This part replaces part number 523899
                                                                                        # 037
                                                                                        MPN: 171827
                                                                                        ROD FORK REVERSE GEAR
                                                                                        from £69.95
                                                                                        from £69.95
                                                                                        This part replaces part number 157622
                                                                                        # 037
                                                                                        MPN: 171827
                                                                                        ROD FORK REVERSE GEAR
                                                                                        - Valid after stock exhaustion of 157622
                                                                                        from £69.95
                                                                                        from £69.95
                                                                                        This part replaces part number 157622
                                                                                        # 038
                                                                                        MPN: 157629
                                                                                        ROD FORK FOR 1ST AND 2ND GEAR
                                                                                        - Valid till stock exhaustion
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 038
                                                                                        MPN: 171828
                                                                                        ROD FORK FOR 1ST AND 2ND GEAR
                                                                                        - Valid after stock exhaustion of 157629
                                                                                        from £51.74
                                                                                        from £51.74
                                                                                        This part replaces part number 157268 - and 1 more. Click to view details
                                                                                        # 039
                                                                                        MPN: 158051
                                                                                        ROD FOR 3RD AND 4TH GEAR
                                                                                        from £66.61
                                                                                        from £66.61
                                                                                        This part replaces part number 159716 - and 1 more. Click to view details
                                                                                        # 040
                                                                                        MPN: 145454
                                                                                        ROD FORK FOR 3RD AND 4TH GEAR
                                                                                        - Valid till stock exhaustion
                                                                                        from £23.63
                                                                                        from £23.63
                                                                                        # 040
                                                                                        MPN: 171829
                                                                                        ROD FORK FOR 3RD AND 4TH GEAR
                                                                                        - Valid after stock exhaustion of 145454
                                                                                        from £62.42
                                                                                        from £62.42
                                                                                        This part replaces part number 145454 which we have in stock
                                                                                        # 041
                                                                                        MPN: 179304
                                                                                        CONTROL FORK FOR 3RD AND 4TH GEAR
                                                                                        - Valid after stock exhaustion of 159855
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 159855
                                                                                        # 041
                                                                                        MPN: 189449
                                                                                        CONTROL FORK FOR 3RD AND 4TH GEAR
                                                                                        - Valid till stock exhaustion
                                                                                        from £275.26
                                                                                        from £275.26
                                                                                        This part replaces part number 179304
                                                                                        # 042
                                                                                        MPN: 159582
                                                                                        ROD FOR 5TH AND 6TH GEAR
                                                                                        from £19.98
                                                                                        from £19.98
                                                                                        # 043
                                                                                        MPN: 171830
                                                                                        ROD FORK FOR 5TH AND 6TH GEAR
                                                                                        from £28.46
                                                                                        from £28.46
                                                                                        This part replaces part number 145455 - and 1 more. Click to view details
                                                                                        # 043
                                                                                        MPN: 171830
                                                                                        ROD FORK FOR 5TH AND 6TH GEAR
                                                                                        - Valid after stock exhaustion of 145455
                                                                                        from £28.46
                                                                                        from £28.46
                                                                                        This part replaces part number 145455 - and 1 more. Click to view details
                                                                                        # 044
                                                                                        MPN: 159856
                                                                                        CONTROL FORK FOR 5TH AND 6TH GEAR
                                                                                        from £84.77
                                                                                        from £84.77
                                                                                        # 045
                                                                                        MPN: 150173
                                                                                        SPACER
                                                                                        from £2.74
                                                                                        from £2.74
                                                                                        # 046
                                                                                        MPN: 106500
                                                                                        BUSHING
                                                                                        from £6.16
                                                                                        from £6.16
                                                                                        # 047
                                                                                        MPN: 150093
                                                                                        BUSHING
                                                                                        from £4.47
                                                                                        from £4.47
                                                                                        This part replaces part number 150035
                                                                                        # 048
                                                                                        MPN: 112161
                                                                                        SELF-LUBRICATING BUSHING
                                                                                        from £12.06
                                                                                        from £12.06
                                                                                        # 049
                                                                                        MPN: 142245
                                                                                        SCREW
                                                                                        from £0.64
                                                                                        from £0.64
