036 - Engine-Gearbox Connecting Tube and Insulation

Ferrari 550 Maranello Engine-Gearbox Connecting Tube and Insulation Parts Diagram

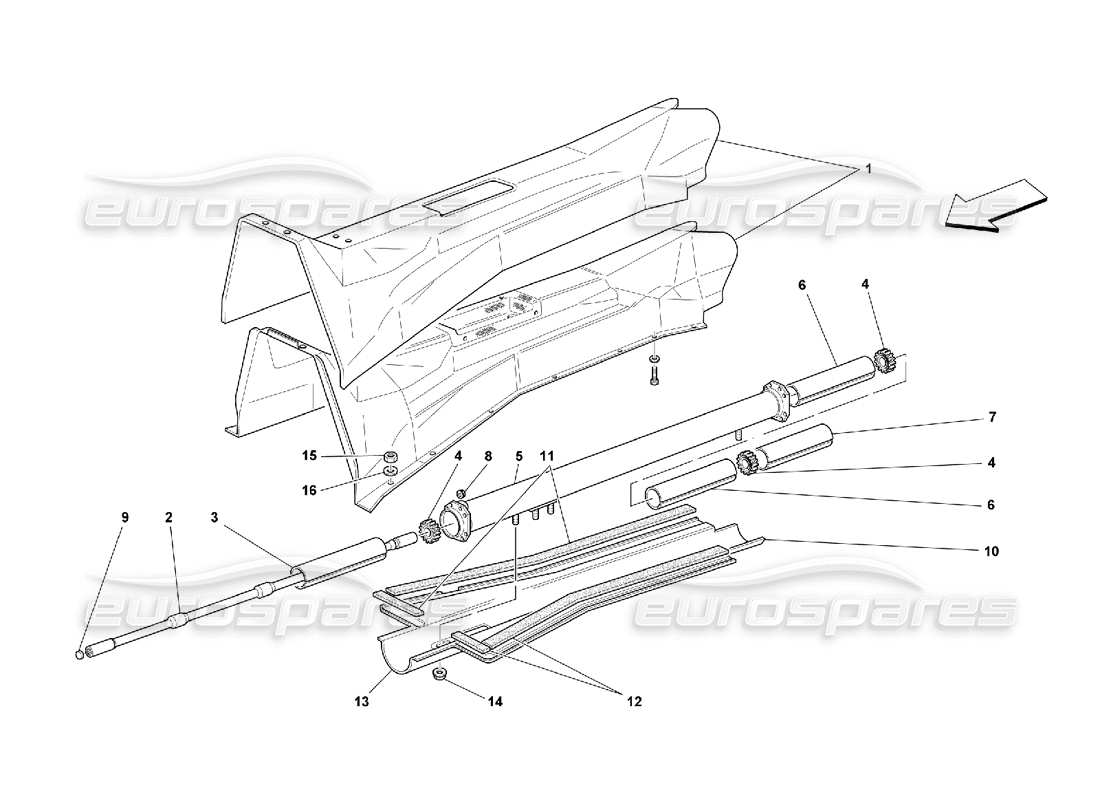

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 65193000

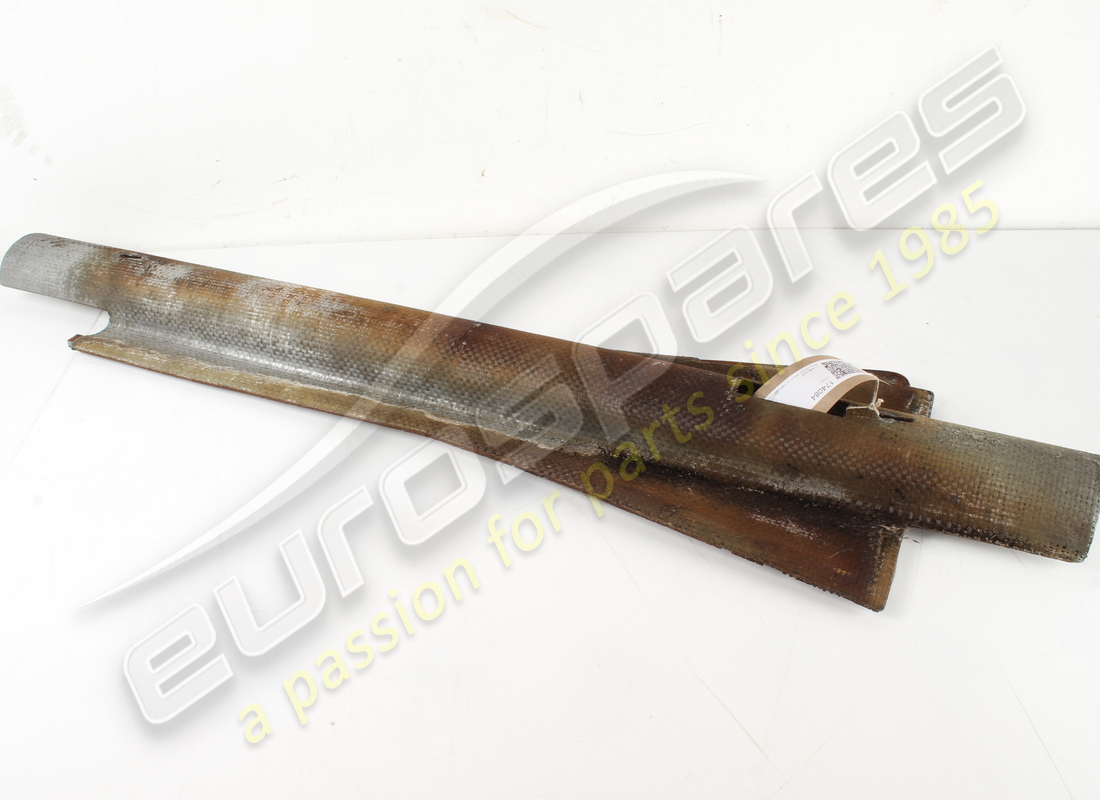

                            COMPLETE TUNNEL HEAT SHIELD
                            - Not as spare part now - Replaced by 65895100
                            Supersession
                            Supersession
                            # 001
                            MPN: 65859100
                            COMPLETE TUNNEL HEAT SHIELD
                            from £1,884.53
                            from £1,884.53
                            This part replaces part number 65193000
                            # 002
                            MPN: 169640

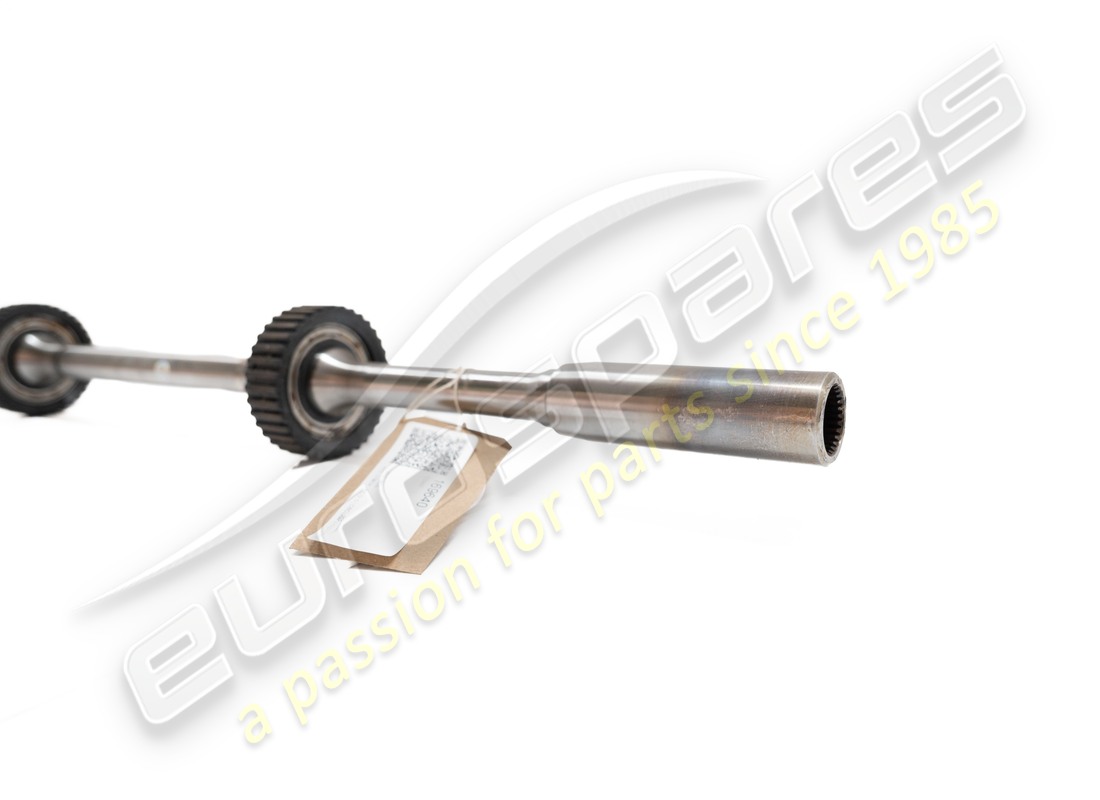

                            COMPLETE PROPELLER SHAFT
                            - Valid till gearbox N° 399
                            from £2,069.45
                            from £2,069.45
                            # 002
                            MPN: 173817
                            COMPLETE PROPELLER SHAFT
                            - Valid from gearbox N° 400
                            from £1,519.48
                            from £1,519.48
                            # 003
                            MPN: 167000
                            ENGINE SIDE SPACER
                            from £90.90
                            from £90.90
                            # 004
                            MPN: 166569
                            BEARING
                            from £50.92
                            from £50.92
                            # 005
                            MPN: 170076
                            ENGINE-GEARBOX CONNECTING PIPE
                            Supersession
                            Supersession
                            # 006
                            MPN: 166998
                            INTERMEDIATE SPACER
                            from £55.73
                            from £55.73
                            # 007
                            MPN: 166999
                            GEARBOX SIDE SPACER
                            from £181.94
                            from £181.94
                            # 009
                            MPN: 144443
                            SPACER
                            from £2.11
                            from £2.11
                            # 010
                            MPN: 169790
                            SHIELD FOR PIPE PROTECTION
                            - Valid till Ass. N° 24598
                            Supersession
                            Supersession
                            # 010
                            MPN: 174084
                            SHIELD FOR PIPE PROTECTION
                            - Valid from Ass. N° 24599
                            Supersession
                            Supersession
                            This part replaces part number 169790
                            # 011
                            MPN: 167499
                            RH GASKET
                            Supersession
                            Supersession
                            # 012
                            MPN: 172910
                            LH GASKET
                            from £73.56
                            from £73.56
                            # 013
                            MPN: 172911
                            FRONT GASKET
                            from £47.70
                            from £47.70
                            # 014
                            MPN: 14058411
                            NUT
                            from £0.47
                            from £0.47
                            # 015
                            MPN: 13046011
                            NUT
                            from £0.47
                            from £0.47
                            # 016
                            MPN: 12640624
                            WASHER
                            from £0.47
                            from £0.47
                            This part replaces part number 12640601 - and 1 more. Click to view details
