043 - Caliper for Front Brake

Ferrari 550 Maranello Caliper for Front Brake Parts Diagram

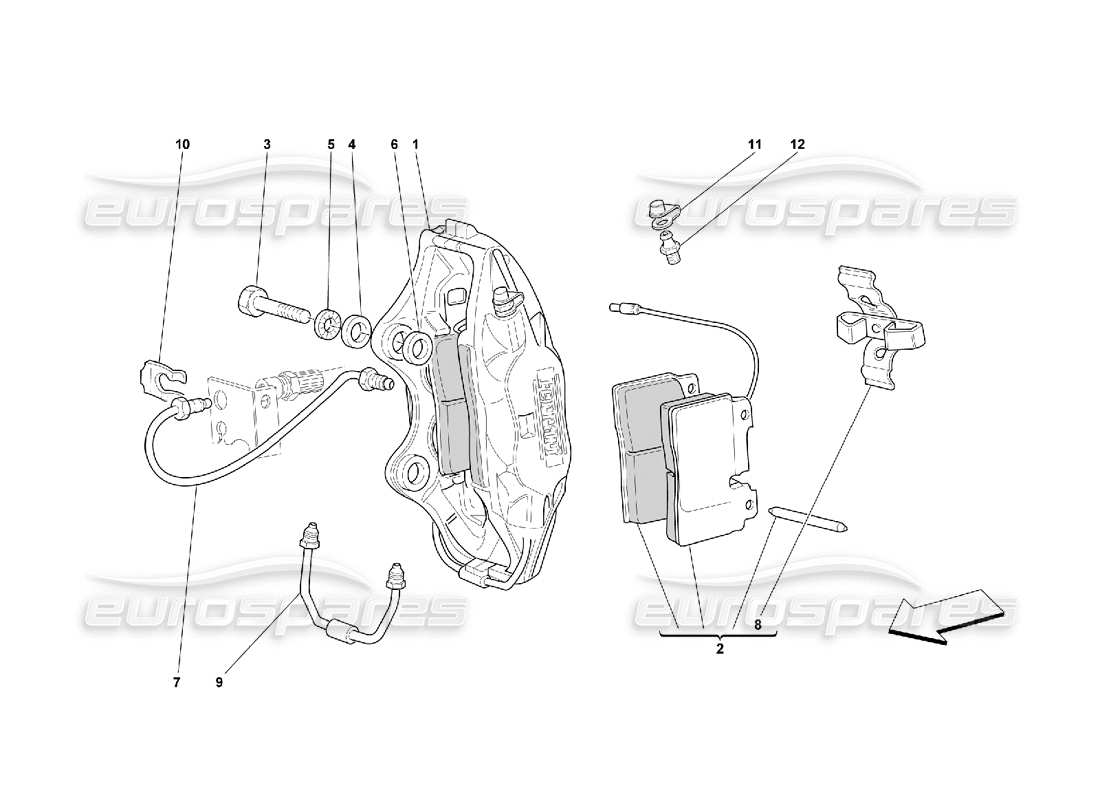

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 165678

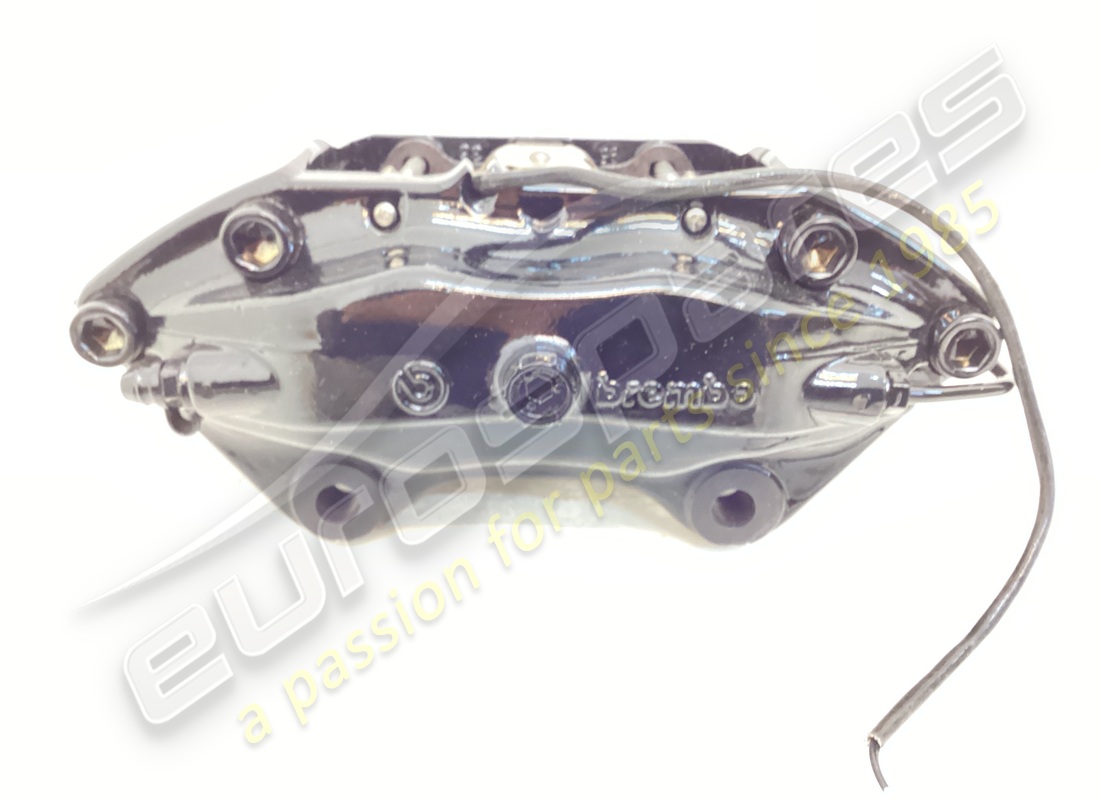

                      RH FRONT CALIPER UNIT WITH PADS
                      - Not for cars with handling Fiorano equipment
                      from £1,233.05
                      from £1,233.05
                      # 001
                      MPN: 165679
                      LH FRONT CALIPER UNIT WITH PADS
                      - Not for cars with handling Fiorano equipment
                      from £906.29
                      from £906.29
                      # 001
                      MPN: 175547
                      RH FRONT CALIPER UNIT
                      - Red - Not for cars with handling Fiorano equipment
                      from £748.58
                      from £748.58
                      # 001
                      MPN: 175548
                      LH FRONT CALIPER UNIT
                      - Red - Not for cars with handling Fiorano equipment
                      from £748.58
                      from £748.58
                      # 001
                      MPN: 175551
                      RH FRONT CALIPER UNIT WITH PADS
                      - Gold - Not for cars with handling Fiorano equipment
                      from £1,163.97
                      from £1,163.97
                      # 001
                      MPN: 175552
                      LH FRONT CALIPER UNIT WITH PADS
                      - Gold - Not for cars with handling Fiorano equipment
                      from £1,222.17
                      from £1,222.17
                      # 001
                      MPN: 175939
                      RH FRONT CALIPER UNIT WITH PADS
                      - Red - Valid for cars with handling Fiorano equipment - Optional
                      from £1,872.11
                      from £1,872.11
                      # 001
                      MPN: 175940
                      LH FRONT CALIPER UNIT WITH PADS
                      - Red - Valid for cars with handling Fiorano equipment - Optional
                      from £1,872.11
                      from £1,872.11
                      # 001
                      MPN: 176314
                      RH FRONT CALIPER UNIT WITH PADS
                      - Grey - Not for cars with handling Fiorano equipment
                      from £886.92
                      from £886.92
                      # 001
                      MPN: 176315
                      LH FRONT CALIPER UNIT WITH PADS
                      - Grey - Not for cars with handling Fiorano equipment
                      from £886.92
                      from £886.92
                      # 001
                      MPN: 186228
                      RH FRONT CALIPER UNIT WITH PADS
                      - Black - Valid for cars with handling Fiorano equipment - Optional
                      from £891.06
                      from £891.06
                      # 001
                      MPN: 186229
                      LH FRONT CALIPER UNIT WITH PADS
                      - Black - Valid for cars with handling Fiorano equipment - Optional
                      from £891.06
                      from £891.06
                      # 001
                      MPN: 186232
                      RH FRONT CALIPER UNIT WITH PADS
                      - Gold - Valid for cars with handling Fiorano equipment - Optional
                      # 001
                      MPN: 186236
                      LH FRONT CALIPER UNIT WITH PADS
                      - Gold - Valid for cars with handling Fiorano equipment - Optional
                      # 001
                      MPN: 186240
                      RH FRONT CALIPER UNIT WITH PADS
                      - Grey - Valid for cars with handling Fiorano equipment - Optional
                      from £748.58
                      from £748.58
                      # 001
                      MPN: 186241
                      LH FRONT CALIPER UNIT WITH PADS
                      - Grey - Valid for cars with handling Fiorano equipment - Optional
                      from £748.58
                      from £748.58
                      # 002
                      MPN: 70000885

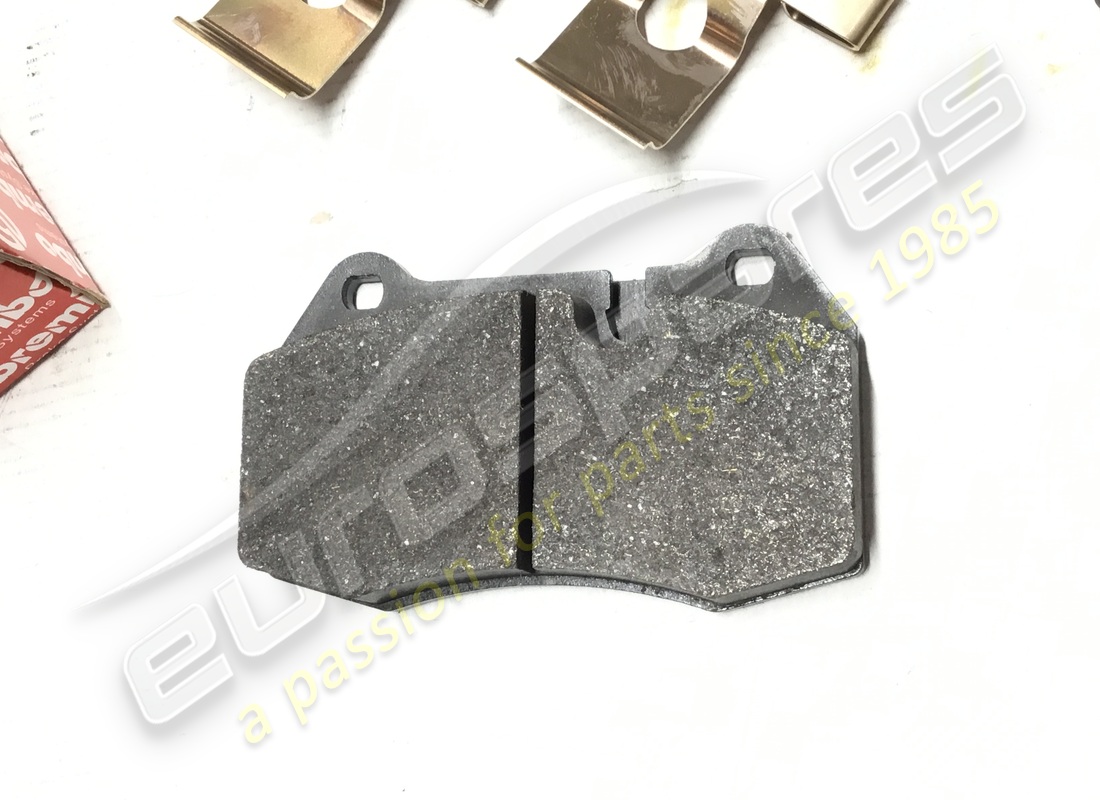

                      KIT OF FRONT PADS WITH SPRING
                      - Not for cars with handling Fiorano equipment
                      from £59.85
                      from £59.85
                      # 002
                      MPN: 70000912
                      KIT OF FRONT PADS WITH SPRING
                      Use on Exhaustion of 70000952 - Valid for cars with handling Fiorano equipment - Optional
                      from £1,758.81
                      from £1,758.81
                      This part replaces part number 70000952
                      # 002
                      MPN: 70000952
                      KIT OF FRONT PADS WITH SPRING
                      - Valid for cars with handling Fiorano equipment - Optional
                      Supersession
                      Supersession
                      # 003
                      MPN: 174214
                      SCREW
                      from £1.30
                      from £1.30
                      This part replaces part number 132213 which we have in stock - and 3 more. Click to view details
                      # 004
                      MPN: 106616
                      WASHER
                      from £0.76
                      from £0.76
                      # 005
                      MPN: 10615874
                      WASHER
                      from £0.47
                      from £0.47
                      This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
                      # 006
                      MPN: 156260
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.2
                      from £0.64
                      from £0.64
                      This part replaces part number 108918
                      # 006
                      MPN: 156261
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.3
                      from £2.97
                      from £2.97
                      This part replaces part number 108919
                      # 006
                      MPN: 156262
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.5
                      from £0.64
                      from £0.64
                      This part replaces part number 108920
                      # 006
                      MPN: 156263
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.6
                      from £0.65
                      from £0.65
                      This part replaces part number 108921
                      # 006
                      MPN: 156264
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.7
                      from £0.68
                      from £0.68
                      This part replaces part number 108922
                      # 006
                      MPN: 156265
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 0.8
                      from £1.56
                      from £1.56
                      This part replaces part number 108923
                      # 006
                      MPN: 156266
                      THRUST WASHER BETWEEN CALIPER AND SPINDLE, TH. MM. 1.0
                      from £0.64
                      from £0.64
                      This part replaces part number 108924
                      # 007
                      MPN: 163151
                      PIPE LH FRONT CALIPER
                      Supersession
                      Supersession
                      # 007
                      MPN: 212528
                      PIPE RH FRONT CALIPER
                      from £65.93
                      from £65.93
                      This part replaces part number 163150
                      # 008
                      MPN: 172348
                      SPRING
                      from £18.79
                      from £18.79
                      # 009
                      MPN: 172868
                      CONNECTION PIPE
                      from £31.27
                      from £31.27
                      # 010
                      MPN: 116374
                      CLIP
                      from £1.19
                      from £1.19
                      # 011
                      MPN: 152955
                      PROTECTION BOOT
                      from £2.95
                      from £2.95
                      # 012
                      MPN: 152954
                      UNION WITH EXHAUST VALVE
                      from £3.18
                      from £3.18
