045 - Hand-Brake Control

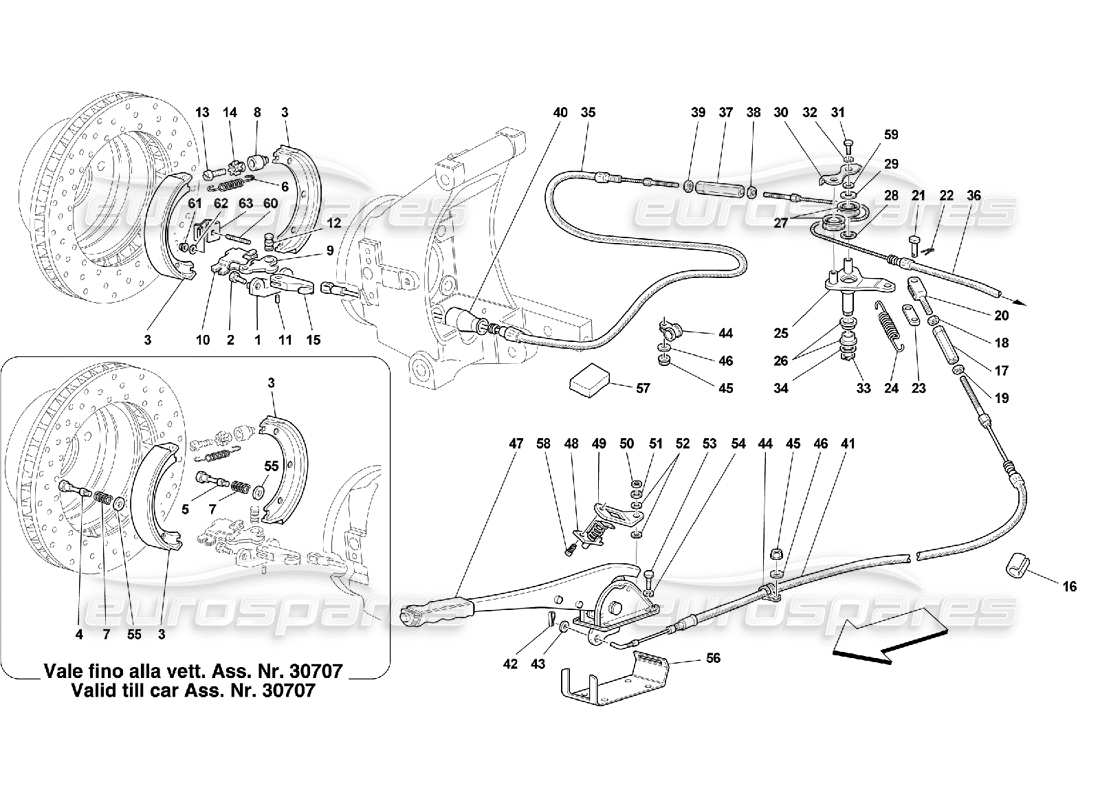

Ferrari 550 Maranello Hand-Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 142861
                                                                                                  SMALL BLOCK
                                                                                                  from £147.71
                                                                                                  from £147.71
                                                                                                  # 002
                                                                                                  MPN: 142856
                                                                                                  SCREW
                                                                                                  from £3.01
                                                                                                  from £3.01
                                                                                                  # 003
                                                                                                  MPN: 170701
                                                                                                  COMPLETE BRAKE SHOE
                                                                                                  from £31.61
                                                                                                  from £31.61
                                                                                                  This part replaces part number 162820
                                                                                                  # 003
                                                                                                  MPN: 170701/A
                                                                                                  COMPLETE BRAKE SHOES
                                                                                                  from £77.85
                                                                                                  from £77.85
                                                                                                  This part replaces part number 178382
                                                                                                  # 003
                                                                                                  MPN: 178382
                                                                                                  COMPLETE BRAKE SHOE
                                                                                                  use part number: 170701
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 004
                                                                                                  MPN: 156915
                                                                                                  SCREW
                                                                                                  - Valid till car Ass. Nr. 30707
                                                                                                  from £84.35
                                                                                                  from £84.35
                                                                                                  # 005
                                                                                                  MPN: 156916
                                                                                                  SCREW
                                                                                                  - Valid till car Ass. Nr. 30707
                                                                                                  from £56.32
                                                                                                  from £56.32
                                                                                                  # 006
                                                                                                  MPN: 101276
                                                                                                  SPRING
                                                                                                  from £2.28
                                                                                                  from £2.28
                                                                                                  This part replaces part number 680516 - and 5 more. Click to view details
                                                                                                  # 007
                                                                                                  MPN: 101277
                                                                                                  SPRING
                                                                                                  - Valid till car Ass. Nr. 30707
                                                                                                  from £2.39
                                                                                                  from £2.39
                                                                                                  This part replaces part number 680517
                                                                                                  # 008
                                                                                                  MPN: 101279
                                                                                                  SCREW SEAT
                                                                                                  from £31.50
                                                                                                  from £31.50
                                                                                                  # 009
                                                                                                  MPN: 101280
                                                                                                  INNER LEVER
                                                                                                  from £26.09
                                                                                                  from £26.09
                                                                                                  This part replaces part number 680538 - and 6 more. Click to view details
                                                                                                  # 010
                                                                                                  MPN: 101281
                                                                                                  OUTER LEVER
                                                                                                  from £34.13
                                                                                                  from £34.13
                                                                                                  This part replaces part number 680539 - and 7 more. Click to view details
                                                                                                  # 011
                                                                                                  MPN: 101282
                                                                                                  PIN
                                                                                                  from £8.00
                                                                                                  from £8.00
                                                                                                  This part replaces part number 680540
                                                                                                  # 012
                                                                                                  MPN: 101283
                                                                                                  PIN
                                                                                                  from £8.82
                                                                                                  from £8.82
                                                                                                  This part replaces part number 680541 - and 1 more. Click to view details
                                                                                                  # 013
                                                                                                  MPN: 101285
                                                                                                  SCREW
                                                                                                  from £17.70
                                                                                                  from £17.70
                                                                                                  This part replaces part number 680543 - and 9 more. Click to view details
                                                                                                  # 014
                                                                                                  MPN: 101286
                                                                                                  NUT
                                                                                                  from £21.62
                                                                                                  from £21.62
                                                                                                  This part replaces part number 680544 - and 5 more. Click to view details
                                                                                                  # 015
                                                                                                  MPN: 105270
                                                                                                  FORK
                                                                                                  from £14.71
                                                                                                  from £14.71
                                                                                                  # 016
                                                                                                  MPN: 152913
                                                                                                  RUBBER PIPE
                                                                                                  from £23.81
                                                                                                  from £23.81
                                                                                                  # 017
                                                                                                  MPN: 152302
                                                                                                  ADJUSTMENT SLEEVE
                                                                                                  from £7.97
                                                                                                  from £7.97
                                                                                                  # 018
                                                                                                  MPN: 16102914
                                                                                                  NUT
                                                                                                  from £1.63
                                                                                                  from £1.63
                                                                                                  This part replaces part number 16102911
                                                                                                  # 019
                                                                                                  MPN: 16102314
                                                                                                  NUT
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                  # 020
                                                                                                  MPN: 152301
                                                                                                  FORK
                                                                                                  from £24.40
                                                                                                  from £24.40
                                                                                                  # 021
                                                                                                  MPN: 10050811
                                                                                                  PIN
                                                                                                  from £5.22
                                                                                                  from £5.22
                                                                                                  This part replaces part number 10050810
                                                                                                  # 022
                                                                                                  MPN: 10734201
                                                                                                  SPLIT PIN
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 023
                                                                                                  MPN: 152303
                                                                                                  SMALL PLATE
                                                                                                  from £13.91
                                                                                                  from £13.91
                                                                                                  # 025
                                                                                                  MPN: 152279
                                                                                                  LEVER
                                                                                                  - Not for GD
                                                                                                  from £40.41
                                                                                                  from £40.41
                                                                                                  # 025
                                                                                                  MPN: 156122
                                                                                                  LEVER
                                                                                                  - Valid for GD
                                                                                                  from £57.75
                                                                                                  from £57.75
                                                                                                  # 026
                                                                                                  MPN: 152273
                                                                                                  BUSHING
                                                                                                  from £5.39
                                                                                                  from £5.39
                                                                                                  # 027
                                                                                                  MPN: 152274
                                                                                                  PULLEY
                                                                                                  - Valid till stock exhaustion
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 027
                                                                                                  MPN: 175780
                                                                                                  PULLEY
                                                                                                  - Valid after stock exhaustion of 152274
                                                                                                  from £6.91
                                                                                                  from £6.91
                                                                                                  This part replaces part number 152274
                                                                                                  # 028
                                                                                                  MPN: 152617
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 029
                                                                                                  MPN: 109483
                                                                                                  WASHER
                                                                                                  from £1.24
                                                                                                  from £1.24
                                                                                                  # 030
                                                                                                  MPN: 152299
                                                                                                  SMALL PLATE
                                                                                                  - Not for GD
                                                                                                  from £4.12
                                                                                                  from £4.12
                                                                                                  # 030
                                                                                                  MPN: 158694
                                                                                                  SMALL PLATE
                                                                                                  - Valid for GD
                                                                                                  from £5.88
                                                                                                  from £5.88
                                                                                                  # 031
                                                                                                  MPN: 10977524
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 032
                                                                                                  MPN: 11193274
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 11193279 which we have in stock
                                                                                                  # 033
                                                                                                  MPN: 11066476

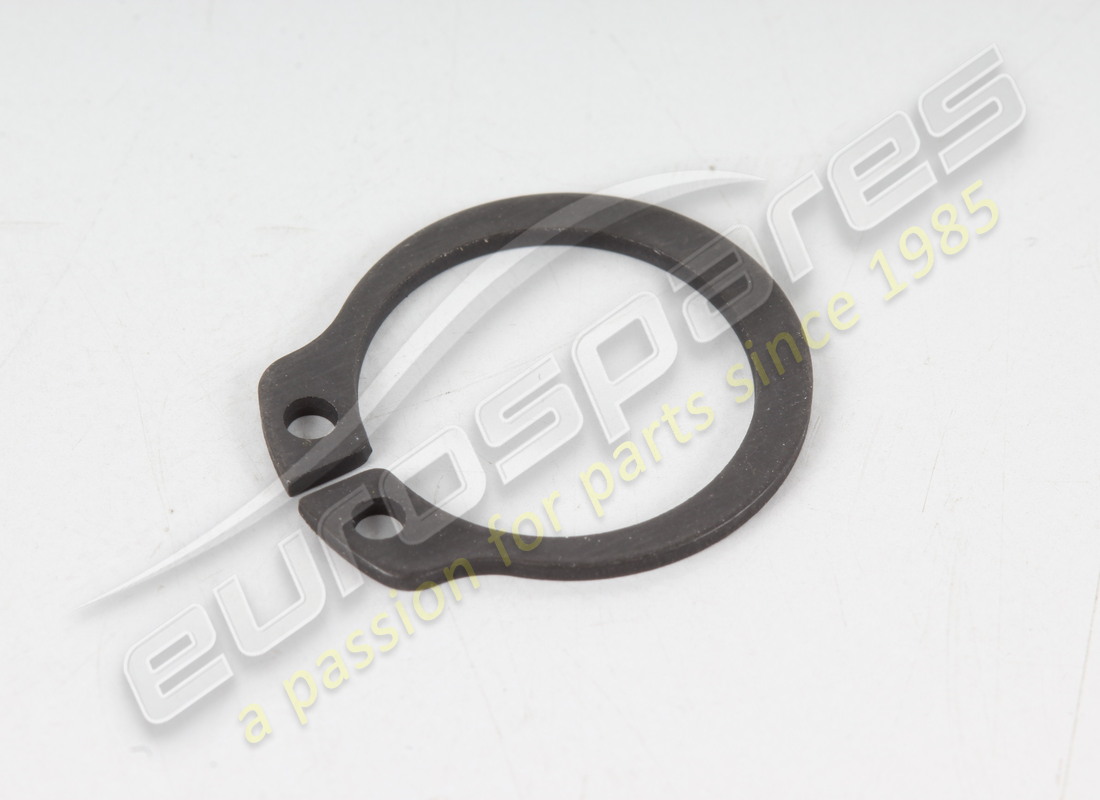

                                                                                                  SEEGER RING
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 034
                                                                                                  MPN: 152300
                                                                                                  WASHER
                                                                                                  from £0.92
                                                                                                  from £0.92
                                                                                                  # 035
                                                                                                  MPN: 152297
                                                                                                  RH REAR CABLE
                                                                                                  from £116.64
                                                                                                  from £116.64
                                                                                                  # 036
                                                                                                  MPN: 152298
                                                                                                  LH REAR CABLE
                                                                                                  from £116.64
                                                                                                  from £116.64
                                                                                                  # 037
                                                                                                  MPN: 10091014
                                                                                                  SLEEVE
                                                                                                  from £45.00
                                                                                                  from £45.00
                                                                                                  This part replaces part number 10091011 - and 1 more. Click to view details
                                                                                                  # 038
                                                                                                  MPN: 10727311
                                                                                                  NUT
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 95560
                                                                                                  # 039
                                                                                                  MPN: 10725914
                                                                                                  NUT
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  This part replaces part number 10725911 - and 1 more. Click to view details
                                                                                                  # 040
                                                                                                  MPN: 143938
                                                                                                  STOP LIMIT FOR HAND BRAKE SHEATH
                                                                                                  from £16.31
                                                                                                  from £16.31
                                                                                                  # 041
                                                                                                  MPN: 164021
                                                                                                  HAND-BRAKE CONTROL CABLE
                                                                                                  from £151.20
                                                                                                  from £151.20
                                                                                                  # 042
                                                                                                  MPN: 10796440
                                                                                                  SPLIT PIN
                                                                                                  from £0.71
                                                                                                  from £0.71
                                                                                                  This part replaces part number 10796401 - and 1 more. Click to view details
                                                                                                  # 043
                                                                                                  MPN: 10519624
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                  # 044
                                                                                                  MPN: 10441290
                                                                                                  BRACKET WITH SHEATH
                                                                                                  from £0.50
                                                                                                  from £0.50
                                                                                                  # 045
                                                                                                  MPN: 102741
                                                                                                  NUT
                                                                                                  from £0.52
                                                                                                  from £0.52
                                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                  # 046
                                                                                                  MPN: 12639724
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                  # 047
                                                                                                  MPN: 154095
                                                                                                  HAND BRAKE LEVER
                                                                                                  - Without lining
                                                                                                  from £241.21
                                                                                                  from £241.21
                                                                                                  This part replaces part number 141460 - and 2 more. Click to view details
                                                                                                  # 047
                                                                                                  MPN: 629965..
                                                                                                  LINING
                                                                                                  - See relevant table for leather colours
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 049
                                                                                                  MPN: 169291
                                                                                                  SUPPORT BRACKET
                                                                                                  from £1.55
                                                                                                  from £1.55
                                                                                                  # 050
                                                                                                  MPN: 15896470
                                                                                                  NUT
                                                                                                  (minimum order quantity = 20)
                                                                                                  from £0.77
                                                                                                  from £0.77
                                                                                                  This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                  # 051
                                                                                                  MPN: 12605274
                                                                                                  WASHER
                                                                                                  from £0.71
                                                                                                  from £0.71
                                                                                                  This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                                  # 052
                                                                                                  MPN: 63622400
                                                                                                  WASHER
                                                                                                  from £24.35
                                                                                                  from £24.35
                                                                                                  # 053
                                                                                                  MPN: 10902124
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                  # 054
                                                                                                  MPN: 127494
                                                                                                  WASHER
                                                                                                  (minimum order quantity = 20)
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                  # 055
                                                                                                  MPN: 12625224
                                                                                                  WASHER
                                                                                                  - Valid till car Ass. Nr. 30707
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12625201 - and 2 more. Click to view details
                                                                                                  # 056
                                                                                                  MPN: 64051200
                                                                                                  SUPPORT
                                                                                                  from £8.50
                                                                                                  from £8.50
                                                                                                  # 057
                                                                                                  MPN: 158346
                                                                                                  RUBBER THICKNESS
                                                                                                  from £0.79
                                                                                                  from £0.79
                                                                                                  # 058
                                                                                                  MPN: 15915807
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 059
                                                                                                  MPN: 62501300
                                                                                                  WASHER
                                                                                                  from £0.77
                                                                                                  from £0.77
                                                                                                  # 060
                                                                                                  MPN: 13539224
                                                                                                  STUD
                                                                                                  - Valid from car Ass. Nr. 30708
                                                                                                  from £3.79
                                                                                                  from £3.79
                                                                                                  # 061
                                                                                                  MPN: 14058314
                                                                                                  NUT
                                                                                                  - Valid from car Ass. Nr. 30708
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 062
                                                                                                  MPN: 12637824
                                                                                                  WASHER
                                                                                                  - Valid from car Ass. Nr. 30708
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                                                                  # 063
                                                                                                  MPN: 177625
                                                                                                  SPRING
                                                                                                  - Valid from car Ass. Nr. 30708
                                                                                                  from £65.63
                                                                                                  from £65.63
