Ferrari 550 Maranello Hydraulic Steering Pumps Parts Diagram

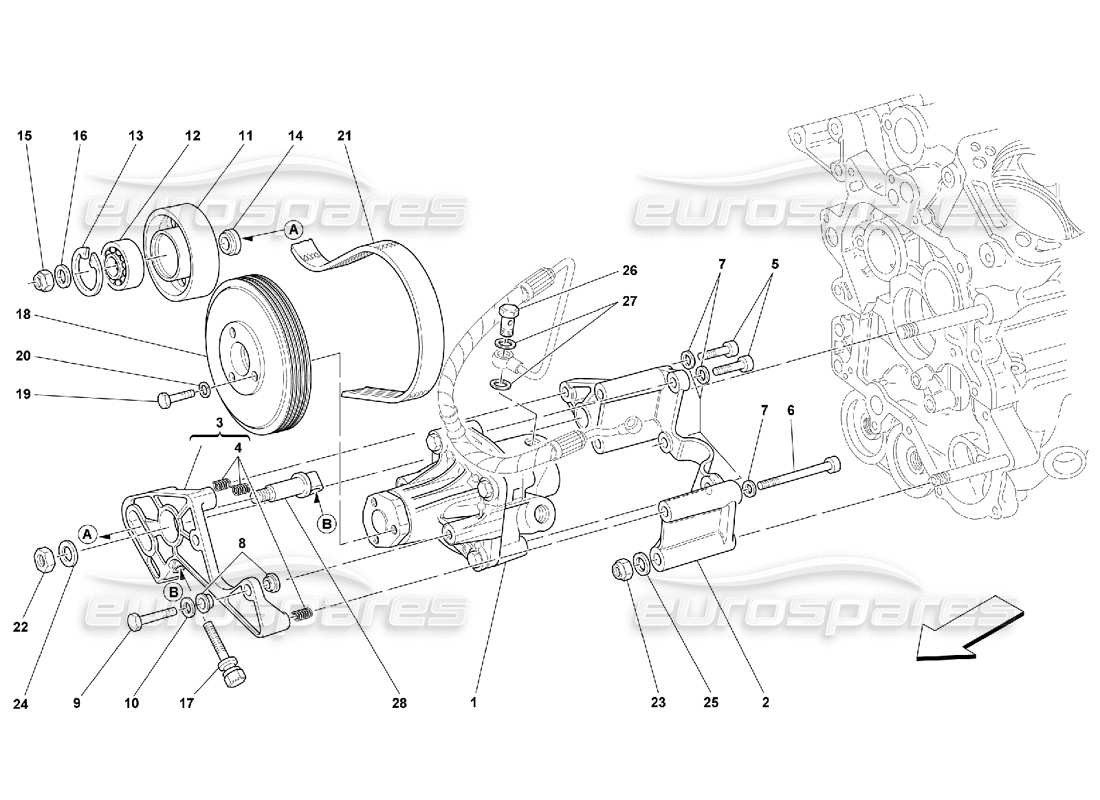

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 170751

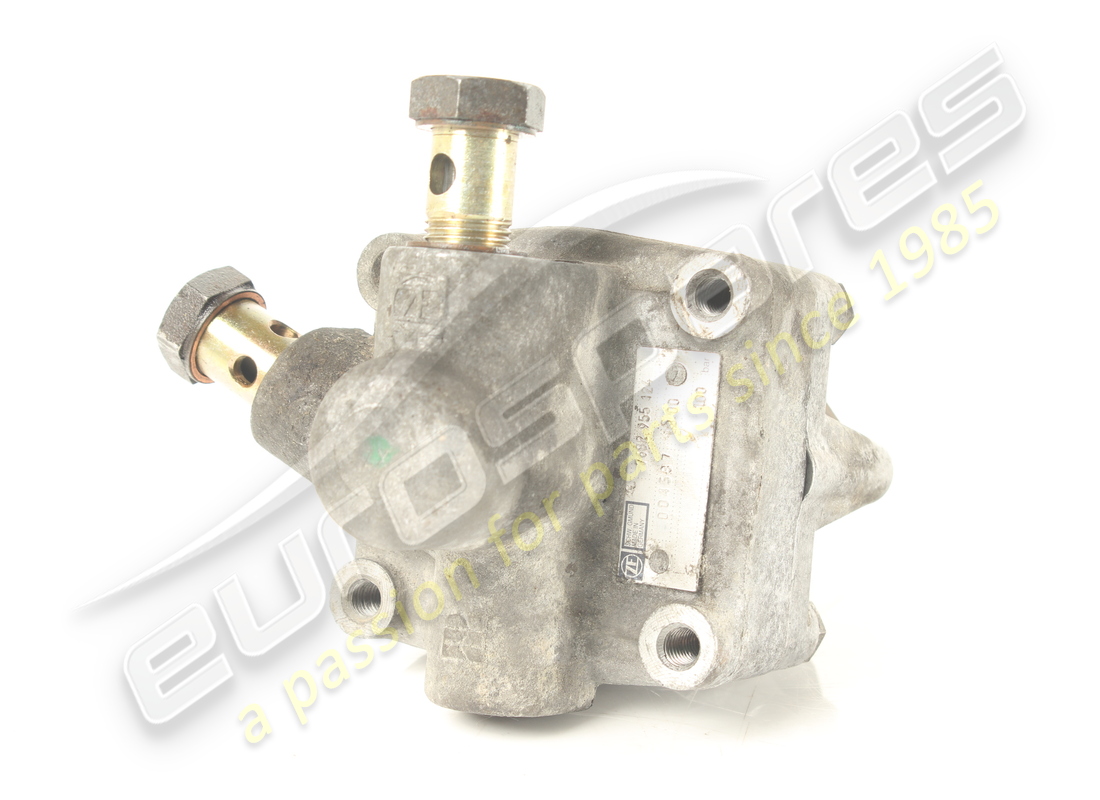

                                                        HYDRAULIC SERVO-CONTROL PUMP
                                                        from £4,081.35
                                                        from £4,081.35
                                                        # 002
                                                        MPN: 170831
                                                        INNER SUPPORT
                                                        from £428.64
                                                        from £428.64
                                                        # 003
                                                        MPN: 171271
                                                        SUPPORT WITH BELT TIGHTENER
                                                        from £189.45
                                                        from £189.45
                                                        # 004
                                                        MPN: 13525770
                                                        THREADED INSERT
                                                        from £1.54
                                                        from £1.54
                                                        This part replaces part number 103830
                                                        # 005
                                                        MPN: 14306424
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14306324 - and 2 more. Click to view details
                                                        # 006
                                                        MPN: 14307224
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 007
                                                        MPN: 11193874
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 11193879 which we have in stock
                                                        # 008
                                                        MPN: 165975
                                                        BUSHING
                                                        from £2.26
                                                        from £2.26
                                                        # 009
                                                        MPN: 16052024
                                                        SCREW
                                                        from £1.34
                                                        from £1.34
                                                        # 010
                                                        MPN: 12601374
                                                        WASHER
                                                        from £0.54
                                                        from £0.54
                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                        # 011
                                                        MPN: 148631
                                                        PULLEY
                                                        from £259.69
                                                        from £259.69
                                                        # 012
                                                        MPN: 123350
                                                        BEARING
                                                        from £20.15
                                                        from £20.15
                                                        # 013
                                                        MPN: 11060076
                                                        SEEGER RING
                                                        from £0.53
                                                        from £0.53
                                                        # 014
                                                        MPN: 148638
                                                        SPACER
                                                        from £89.21
                                                        from £89.21
                                                        # 015
                                                        MPN: 102825
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 95900617
                                                        # 016
                                                        MPN: 10730721
                                                        WASHER
                                                        Supersession
                                                        Supersession
                                                        # 017
                                                        MPN: 157289
                                                        SCREW
                                                        from £3.97
                                                        from £3.97
                                                        # 018
                                                        MPN: 165974
                                                        PULLEY
                                                        from £216.94
                                                        from £216.94
                                                        # 019
                                                        MPN: 10902124
                                                        SCREW
                                                        from £0.52
                                                        from £0.52
                                                        This part replaces part number 10902111 - and 1 more. Click to view details
                                                        # 020
                                                        MPN: 12601274
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                        # 021
                                                        MPN: 199834
                                                        Water & Power Steering Belt
                                                        Use on Exhaustion of 171093
                                                        from £15.68
                                                        from £15.68
                                                        This part replaces part number 171093
                                                        # 021
                                                        MPN: 199834
                                                        BELT FOR HYDRAULIC SERVO-CONTROL PUMP
                                                        - Valid till engine Nr. 51922
                                                        from £15.68
                                                        from £15.68
                                                        This part replaces part number 171093
                                                        # 021
                                                        MPN: 199834
                                                        BELT FOR HYDRAULIC SERVO-CONTROL PUMP
                                                        - Valid from engine Nr. 51923
                                                        from £15.68
                                                        from £15.68
                                                        This part replaces part number 171093
                                                        # 022
                                                        MPN: 148020
                                                        NUT
                                                        from £2.57
                                                        from £2.57
                                                        This part replaces part number 102825 - and 3 more. Click to view details
                                                        # 023
                                                        MPN: 102742
                                                        NUT
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12557621 - and 2 more. Click to view details
                                                        # 025
                                                        MPN: 13550401
                                                        WASHER
                                                        from £0.71
                                                        from £0.71
                                                        # 026
                                                        MPN: 10184411
                                                        UNION-VALVE
                                                        from £29.63
                                                        from £29.63
                                                        # 027
                                                        MPN: 10278660
                                                        GASKET
                                                        from £0.85
                                                        from £0.85
                                                        # 028
                                                        MPN: 153165
                                                        PIN
                                                        from £38.13
                                                        from £38.13
