ferrari 550 maranello front suspension - shock absorber and brake disc parts diagram

049 - Front Suspension - Shock Absorber and Brake Disc

Ferrari 550 Maranello Front Suspension - Shock Absorber and Brake Disc Parts Diagram

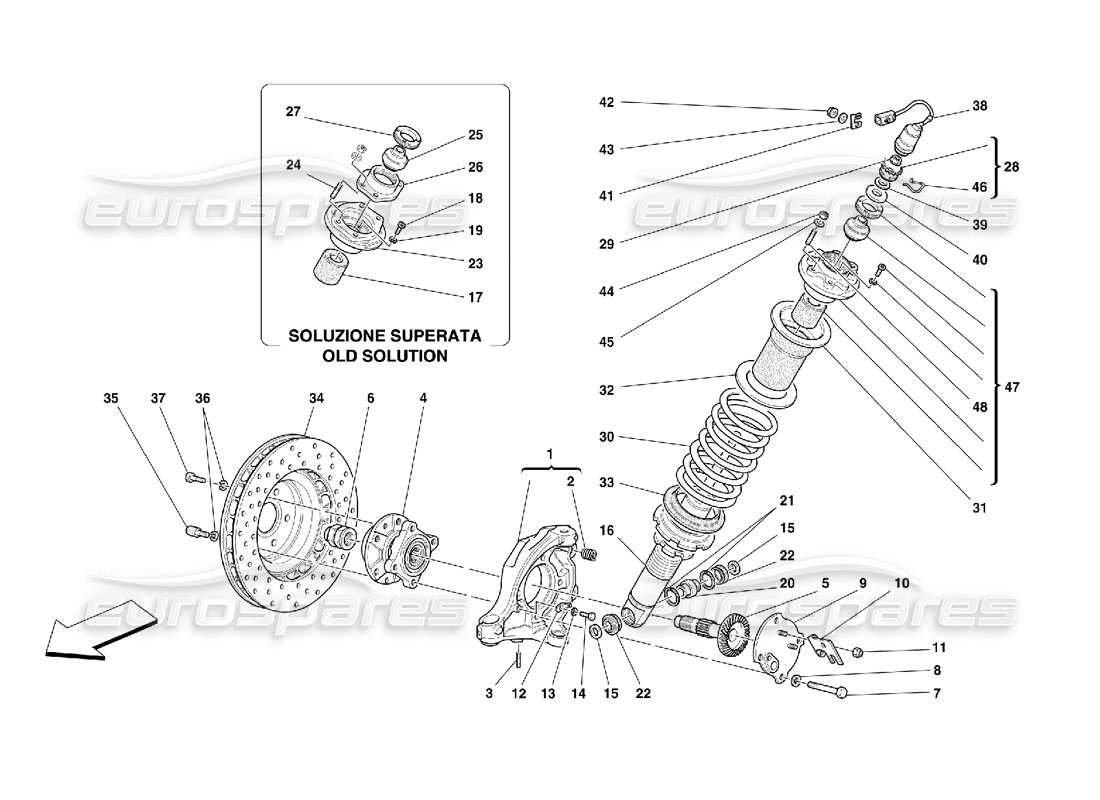

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 000
                                                                      MPN: 173708
                                                                      COMPLETE RH STEERING KNUCKLE
                                                                      - Not as spare part now - Replaced by 178886
                                                                      Supersession
                                                                      Supersession
                                                                      # 000
                                                                      MPN: 173709
                                                                      COMPLETE LH STEERING KNUCKLE
                                                                      - Not as spare part now - Replaced by 178887
                                                                      Supersession
                                                                      Supersession
                                                                      # 000
                                                                      MPN: 178886
                                                                      COMPLETE RH STEERING KNUCKLE
                                                                      - Not as spare part now - Replaced by 185818
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 173708 - and 1 more. Click to view details
                                                                      # 000
                                                                      MPN: 178887
                                                                      COMPLETE LH STEERING KNUCKLE
                                                                      - Not as spare part now - Replaced by 185819
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 173709 - and 1 more. Click to view details
                                                                      # 000
                                                                      MPN: 184626
                                                                      COMPLETE RH STEERING KNUCKLE
                                                                      from £939.75
                                                                      from £939.75
                                                                      This part replaces part number 185818 - and 3 more. Click to view details
                                                                      # 000
                                                                      MPN: 185819
                                                                      COMPLETE LH STEERING KNUCKLE
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 178887
                                                                      # 001
                                                                      MPN: 176184
                                                                      RH STEERING KNUCKLE
                                                                      - Not as spare part - With complete RH steering knuckle 178886
                                                                      # 001
                                                                      MPN: 176185
                                                                      LH STEERING KNUCKLE
                                                                      - Not as spare part - With complete LH steering knuckle 178887
                                                                      # 001
                                                                      MPN: 184621
                                                                      RH STEERING KNUCKLE
                                                                      - Not as spare part - With complete RH steering knuckle 185818
                                                                      # 001
                                                                      MPN: 184622
                                                                      LH STEERING KNUCKLE
                                                                      - Not as spare part - With complete LH steering knuckle 185819
                                                                      # 002
                                                                      MPN: 133771
                                                                      THREADED INSERT
                                                                      from £1.90
                                                                      from £1.90
                                                                      # 003
                                                                      MPN: 11000924
                                                                      STUD
                                                                      from £0.78
                                                                      from £0.78
                                                                      This part replaces part number 11000921 which we have in stock
                                                                      # 004
                                                                      MPN: 157900
                                                                      BEARING
                                                                      from £1,180.71
                                                                      from £1,180.71
                                                                      This part replaces part number 143172 - and 6 more. Click to view details
                                                                      # 005
                                                                      MPN: 174045
                                                                      FRONT TOOTHED WHEEL
                                                                      from £204.75
                                                                      from £204.75
                                                                      This part replaces part number 163103 which we have in stock - and 1 more. Click to view details
                                                                      # 006
                                                                      MPN: 209184
                                                                      NUT
                                                                      from £25.74
                                                                      from £25.74
                                                                      This part replaces part number 167259 - and 1 more. Click to view details
                                                                      # 007
                                                                      MPN: 16324034
                                                                      SCREW
                                                                      from £3.18
                                                                      from £3.18
                                                                      # 008
                                                                      MPN: 102901
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      This part replaces part number 4146930
                                                                      # 009
                                                                      MPN: 164925
                                                                      RH COVER
                                                                      from £397.74
                                                                      from £397.74
                                                                      # 009
                                                                      MPN: 164926
                                                                      LH COVER
                                                                      from £244.80
                                                                      from £244.80

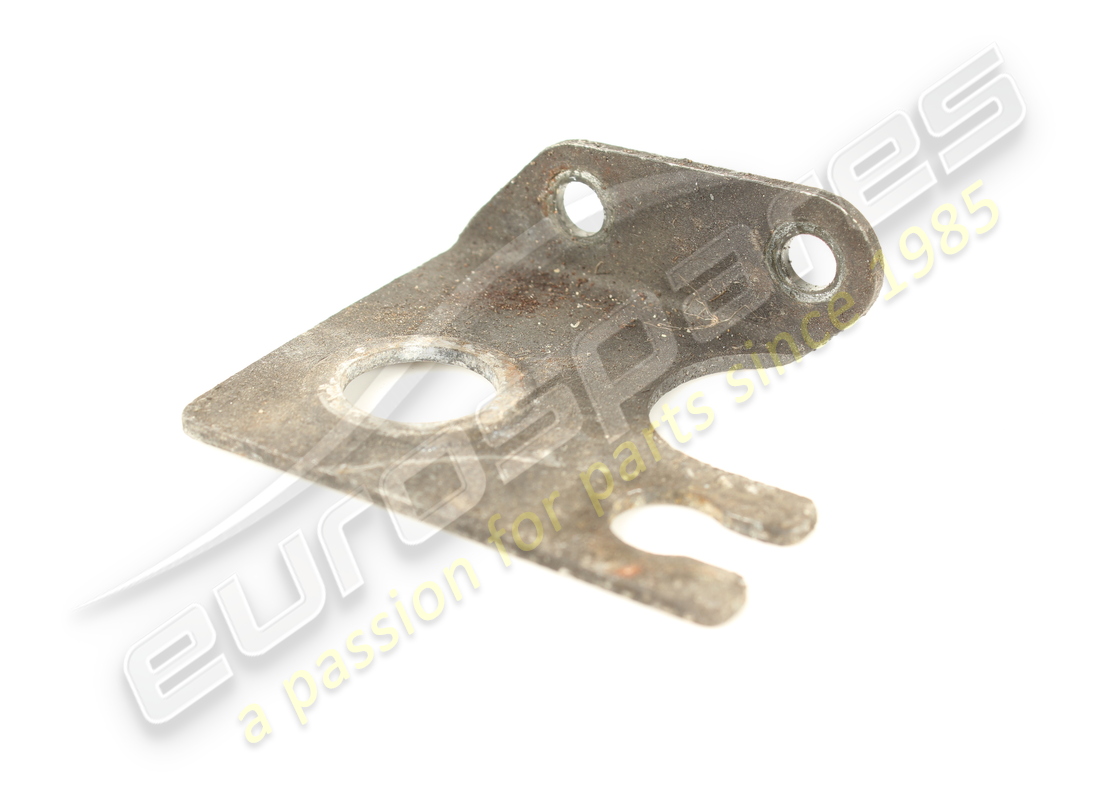

                                                                      # 010
                                                                      MPN: 170177
                                                                      RH SUPPORT
                                                                      from £136.96
                                                                      from £136.96
                                                                      # 010
                                                                      MPN: 170178
                                                                      LH SUPPORT
                                                                      from £94.14
                                                                      from £94.14
                                                                      # 011
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 012
                                                                      MPN: 143405
                                                                      Key
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 013
                                                                      MPN: 149951
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10615301 - and 4 more. Click to view details
                                                                      # 014
                                                                      MPN: 10977524
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 015
                                                                      MPN: 153495
                                                                      SPACER WASHER MM. 3.00
                                                                      from £2.40
                                                                      from £2.40
                                                                      # 015
                                                                      MPN: 153496
                                                                      SPACER WASHER MM. 2.90
                                                                      - As an alternative of 153495
                                                                      from £2.40
                                                                      from £2.40
                                                                      # 015
                                                                      MPN: 153497
                                                                      SPACER WASHER MM. 3.10
                                                                      - As an alternative of 153495
                                                                      from £2.42
                                                                      from £2.42

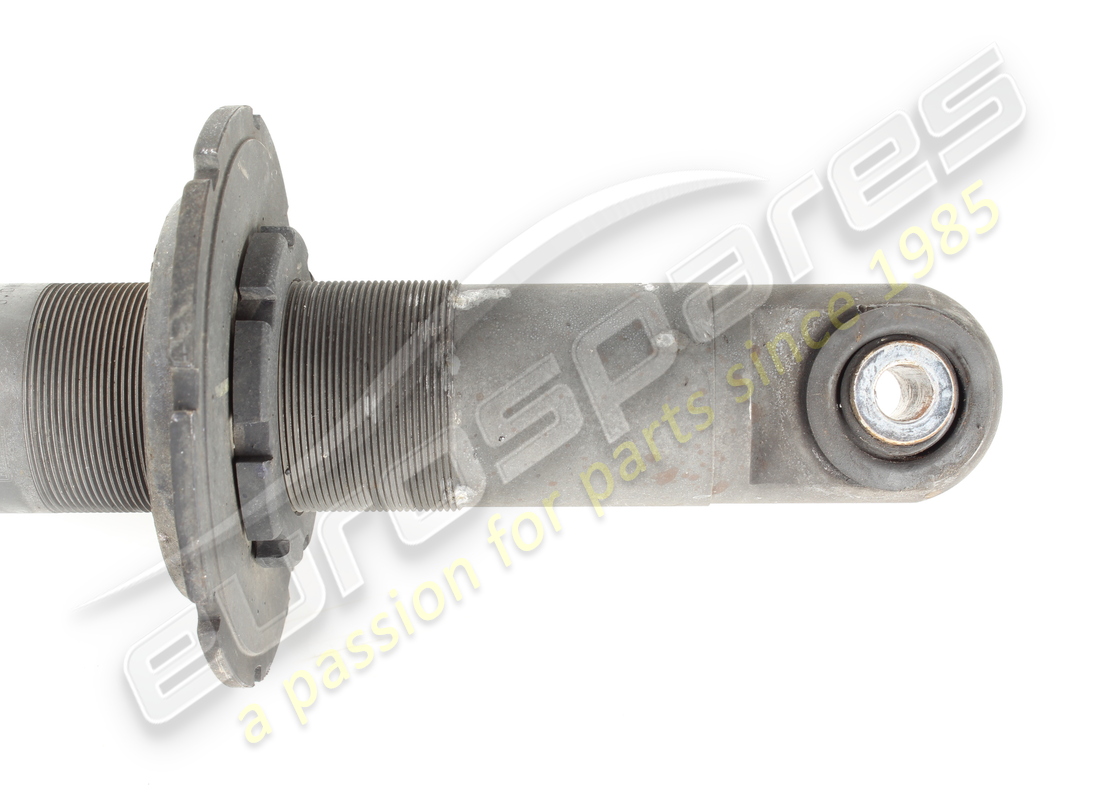

                                                                      # 016
                                                                      MPN: 183334
                                                                      FRONT SHOCK ABSORBER
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 162395
                                                                      # 016
                                                                      MPN: 183334
                                                                      FRONT SHOCK ABSORBER
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 162395
                                                                      # 017
                                                                      MPN: 152329
                                                                      SHOCK ABSORBER PAD
                                                                      - Not as spare now
                                                                      from £18.33
                                                                      from £18.33
                                                                      # 018
                                                                      MPN: 11021111
                                                                      SCREW
                                                                      - Not as spare part now
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 131745 which we have in stock
                                                                      # 019
                                                                      MPN: 10519224
                                                                      WASHER
                                                                      - Not as spare part now
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10519201
                                                                      # 020
                                                                      MPN: 153285
                                                                      BALL JOINT
                                                                      from £294.88
                                                                      from £294.88
                                                                      # 021
                                                                      MPN: 145478
                                                                      SEEGER RING
                                                                      from £2.42
                                                                      from £2.42
                                                                      This part replaces part number 11059370
                                                                      # 022
                                                                      MPN: 153286
                                                                      RUBBER
                                                                      from £1.21
                                                                      from £1.21
                                                                      # 023
                                                                      MPN: 172356
                                                                      CUP
                                                                      - Not as spare part now
                                                                      from £194.25
                                                                      from £194.25
                                                                      # 024
                                                                      MPN: 13543524
                                                                      STUD
                                                                      - Not as spare part now
                                                                      from £2.02
                                                                      from £2.02
                                                                      This part replaces part number 13543521
                                                                      # 025
                                                                      MPN: 170611
                                                                      BALL JOINT
                                                                      - Not as spare part now

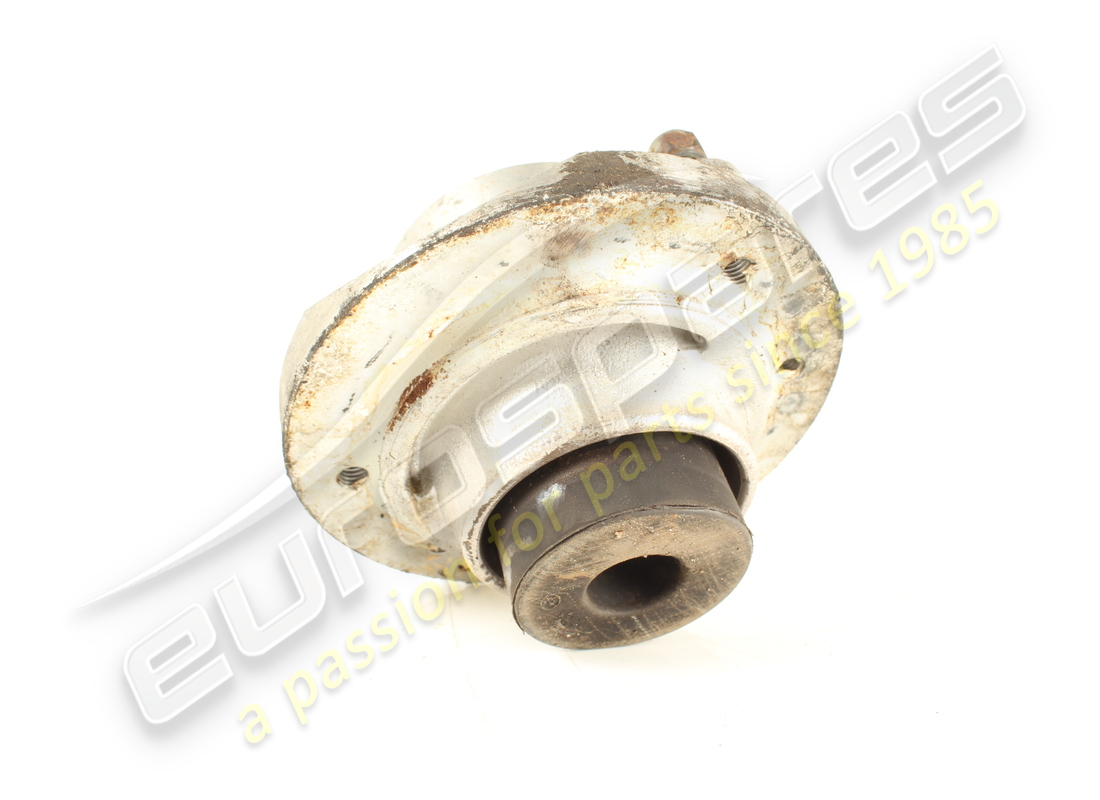

                                                                      # 026
                                                                      MPN: 172357
                                                                      UPPER JOINT SUPPORT
                                                                      - Not as spare part now
                                                                      from £80.87
                                                                      from £80.87
                                                                      # 027
                                                                      MPN: 170143
                                                                      RING NUT
                                                                      - Not as spare part now
                                                                      from £28.23
                                                                      from £28.23
                                                                      # 029
                                                                      MPN: 137826
                                                                      NUT
                                                                      from £1.74
                                                                      from £1.74
                                                                      # 030
                                                                      MPN: 163648
                                                                      SPRING
                                                                      - Sold in pair - Not for cars with handling Fiorano equipment
                                                                      from £279.36
                                                                      from £279.36
                                                                      # 030
                                                                      MPN: 169985
                                                                      SPRING
                                                                      - Sold in pair - As an alternative - Not for cars with handling Fiorano equipment
                                                                      from £522.20
                                                                      from £522.20
                                                                      # 030
                                                                      MPN: 175886
                                                                      SPRING
                                                                      - Sold in pair - Valid for cars with handling Fiorano equipment - Optional
                                                                      from £279.36
                                                                      from £279.36
                                                                      # 031
                                                                      MPN: 127991
                                                                      COMPLETE SPACER
                                                                      from £40.72
                                                                      from £40.72
                                                                      # 032
                                                                      MPN: 152655
                                                                      WASHER
                                                                      from £2.56
                                                                      from £2.56
                                                                      # 033
                                                                      MPN: 152842
                                                                      WASHER
                                                                      from £13.56
                                                                      from £13.56

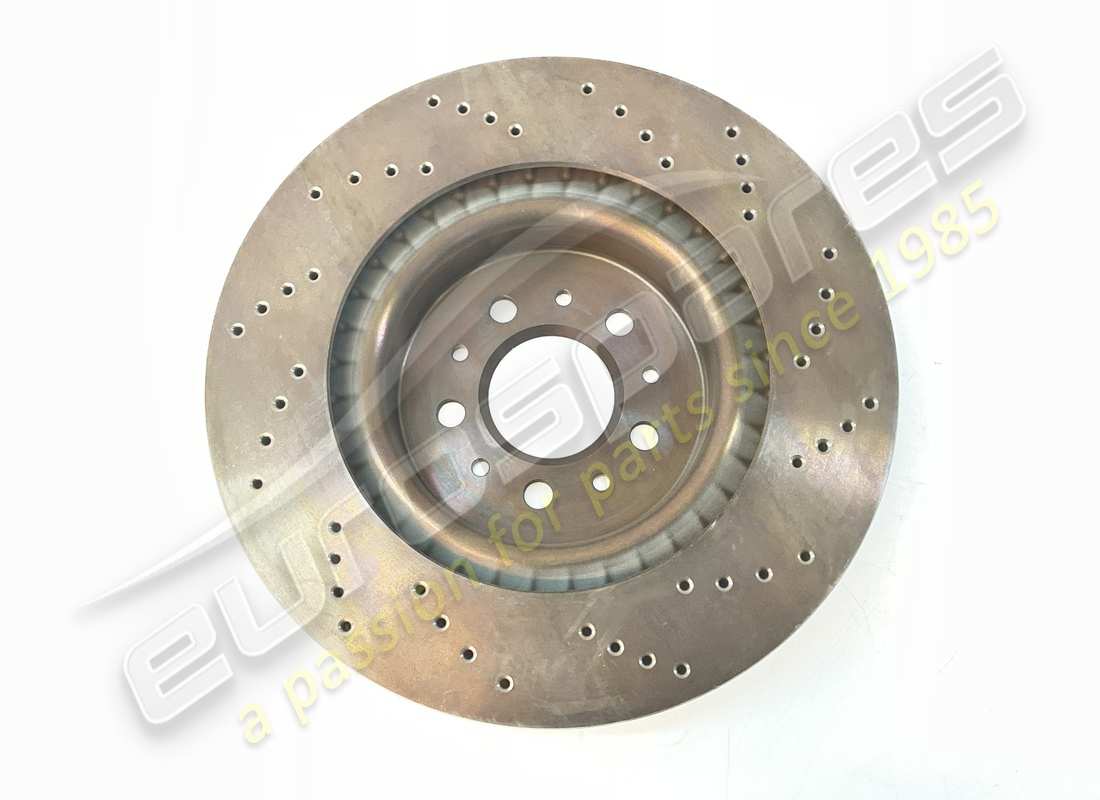

                                                                      # 034
                                                                      MPN: 179799
                                                                      FRONT BRAKE DISC
                                                                      - Valid from car Ass. Nr. 33718
                                                                      Supersession
                                                                      Supersession
                                                                      # 034
                                                                      MPN: 184652
                                                                      FRONT BRAKE DISC
                                                                      - Valid till car Ass. Nr. 33717
                                                                      from £163.50
                                                                      from £163.50
                                                                      This part replaces part number 179799 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 104370
                                                                      SCREW
                                                                      - Valid from car Ass. Nr. 33718
                                                                      from £5.12
                                                                      from £5.12
                                                                      This part replaces part number 139981
                                                                      # 035
                                                                      MPN: 157841
                                                                      SCREW
                                                                      - Valid till car Ass. Nr. 33717
                                                                      from £4.03
                                                                      from £4.03
                                                                      # 036
                                                                      MPN: 127496
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                      # 037
                                                                      MPN: 16043424
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 16043421
                                                                      # 038
                                                                      MPN: 158732
                                                                      ACTUATOR ON THE SHOCK ABSORBER
                                                                      from £444.64
                                                                      from £444.64
                                                                      This part replaces part number 154449 - and 1 more. Click to view details
                                                                      # 039
                                                                      MPN: 160461
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      # 040
                                                                      MPN: 170144
                                                                      WASHER
                                                                      from £2.11
                                                                      from £2.11
                                                                      # 041
                                                                      MPN: 155751
                                                                      CLIP
                                                                      from £2.29
                                                                      from £2.29
                                                                      # 042
                                                                      MPN: 113647
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 043
                                                                      MPN: 14496324
                                                                      WASHER
                                                                      from £1.40
                                                                      from £1.40
                                                                      This part replaces part number 14496301
                                                                      # 044
                                                                      MPN: 104030
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 16104125
                                                                      # 045
                                                                      MPN: 12638524
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12638501 - and 2 more. Click to view details
                                                                      # 046
                                                                      MPN: 142079
                                                                      CLIP
                                                                      from £5.90
                                                                      from £5.90
                                                                      # 047
                                                                      MPN: 173900
                                                                      COMPLETE SPRING RETAINING CUP
                                                                      from £606.41
                                                                      from £606.41
                                                                      This part replaces part number 174081
                                                                      # 047
                                                                      MPN: 174081
                                                                      COMPLETE SPRING RETAINING CUP
                                                                      - Not as spare part now - Replaced by 173900
                                                                      Supersession
                                                                      Supersession
                                                                      # 048
                                                                      MPN: 12354524
                                                                      STUD
                                                                      from £15.48
                                                                      from £15.48
                                                                      This part replaces part number 12354521
