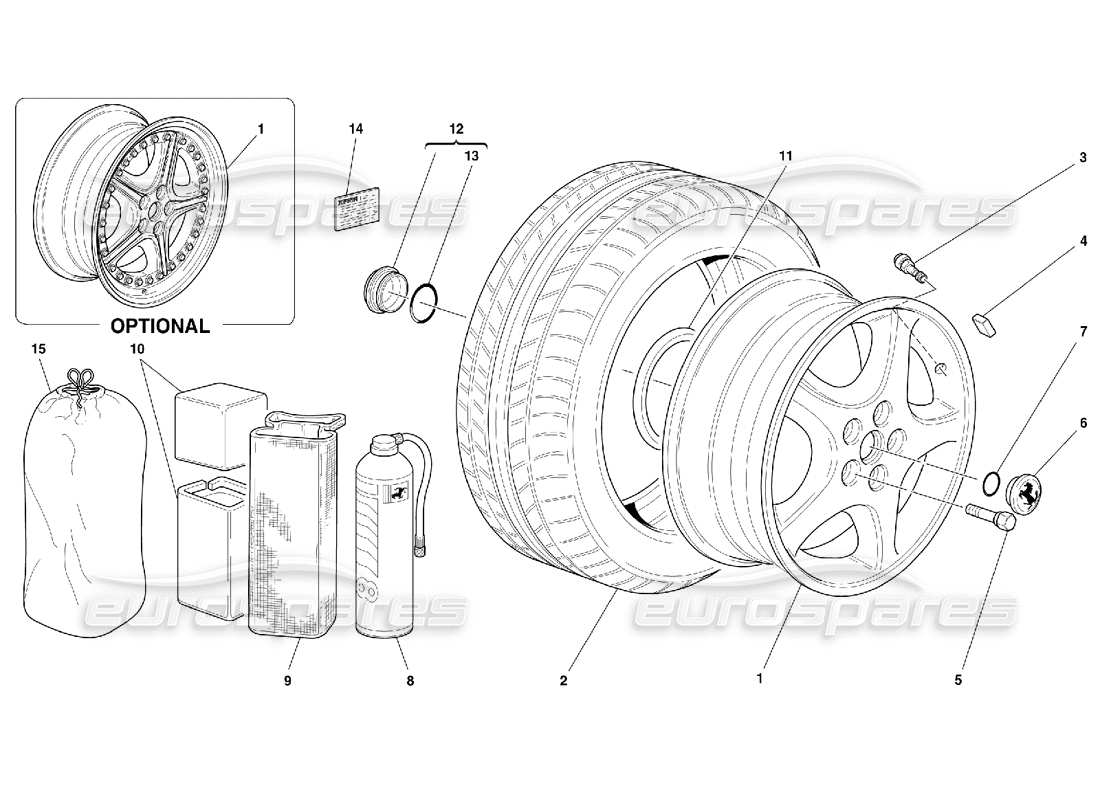

Ferrari 550 Maranello Wheels Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
-
WHEEL SET
179378 x2 & 179379 x2
# 000
MPN: 171983
SPARE WHEEL
17 SPACE SAVER SPARE WHEEL & TYRE ASSY
from £810.35
from £810.35
This part replaces part number 171986

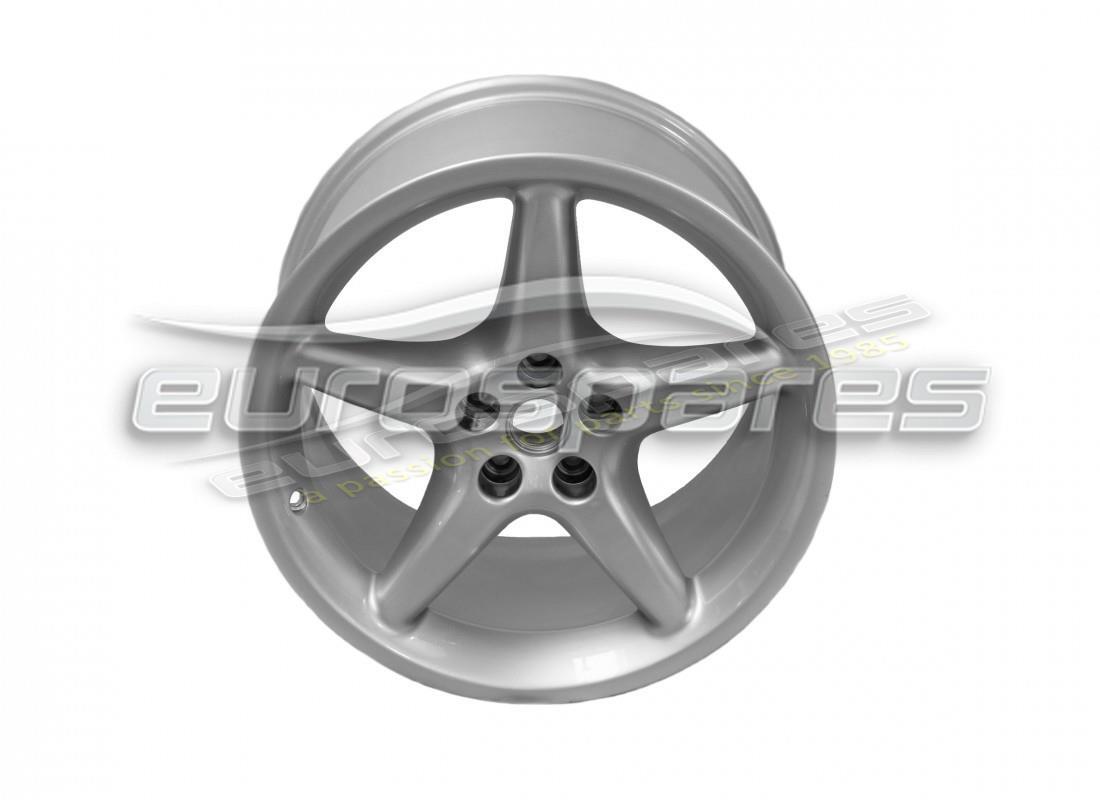

# 001
MPN: 165110
FRONT WHEEL 8.5 J X18
MAGNESIUM - SPEEDLINE
from £350.00
from £350.00

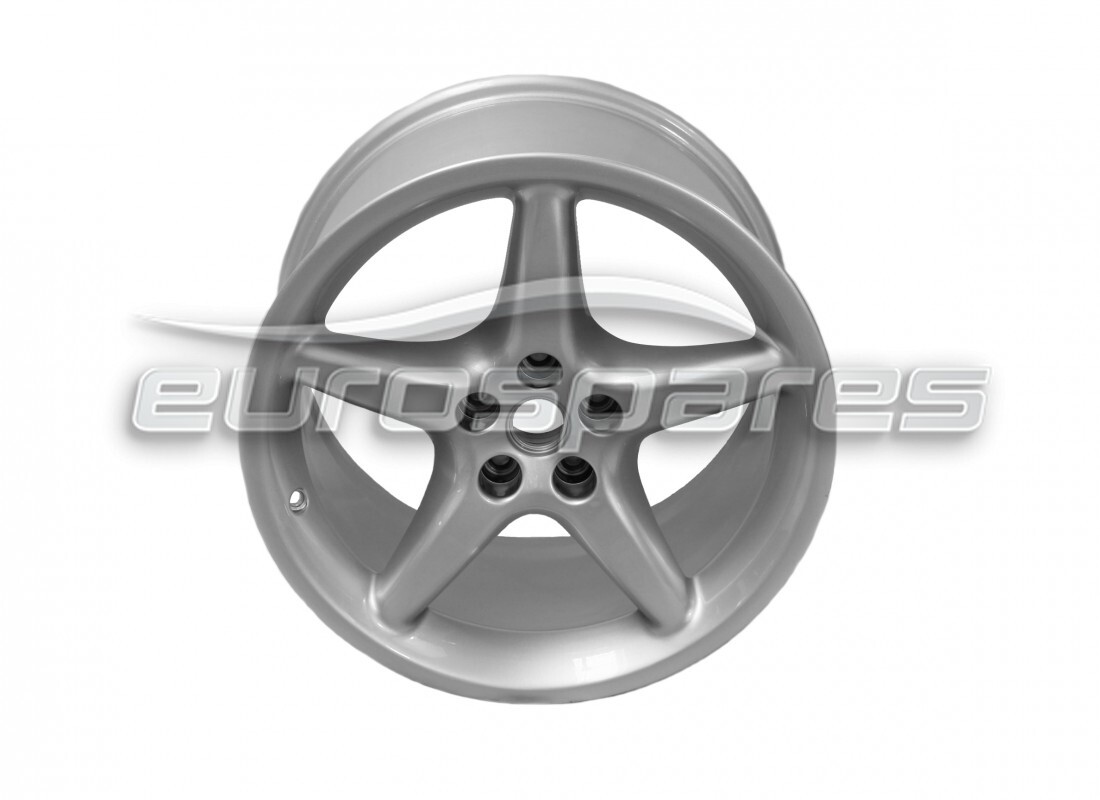

# 001
MPN: 165112
REAR WHEEL 10.5JX18
MAGNESIUM - SPEEDLINE
from £280.00
from £280.00
# 001

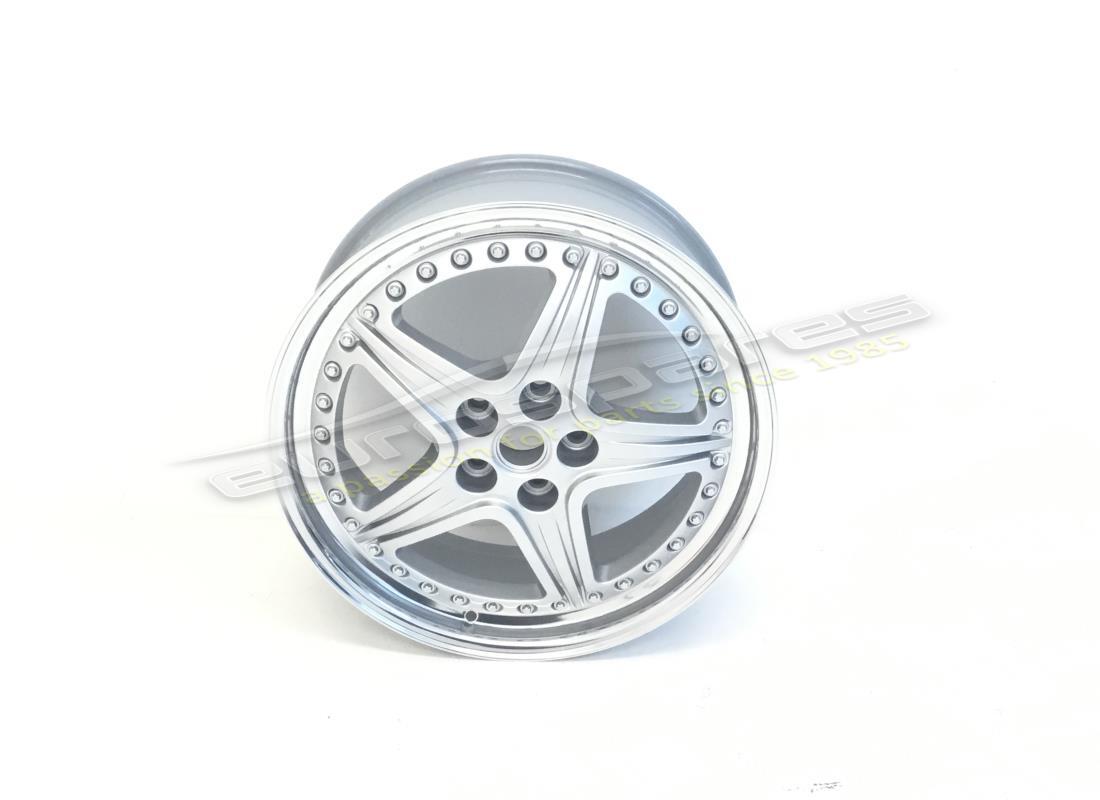

MPN: 176256
FRONT SPLIT RIM 8.5JX18
from £1,181.34
from £1,181.34
# 001
MPN: 176257
REAR SPLIT RIM 10.5 X 18
from £4,150.47
from £4,150.47
# 001

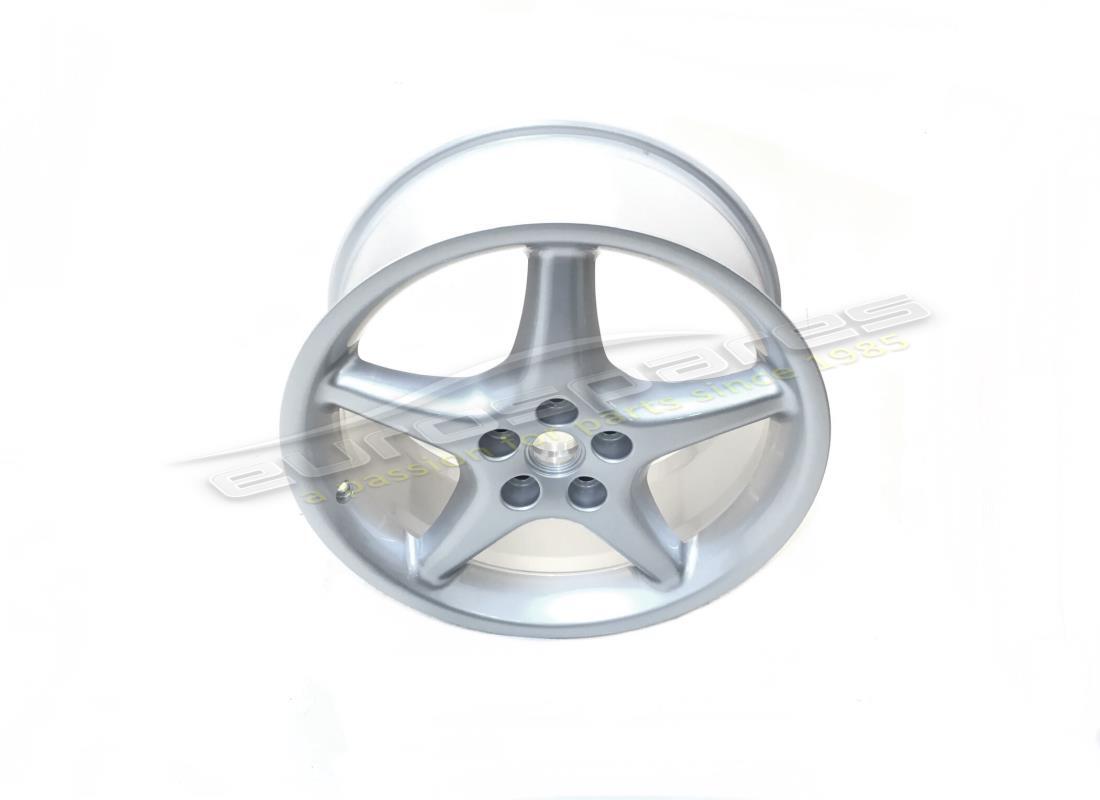

MPN: 179378
FRONT WHEEL 8.5 J X18
ALUMINIUM - BBS
from £344.12
from £344.12
This part replaces part number 165110 which we have in stock - and 1 more. Click to view details

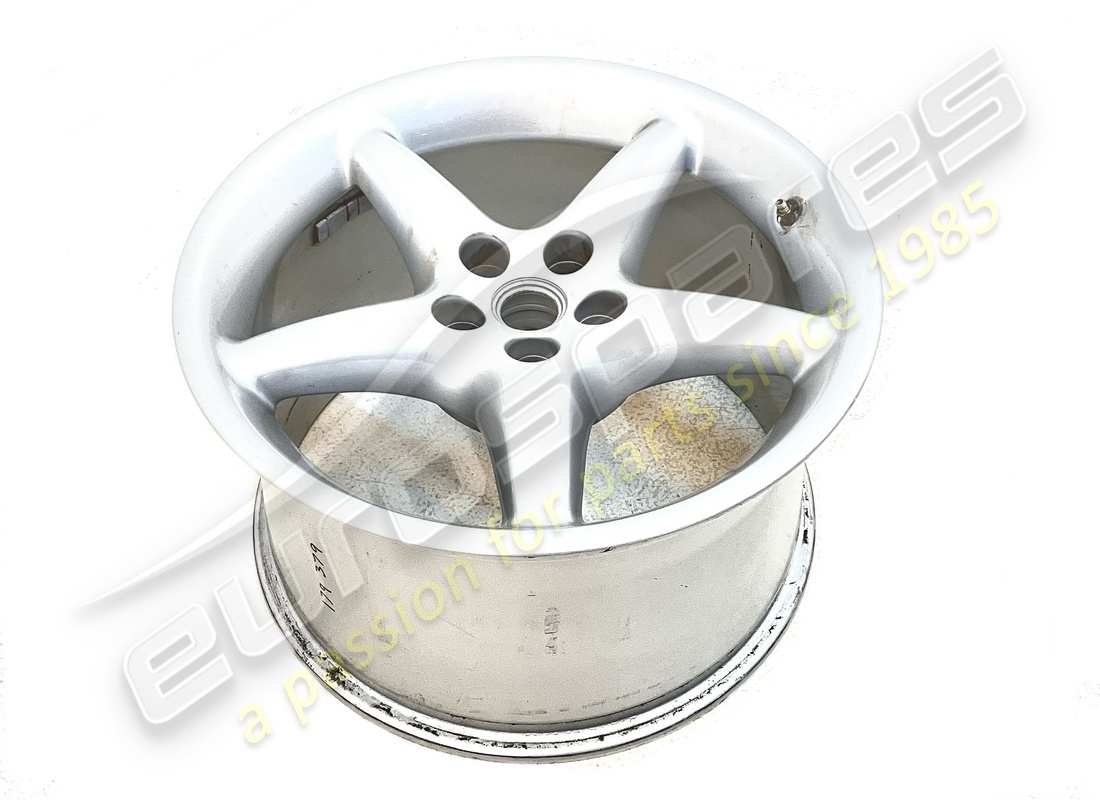

# 001
MPN: 179379
REAR WHEEL 10.5JX18
ALUMINIUM - BBS
from £731.80
from £731.80
This part replaces part number 165112 which we have in stock
# 002
MPN: 164697
FRONT TYRE BRIDGESTONE 255/40 ZR 18
from £670.85
from £670.85
# 002
MPN: 164698
REAR TYRE BRIDGESTONE 295/35 ZR 18
from £863.90
from £863.90
# 002
MPN: 164801
FRONT TYRE MICHELIN 235/45 ZR 18
from £635.24
from £635.24
# 002
MPN: 164802
REAR TYRE MICHELIN 295/35 ZR 18
from £910.46
from £910.46
# 002
MPN: 164803
RH FRONT TYRE GOODYEAR 255/40 ZR 18
# 002
MPN: 164804
LH FRONT TYRE GOODYEAR 255/40 ZR 18
# 002
MPN: 164805
RH REAR TYRE GOODYEAR 295/35 ZR 18
# 002
MPN: 164806
LH REAR TYRE GOODYEAR 295/35 ZR 18
# 002
MPN: 164807
FRONT TYRE PIRELLI 255/40 ZR 18
from £586.97
from £586.97
# 002
MPN: 164808
REAR TYRE PIRELLI 295/35 ZR 18
from £714.35
from £714.35
# 003
MPN: 174166
VALVE
from £5.20
from £5.20
This part replaces part number 105069 - and 1 more. Click to view details
# 004
MPN: 155302
COUNTER-WEIGHT - 60GR.
Supersession
Supersession
This part replaces part number 108851 - and 1 more. Click to view details
# 004
MPN: 162677
COUNTER-WEIGHT - 90GR.
from £5.76
from £5.76

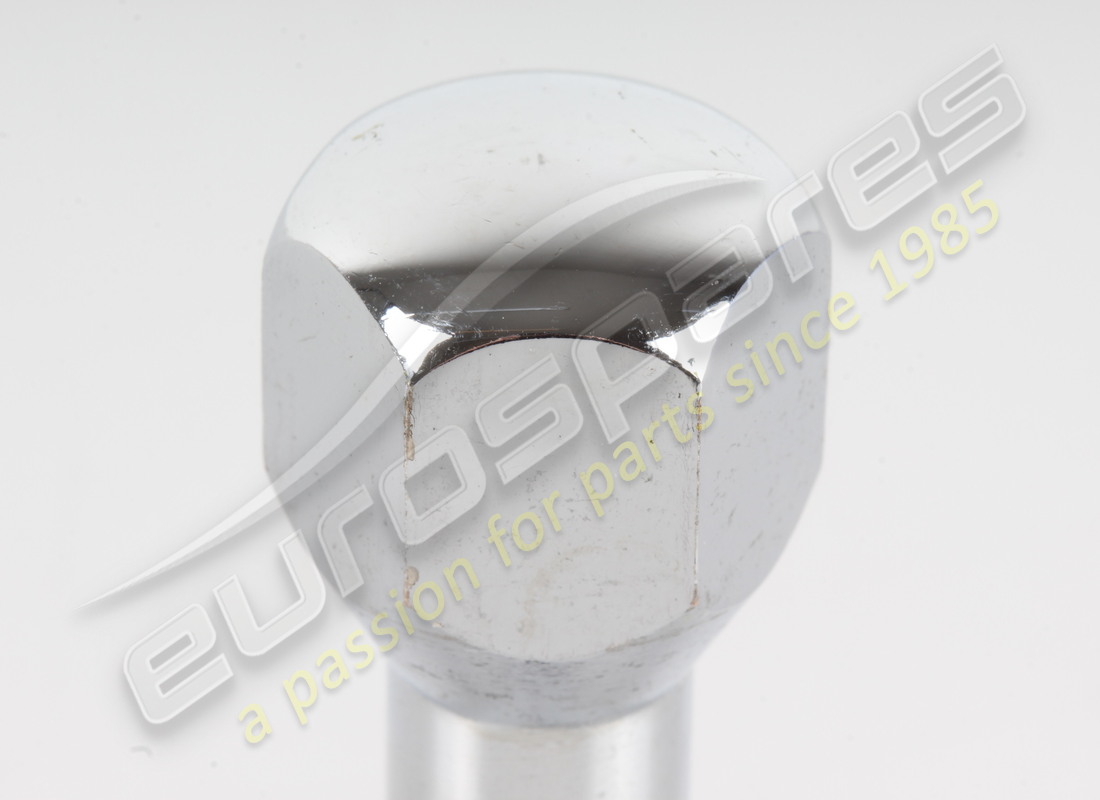

# 005
MPN: 176426
STUD
from £25.20
from £25.20
This part replaces part number 146989 - and 1 more. Click to view details
# 005
MPN: 176426
STUD
- Valid for magnesium rims
from £25.20
from £25.20
This part replaces part number 146989 - and 1 more. Click to view details
# 005
MPN: 181291
STUD
- Valid for aluminium rims
from £25.20
from £25.20
# 005
MPN: 70001200
TITANIUM WHEEL BOLT KIT
includes 20x titanium wheel Stud
from £1,177.85
from £1,177.85
# 006
MPN: 340066
WHEEL BADGE
from £8.02
from £8.02
This part replaces part number 226245 - and 1 more. Click to view details
# 007
MPN: 120065
GASKET
from £0.83
from £0.83
# 008
MPN: 152367
TYRE REPAIR CYLINDER BOTTLE
(UK shipment only or Collection)
from £495.42
from £495.42
This part replaces part number 171576 - and 1 more. Click to view details
# 009
MPN: 145506
PORTFOLIO
from £795.00
from £795.00
# 010
MPN: 166537
POLYSTYRENE FOAM CASE
from £31.55
from £31.55
# 011
MPN: 161927
GASKET
from £181.70
from £181.70
# 012
MPN: 167137
RIM COMPLETE PROTECTION
from £13.16
from £13.16
# 013
MPN: 167139
O.R. GASKET
from £2.00
from £2.00
# 014
MPN: 165122
TYRE PRESSURE PLATE-BRIDGESTONE
- Not for USA, CDN and AUS
from £9.90
from £9.90
# 014
MPN: 165123
TYRE PRESSURE PLATE-PIRELLI
- Not for USA, CDN and AUS
from £2.72
from £2.72
# 014
MPN: 165124
TYRE PRESSURE PLATE-GOODYEAR
- Not for USA, CDN and AUS
from £3.48
from £3.48
# 014
MPN: 165125
TYRE PRESSURE PLATE-MICHELIN
- Not for USA, CDN and AUS
from £3.58
from £3.58
# 014
MPN: 172681
TYRE PRESSURE PLATE-BRIDGESTONE
- Valid for USA and CDN
# 014
MPN: 172682
TYRE PRESSURE PLATE-PIRELLI
- Valid for USA and CDN
from £4.80
from £4.80
# 014
MPN: 172683
TYRE PRESSURE PLATE-GOODYEAR
- Valid for USA and CDN
from £4.80
from £4.80
# 014
MPN: 172684
TYRE PRESSURE PLATE-MICHELIN
- Valid for USA and CDN
from £4.80
from £4.80
# 014
MPN: 173388
TYRE PRESSURE PLATE-BRIDGESTONE
- Valid for AUS
from £4.80
from £4.80
# 014
MPN: 173389
TYRE PRESSURE PLATE-MICHELIN
- Valid for AUS
from £4.80
from £4.80
# 014
MPN: 173390
TYRE PRESSURE PLATE-GOODYEAR
- Valid for AUS
from £6.03
from £6.03
# 014
MPN: 173391
TYRE PRESSURE PLATE-PIRELLI
- Valid for AUS
from £4.80
from £4.80
# 015
MPN: 173688
BAG
from £26.69
from £26.69
This part replaces part number 173668
