ferrari 550 maranello air conditioning system parts diagram

056 - air conditioning system

Ferrari 550 Maranello Air Conditioning System Parts Diagram

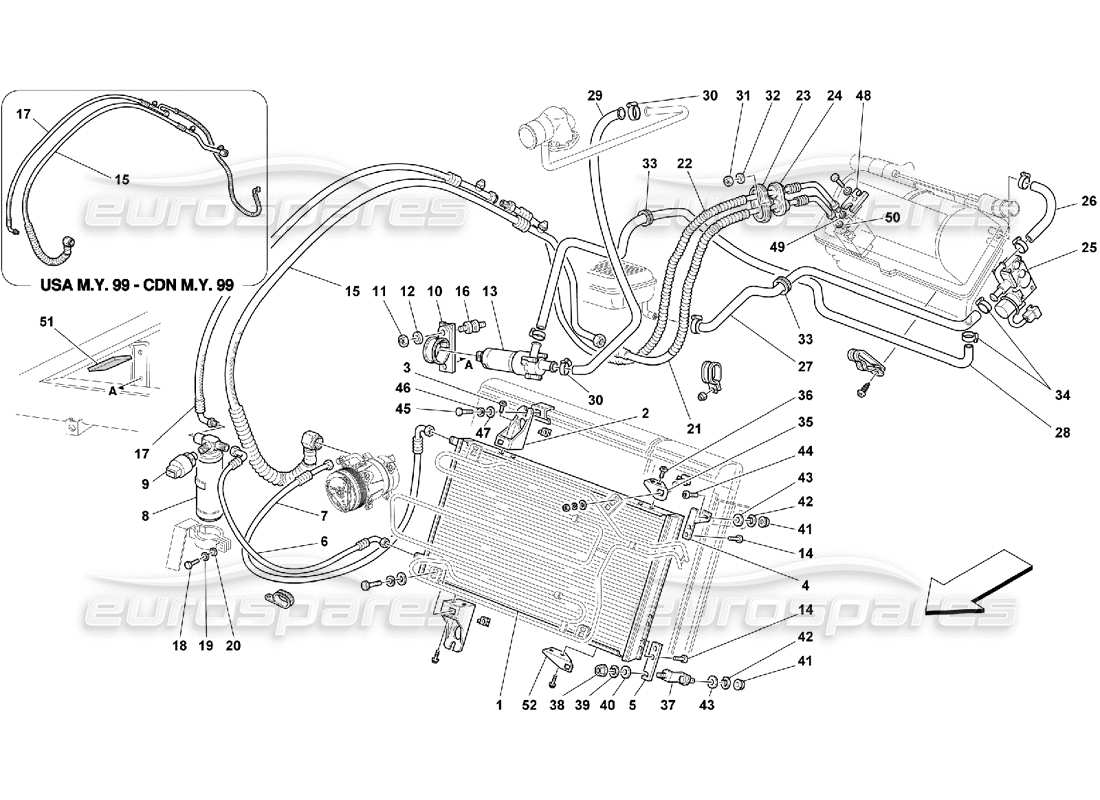

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 165395
                                                                              A.C. CONDENSER
                                                                              from £254.80
                                                                              from £254.80
                                                                              # 002
                                                                              MPN: 168481
                                                                              RH BRACKET A.C. CONDENSER SUPPORT
                                                                              from £44.25
                                                                              from £44.25
                                                                              # 003
                                                                              MPN: 165136
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 004
                                                                              MPN: 165561
                                                                              LH UPPER BRACKET
                                                                              from £8.33
                                                                              from £8.33
                                                                              # 005
                                                                              MPN: 168068
                                                                              LH LOWER BRACKET
                                                                              from £15.44
                                                                              from £15.44
                                                                              # 006
                                                                              MPN: 64918600
                                                                              PIPE FROM CONDENSER TO DEHYDRATOR FILTER
                                                                              from £153.30
                                                                              from £153.30
                                                                              # 007
                                                                              MPN: 64918700
                                                                              PIPE FROM COMPRESSOR TO CONDENSER
                                                                              from £185.60
                                                                              from £185.60
                                                                              # 008
                                                                              MPN: 64894200
                                                                              DEHYDRATOR FILTER
                                                                              from £46.34
                                                                              from £46.34
                                                                              This part replaces part number 64799500 - and 2 more. Click to view details
                                                                              # 009
                                                                              MPN: 64799700
                                                                              A.C. PRESSOSTAT
                                                                              Supersession
                                                                              Supersession
                                                                              # 010
                                                                              MPN: 63994900
                                                                              COMPLETE BRACKET
                                                                              from £4.14
                                                                              from £4.14
                                                                              This part replaces part number 64246500
                                                                              # 011
                                                                              MPN: 15896214
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 15896211
                                                                              # 012
                                                                              MPN: 10571570
                                                                              WASHER
                                                                              from £0.84
                                                                              from £0.84
                                                                              # 013
                                                                              MPN: 65460300

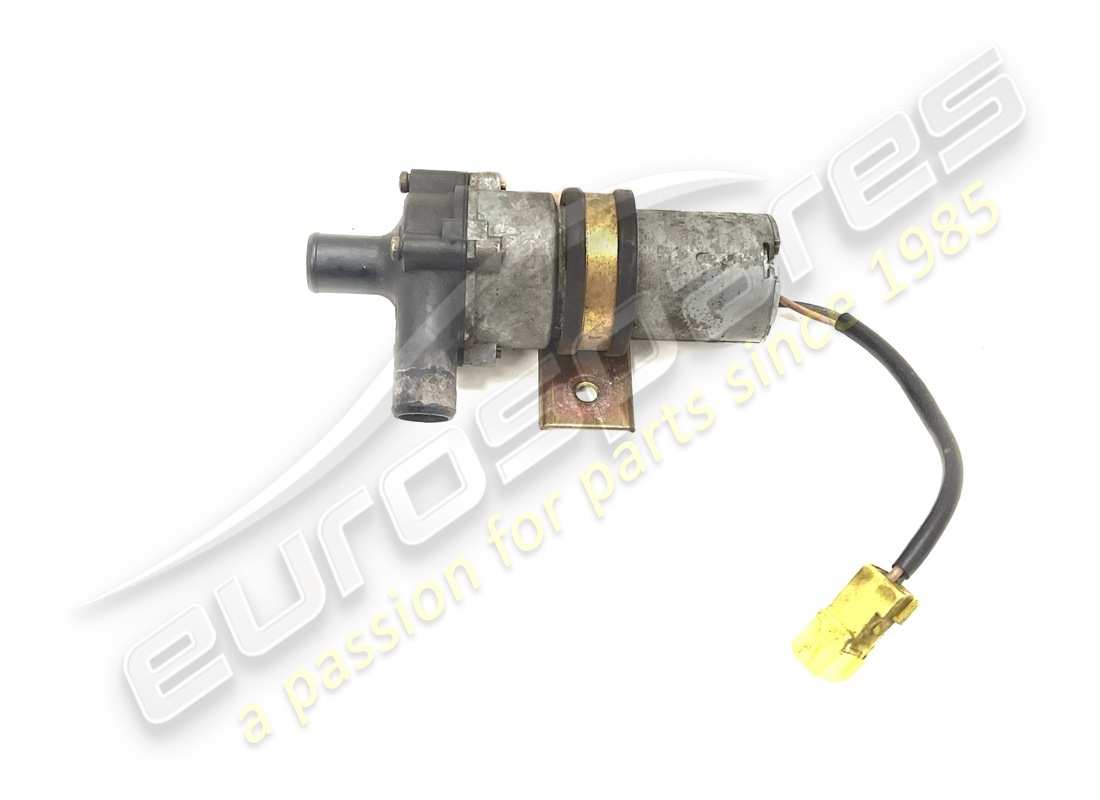

                                                                              WATER PUMP
                                                                              - Valid from car Ass. Nr. 32957 - Valid from car Ass. Nr. 33073 USA M.Y. 99
                                                                              from £130.15
                                                                              from £130.15
                                                                              This part replaces part number 70000900 - and 3 more. Click to view details
                                                                              # 013
                                                                              MPN: 65488600
                                                                              WATER PUMP
                                                                              - Valid from car Ass. Nr. 27498 and valid till car Ass. Nr. 32956 - Valid till car Ass. Nr. 33072 USA M.Y. 99
                                                                              from £129.48
                                                                              from £129.48
                                                                              # 013
                                                                              MPN: 70000900
                                                                              PUMP
                                                                              from £202.44
                                                                              from £202.44
                                                                              This part replaces part number 61787900
                                                                              # 014
                                                                              MPN: 165137
                                                                              SCREW
                                                                              from £1.30
                                                                              from £1.30
                                                                              # 015
                                                                              MPN: 65190300
                                                                              PIPE FROM HOSE TO COMPRESSOR
                                                                              - Not for GD - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                              from £168.23
                                                                              from £168.23
                                                                              # 015
                                                                              MPN: 65238000
                                                                              PIPE FROM HOSE TO COMPRESSOR
                                                                              - Valid for GD
                                                                              from £142.93
                                                                              from £142.93
                                                                              # 015
                                                                              MPN: 65857600
                                                                              PIPE FROM HOSE TO COMPRESSOR
                                                                              - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                              from £146.71
                                                                              from £146.71
                                                                              # 016
                                                                              MPN: 142202
                                                                              ANTI-VIBRATION SUPPORT
                                                                              from £14.37
                                                                              from £14.37
                                                                              # 017
                                                                              MPN: 64827600
                                                                              PIPE FROM DEHYDRATOR FILTER TO HOSE
                                                                              - Not for GD - Not for USA M.Y. 99 and CDN M.Y. 99
                                                                              from £211.71
                                                                              from £211.71
                                                                              # 017
                                                                              MPN: 65237900
                                                                              PIPE FROM DEHYDRATOR FILTER TO HOSE
                                                                              - Valid for GD
                                                                              from £98.55
                                                                              from £98.55
                                                                              # 017
                                                                              MPN: 65856900
                                                                              PIPE FROM DEHYDRATOR FILTER TO HOSE
                                                                              - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                              from £254.51
                                                                              from £254.51
                                                                              # 018
                                                                              MPN: 10902324
                                                                              SCREW
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                              # 019
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 020
                                                                              MPN: 12643724
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 109684 - and 3 more. Click to view details
                                                                              # 021
                                                                              MPN: 64791200
                                                                              HOSE FROM EVAPORATOR TO PIPE
                                                                              - Not for GD
                                                                              from £87.53
                                                                              from £87.53
                                                                              # 021
                                                                              MPN: 65237700
                                                                              HOSE FROM EVAPORATOR TO PIPE
                                                                              - Valid for GD
                                                                              from £209.74
                                                                              from £209.74
                                                                              # 022
                                                                              MPN: 64791300
                                                                              HOSE FROM PIPE TO EVAPORATOR
                                                                              - Not for GD
                                                                              from £80.93
                                                                              from £80.93
                                                                              # 022
                                                                              MPN: 65237800
                                                                              HOSE FROM PIPE TO EVAPORATOR
                                                                              - Valid for GD
                                                                              from £187.09
                                                                              from £187.09
                                                                              # 023
                                                                              MPN: 63961900
                                                                              PIPE-HOLDER FRAME
                                                                              from £6.39
                                                                              from £6.39
                                                                              # 024
                                                                              MPN: 63961800
                                                                              RUBBER PIPE-HOLDER
                                                                              from £16.09
                                                                              from £16.09
                                                                              # 025
                                                                              MPN: 64999000
                                                                              VALVE
                                                                              from £85.04
                                                                              from £85.04
                                                                              # 026
                                                                              MPN: 65201000
                                                                              RETURN PIPE FROM EVAPORATOR TO VALVE
                                                                              from £14.50
                                                                              from £14.50
                                                                              # 027
                                                                              MPN: 65201100
                                                                              RETURN PIPE FROM VALVE TO NOURICE
                                                                              - Not for GD
                                                                              from £114.68
                                                                              from £114.68
                                                                              # 027
                                                                              MPN: 65237600
                                                                              RETURN PIPE FROM VALVE TO NOURICE
                                                                              - Valid for GD
                                                                              from £53.54
                                                                              from £53.54
                                                                              This part replaces part number 67417000
                                                                              # 028
                                                                              MPN: 65128200
                                                                              DELIVERY PIPE FROM PUMP TO EVAPORATOR
                                                                              - Not for GD
                                                                              from £76.11
                                                                              from £76.11
                                                                              This part replaces part number 65122100 - and 1 more. Click to view details
                                                                              # 028
                                                                              MPN: 65237500
                                                                              DELIVERY PIPE FROM PUMP TO EVAPORATOR
                                                                              - Valid for GD
                                                                              from £46.60
                                                                              from £46.60
                                                                              This part replaces part number 67416900
                                                                              # 029
                                                                              MPN: 65122300
                                                                              DELIVERY PIPE FROM ENGINE TO PUMP
                                                                              - Not for GD
                                                                              from £129.66
                                                                              from £129.66
                                                                              This part replaces part number 65122100 - and 1 more. Click to view details
                                                                              # 029
                                                                              MPN: 65238100
                                                                              DELIVERY PIPE FROM ENGINE TO PUMP
                                                                              - Valid for GD
                                                                              from £191.88
                                                                              from £191.88
                                                                              # 030
                                                                              MPN: 13000490
                                                                              SCREW COLLAR
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                              # 031
                                                                              MPN: 169180
                                                                              NUT
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 12574121
                                                                              # 032
                                                                              MPN: 12638124
                                                                              WASHER
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
                                                                              # 033
                                                                              MPN: 10396980
                                                                              CABLE GROMMET
                                                                              # 034
                                                                              MPN: 13000490
                                                                              SCREW COLLAR
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10169090 - and 3 more. Click to view details
                                                                              # 035
                                                                              MPN: 169463
                                                                              BRACKET
                                                                              from £5.85
                                                                              from £5.85
                                                                              # 036
                                                                              MPN: 165136
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 037
                                                                              MPN: 156989
                                                                              SMALL PLATE
                                                                              from £4.85
                                                                              from £4.85
                                                                              # 038
                                                                              MPN: 15896214
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 15896211
                                                                              # 039
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 040
                                                                              MPN: 12647624
                                                                              WASHER
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 12647611
                                                                              # 041
                                                                              MPN: 15896214
                                                                              NUT
                                                                              from £0.54
                                                                              from £0.54
                                                                              This part replaces part number 15896211
                                                                              # 042
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 043
                                                                              MPN: 12648224
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 044
                                                                              MPN: 14778814
                                                                              SCREW
                                                                              from £1.01
                                                                              from £1.01
                                                                              # 045
                                                                              MPN: 10902124
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10902111 - and 1 more. Click to view details
                                                                              # 046
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 047
                                                                              MPN: 14496424
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 14496401 - and 3 more. Click to view details
                                                                              # 048
                                                                              MPN: 175836
                                                                              BRACKET
                                                                              from £2.70
                                                                              from £2.70
                                                                              # 049
                                                                              MPN: 175835
                                                                              O.R. GASKET
                                                                              from £0.67
                                                                              from £0.67
                                                                              # 050
                                                                              MPN: 177655
                                                                              O.R. GASKET
                                                                              from £26.18
                                                                              from £26.18
                                                                              # 051
                                                                              MPN: 65357600
                                                                              ANTI-VIBRATION GASKET
                                                                              - Valid for GD - Valid from car Ass. Nr. 33515
                                                                              from £4.50
                                                                              from £4.50
                                                                              # 052
                                                                              MPN: 177507
                                                                              BRACKET
                                                                              - Valid from car Ass. Nr. 29471
                                                                              from £7.10
                                                                              from £7.10
