ferrari 550 maranello body - inner trims parts diagram

100 - Body - Inner Trims

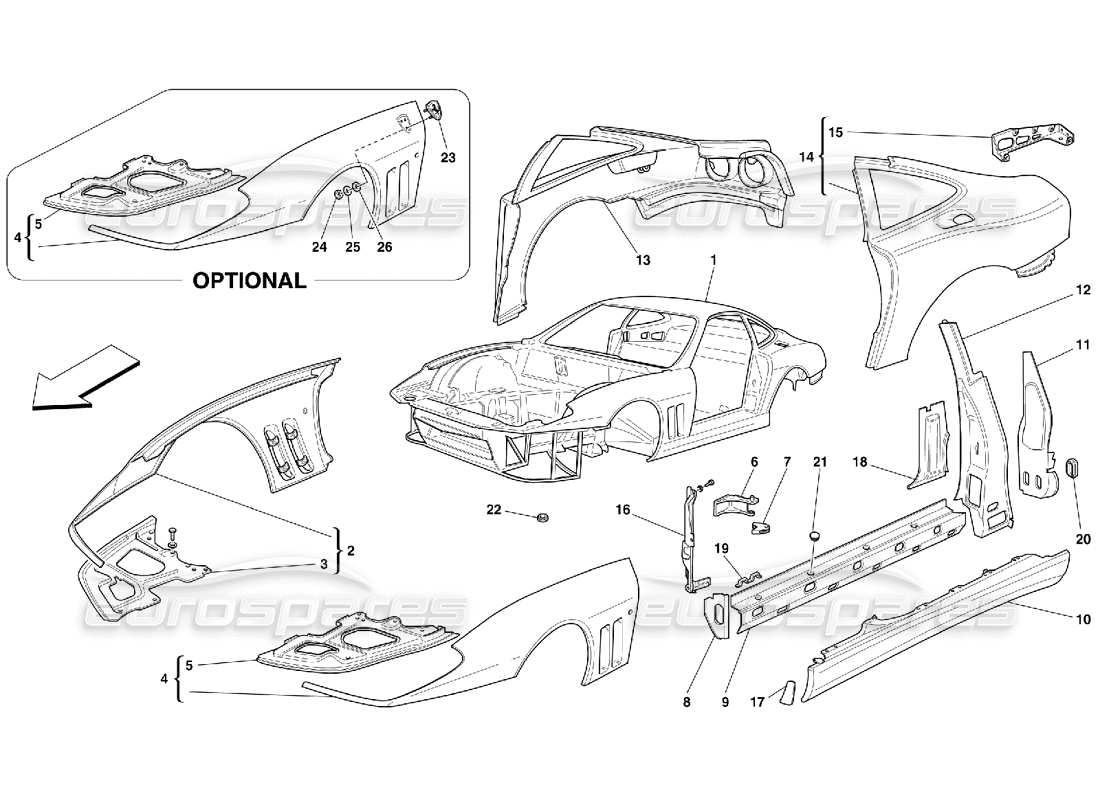

Ferrari 550 Maranello Body - Inner Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 002
                                          MPN: 64716300
                                          COMPLETE RH FRONT FENDER
                                          - Not for USA, CDN and J - Not for version with ornament plate
                                          from £1,423.72
                                          from £1,423.72

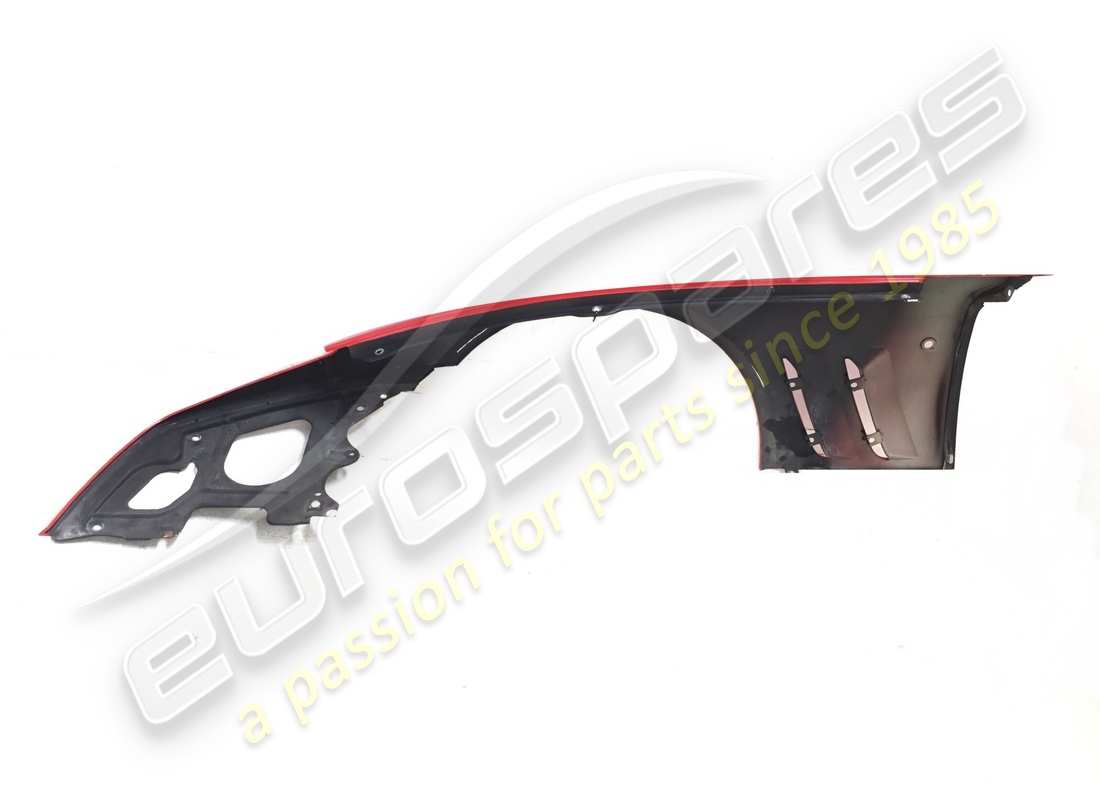

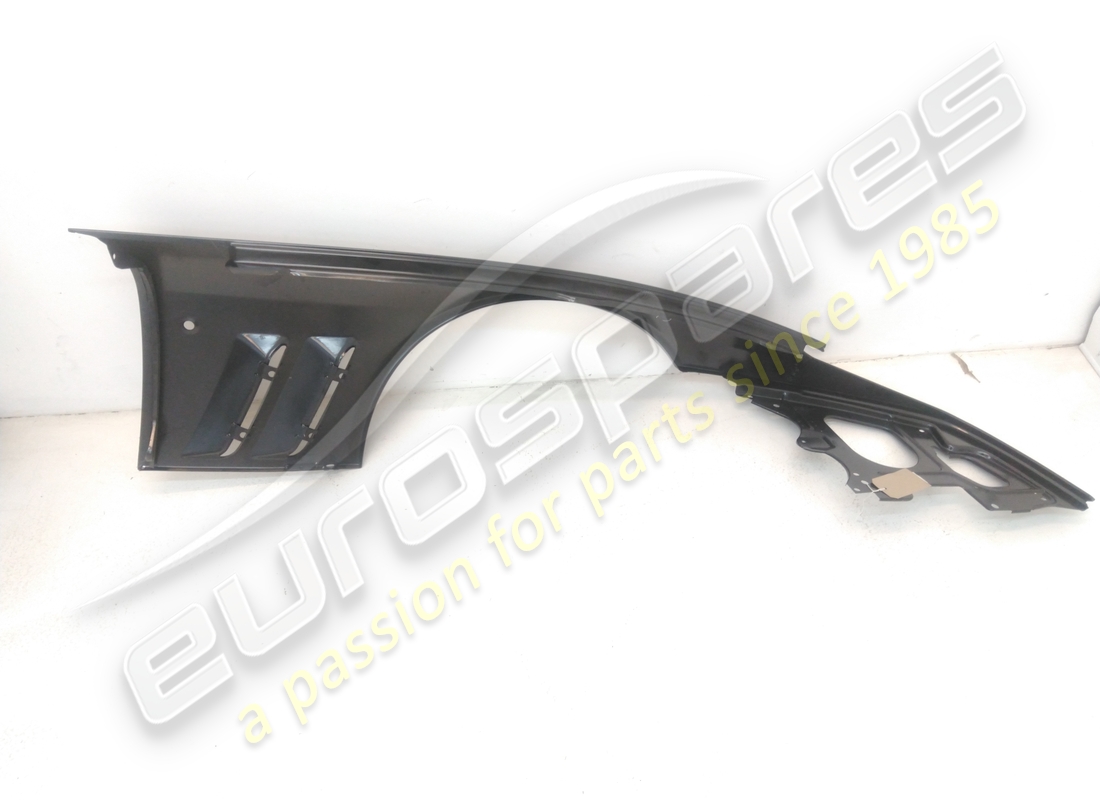

                                          COMPLETE RH FRONT FENDER Genuine Ferrari Part - Used In stock
                                          RED - Not for version with ornament plate ( The badge on photo is a sticker)
                                          # 002
                                          MPN: 65218200
                                          COMPLETE RH FRONT FENDER
                                          - Valid for USA and CDN - Not for version with ornament plate
                                          from £3,014.60
                                          from £3,014.60
                                          # 002
                                          MPN: 65281800
                                          COMPLETE RH FRONT FENDER
                                          - Valid for J - Not for version with ornament plate
                                          from £2,342.68
                                          from £2,342.68

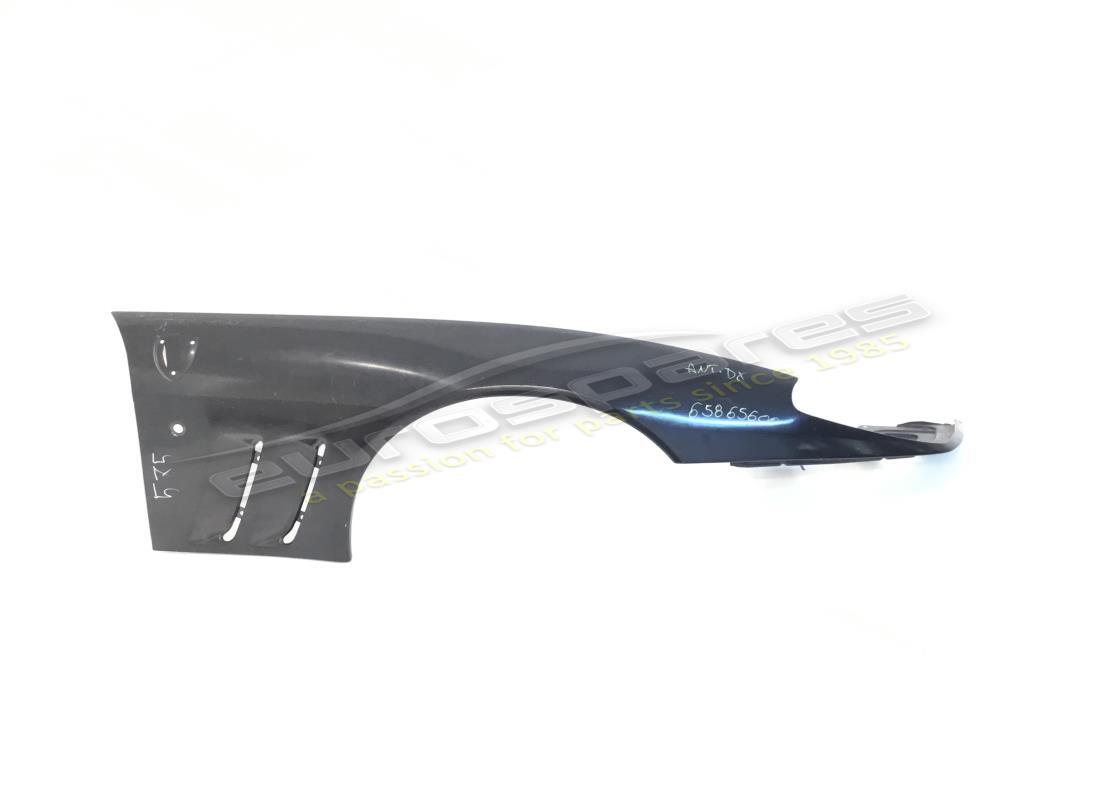

                                          # 002
                                          MPN: 65865611
                                          COMPLETE RH FRONT FENDER
                                          - Not for USA, CDN and J - Valid for version with ornament plate - Optional
                                          from £2,588.58
                                          from £2,588.58
                                          This part replaces part number 65865600
                                          # 002
                                          MPN: 65866011
                                          COMPLETE RH FRONT FENDER
                                          - Valid for USA and CDN - Valid for version with ornament plate - Optional
                                          from £3,055.97
                                          from £3,055.97
                                          This part replaces part number 65866000
                                          # 002
                                          MPN: 65872000
                                          COMPLETE RH FRONT FENDER
                                          - Valid for J - Valid for version with ornament plate - Optional
                                          from £1,761.43
                                          from £1,761.43
                                          # 003
                                          MPN: 64559200
                                          RH PLATE
                                          from £109.10
                                          from £109.10

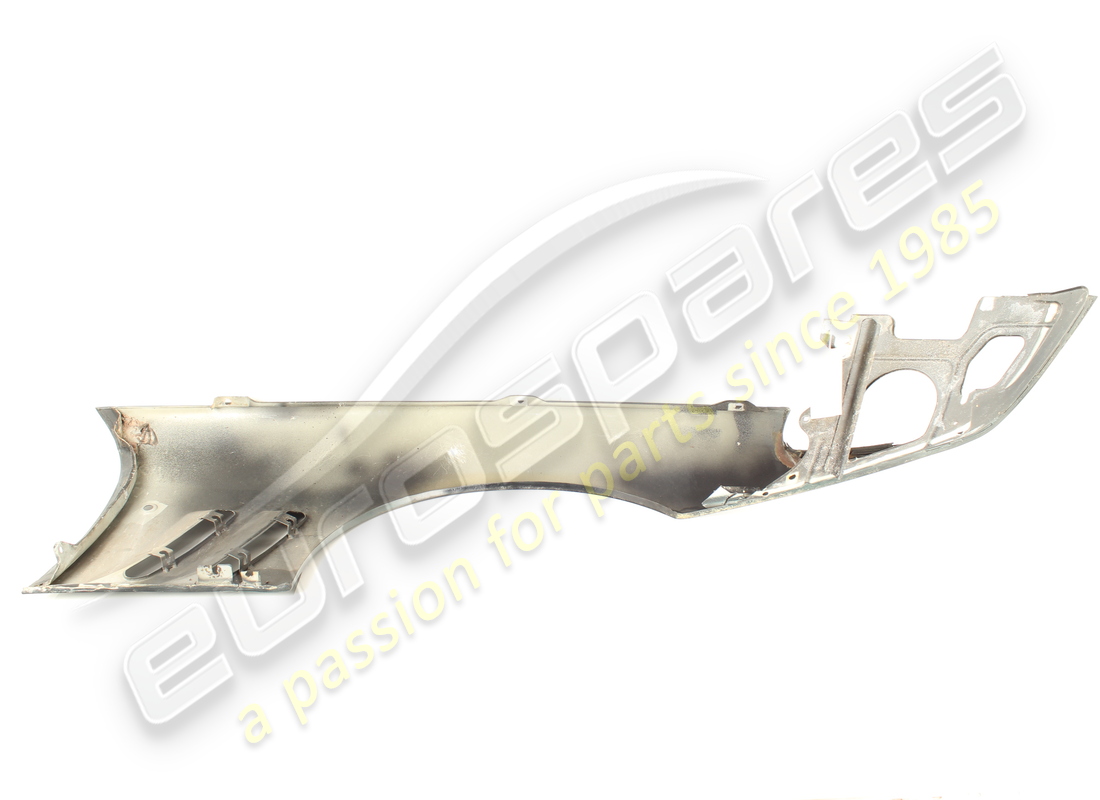

                                          # 004
                                          MPN: 64716400
                                          COMPLETE LH FRONT FENDER
                                          - Not for USA, CDN and J - Not for version with ornament plate
                                          from £2,588.58
                                          from £2,588.58
                                          # 004
                                          MPN: 65218300
                                          COMPLETE LH FRONT FENDER
                                          - Valid for USA and CDN - Not for version with ornament plate
                                          from £3,014.60
                                          from £3,014.60
                                          # 004
                                          MPN: 65281900
                                          COMPLETE LH FRONT FENDER
                                          - Valid for J - Not for version with ornament plate
                                          from £3,014.60
                                          from £3,014.60
                                          # 004
                                          MPN: 65865711
                                          COMPLETE LH FRONT FENDER
                                          - Not for USA, CDN and J - Valid for version with ornament plate - Optional
                                          from £2,588.58
                                          from £2,588.58
                                          This part replaces part number 65865700
                                          # 004
                                          MPN: 65866111
                                          COMPLETE LH FRONT FENDER
                                          - Valid for USA and CDN - Valid for version with ornament plate - Optional
                                          from £4,320.24
                                          from £4,320.24
                                          This part replaces part number 65866100
                                          # 004
                                          MPN: 65872100
                                          COMPLETE LH FRONT FENDER
                                          - Valid for J - Valid for version with ornament plate - Optional
                                          from £1,539.04
                                          from £1,539.04
                                          # 005
                                          MPN: 64559300
                                          LH PLATE
                                          from £109.10
                                          from £109.10
                                          # 006
                                          MPN: 65184600

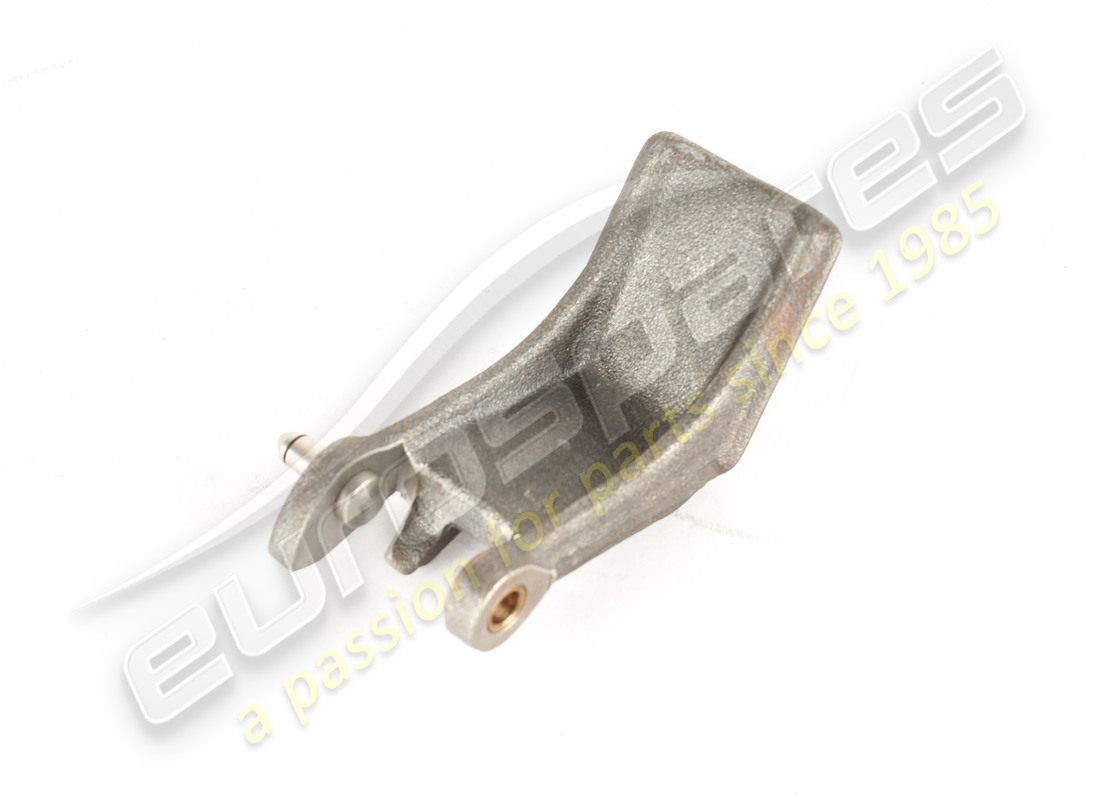

                                          RH FIXED HINGE
                                          from £342.41
                                          from £342.41
                                          # 006
                                          MPN: 65184700
                                          LH FIXED HINGE
                                          from £470.21
                                          from £470.21
                                          # 007
                                          MPN: 64567100
                                          REINFORCEMENT RH BRACKET
                                          from £37.40
                                          from £37.40
                                          # 007
                                          MPN: 64567200
                                          REINFORCEMENT LH BRACKET
                                          from £37.40
                                          from £37.40
                                          # 008
                                          MPN: 64551700
                                          RH FRONT SEAL
                                          from £8.85
                                          from £8.85
                                          # 008
                                          MPN: 64551800
                                          LH FRONT SEAL
                                          from £8.85
                                          from £8.85
                                          # 009
                                          MPN: 64551500
                                          RH INSERT
                                          from £384.03
                                          from £384.03
                                          # 009
                                          MPN: 64551600
                                          LH INSERT
                                          from £256.02
                                          from £256.02

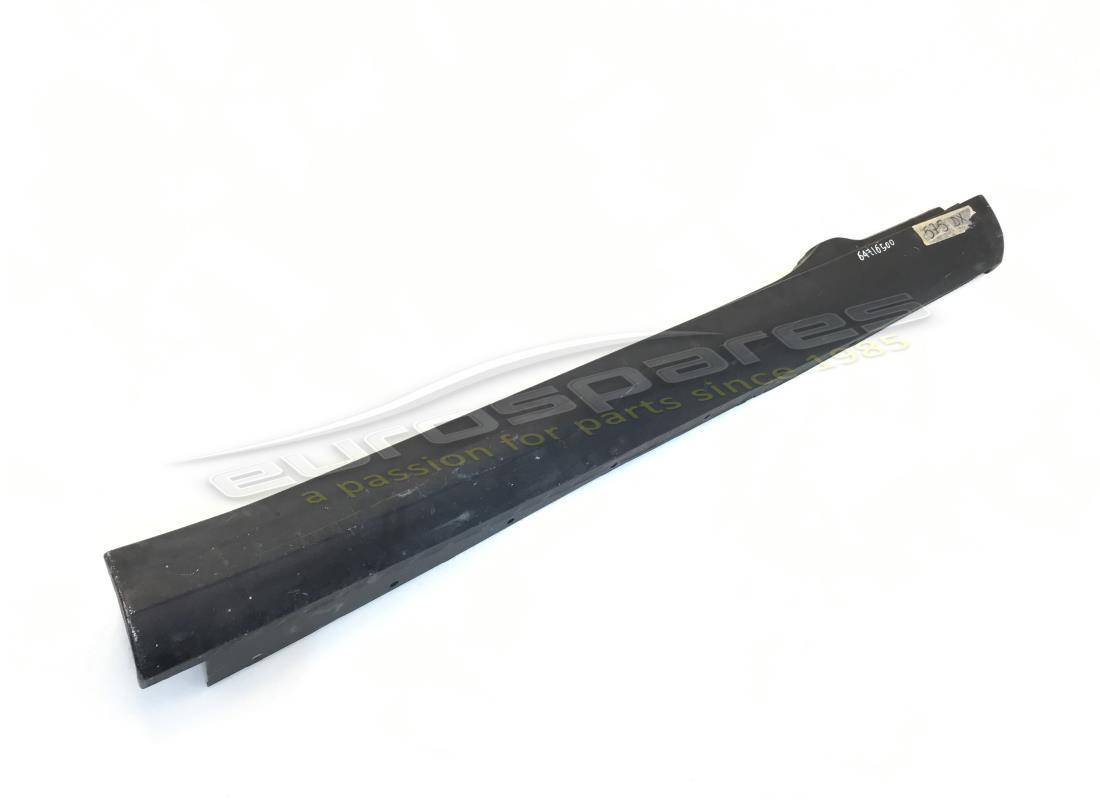

                                          # 010
                                          MPN: 64716500
                                          RH CROSSMEMBER COVER
                                          from £618.30
                                          from £618.30
                                          # 010
                                          MPN: 64716600
                                          LH CROSSMEMBER COVER
                                          from £618.30
                                          from £618.30
                                          # 011
                                          MPN: 64557100
                                          RH REAR CLOSING PANEL
                                          from £171.20
                                          from £171.20
                                          # 011
                                          MPN: 64557200
                                          LH REAR CLOSING PANEL
                                          from £235.11
                                          from £235.11
                                          # 012
                                          MPN: 65177900
                                          RH CENTRAL PILLAR
                                          from £220.96
                                          from £220.96
                                          This part replaces part number 64556700
                                          # 012
                                          MPN: 65178000
                                          LH CENTRAL PILLAR
                                          from £220.96
                                          from £220.96
                                          This part replaces part number 64556800
                                          # 013
                                          MPN: 64712100

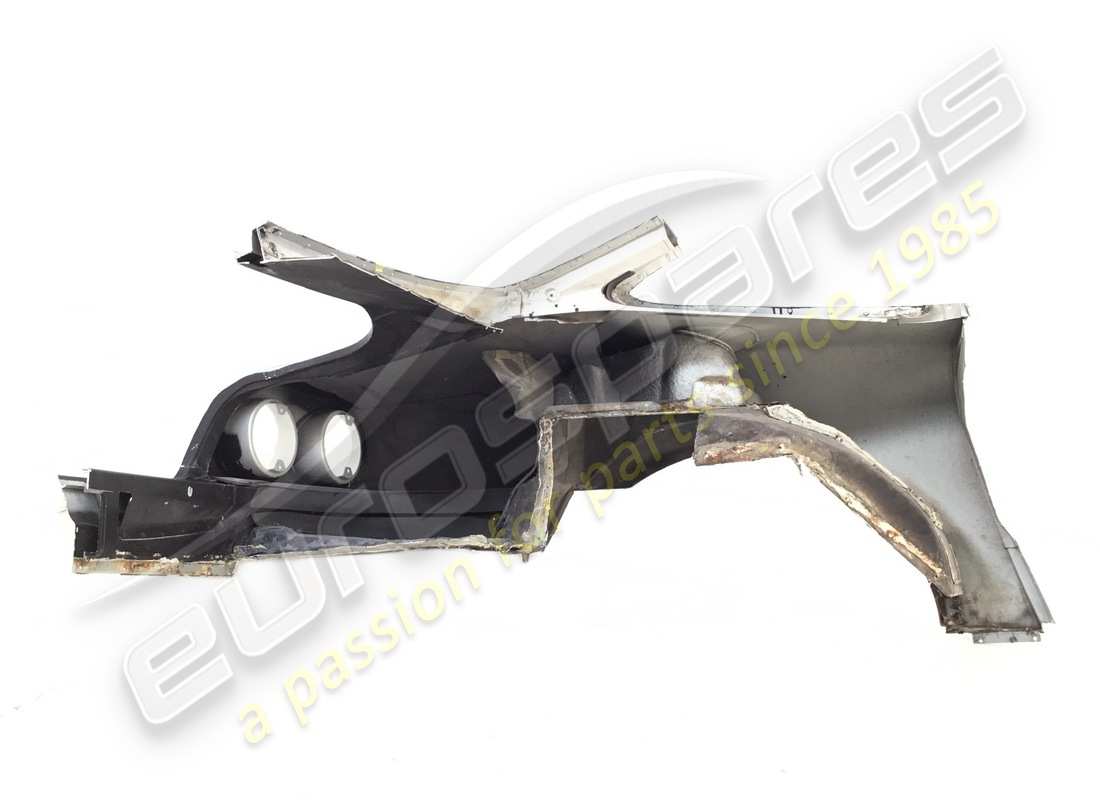

                                          COMPLETE RH REAR FENDER
                                          from £3,127.28
                                          from £3,127.28
                                          # 014
                                          MPN: 64712200
                                          COMPLETE LH REAR FENDER
                                          from £2,087.89
                                          from £2,087.89
                                          # 015
                                          MPN: 65022200
                                          BRACKET
                                          from £103.65
                                          from £103.65
                                          # 016
                                          MPN: 64561500
                                          RH FRONT INSERT
                                          from £65.39
                                          from £65.39
                                          # 016
                                          MPN: 64561600
                                          LH FRONT INSERT
                                          from £107.69
                                          from £107.69
                                          # 017
                                          MPN: 65513600
                                          LH PROTECTION
                                          from £11.01
                                          from £11.01
                                          This part replaces part number 65364000
                                          # 017
                                          MPN: 65513700
                                          RH PROTECTION
                                          from £18.03
                                          from £18.03
                                          This part replaces part number 65363900
                                          # 018
                                          MPN: 64556900
                                          RH LOWERPILLAR FRAME
                                          from £102.72
                                          from £102.72
                                          # 018
                                          MPN: 64557000
                                          LH LOWERPILLAR FRAME
                                          from £102.72
                                          from £102.72
                                          # 019
                                          MPN: 64658900
                                          BRACKET
                                          from £10.61
                                          from £10.61
                                          # 020
                                          MPN: 62797700
                                          PLUG
                                          from £2.00
                                          from £2.00
                                          # 021
                                          MPN: 14506987
                                          PLUG
                                          from £1.92
                                          from £1.92
                                          # 022
                                          MPN: 14507787
                                          PLUG
                                          from £0.47
                                          from £0.47
                                          # 023
                                          MPN: 64174300
                                          FRONT FENDER ORNAMENT
                                          - optional
                                          from £415.14
                                          from £415.14
                                          # 024
                                          MPN: 16101711
                                          NUT
                                          - optional
                                          from £0.52
                                          from £0.52
                                          This part replaces part number 16101715
                                          # 025
                                          MPN: 12034470
                                          WASHER
                                          - optional
                                          from £0.71
                                          from £0.71
                                          # 026
                                          MPN: 12639901
                                          WASHER
                                          - optional
                                          from £0.53
                                          from £0.53
