ferrari 550 maranello rear structures and components parts diagram

102 - Rear Structures and Components

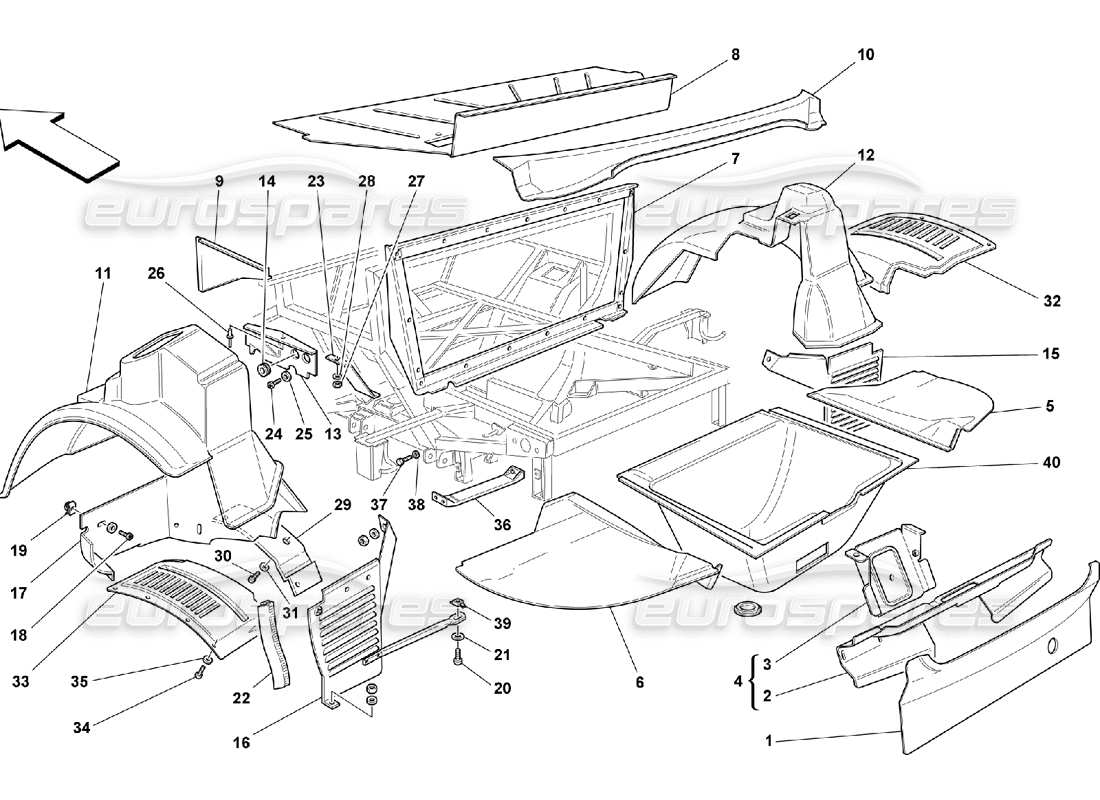

Ferrari 550 Maranello Rear Structures and Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 64553000
                                                                  REAR PANEL
                                                                  from £188.32
                                                                  from £188.32
                                                                  # 002
                                                                  MPN: 64553100
                                                                  STAMPED REAR PANEL
                                                                  - Not as spare part now - Replaced by 65802100
                                                                  Supersession
                                                                  Supersession
                                                                  # 003
                                                                  MPN: 64553200
                                                                  REINFORCEMENT
                                                                  - Not as spare part now - Replaced by 65802100
                                                                  Supersession
                                                                  Supersession
                                                                  # 004
                                                                  MPN: 65802100
                                                                  COMPLETE STAMPED REAR PANEL
                                                                  from £487.54
                                                                  from £487.54
                                                                  This part replaces part number 64553100 - and 1 more. Click to view details
                                                                  # 005
                                                                  MPN: 64578500
                                                                  RH LATERAL TRUNK BOTTOM
                                                                  - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £500.70
                                                                  from £500.70
                                                                  This part replaces part number 64944800
                                                                  # 005
                                                                  MPN: 65939000
                                                                  RH LATERAL TRUNK BOTTOM
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £500.70
                                                                  from £500.70
                                                                  # 006
                                                                  MPN: 64578600
                                                                  LH LATERAL TRUNK BOTTOM
                                                                  from £500.70
                                                                  from £500.70
                                                                  This part replaces part number 64944900
                                                                  # 007
                                                                  MPN: 64659900
                                                                  FRAME FOR SHIELD
                                                                  - Not for GD
                                                                  from £154.06
                                                                  from £154.06
                                                                  # 007
                                                                  MPN: 65424600
                                                                  FRAME FOR SHIELD
                                                                  - Valid for GD
                                                                  from £69.49
                                                                  from £69.49
                                                                  This part replaces part number 65427600
                                                                  # 008
                                                                  MPN: 64778400
                                                                  PANEL FOR BAGS
                                                                  - Not for CDN
                                                                  from £728.54
                                                                  from £728.54
                                                                  # 008
                                                                  MPN: 65271900
                                                                  PANEL FOR BAGS
                                                                  - Valid for CDN
                                                                  from £563.53
                                                                  from £563.53

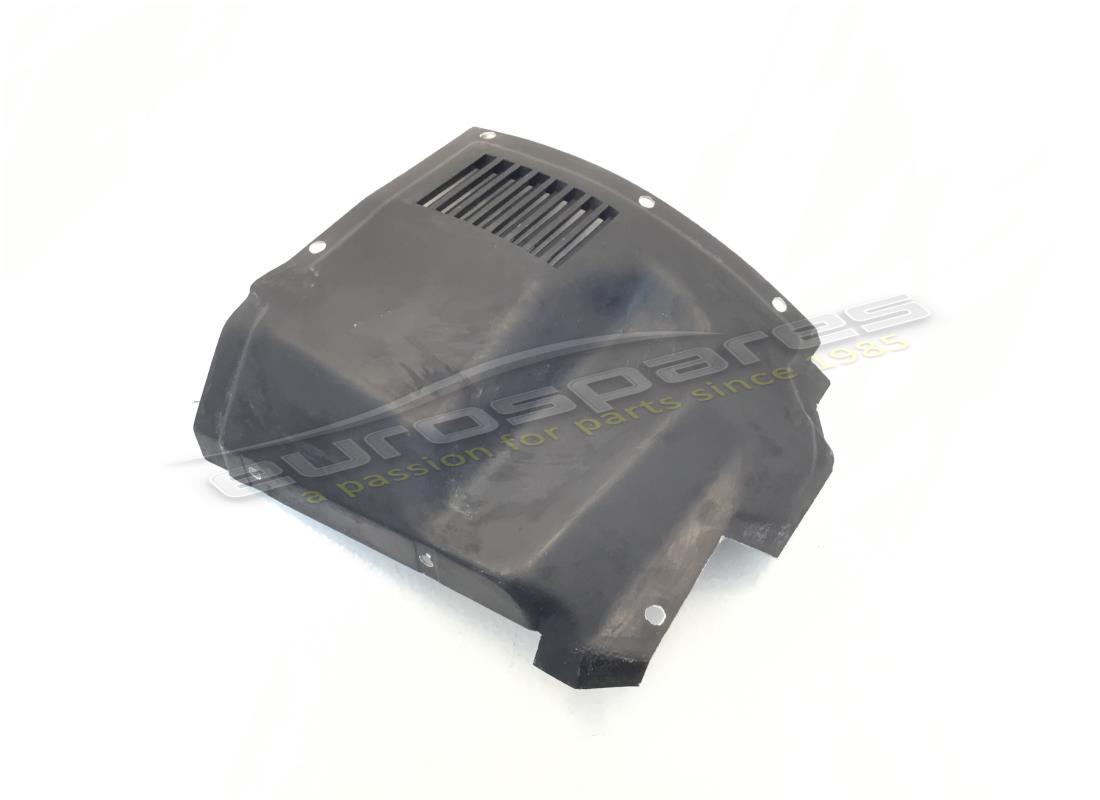

                                                                  # 009
                                                                  MPN: 64557700
                                                                  SHIELD FOR RH WHEELHOUSE
                                                                  from £50.77
                                                                  from £50.77
                                                                  # 009
                                                                  MPN: 64557800
                                                                  SHIELD FOR LH WHEELHOUSE
                                                                  from £50.76
                                                                  from £50.76
                                                                  # 010
                                                                  MPN: 64552600
                                                                  TAIL REAR WINDOW CROSSPIECE
                                                                  from £557.24
                                                                  from £557.24
                                                                  # 011
                                                                  MPN: 64576200
                                                                  COMPLETE LH REAR WHEELHOUSE
                                                                  from £173.00
                                                                  from £173.00
                                                                  # 012
                                                                  MPN: 64576000
                                                                  COMPLETE RH REAR WHEELHOUSE
                                                                  - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £174.88
                                                                  from £174.88
                                                                  # 012
                                                                  MPN: 65913600
                                                                  COMPLETE RH REAR WHEELHOUSE
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £624.33
                                                                  from £624.33
                                                                  # 013
                                                                  MPN: 65236500
                                                                  DOOR FOR PIPES
                                                                  from £21.47
                                                                  from £21.47
                                                                  # 014
                                                                  MPN: 10396880
                                                                  CABLE GROMMET
                                                                  from £2.31
                                                                  from £2.31
                                                                  # 015
                                                                  MPN: 64650700
                                                                  RH REAR GRAVEL GUARD
                                                                  from £29.10
                                                                  from £29.10
                                                                  # 016
                                                                  MPN: 64650800
                                                                  LH REAR GRAVEL GUARD
                                                                  from £29.10
                                                                  from £29.10
                                                                  # 017
                                                                  MPN: 64887300
                                                                  FRONT GRAVEL GUARD FOR LH REAR WHEEL
                                                                  from £57.64
                                                                  from £57.64
                                                                  # 017
                                                                  MPN: 64887400
                                                                  FRONT GRAVEL GUARD FOR RH REAR WHEEL
                                                                  from £57.64
                                                                  from £57.64
                                                                  # 018
                                                                  MPN: 62926700
                                                                  SCREW
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
                                                                  # 019
                                                                  MPN: 62766300
                                                                  CLIP
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 020
                                                                  MPN: 13274211
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 13274221
                                                                  # 021
                                                                  MPN: 14446924
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 14446901
                                                                  # 022
                                                                  MPN: 65260100
                                                                  GASKET
                                                                  from £1.83
                                                                  from £1.83
                                                                  # 023
                                                                  MPN: 64337700
                                                                  RH HEAT SHIELD
                                                                  - Not as spare part now - Replaced by 65374800
                                                                  from £18.90
                                                                  from £18.90
                                                                  # 023
                                                                  MPN: 64337800
                                                                  LH HEAT SHIELD
                                                                  - Not as spare part now - Replaced by 65374700
                                                                  from £19.74
                                                                  from £19.74
                                                                  # 023
                                                                  MPN: 65374700
                                                                  LH HEAT SHIELD
                                                                  from £57.02
                                                                  from £57.02
                                                                  # 023
                                                                  MPN: 65374800
                                                                  RH HEAT SHIELD
                                                                  from £57.02
                                                                  from £57.02
                                                                  # 024
                                                                  MPN: 13274211
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 13274221
                                                                  # 025
                                                                  MPN: 14446924
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 14446901
                                                                  # 027
                                                                  MPN: 169180
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12574121
                                                                  # 028
                                                                  MPN: 12638124
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12638101 - and 1 more. Click to view details
                                                                  # 029
                                                                  MPN: 64711600
                                                                  DOOR FOR RH REAR SIDE-MARKER
                                                                  from £3.93
                                                                  from £3.93
                                                                  # 029
                                                                  MPN: 64711700
                                                                  DOOR FOR LH REAR SIDE-MARKER
                                                                  from £3.93
                                                                  from £3.93
                                                                  # 030
                                                                  MPN: 13274211
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 13274221
                                                                  # 031
                                                                  MPN: 14446924
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 14446901
                                                                  # 032
                                                                  MPN: 64576100
                                                                  RH WHEELHOUSE DOOR
                                                                  - Not for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £110.47
                                                                  from £110.47
                                                                  # 032
                                                                  MPN: 65915200
                                                                  RH WHEELHOUSE DOOR
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £221.57
                                                                  from £221.57
                                                                  # 033
                                                                  MPN: 64576300
                                                                  LH WHEELHOUSE DOOR
                                                                  from £110.47
                                                                  from £110.47
                                                                  # 034
                                                                  MPN: 13274211
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 13274221
                                                                  # 035
                                                                  MPN: 14446924
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 14446901
                                                                  # 036
                                                                  MPN: 170507
                                                                  MOVABLE CROSS MEMBER
                                                                  from £115.82
                                                                  from £115.82
                                                                  # 037
                                                                  MPN: 16043224
                                                                  SCREW
                                                                  from £0.51
                                                                  from £0.51
                                                                  # 038
                                                                  MPN: 127496
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                  # 039
                                                                  MPN: 14197890
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 040
                                                                  MPN: 64554700
                                                                  SPARE WHEEL STEP
                                                                  from £320.13
                                                                  from £320.13
