106 - REAR BUMPER

Ferrari 550 Maranello Rear Bumper Parts Diagram

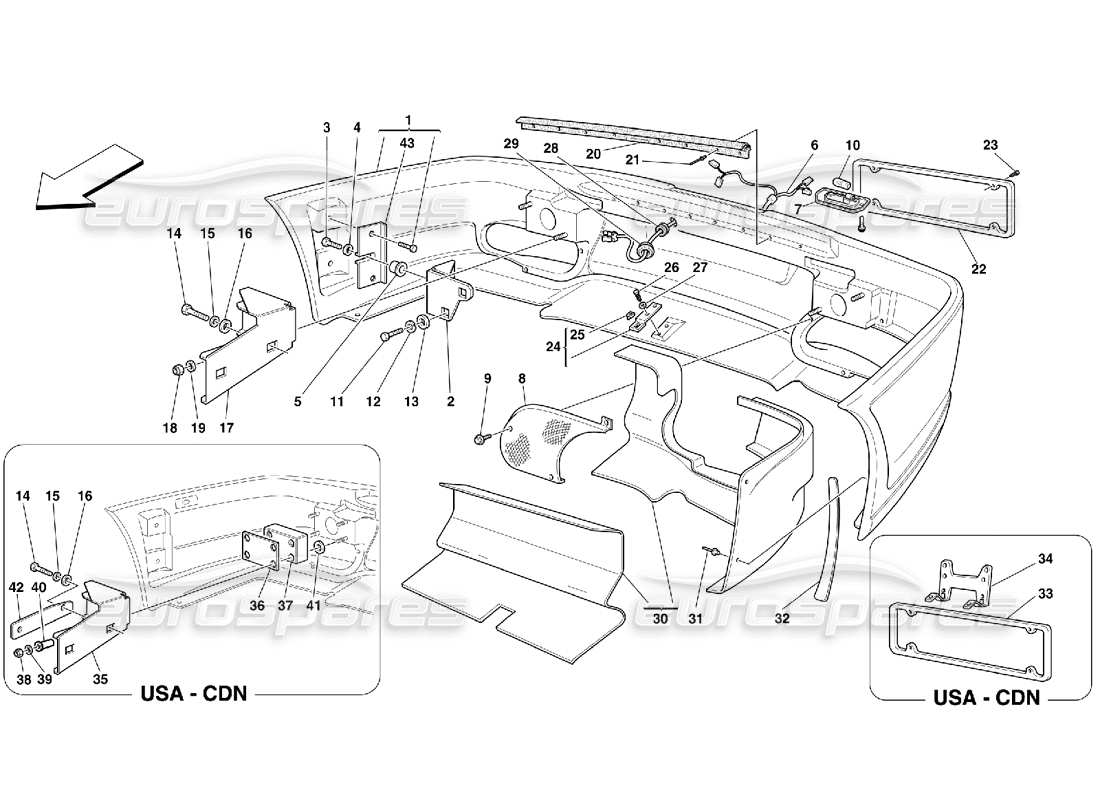

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price

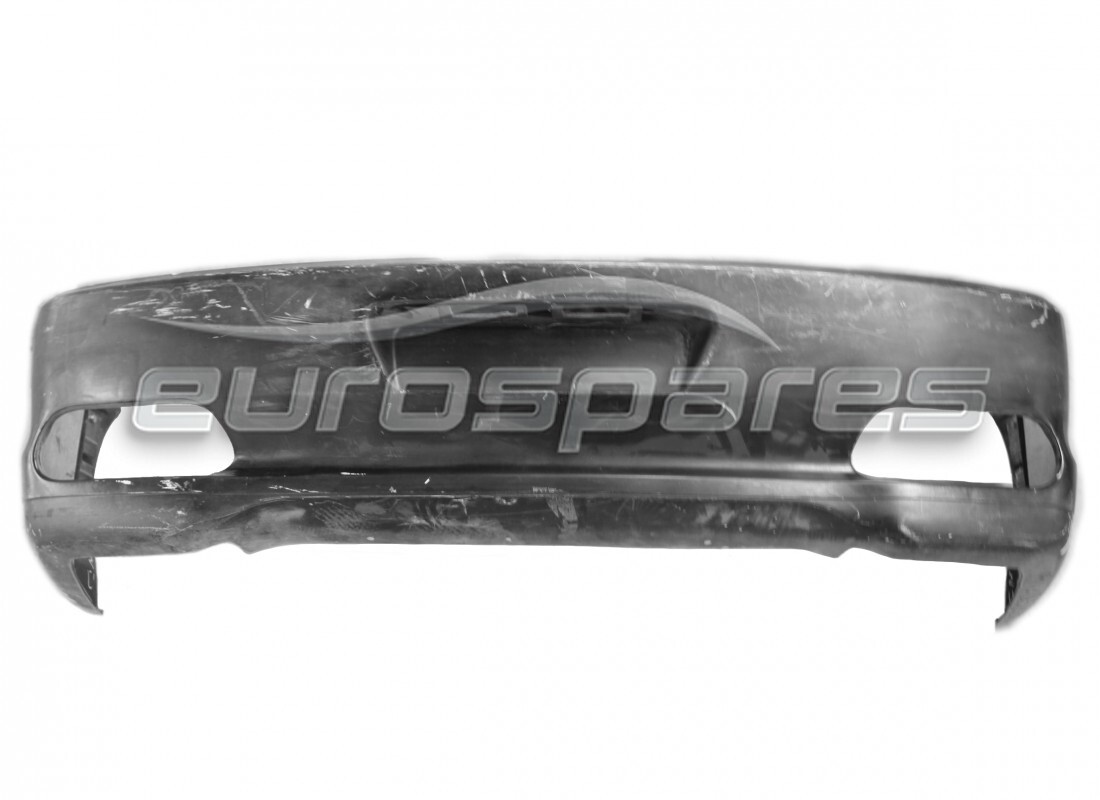

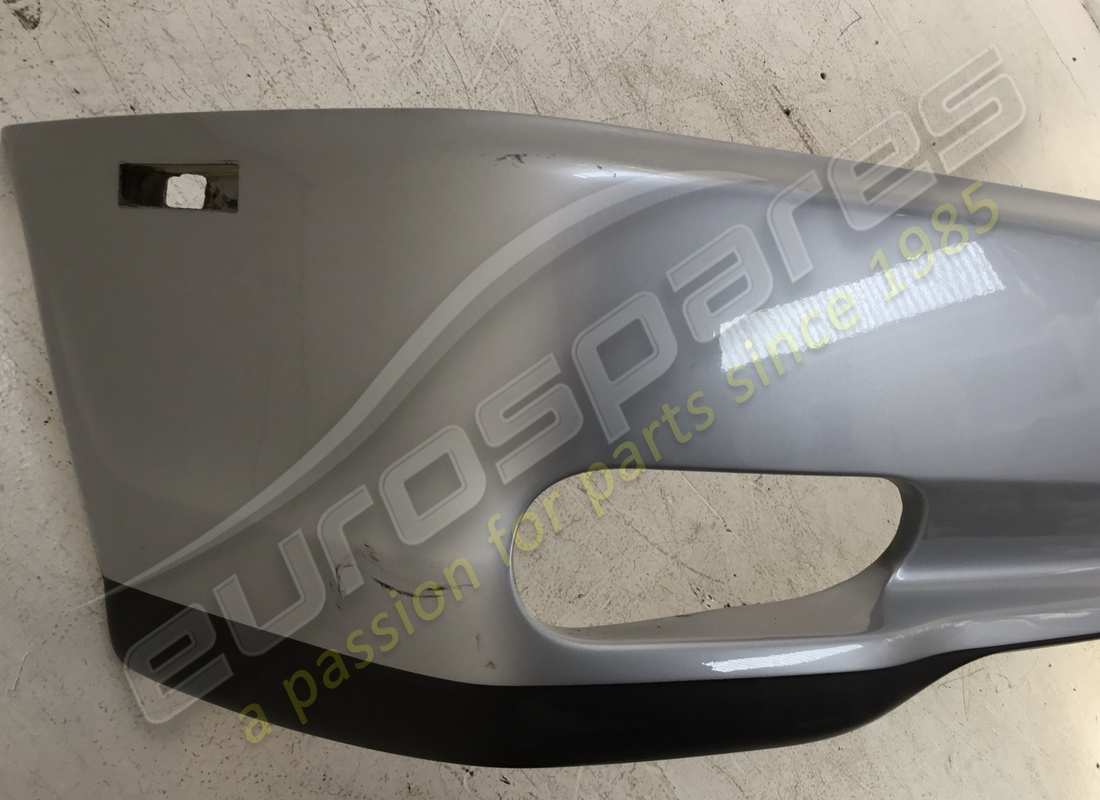

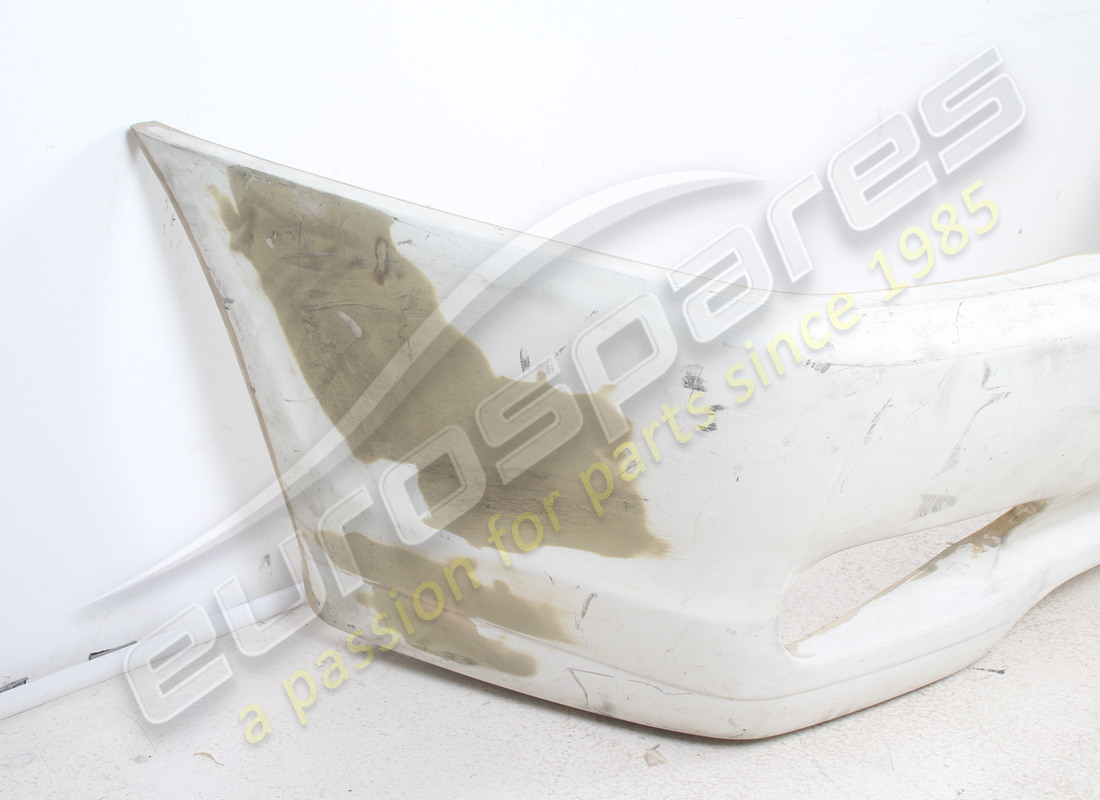

                                                    # 001
                                                    MPN: 65027210
                                                    COMPLETE REAR BUMPER
                                                    - Not for USA and CDN
                                                    from £4,590.75
                                                    from £4,590.75
                                                    # 001
                                                    MPN: 65185510
                                                    COMPLETE REAR BUMPER
                                                    - Valid for USA
                                                    from £1,600.00
                                                    from £1,600.00
                                                    # 001
                                                    MPN: 65378310
                                                    COMPLETE REAR BUMPER
                                                    - Valid for CDN
                                                    from £3,451.31
                                                    from £3,451.31
                                                    # 002
                                                    MPN: 65236000
                                                    LH BRACKET
                                                    from £19.94
                                                    from £19.94
                                                    # 002
                                                    MPN: 65236300
                                                    RH BRACKET
                                                    from £19.94
                                                    from £19.94
                                                    # 003
                                                    MPN: 65228800
                                                    PIN
                                                    from £4.09
                                                    from £4.09
                                                    # 004
                                                    MPN: 65406400
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 005
                                                    MPN: 65228700
                                                    BUSHING
                                                    from £3.48
                                                    from £3.48
                                                    # 008
                                                    MPN: 64717400
                                                    REAR BUMPER RH GRILL
                                                    from £62.07
                                                    from £62.07
                                                    # 008
                                                    MPN: 64717500
                                                    REAR BUMPER LH GRILL
                                                    from £62.07
                                                    from £62.07
                                                    # 009
                                                    MPN: 16285127
                                                    SCREW
                                                    (minimum order quantity = 10)
                                                    from £0.47
                                                    from £0.47
                                                    # 010
                                                    MPN: 10857790
                                                    12V-5W BULB
                                                    from £1.14
                                                    from £1.14
                                                    This part replaces part number 101524
                                                    # 011
                                                    MPN: 10902224
                                                    SCREW
                                                    from £0.51
                                                    from £0.51
                                                    # 012
                                                    MPN: 12601274
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                    # 013
                                                    MPN: 12643724
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                    # 014
                                                    MPN: 15540224
                                                    SCREW
                                                    from £0.71
                                                    from £0.71
                                                    # 015
                                                    MPN: 10615874
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
                                                    # 016
                                                    MPN: 12646901
                                                    WASHER
                                                    from £0.71
                                                    from £0.71
                                                    # 017
                                                    MPN: 65045300
                                                    RH BRACKET
                                                    - Not for USA and CDN
                                                    from £75.45
                                                    from £75.45
                                                    # 017
                                                    MPN: 65045400
                                                    LH BRACKET
                                                    - Not for USA and CDN
                                                    from £75.45
                                                    from £75.45
                                                    # 018
                                                    MPN: 104114
                                                    NUT
                                                    - Not for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 15503711 - and 1 more. Click to view details
                                                    # 019
                                                    MPN: 12646821
                                                    WASHER
                                                    - Not for USA and CDN - (minimum order quantity = 30)
                                                    from £0.47
                                                    from £0.47
                                                    # 020
                                                    MPN: 65109300
                                                    BUMPER GASKET
                                                    from £14.77
                                                    from £14.77
                                                    # 021
                                                    MPN: 62556300
                                                    RIVET
                                                    from £0.71
                                                    from £0.71
                                                    # 022
                                                    MPN: 65252700
                                                    REAR NUMBER PLATE RIM
                                                    - Not for USA and CDN
                                                    from £23.51
                                                    from £23.51
                                                    # 023
                                                    MPN: 15688075
                                                    SCREW
                                                    - Not for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                    # 024
                                                    MPN: 65118700
                                                    BRACKET
                                                    from £2.35
                                                    from £2.35
                                                    # 025
                                                    MPN: 60659100
                                                    NUT WITH CAGE
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                    # 026
                                                    MPN: 15687870
                                                    SCREW
                                                    from £1.18
                                                    from £1.18
                                                    This part replaces part number 15687801
                                                    # 027
                                                    MPN: 12637824
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                    # 028
                                                    MPN: 10397480
                                                    CABLE GROMMET
                                                    from £1.86
                                                    from £1.86
                                                    # 029
                                                    MPN: 163163
                                                    CABLE BUSHING
                                                    from £1.68
                                                    from £1.68

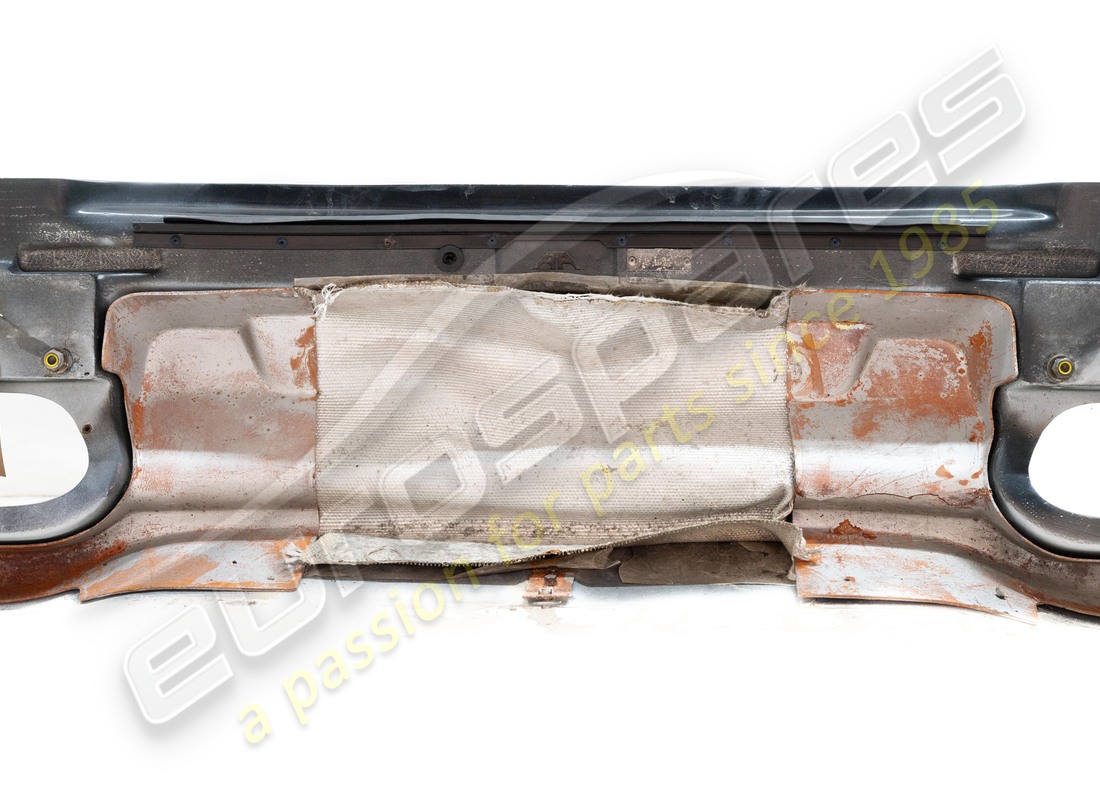

                                                    # 030
                                                    MPN: 65366500
                                                    HEAT PROTECTION SERIES
                                                    - Not for USA and CDN
                                                    from £1,106.45
                                                    from £1,106.45
                                                    # 030
                                                    MPN: 65366600
                                                    HEAT PROTECTION SERIES
                                                    - Valid for USA and CDN
                                                    from £608.55
                                                    from £608.55
                                                    # 031
                                                    MPN: 14296196
                                                    RIVET
                                                    from £0.47
                                                    from £0.47
                                                    # 032
                                                    MPN: 65513800
                                                    LH PROTECTION
                                                    from £13.43
                                                    from £13.43
                                                    This part replaces part number 65363800
                                                    # 032
                                                    MPN: 65513900
                                                    RH PROTECTION
                                                    from £13.43
                                                    from £13.43
                                                    This part replaces part number 65363700
                                                    # 033
                                                    MPN: 60987900
                                                    REAR NUMBER PLATE RIM
                                                    - Valid for USA and CDN
                                                    from £38.94
                                                    from £38.94
                                                    # 034
                                                    MPN: 64839300
                                                    REAR PLATE FRAME
                                                    - Valid for USA and CDN
                                                    from £87.25
                                                    from £87.25
                                                    # 035
                                                    MPN: 64565000
                                                    RH BRACKET
                                                    - Valid for USA and CDN
                                                    from £46.15
                                                    from £46.15
                                                    # 035
                                                    MPN: 64717600
                                                    LH BRACKET
                                                    - Valid for USA and CDN
                                                    from £65.45
                                                    from £65.45
                                                    # 036
                                                    MPN: 63738800
                                                    PLATE
                                                    - Valid for USA and CDN
                                                    from £1.11
                                                    from £1.11
                                                    # 037
                                                    MPN: 63214100
                                                    PAD
                                                    - Valid for USA and CDN
                                                    from £14.48
                                                    from £14.48
                                                    # 038
                                                    MPN: 104114
                                                    NUT
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 15503711 - and 1 more. Click to view details
                                                    # 039
                                                    MPN: 12646821
                                                    WASHER
                                                    - Valid for USA and CDN - (minimum order quantity = 30)
                                                    from £0.47
                                                    from £0.47
                                                    # 040
                                                    MPN: 65372900
                                                    BUSHING
                                                    - Valid for USA and CDN
                                                    from £1.96
                                                    from £1.96
                                                    # 041
                                                    MPN: 12646821
                                                    WASHER
                                                    - Valid for USA and CDN - (minimum order quantity = 30)
                                                    from £0.47
                                                    from £0.47
                                                    # 042
                                                    MPN: 65280500
                                                    BUMPER FIXING PLATE
                                                    - Valid for USA and CDN
                                                    from £9.60
                                                    from £9.60
                                                    # 043
                                                    MPN: 65270200
                                                    SLIDING SIDE BRACKET
                                                    from £124.73
                                                    from £124.73
