113 - Roof Panel Upholstery and Accessories

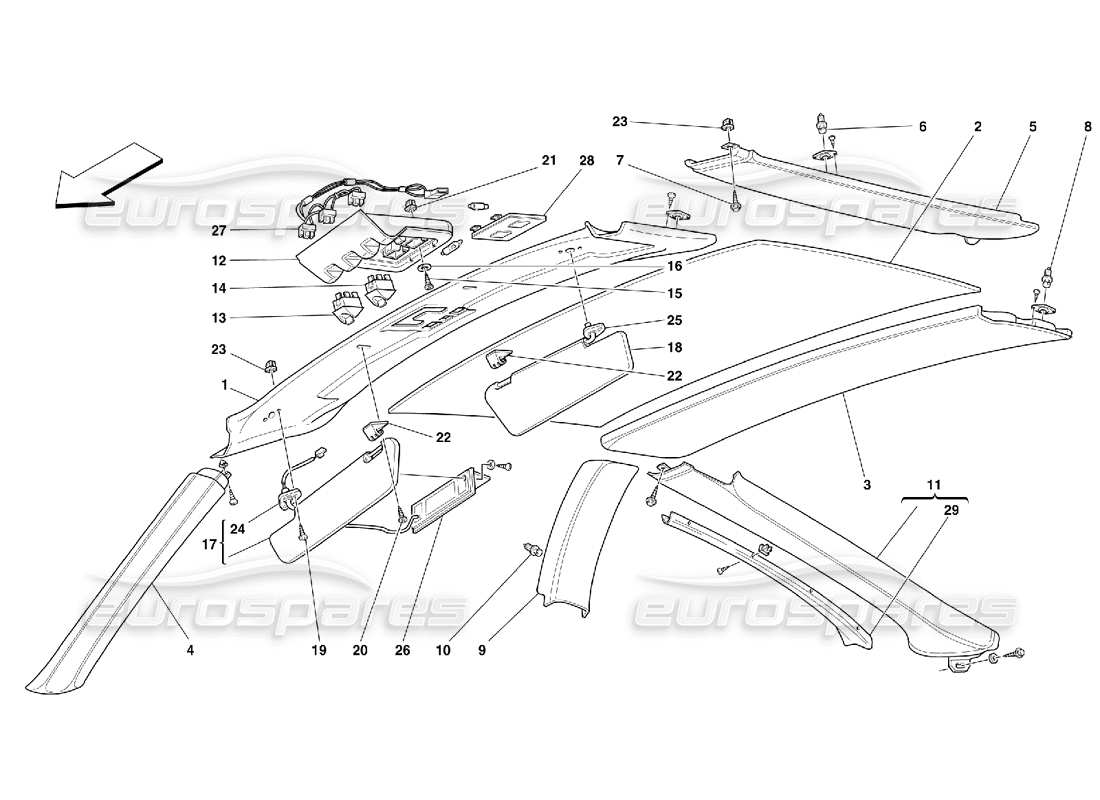

Ferrari 550 Maranello Roof Panel Upholstery and Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 67357890
INTERIOR ROOF PANEL UPHOLSTERY (BLACK)
from £2,094.75
from £2,094.75
# 001
MPN: 645967..
WINDSHIELD UPPER CROSSPIECE TRIM
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £236.25
from £236.25
# 002
MPN: 645927..
ROOF UPHOLSTERY
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £315.00
from £315.00
# 003
MPN: 645951..
REAR OVER-WINDOW CROSSMEMBER
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £189.00
from £189.00
# 004
MPN: 645930..
FRONT LH POST COVERING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 004
MPN: 645968..
FRONT RH POST COVERING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £89.25
from £89.25
# 005
MPN: 645929..
LH SIDE RAIL
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £147.00
from £147.00
# 005
MPN: 645969..
RH SIDE RAIL
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £147.00
from £147.00
# 006
MPN: 14188181
RETAINER
from £0.47
from £0.47
This part replaces part number 14188282
# 007
MPN: 15782601
SCREW
from £0.47
from £0.47
# 008
MPN: 14188181
RETAINER
from £0.47
from £0.47
This part replaces part number 14188282
# 009
MPN: 645842..
LH CENTRAL POST COVERING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £89.25
from £89.25
# 009
MPN: 645970..
RH CENTRAL POST COVERING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £99.75
from £99.75
# 010
MPN: 14188181
RETAINER
from £0.47
from £0.47
This part replaces part number 14188282
# 011
MPN: 647513..
REAR RH POST COVERING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £131.25
from £131.25
# 011
MPN: 647514..
REAR LH POST COVERING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
from £147.00
from £147.00
# 012
MPN: 171435
FRONT DOME LAMP
from £225.62
from £225.62
# 013
MPN: 171084
SWITCH FOR SPOT LIGHT
- Valid till car Ass. Nr. 35206
from £177.10
from £177.10
# 013
MPN: 180689

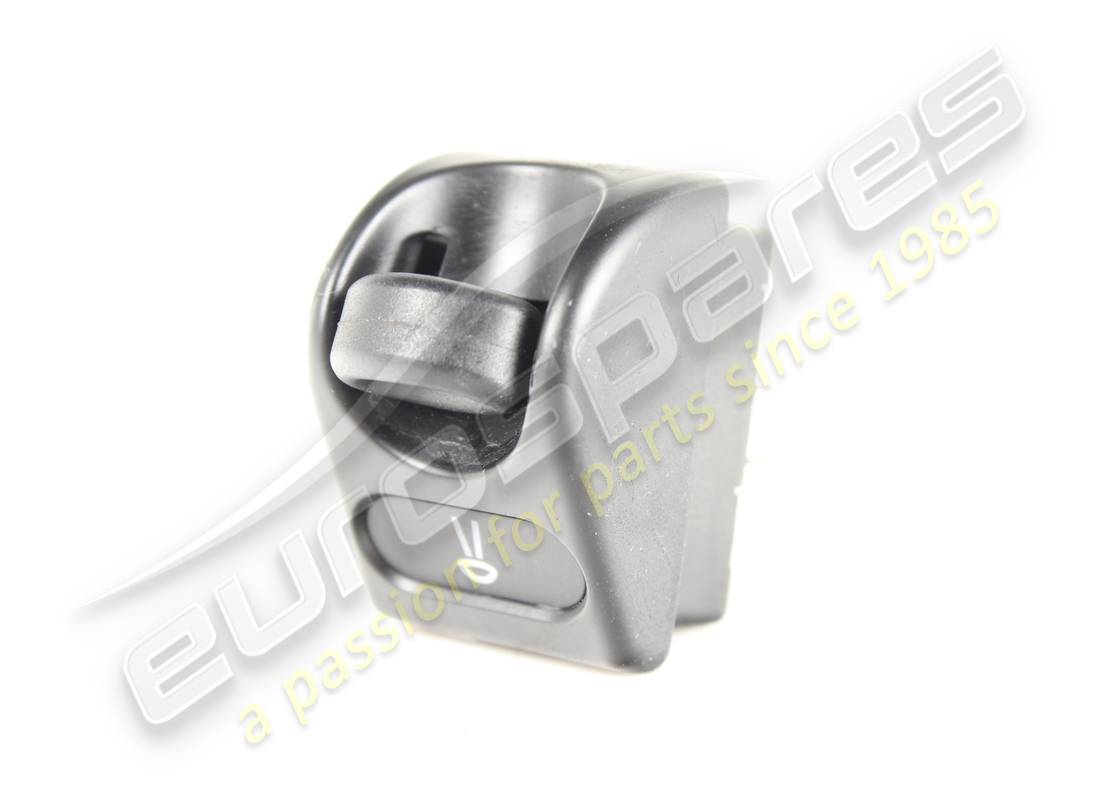

SWITCH FOR SPOT LIGHT
- Valid from car Ass. Nr. 35207
from £45.66
from £45.66
# 014
MPN: 171083

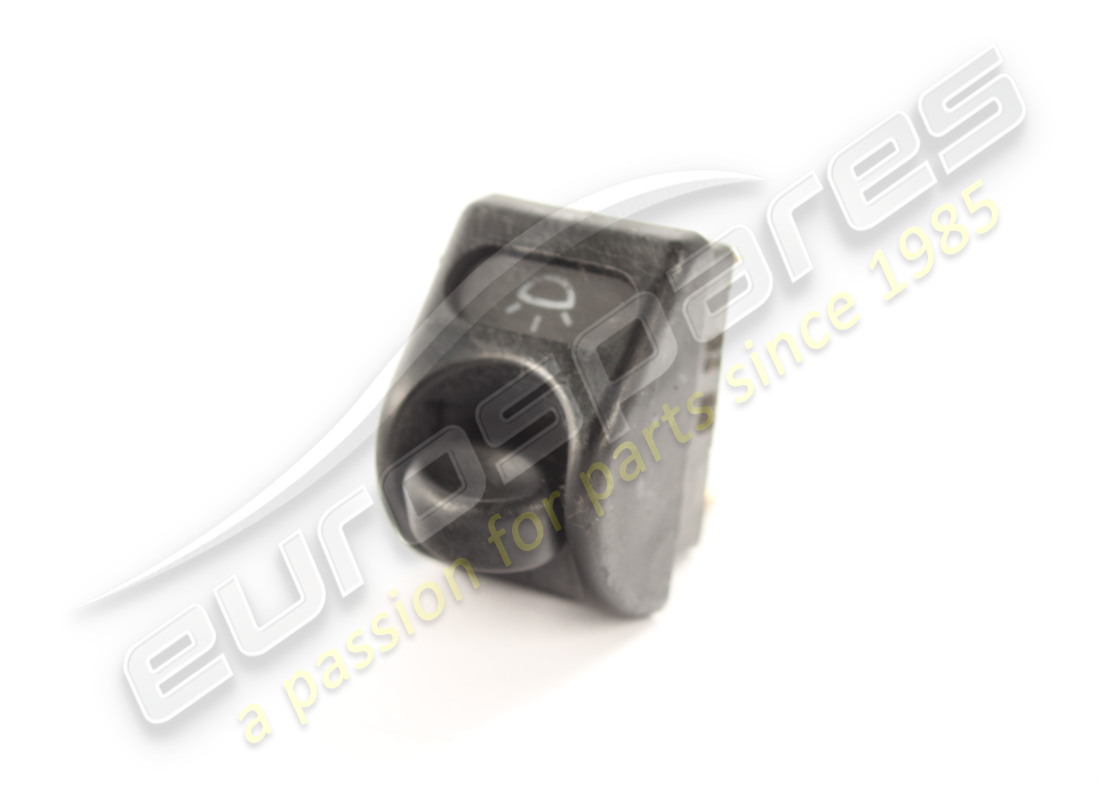

SWITCH FOR ROOF LIGHT
- Valid till car Ass. Nr. 35206
from £115.57
from £115.57
# 014
MPN: 180688
SWITCH FOR ROOF LIGHT
- Valid from car Ass. Nr. 35207
from £44.77
from £44.77
# 015
MPN: 15782601
SCREW
from £0.47
from £0.47
# 016
MPN: 14496204
WASHER
from £0.47
from £0.47
This part replaces part number 14496201
# 017
MPN: 651831..
RH SUN SCREEN
- Valid for GD - BLACK
Supersession
Supersession
# 017
MPN: 651979..
RH SUN SCREEN
- Not for GD - Valid till car Ass. Nr. 28973 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 017
MPN: 65512800
RH SUN SCREEN
- Passenger side - Not for GD - covered in black leather
from £401.97
from £401.97
# 018
MPN: 65183200
LH SUN SCREEN IN BLACK
from £401.97
from £401.97
# 018
MPN: 65183202
LH SUN SCREEN IN DARK BLUE
- Valid for GD - Valid till car Ass. Nr. 28973 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
# 018
MPN: 65198000
LH SUN SCREEN
- Not for GD - in black
from £184.61
from £184.61
# 018
MPN: 655131..
LH SUN SCREEN
- Valid for GD - Valid from car Ass. Nr. 28974 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 019
MPN: 13309277
SCREW
from £0.47
from £0.47
This part replaces part number 13309211
# 020
MPN: 13309477
SCREW
from £0.47
from £0.47
# 021
MPN: 14115580
BLOCK
from £0.47
from £0.47
# 022
MPN: 65196000
HOOK FOR SUN SCREEN
from £2.34
from £2.34
# 023
MPN: 14215480
NUT SCREW
from £0.47
from £0.47
This part replaces part number 14211580
# 024
MPN: 65195800
ELECTRICAL PIN
- Valid till car Ass. Nr. 28973
from £66.87
from £66.87
# 024
MPN: 65513000
ELECTRICAL PIN
- Valid from car Ass. Nr. 28974
from £29.20
from £29.20
# 025
MPN: 65195900
PIN
- Valid till car Ass. Nr. 28973
from £12.27
from £12.27
# 025
MPN: 65508000
PIN
- Valid from car Ass. Nr. 28974
from £32.25
from £32.25
# 026
MPN: 63865700
COURTESY MIRROR
from £62.20
from £62.20
# 027
MPN: 164669
ROOF LIGHT AND CONTROLS CONNECTING CABLES
from £7.87
from £7.87
# 028
MPN: 174453
COMPLETE TRANSPARENT COVER
from £23.69
from £23.69
# 029
MPN: 645840..
LH UPPER MOULDING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
# 029
MPN: 645899..
RH UPPER MOULDING
- See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
Supersession
Supersession
