115 - Engine Bonnet

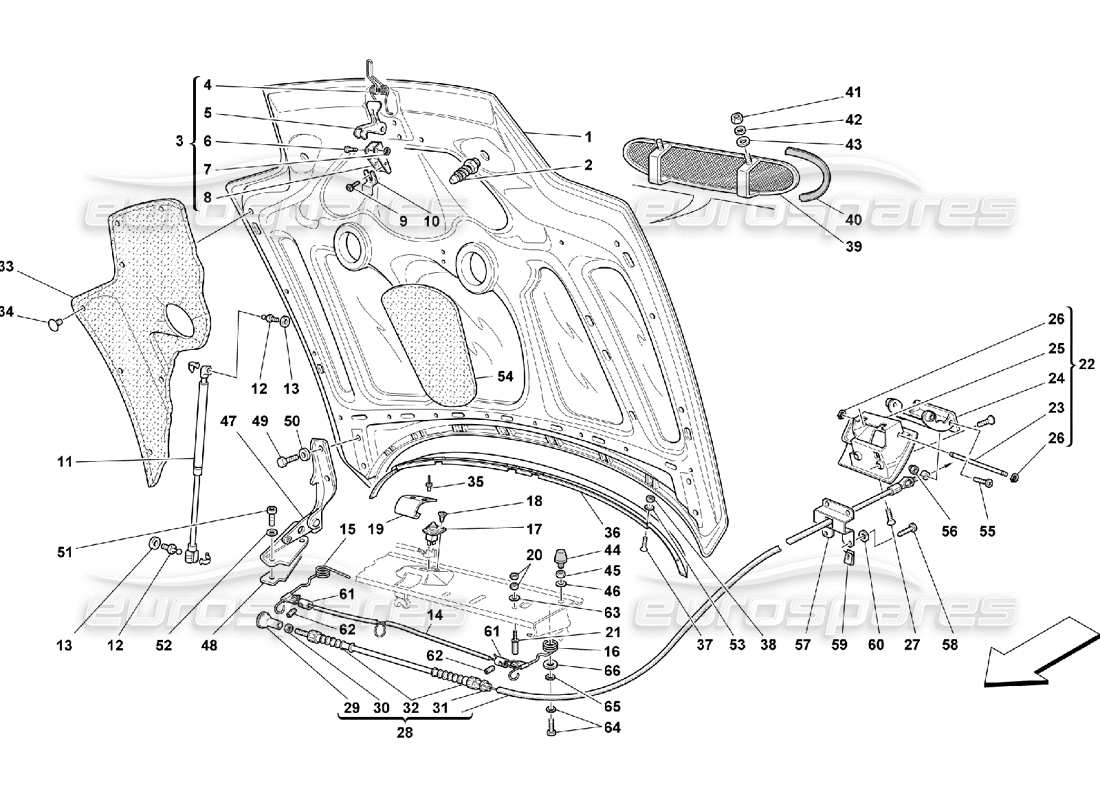

Ferrari 550 Maranello Engine Bonnet Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                      #
                                                                                                                      Part number
                                                                                                                      Description
                                                                                                                      Price
                                                                                                                      # 001
                                                                                                                      MPN: 62948200
                                                                                                                      FRONT HOOD BONNET
                                                                                                                      from £2,867.79
                                                                                                                      from £2,867.79
                                                                                                                      # 002
                                                                                                                      MPN: 65372800
                                                                                                                      BONNET LOCK
                                                                                                                      from £159.06
                                                                                                                      from £159.06
                                                                                                                      This part replaces part number 63206100
                                                                                                                      # 003
                                                                                                                      MPN: 65120000
                                                                                                                      COMPLETE SAFETY HOOK FOR BONNET
                                                                                                                      from £118.00
                                                                                                                      from £118.00
                                                                                                                      This part replaces part number 63876600 - and 5 more. Click to view details
                                                                                                                      # 004
                                                                                                                      MPN: 63219200
                                                                                                                      SPRING
                                                                                                                      from £2.94
                                                                                                                      from £2.94
                                                                                                                      # 005
                                                                                                                      MPN: 63218600
                                                                                                                      SAFETY HOOK
                                                                                                                      - Not as spare part now - Replaced by 65119900
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 005
                                                                                                                      MPN: 65119900
                                                                                                                      SAFETY HOOK
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 63218600
                                                                                                                      # 006
                                                                                                                      MPN: 63219100
                                                                                                                      PIN
                                                                                                                      from £4.41
                                                                                                                      from £4.41
                                                                                                                      # 007
                                                                                                                      MPN: 11088076
                                                                                                                      FLEXIBLE RING
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      # 008
                                                                                                                      MPN: 63218000
                                                                                                                      RETAINER
                                                                                                                      from £5.32
                                                                                                                      from £5.32
                                                                                                                      # 009
                                                                                                                      MPN: 62940900
                                                                                                                      SCREW
                                                                                                                      from £0.85
                                                                                                                      from £0.85
                                                                                                                      This part replaces part number 67352400
                                                                                                                      # 010
                                                                                                                      MPN: 63885000
                                                                                                                      BRACKET
                                                                                                                      from £1.45
                                                                                                                      from £1.45
                                                                                                                      # 011
                                                                                                                      MPN: 64577300
                                                                                                                      GAS SPRING
                                                                                                                      from £12.36
                                                                                                                      from £12.36
                                                                                                                      # 012
                                                                                                                      MPN: 63402800
                                                                                                                      PIN
                                                                                                                      from £0.83
                                                                                                                      from £0.83
                                                                                                                      This part replaces part number 64577200 - and 3 more. Click to view details
                                                                                                                      # 013
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 014
                                                                                                                      MPN: 63883500
                                                                                                                      HOOD SAFETY CABLE
                                                                                                                      from £68.97
                                                                                                                      from £68.97
                                                                                                                      # 015
                                                                                                                      MPN: 63883600
                                                                                                                      RH SPRING
                                                                                                                      from £42.49
                                                                                                                      from £42.49
                                                                                                                      This part replaces part number 63218200 - and 1 more. Click to view details
                                                                                                                      # 016
                                                                                                                      MPN: 63883700
                                                                                                                      LH SPRING
                                                                                                                      from £42.49
                                                                                                                      from £42.49
                                                                                                                      This part replaces part number 63218300 - and 1 more. Click to view details
                                                                                                                      # 017
                                                                                                                      MPN: 153069
                                                                                                                      SWITCH
                                                                                                                      from £2.07
                                                                                                                      from £2.07
                                                                                                                      # 018
                                                                                                                      MPN: 13297417
                                                                                                                      SCREW
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      This part replaces part number 13297411
                                                                                                                      # 019
                                                                                                                      MPN: 63883200
                                                                                                                      PLATE
                                                                                                                      from £5.63
                                                                                                                      from £5.63
                                                                                                                      This part replaces part number 63762500
                                                                                                                      # 020
                                                                                                                      MPN: 15896277
                                                                                                                      NUT
                                                                                                                      from £1.08
                                                                                                                      from £1.08
                                                                                                                      # 021
                                                                                                                      MPN: 63882800
                                                                                                                      NUT FOR END OF STROKE
                                                                                                                      from £3.54
                                                                                                                      from £3.54
                                                                                                                      # 022
                                                                                                                      MPN: 63726300
                                                                                                                      HOOD HANDLE ASSEMBLY
                                                                                                                      - Valid till car Ass. Nr. 30565
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 022
                                                                                                                      MPN: 65278000
                                                                                                                      HOOD HANDLE ASSEMBLY
                                                                                                                      use : 66089000
                                                                                                                      from £203.28
                                                                                                                      from £203.28
                                                                                                                      This part replaces part number 65278100
                                                                                                                      # 023
                                                                                                                      MPN: 63726200
                                                                                                                      PIN
                                                                                                                      from £2.60
                                                                                                                      from £2.60
                                                                                                                      # 024
                                                                                                                      MPN: 63726300
                                                                                                                      INNER DEVICE FOR HOOD OPENING ON DASHBOARD
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 024
                                                                                                                      MPN: 65278000
                                                                                                                      HOOD HANDLE ASSEMBLY
                                                                                                                      use : 66089000
                                                                                                                      from £203.28
                                                                                                                      from £203.28
                                                                                                                      This part replaces part number 65278100

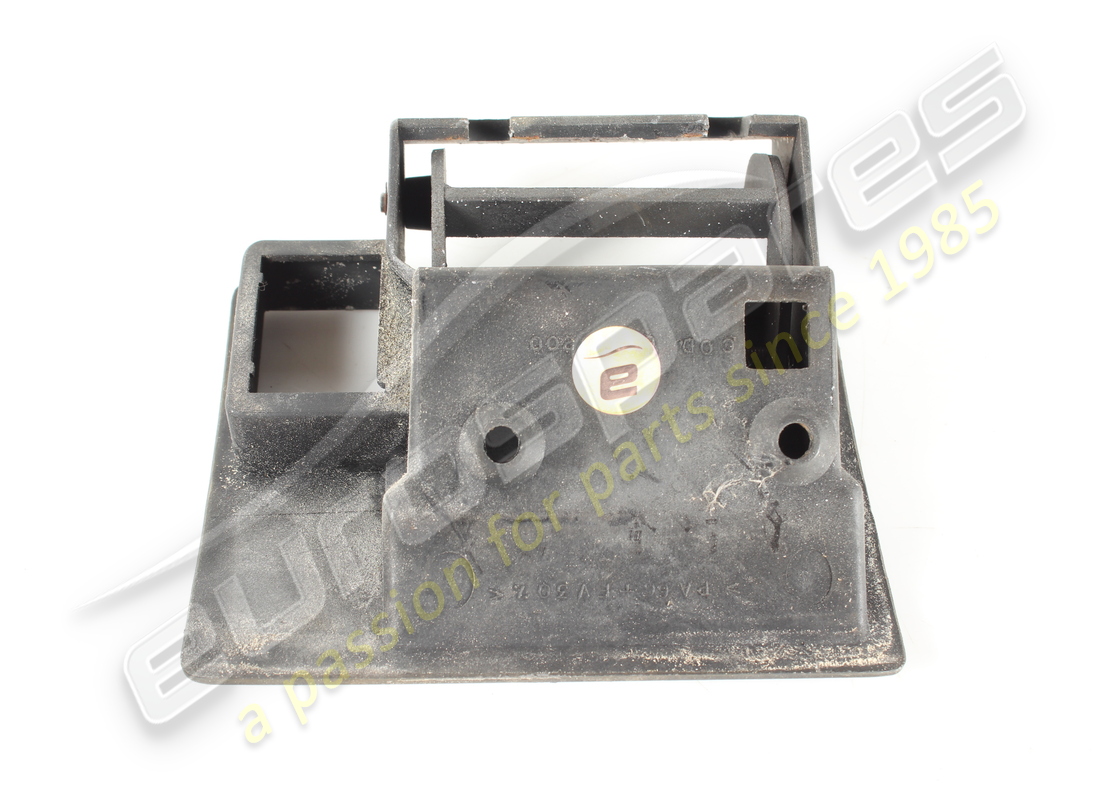

                                                                                                                      # 025
                                                                                                                      MPN: 63726400
                                                                                                                      HANDLE BOX
                                                                                                                      - Valid till car Ass. Nr. 30565
                                                                                                                      from £68.78
                                                                                                                      from £68.78
                                                                                                                      # 025
                                                                                                                      MPN: 65278200
                                                                                                                      HANDLE BOX
                                                                                                                      - Valid from car Ass. Nr. 30566
                                                                                                                      from £80.50
                                                                                                                      from £80.50
                                                                                                                      # 026
                                                                                                                      MPN: 11087576
                                                                                                                      FLEXIBLE RING
                                                                                                                      from £2.86
                                                                                                                      from £2.86
                                                                                                                      This part replaces part number 11087571
                                                                                                                      # 027
                                                                                                                      MPN: 13312877
                                                                                                                      SCREW
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 028
                                                                                                                      MPN: 65668400
                                                                                                                      INNER DEVICE FOR HOOD OPENING
                                                                                                                      - Valid after stock exhaustion of 63790400 - Not as spare part now - Replaced by 65832400
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 028
                                                                                                                      MPN: 65832400
                                                                                                                      INNER DEVICE FOR HOOD OPENING
                                                                                                                      from £279.14
                                                                                                                      from £279.14
                                                                                                                      This part replaces part number 65668400
                                                                                                                      # 029
                                                                                                                      MPN: 63206500
                                                                                                                      KNOB FOR ADJUSTMENT
                                                                                                                      from £8.49
                                                                                                                      from £8.49
                                                                                                                      # 030
                                                                                                                      MPN: 15896470
                                                                                                                      NUT
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.77
                                                                                                                      from £0.77
                                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details

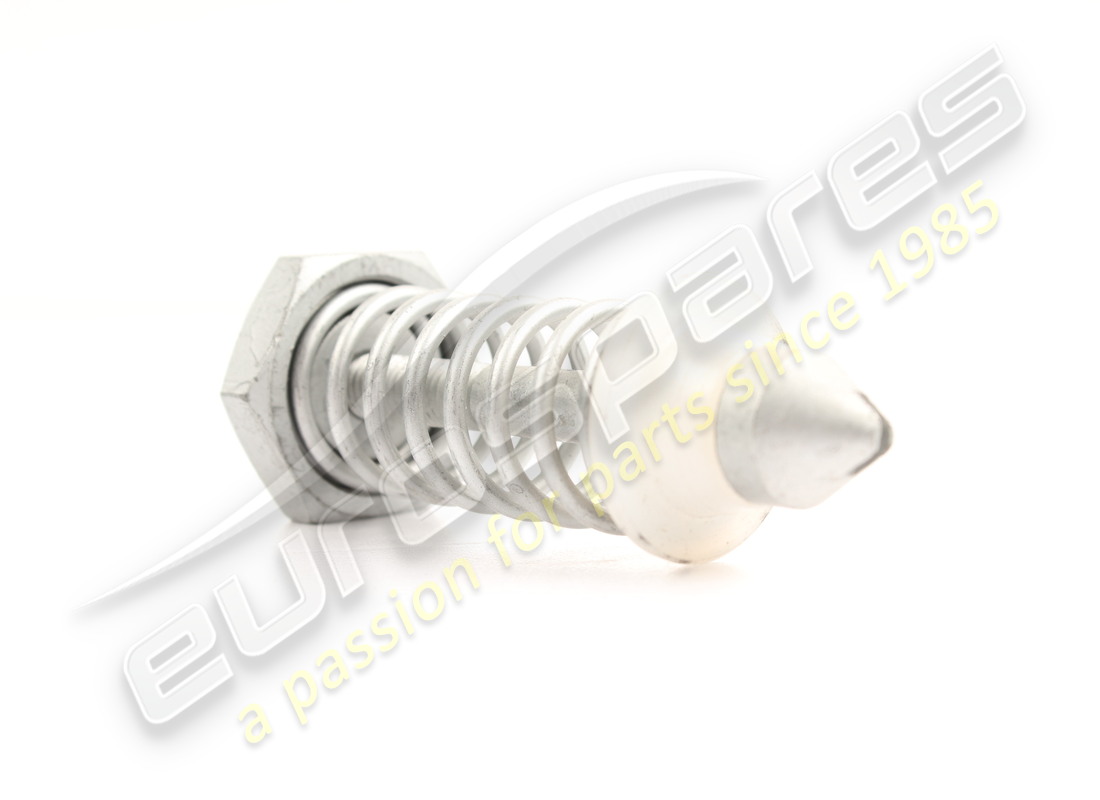

                                                                                                                      # 031
                                                                                                                      MPN: 63206400
                                                                                                                      STOP PIN
                                                                                                                      from £109.78
                                                                                                                      from £109.78
                                                                                                                      # 032
                                                                                                                      MPN: 63895000
                                                                                                                      RUBBER BOOT
                                                                                                                      from £20.95
                                                                                                                      from £20.95
                                                                                                                      This part replaces part number 63708200

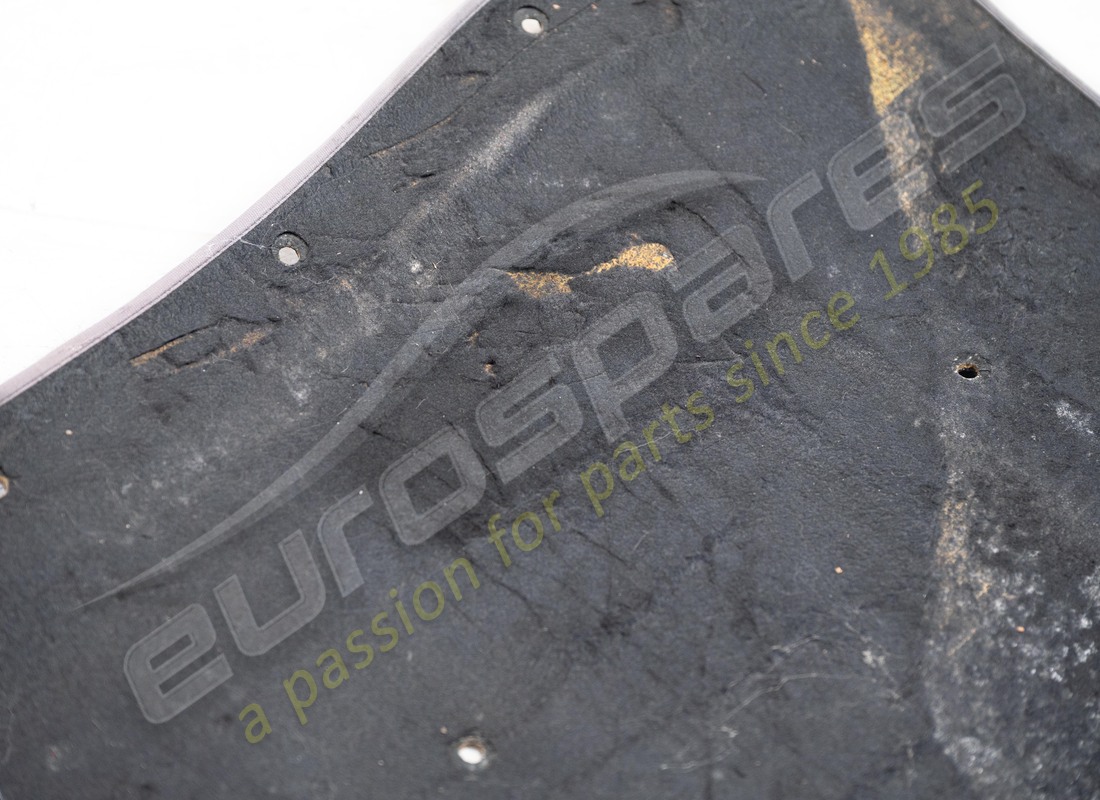

                                                                                                                      # 033
                                                                                                                      MPN: 64563800
                                                                                                                      FRONT HOOD INSULATION
                                                                                                                      from £937.74
                                                                                                                      from £937.74
                                                                                                                      # 034
                                                                                                                      MPN: 62797500
                                                                                                                      button
                                                                                                                      from £0.47
                                                                                                                      from £0.47
                                                                                                                      This part replaces part number 64578000
                                                                                                                      # 035
                                                                                                                      MPN: 60677000
                                                                                                                      RIVET
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 036
                                                                                                                      MPN: 64948100
                                                                                                                      WINDSHIELD WIPER COVERING MOULDING
                                                                                                                      from £105.73
                                                                                                                      from £105.73
                                                                                                                      # 037
                                                                                                                      MPN: 65366700
                                                                                                                      SCREW
                                                                                                                      from £0.63
                                                                                                                      from £0.63
                                                                                                                      # 038
                                                                                                                      MPN: 15896472
                                                                                                                      NUT
                                                                                                                      from £0.48
                                                                                                                      from £0.48
                                                                                                                      This part replaces part number 15896416 which we have in stock

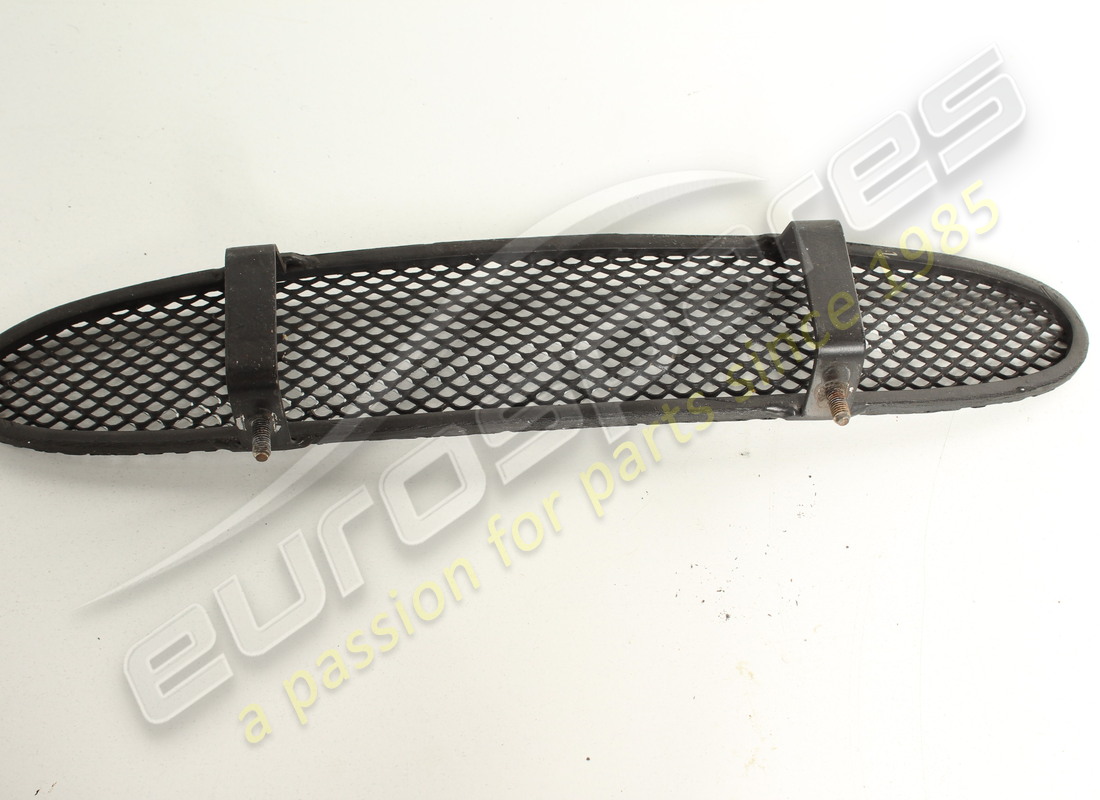

                                                                                                                      # 039
                                                                                                                      MPN: 64657300
                                                                                                                      GRILLE FOR HOOD AIR INTAKE
                                                                                                                      from £147.00
                                                                                                                      from £147.00
                                                                                                                      # 040
                                                                                                                      MPN: 64788200
                                                                                                                      AIR INTAKE GASKET
                                                                                                                      from £120.38
                                                                                                                      from £120.38
                                                                                                                      # 041
                                                                                                                      MPN: 15896470
                                                                                                                      NUT
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.77
                                                                                                                      from £0.77
                                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                      # 042
                                                                                                                      MPN: 12601174
                                                                                                                      WASHER
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                                                                                      # 043
                                                                                                                      MPN: 12624101
                                                                                                                      WASHER
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      # 044
                                                                                                                      MPN: 64577100
                                                                                                                      PAD FOR HOOD LIMIT STOP
                                                                                                                      from £4.22
                                                                                                                      from £4.22
                                                                                                                      This part replaces part number 66847800
                                                                                                                      # 045
                                                                                                                      MPN: 15896377
                                                                                                                      NUT
                                                                                                                      from £1.28
                                                                                                                      from £1.28
                                                                                                                      # 046
                                                                                                                      MPN: 14496678
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 14496677
                                                                                                                      # 047
                                                                                                                      MPN: 64578100
                                                                                                                      COMPLETE RH HINGE
                                                                                                                      from £149.15
                                                                                                                      from £149.15
                                                                                                                      # 047
                                                                                                                      MPN: 64578200
                                                                                                                      COMPLETE LH HINGE
                                                                                                                      from £149.15
                                                                                                                      from £149.15
                                                                                                                      # 048
                                                                                                                      MPN: 65217400
                                                                                                                      THICKNESS
                                                                                                                      from £4.50
                                                                                                                      from £4.50
                                                                                                                      # 049
                                                                                                                      MPN: 16135613
                                                                                                                      SCREW
                                                                                                                      from £1.49
                                                                                                                      from £1.49
                                                                                                                      # 050
                                                                                                                      MPN: 13578311
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      # 051
                                                                                                                      MPN: 10902124
                                                                                                                      SCREW
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                      # 052
                                                                                                                      MPN: 14496424
                                                                                                                      WASHER
                                                                                                                      Supersession
                                                                                                                      Supersession
                                                                                                                      This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                                                      # 053
                                                                                                                      MPN: 12601177
                                                                                                                      WASHER
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 054
                                                                                                                      MPN: 65409700
                                                                                                                      BI-ADHESIVE INSULATION
                                                                                                                      from £79.94
                                                                                                                      from £79.94
                                                                                                                      # 055
                                                                                                                      MPN: 13309477
                                                                                                                      SCREW
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 056
                                                                                                                      MPN: 62790300
                                                                                                                      NUT
                                                                                                                      from £0.54
                                                                                                                      from £0.54
                                                                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                      # 057
                                                                                                                      MPN: 64836000
                                                                                                                      BRACKET
                                                                                                                      from £3.22
                                                                                                                      from £3.22
                                                                                                                      # 058
                                                                                                                      MPN: 15687375
                                                                                                                      SCREW
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 15687370 - and 1 more. Click to view details
                                                                                                                      # 059
                                                                                                                      MPN: 14189576
                                                                                                                      BRACKET
                                                                                                                      # 060
                                                                                                                      MPN: 13550077
                                                                                                                      WASHER
                                                                                                                      from £1.98
                                                                                                                      from £1.98
                                                                                                                      # 061
                                                                                                                      MPN: 60276607
                                                                                                                      CONNECTION
                                                                                                                      from £11.72
                                                                                                                      from £11.72
                                                                                                                      This part replaces part number 60276707 - and 4 more. Click to view details
                                                                                                                      # 062
                                                                                                                      MPN: 60276805
                                                                                                                      DOWEL
                                                                                                                      from £0.71
                                                                                                                      from £0.71
                                                                                                                      # 063
                                                                                                                      MPN: 12643778
                                                                                                                      WASHER
                                                                                                                      (minimum order quantity = 20)
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 12643777 - and 1 more. Click to view details
                                                                                                                      # 064
                                                                                                                      MPN: 62797400
                                                                                                                      SCREW WITH WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      # 065
                                                                                                                      MPN: 12643724
                                                                                                                      WASHER
                                                                                                                      from £0.53
                                                                                                                      from £0.53
                                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                      # 066
                                                                                                                      MPN: 12648504
                                                                                                                      WASHER
                                                                                                                      from £0.51
                                                                                                                      from £0.51
                                                                                                                      This part replaces part number 64224300
