ferrari 550 maranello doors - framework and coverings parts diagram

117 - Doors - Framework and Coverings

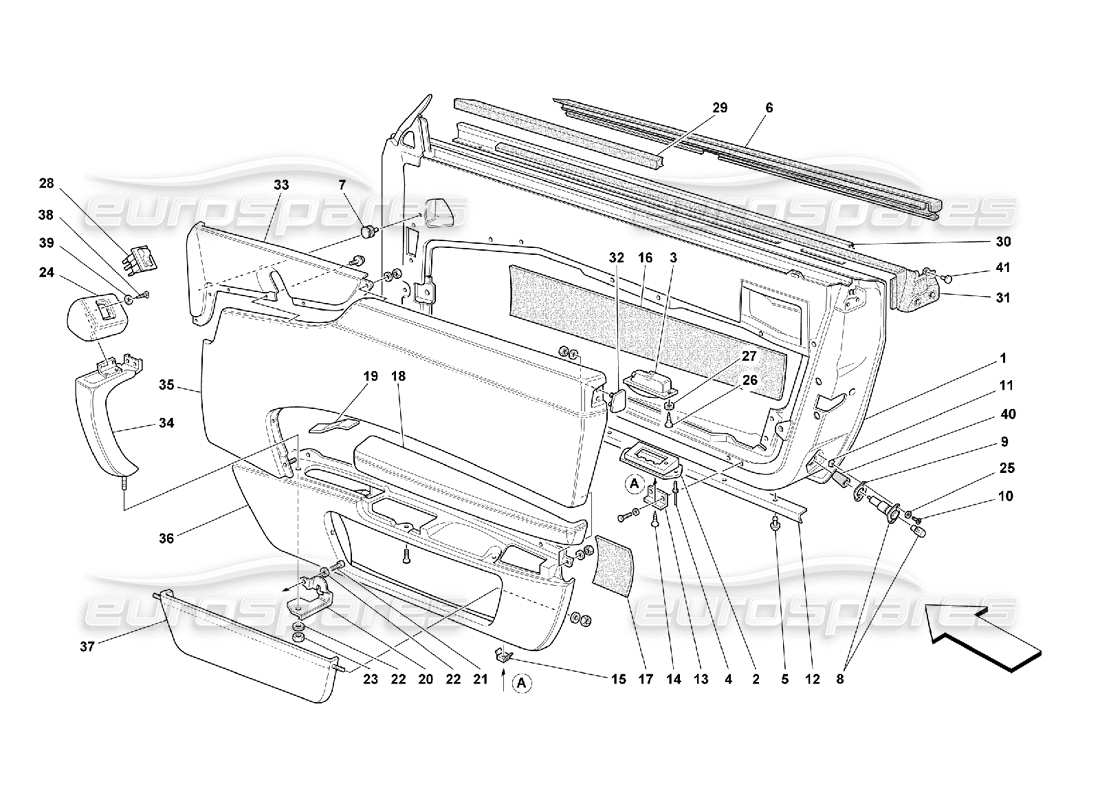

Ferrari 550 Maranello Doors - Framework and Coverings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 000
                                                                  MPN: FINT550

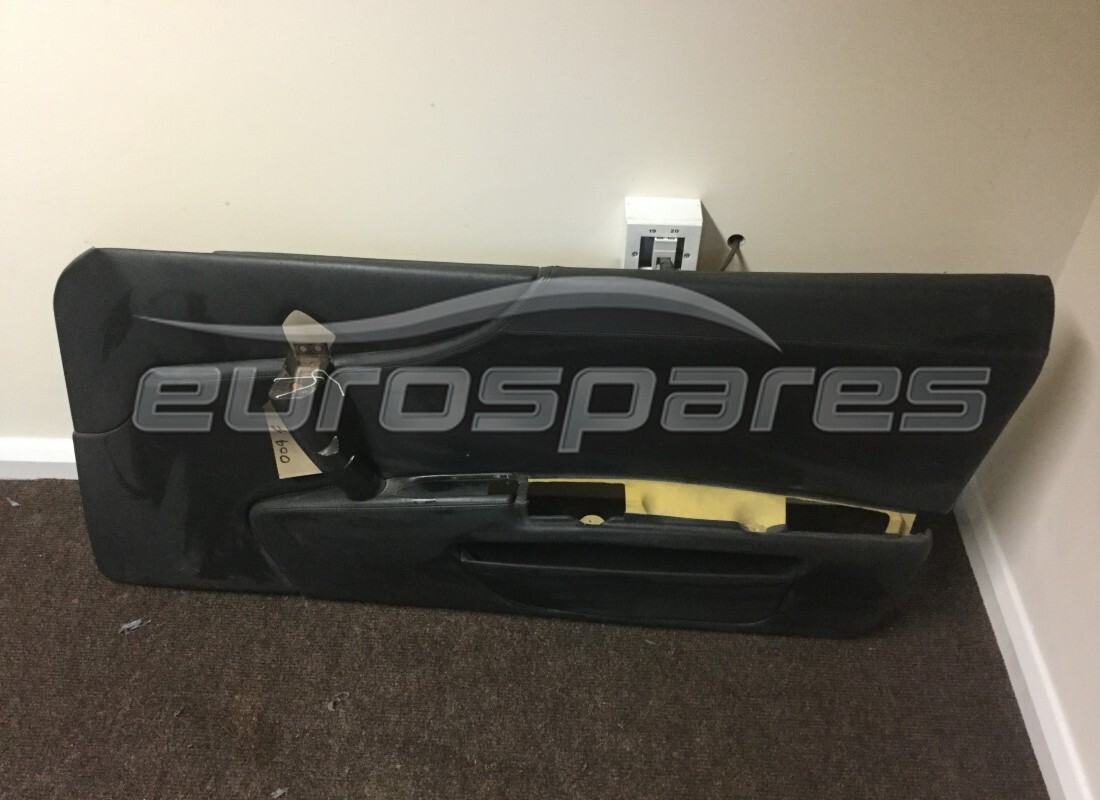

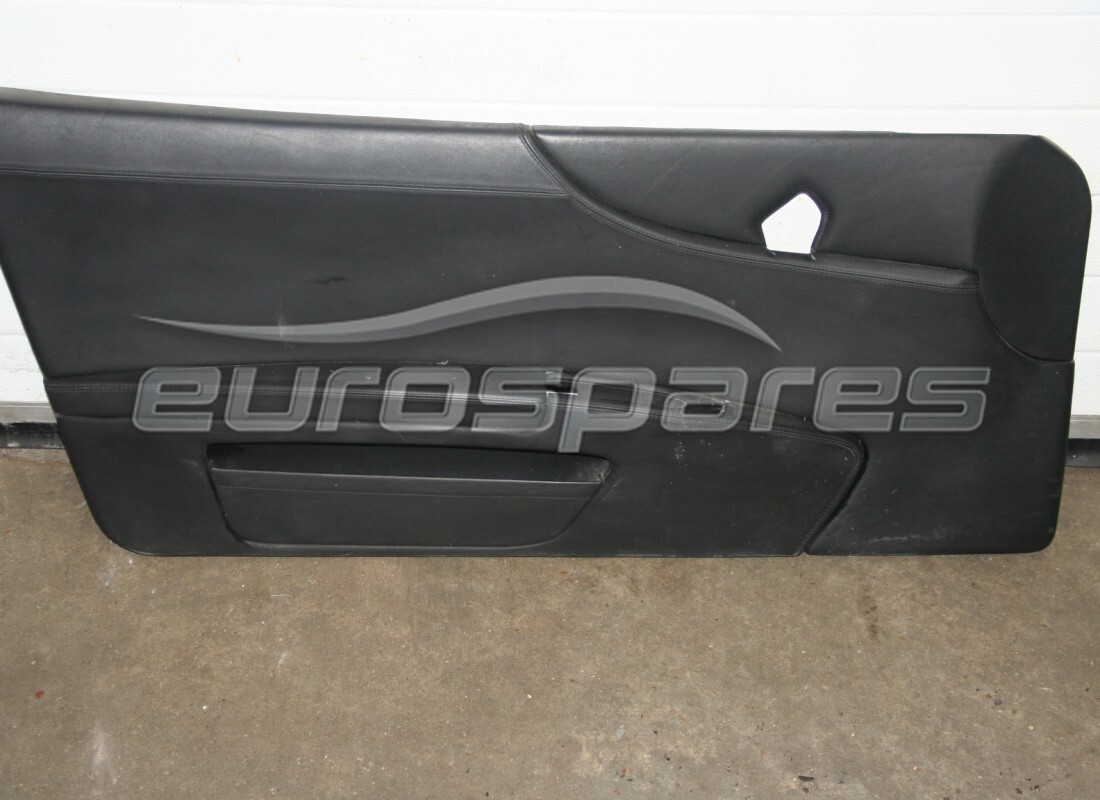

                                                                  PAIR OF DOORCARDS
                                                                  valid for LHD
                                                                  from £1,044.75
                                                                  from £1,044.75
                                                                  # 001
                                                                  MPN: 64710100

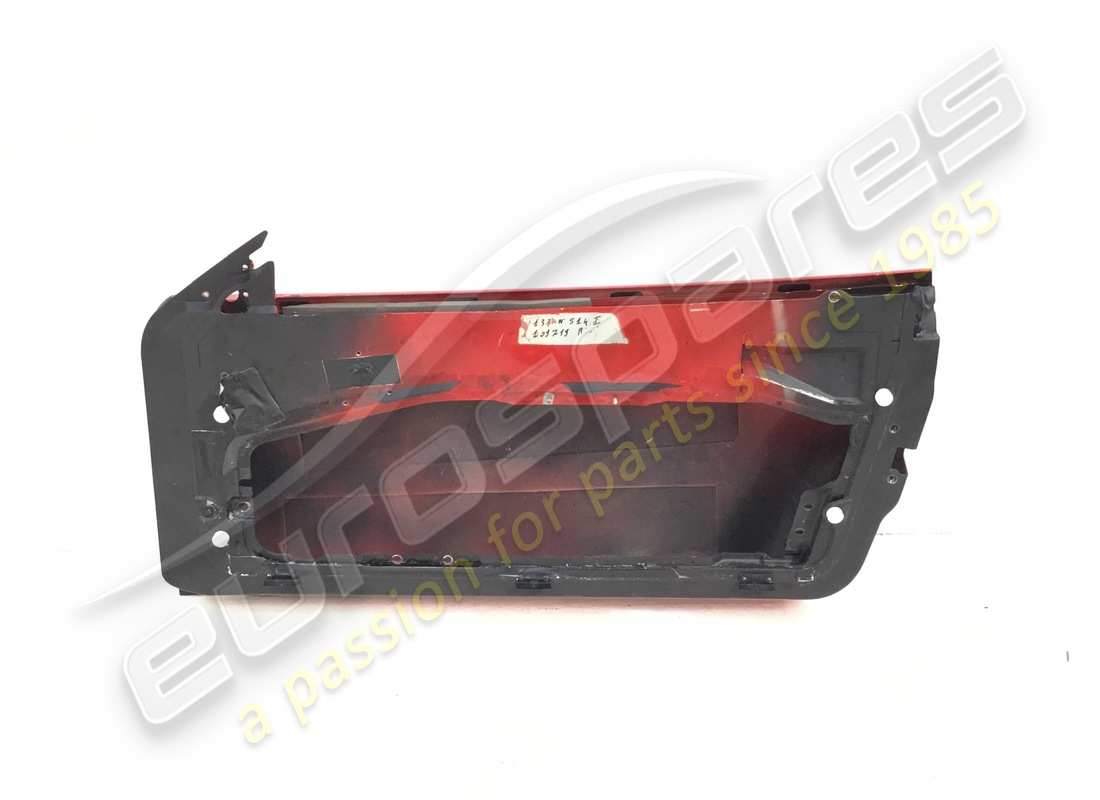

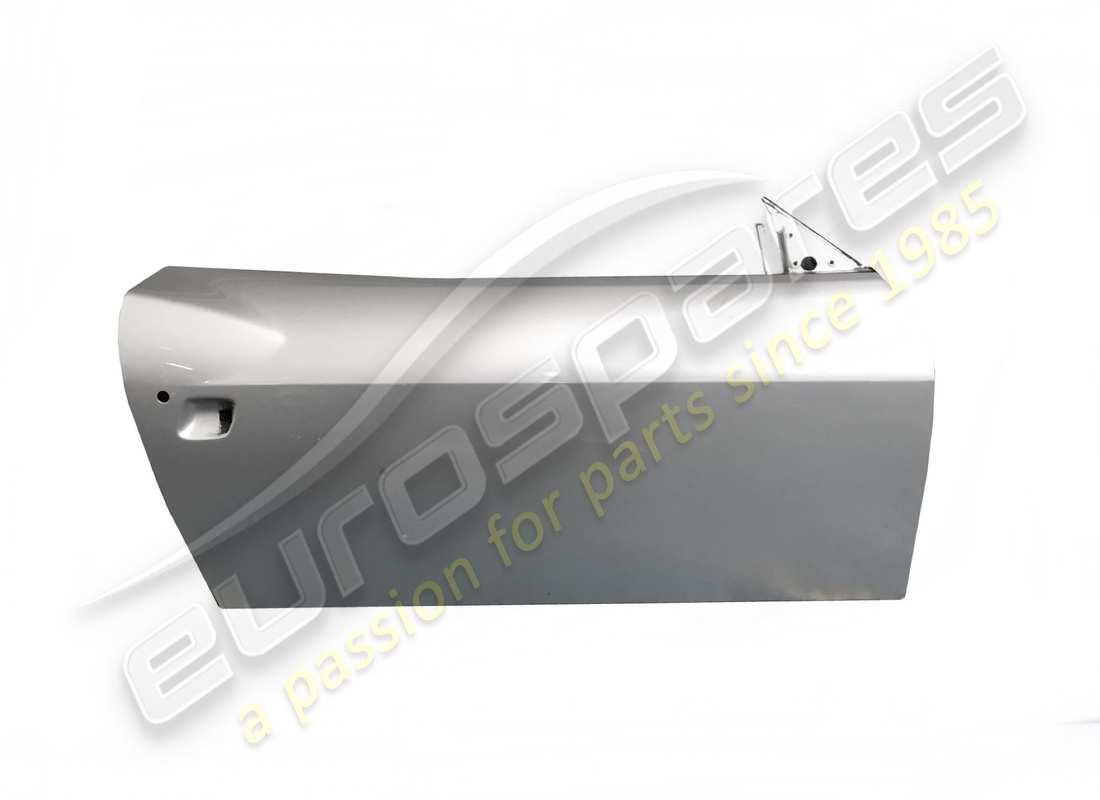

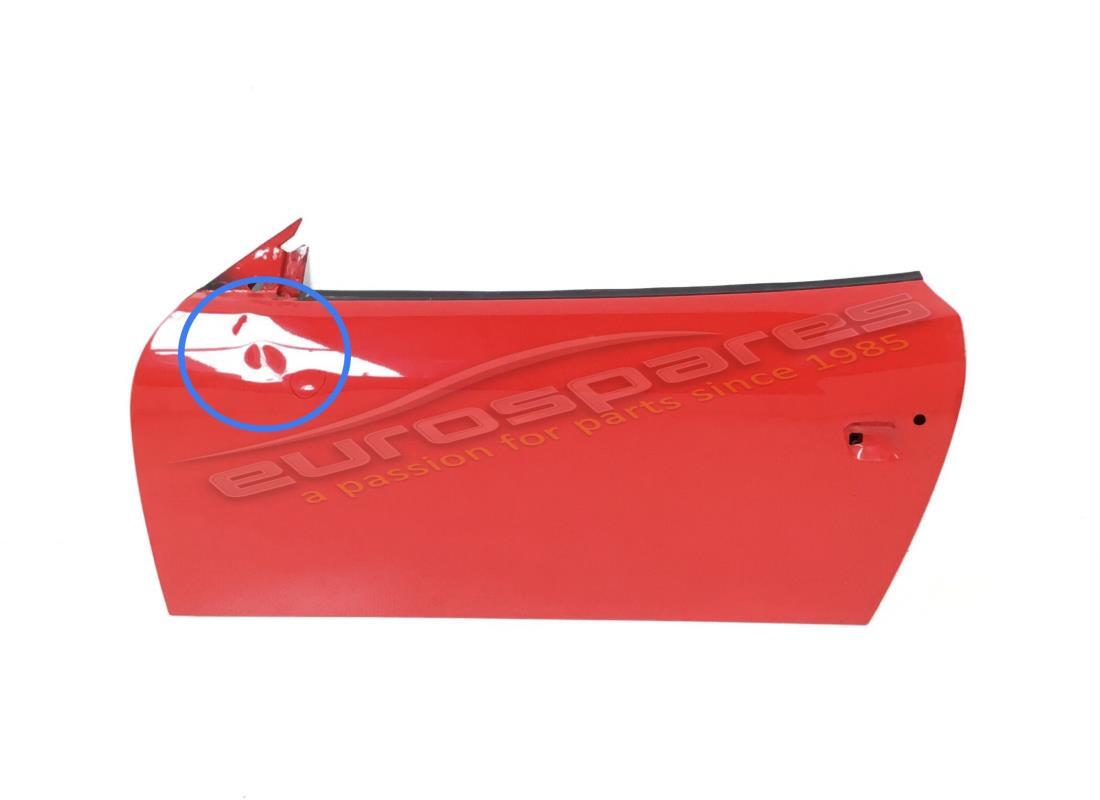

                                                                  RH DOOR FRAME
                                                                  - Not for USA, CDN and AUS
                                                                  from £1,412.39
                                                                  from £1,412.39
                                                                  # 001
                                                                  MPN: 64710200
                                                                  LH DOOR FRAME
                                                                  - Not for USA, CDN and AUS
                                                                  from £1,044.75
                                                                  from £1,044.75
                                                                  # 001
                                                                  MPN: 65187400
                                                                  RH DOOR FRAME
                                                                  - Valid for USA, CDN and AUS
                                                                  from £1,412.39
                                                                  from £1,412.39
                                                                  # 001
                                                                  MPN: 65187500
                                                                  LH DOOR FRAME
                                                                  - Valid for USA, CDN and AUS
                                                                  from £1,412.39
                                                                  from £1,412.39
                                                                  # 002
                                                                  MPN: 60842000
                                                                  DOOR LAMP BOX
                                                                  from £2.47
                                                                  from £2.47
                                                                  This part replaces part number 63871300 - and 1 more. Click to view details
                                                                  # 003
                                                                  MPN: 65088400
                                                                  UNDER DOOR LAMP
                                                                  from £70.62
                                                                  from £70.62
                                                                  This part replaces part number 60842100 - and 5 more. Click to view details
                                                                  # 004
                                                                  MPN: 60310703
                                                                  RIVET
                                                                  from £1.18
                                                                  from £1.18
                                                                  # 005
                                                                  MPN: 62764000
                                                                  SPHERIC HEAD RIVET
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 006
                                                                  MPN: 64715800
                                                                  RH OUTER GLASS SCRAPER
                                                                  from £55.34
                                                                  from £55.34
                                                                  # 006
                                                                  MPN: 64715900
                                                                  LH OUTER GLASS SCRAPER
                                                                  from £132.05
                                                                  from £132.05
                                                                  # 007
                                                                  MPN: 64580400
                                                                  BLOCK
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 64300600
                                                                  # 008
                                                                  MPN: 178262
                                                                  OPENING DOOR LAMP WITH BULB
                                                                  from £13.98
                                                                  from £13.98
                                                                  # 009
                                                                  MPN: 140576
                                                                  GASKET
                                                                  from £8.17
                                                                  from £8.17
                                                                  This part replaces part number 61647000
                                                                  # 010
                                                                  MPN: 15901475
                                                                  SCREW
                                                                  from £1.18
                                                                  from £1.18
                                                                  This part replaces part number 15641175 which we have in stock
                                                                  # 011
                                                                  MPN: 14115580
                                                                  BLOCK
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 012
                                                                  MPN: 63488300
                                                                  LH OUTER LOWER GASKET
                                                                  from £12.73
                                                                  from £12.73
                                                                  # 012
                                                                  MPN: 63758200
                                                                  RH OUTER LOWER GASKET
                                                                  from £13.02
                                                                  from £13.02
                                                                  # 013
                                                                  MPN: 64592600
                                                                  BRACKET
                                                                  from £3.51
                                                                  from £3.51
                                                                  # 014
                                                                  MPN: 15688075
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                                  # 015
                                                                  MPN: 14115885
                                                                  BLOCK
                                                                  from £0.52
                                                                  from £0.52
                                                                  This part replaces part number 14202686 - and 1 more. Click to view details
                                                                  # 016
                                                                  MPN: 65059400
                                                                  WATER PROTECTION CLOTH FOR FRAME
                                                                  from £3.29
                                                                  from £3.29
                                                                  # 017
                                                                  MPN: 65059500
                                                                  WATER PROTECTION CLOTH FOR SWITCH
                                                                  from £1.25
                                                                  from £1.25
                                                                  # 018
                                                                  MPN: 645845..

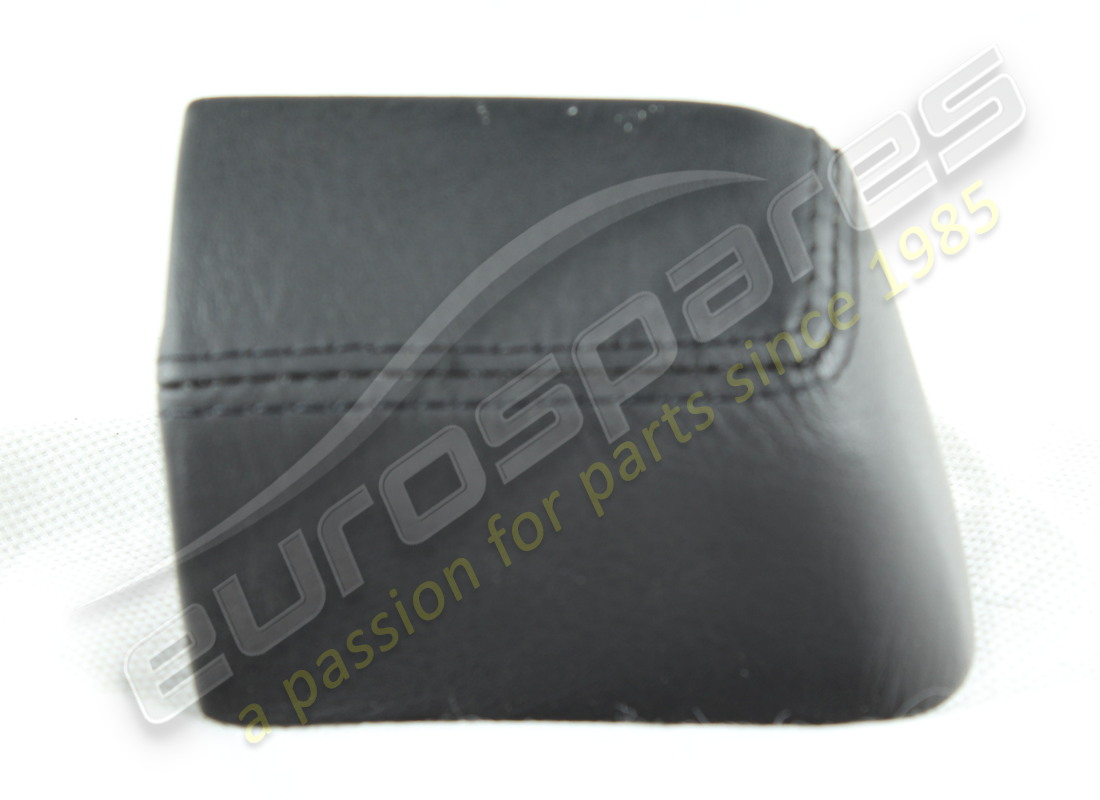

                                                                  LH DOOR ARM-REST
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 018
                                                                  MPN: 645922..
                                                                  RH DOOR ARM-REST
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 019
                                                                  MPN: 64585800
                                                                  MOULDING
                                                                  from £41.09
                                                                  from £41.09
                                                                  # 020
                                                                  MPN: 64591600
                                                                  LH BRACKET
                                                                  from £7.54
                                                                  from £7.54
                                                                  # 020
                                                                  MPN: 64591900
                                                                  RH BRACKET
                                                                  from £7.54
                                                                  from £7.54
                                                                  # 021
                                                                  MPN: 10902124
                                                                  SCREW
                                                                  from £0.50
                                                                  from £0.50
                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                  # 022
                                                                  MPN: 12646601
                                                                  WASHER
                                                                  from £0.71
                                                                  from £0.71
                                                                  # 023
                                                                  MPN: 15896214
                                                                  NUT
                                                                  from £0.54
                                                                  from £0.54
                                                                  This part replaces part number 15896211
                                                                  # 024
                                                                  MPN: 645848..

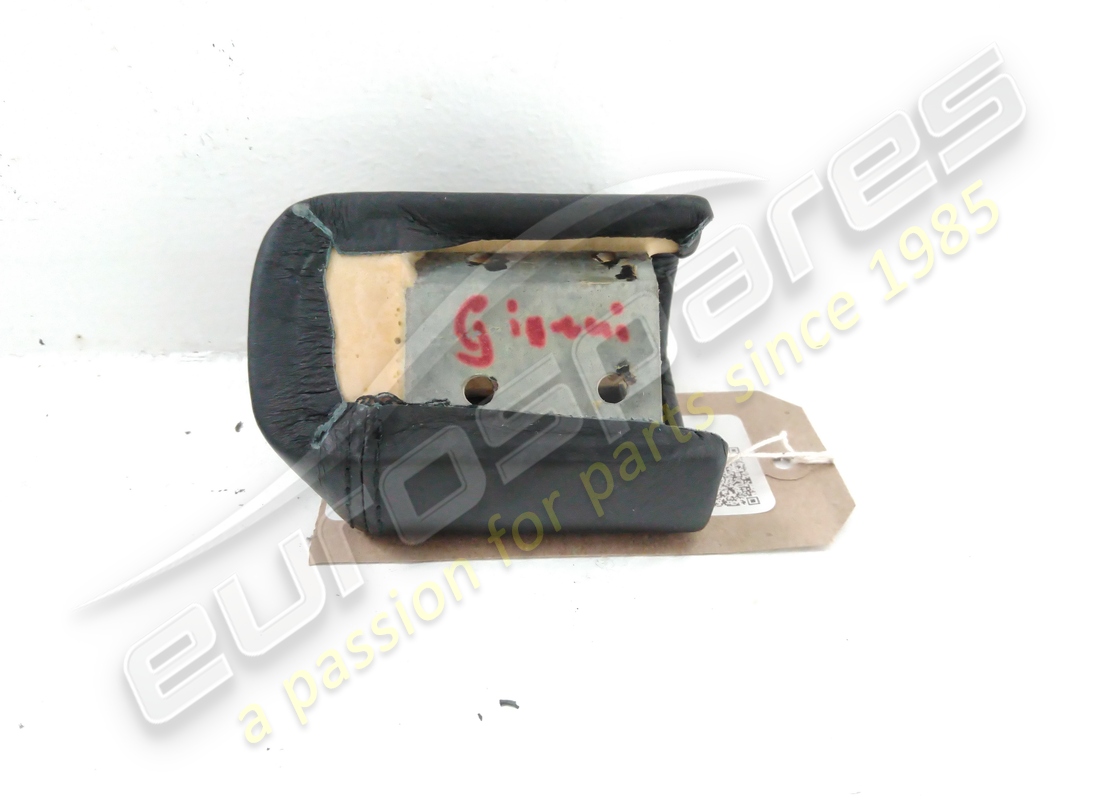

                                                                  LH UPPER HANDLE
                                                                  Not for GD
                                                                  Supersession
                                                                  Supersession
                                                                  # 024
                                                                  MPN: 64584800
                                                                  LH UPPER HANDLE
                                                                  Not for GD - BLACK LEATHER
                                                                  from £104.27
                                                                  from £104.27
                                                                  This part replaces part number 645848.. - and 1 more. Click to view details
                                                                  # 024
                                                                  MPN: 645925..
                                                                  RH UPPER HANDLE
                                                                  - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  from £81.36
                                                                  from £81.36
                                                                  # 024
                                                                  MPN: 651051..
                                                                  RH UPPER HANDLE
                                                                  - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 024
                                                                  MPN: 651052..
                                                                  LH UPPER HANDLE
                                                                  - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 025
                                                                  MPN: 10519304
                                                                  WASHER
                                                                  from £0.87
                                                                  from £0.87
                                                                  This part replaces part number 10519301
                                                                  # 026
                                                                  MPN: 15901575
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 15901570
                                                                  # 027
                                                                  MPN: 12639477
                                                                  WASHER
                                                                  from £1.62
                                                                  from £1.62
                                                                  # 028
                                                                  MPN: 164642
                                                                  LH SWITCH FOR GLASS LIFT
                                                                  from £56.27
                                                                  from £56.27
                                                                  # 028
                                                                  MPN: 164643
                                                                  RH SWITCH FOR GLASS LIFT
                                                                  from £63.96
                                                                  from £63.96
                                                                  # 029
                                                                  MPN: 65196100
                                                                  RH GASKET
                                                                  from £3.96
                                                                  from £3.96
                                                                  # 029
                                                                  MPN: 65196200
                                                                  LH GASKET
                                                                  from £3.77
                                                                  from £3.77
                                                                  # 030
                                                                  MPN: 64594800
                                                                  RH GLASS SCRAPER
                                                                  from £68.47
                                                                  from £68.47
                                                                  # 030
                                                                  MPN: 64594900
                                                                  LH GLASS SCRAPER
                                                                  from £68.47
                                                                  from £68.47
                                                                  # 031
                                                                  MPN: 64905000
                                                                  RH GASKET
                                                                  from £59.65
                                                                  from £59.65
                                                                  # 031
                                                                  MPN: 64905100
                                                                  LH GASKET
                                                                  from £124.44
                                                                  from £124.44
                                                                  # 032
                                                                  MPN: 645911..
                                                                  LH PANEL SEAL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 645912..
                                                                  RH PANEL SEAL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 033
                                                                  MPN: 645847..
                                                                  LH UPPER PANEL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 033
                                                                  MPN: 645924..
                                                                  RH UPPER PANEL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 033
                                                                  MPN: 647440..
                                                                  RH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 033
                                                                  MPN: 647450..
                                                                  LH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 645850..
                                                                  LH LOWER HANDLE
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 645947..
                                                                  RH LOWER HANDLE
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 035
                                                                  MPN: 645846..
                                                                  LH CENTRAL PANEL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 035
                                                                  MPN: 645923..
                                                                  RH CENTRAL PANEL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  from £367.50
                                                                  from £367.50
                                                                  # 035
                                                                  MPN: 647455..
                                                                  RH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 035
                                                                  MPN: 647456..
                                                                  LH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  from £498.75
                                                                  from £498.75
                                                                  # 036
                                                                  MPN: 645844..
                                                                  LH POCKET
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  from £630.00
                                                                  from £630.00
                                                                  # 036
                                                                  MPN: 645921..
                                                                  RH POCKET
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 036
                                                                  MPN: 647465..
                                                                  RH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 036
                                                                  MPN: 647466..
                                                                  LH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 037
                                                                  MPN: 645810..
                                                                  LH POCKET SEAL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 037
                                                                  MPN: 645811..
                                                                  RH POCKET SEAL
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 037
                                                                  MPN: 647471..
                                                                  RH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 037
                                                                  MPN: 647472..
                                                                  LH LINING
                                                                  - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                                  Supersession
                                                                  Supersession
                                                                  # 038
                                                                  MPN: 15901475
                                                                  SCREW
                                                                  from £1.18
                                                                  from £1.18
                                                                  This part replaces part number 15641175 which we have in stock
                                                                  # 039
                                                                  MPN: 12639978
                                                                  WASHER
                                                                  from £0.79
                                                                  from £0.79
                                                                  # 040
                                                                  MPN: 65910600
                                                                  BOOT
                                                                  Supersession
                                                                  Supersession
                                                                  # 041
                                                                  MPN: 14592587
                                                                  FIXING BUTTON
                                                                  from £0.53
                                                                  from £0.53
                                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
