ferrari 550 maranello instruments panel parts diagram

124 - Instruments Panel

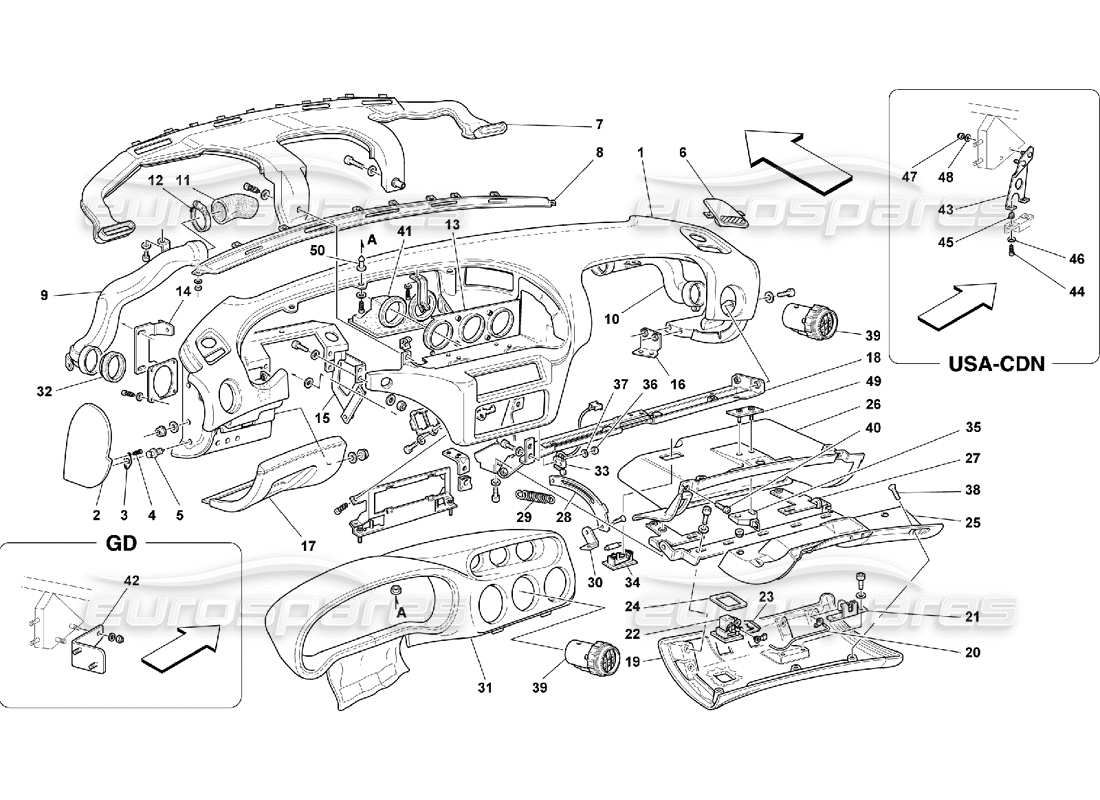

Ferrari 550 Maranello Instruments Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price

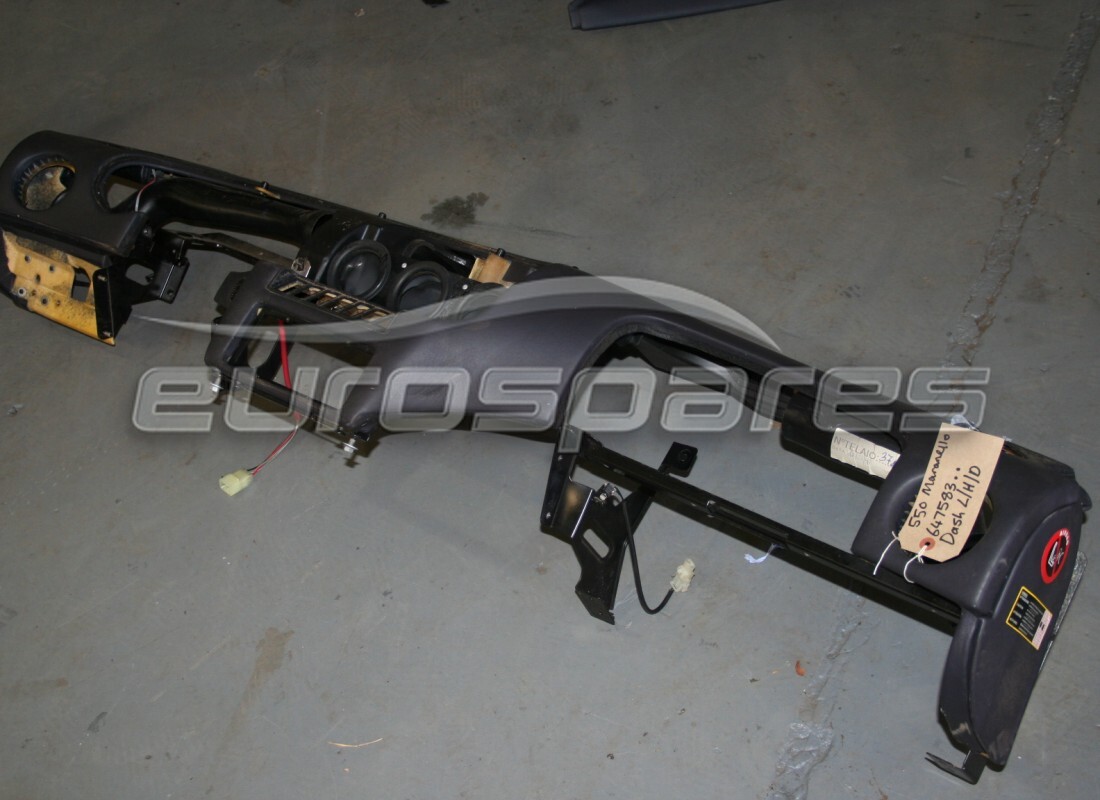

                                                    # 001
                                                    MPN: 647583..
                                                    COVERED DASHBOARD WITH INSTRUMENTS
                                                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £1,359.75
                                                    from £1,359.75
                                                    # 001
                                                    MPN: 651138..
                                                    COVERED DASHBOARD WITH INSTRUMENTS
                                                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 002
                                                    MPN: 647665..
                                                    LH LATERAL COVER
                                                    - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 002
                                                    MPN: 647668..
                                                    RH LATERAL COVER
                                                    - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 003
                                                    MPN: 64712800
                                                    PLATE
                                                    from £0.91
                                                    from £0.91
                                                    # 004
                                                    MPN: 15914877
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 15914806
                                                    # 005
                                                    MPN: 14188181
                                                    RETAINER
                                                    from £0.48
                                                    from £0.48
                                                    This part replaces part number 14188282
                                                    # 006
                                                    MPN: 63204200
                                                    RH PLATE
                                                    from £72.35
                                                    from £72.35
                                                    This part replaces part number 64182600
                                                    # 006
                                                    MPN: 63204300
                                                    LH PLATE
                                                    from £30.97
                                                    from £30.97
                                                    # 007
                                                    MPN: 64707400
                                                    AIR DUCTING
                                                    - Not for GD
                                                    from £259.85
                                                    from £259.85
                                                    # 007
                                                    MPN: 65024100
                                                    AIR DUCTING
                                                    - Valid for GD
                                                    from £472.47
                                                    from £472.47

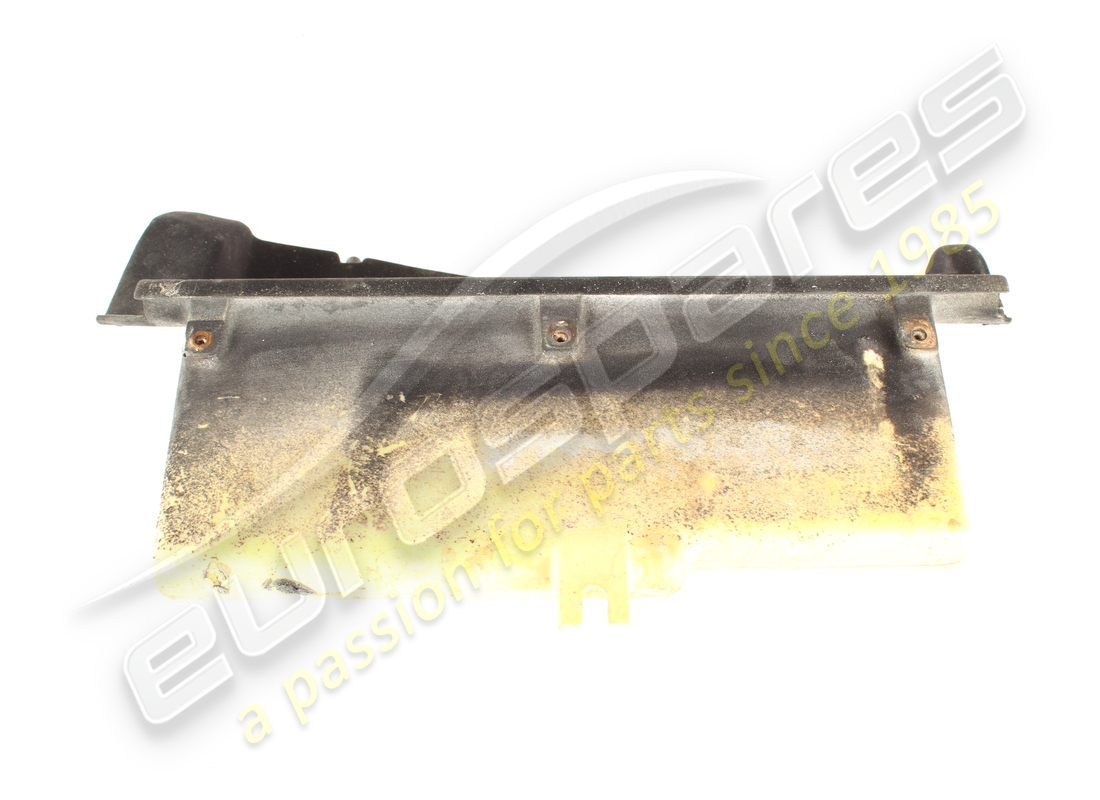

                                                    # 008
                                                    MPN: 63202100
                                                    LOWER ENCLOSURE
                                                    from £136.01
                                                    from £136.01
                                                    # 009
                                                    MPN: 64706200
                                                    LH AIR DUCTING
                                                    - Not for GD
                                                    from £9.41
                                                    from £9.41
                                                    # 009
                                                    MPN: 65212200
                                                    LH AIR DUCTING
                                                    - Valid for GD
                                                    from £13.35
                                                    from £13.35
                                                    # 010
                                                    MPN: 64706300
                                                    RH AIR DUCTING
                                                    - Not for GD
                                                    from £9.41
                                                    from £9.41
                                                    # 010
                                                    MPN: 65212100
                                                    RH AIR DUCTING
                                                    - Valid for GD
                                                    from £13.35
                                                    from £13.35
                                                    # 011
                                                    MPN: 64758100
                                                    RH SLEEVE
                                                    - Not for GD
                                                    from £51.30
                                                    from £51.30
                                                    # 011
                                                    MPN: 64758200
                                                    LH SLEEVE
                                                    - Not for GD
                                                    from £53.54
                                                    from £53.54
                                                    # 011
                                                    MPN: 65216600
                                                    RH SLEEVE
                                                    - Valid for GD
                                                    from £61.58
                                                    from £61.58
                                                    # 011
                                                    MPN: 65217300
                                                    LH SLEEVE
                                                    - Valid for GD
                                                    from £61.83
                                                    from £61.83
                                                    # 012
                                                    MPN: 13000890
                                                    SCREW COLLAR
                                                    from £0.63
                                                    from £0.63
                                                    This part replaces part number 12173290 - and 2 more. Click to view details
                                                    # 013
                                                    MPN: 64719500
                                                    AIR DUCT CONNECTION
                                                    from £210.00
                                                    from £210.00
                                                    # 014
                                                    MPN: 64701500
                                                    DASHBOARD RH LATERAL FIXING BRACKET
                                                    from £173.76
                                                    from £173.76
                                                    # 014
                                                    MPN: 64701700
                                                    DASHBOARD LH LATERAL FIXING BRACKET
                                                    from £173.76
                                                    from £173.76
                                                    # 015
                                                    MPN: 64720000
                                                    BRACKET
                                                    - Not for GD
                                                    from £64.03
                                                    from £64.03
                                                    # 015
                                                    MPN: 65049700
                                                    BRACKET
                                                    - Valid for GD
                                                    from £128.39
                                                    from £128.39
                                                    # 016
                                                    MPN: 64703200
                                                    RH BRACKET
                                                    - Not for GD
                                                    from £12.66
                                                    from £12.66
                                                    # 016
                                                    MPN: 65024700
                                                    RH BRACKET
                                                    - Valid for GD
                                                    from £41.09
                                                    from £41.09
                                                    # 017
                                                    MPN: 64759100
                                                    LH LOWER COVER
                                                    Not for GD
                                                    from £162.46
                                                    from £162.46
                                                    # 017
                                                    MPN: 650250..
                                                    RH LOWER COVER
                                                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £309.75
                                                    from £309.75
                                                    # 018
                                                    MPN: 64588000
                                                    LH SIDE BRACKET
                                                    - Not for GD
                                                    from £65.90
                                                    from £65.90
                                                    # 018
                                                    MPN: 65049400
                                                    RH SIDE BRACKET
                                                    - Valid for GD
                                                    from £213.99
                                                    from £213.99

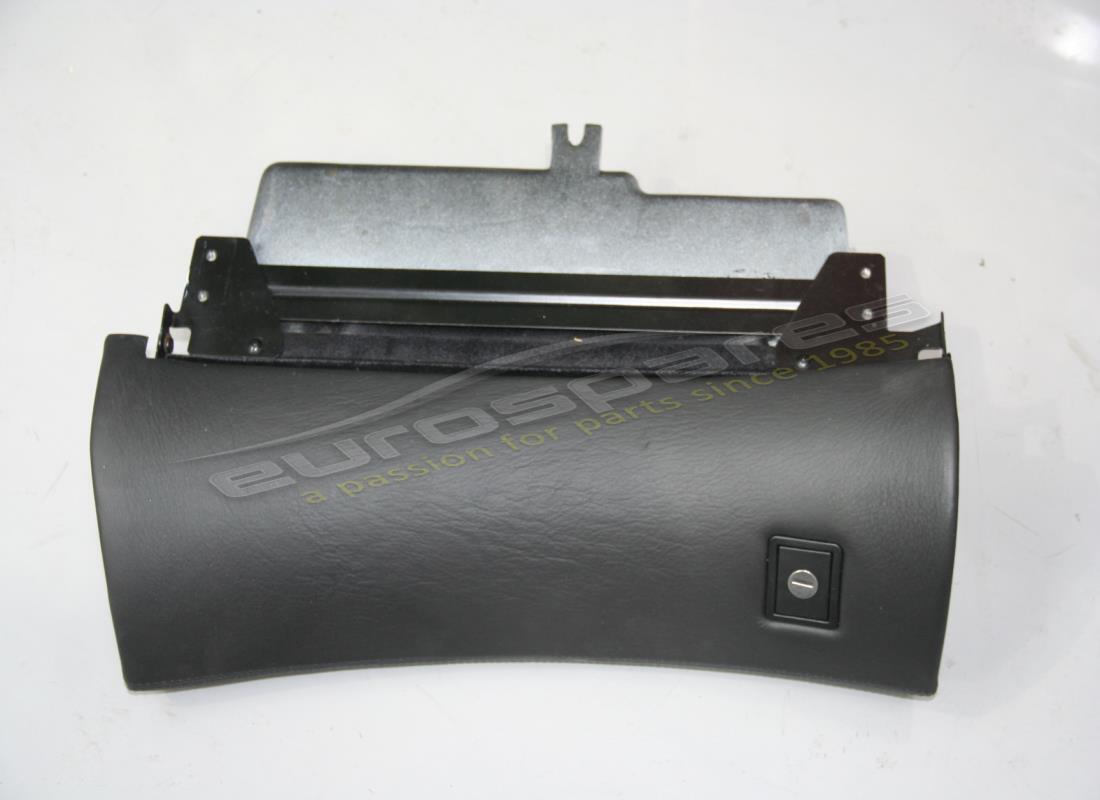

                                                    # 019
                                                    MPN: 645882..
                                                    GLOVE BOX SHUTTER
                                                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £309.75
                                                    from £309.75
                                                    # 019
                                                    MPN: 650498..
                                                    GLOVE BOX SHUTTER
                                                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 020
                                                    MPN: 64653900
                                                    TIE ROD
                                                    - Not for GD
                                                    from £7.52
                                                    from £7.52
                                                    # 020
                                                    MPN: 65166800
                                                    TIE ROD
                                                    - Valid for GD
                                                    from £16.01
                                                    from £16.01
                                                    # 021
                                                    MPN: 63768800
                                                    GLOVE BOX LOCK
                                                    from £136.79
                                                    from £136.79
                                                    # 022
                                                    MPN: 64926500
                                                    PUSH BUTTON
                                                    from £84.00
                                                    from £84.00
                                                    # 023
                                                    MPN: 63769000
                                                    FORK
                                                    from £3.42
                                                    from £3.42
                                                    # 024
                                                    MPN: 63768900
                                                    PLATE
                                                    from £0.35
                                                    from £0.35
                                                    # 025
                                                    MPN: 64653700
                                                    Door Frame
                                                    - Not for GD
                                                    from £58.38
                                                    from £58.38
                                                    # 025
                                                    MPN: 65024900
                                                    Door Frame
                                                    - Valid for GD
                                                    from £62.14
                                                    from £62.14
                                                    # 026
                                                    MPN: 64767600
                                                    Dashboard Drawer
                                                    - Not for GD
                                                    from £105.46
                                                    from £105.46
                                                    This part replaces part number 64588300 - and 1 more. Click to view details
                                                    # 026
                                                    MPN: 65103900
                                                    Dashboard Drawer
                                                    - Valid for GD
                                                    from £273.45
                                                    from £273.45
                                                    This part replaces part number 65103800
                                                    # 027
                                                    MPN: 64653200
                                                    BOX HINGE
                                                    - Not for GD
                                                    from £48.01
                                                    from £48.01
                                                    # 027
                                                    MPN: 65026800
                                                    BOX HINGE
                                                    - Valid for GD
                                                    from £109.21
                                                    from £109.21
                                                    # 028
                                                    MPN: 63765700
                                                    LEVER
                                                    from £8.29
                                                    from £8.29
                                                    # 029
                                                    MPN: 63876700
                                                    DOOR SPRING
                                                    from £3.42
                                                    from £3.42
                                                    # 030
                                                    MPN: 64580800
                                                    BRACKET
                                                    - Not for GD
                                                    from £44.81
                                                    from £44.81
                                                    # 030
                                                    MPN: 65024600
                                                    BRACKET
                                                    - Valid for GD
                                                    from £25.68
                                                    from £25.68

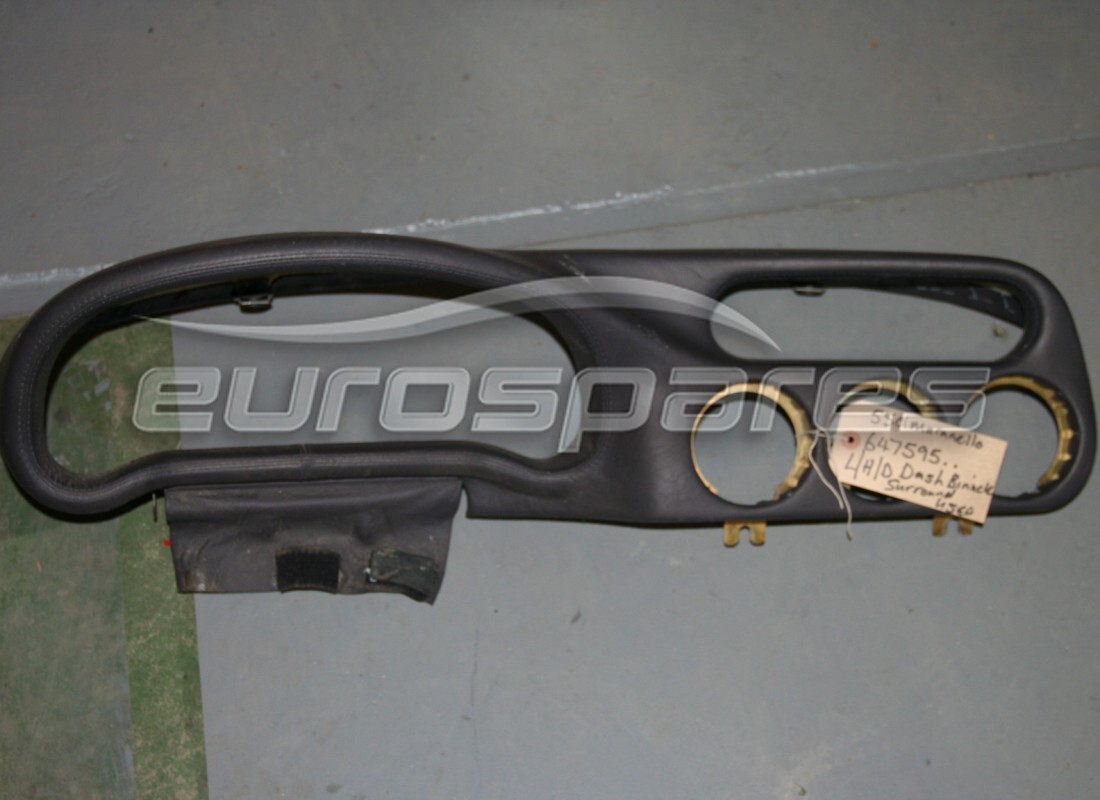

                                                    # 031
                                                    MPN: 647595..
                                                    COVERED DASH BOARD
                                                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    from £807.00
                                                    from £807.00
                                                    # 031
                                                    MPN: 64759600
                                                    LHD DASH PANEL IN BLACK
                                                    - Not for GD - Not as spare part now - Replaced by 647595.. - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 031
                                                    MPN: 651043..
                                                    COVERED DASH BOARD
                                                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                                                    Supersession
                                                    Supersession
                                                    # 032
                                                    MPN: 62188300
                                                    GASKET
                                                    from £3.24
                                                    from £3.24
                                                    # 033
                                                    MPN: 173939
                                                    MICRO-SWITCH
                                                    from £23.98
                                                    from £23.98
                                                    # 034
                                                    MPN: 139517
                                                    ROOF LIGHT
                                                    from £7.52
                                                    from £7.52
                                                    # 035
                                                    MPN: 65258900
                                                    STRIKER
                                                    from £28.98
                                                    from £28.98
                                                    # 036
                                                    MPN: 61524300
                                                    NUT
                                                    from £0.47
                                                    from £0.47
                                                    # 037
                                                    MPN: 61524200
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    # 038
                                                    MPN: 65212000
                                                    SCREW
                                                    from £0.56
                                                    from £0.56

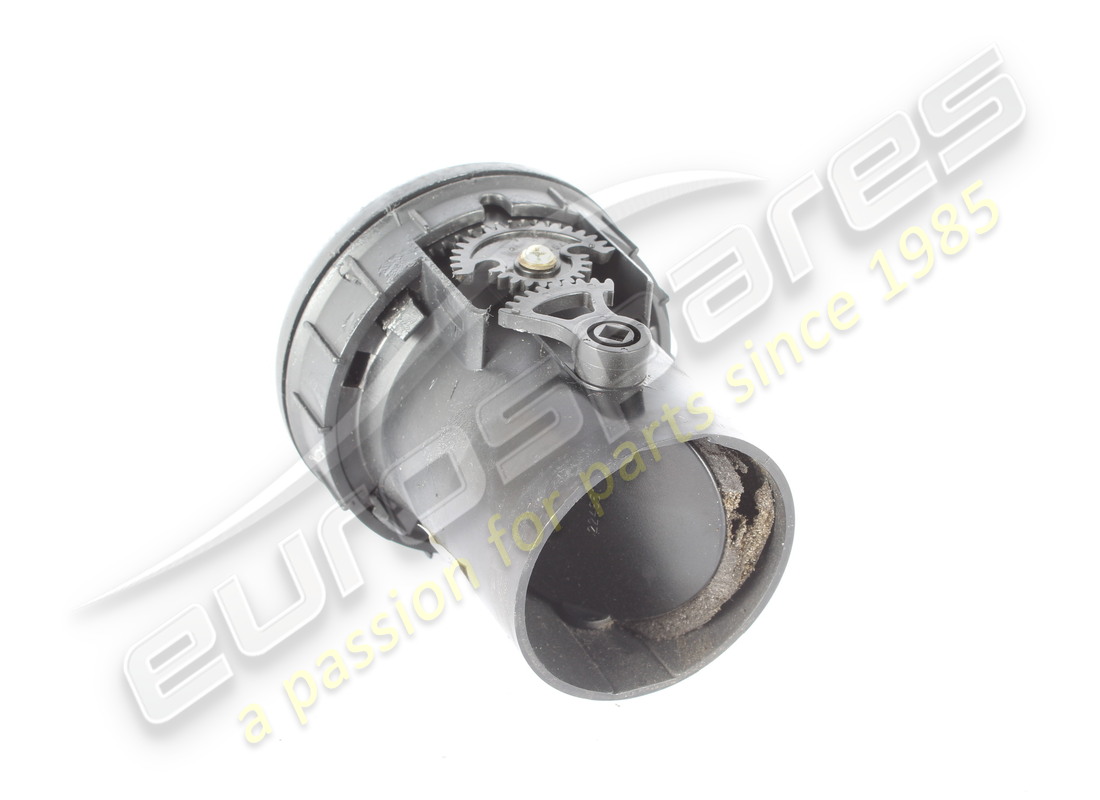

                                                    # 039
                                                    MPN: 63352600
                                                    AIR OPENING
                                                    from £447.96
                                                    from £447.96
                                                    # 040
                                                    MPN: 65361300
                                                    PIN
                                                    from £75.60
                                                    from £75.60
                                                    # 041
                                                    MPN: 64587400
                                                    UNION FROM EVAPORATOR UNIT TO AIR OPENING
                                                    - Not for GD
                                                    from £24.79
                                                    from £24.79
                                                    # 041
                                                    MPN: 65024300
                                                    UNION FROM EVAPORATOR UNIT TO AIR OPENING
                                                    - Valid for GD
                                                    from £45.89
                                                    from £45.89
                                                    # 042
                                                    MPN: 171800
                                                    INTERMEDIATE BRACKET
                                                    - Valid for GD
                                                    from £18.30
                                                    from £18.30
                                                    # 043
                                                    MPN: 168961
                                                    OBDII CONNECTOR FIXING BRACKET
                                                    - Valid for USA and CDN
                                                    from £22.09
                                                    from £22.09
                                                    # 044
                                                    MPN: 15688170
                                                    SCREW
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 15688101
                                                    # 045
                                                    MPN: 14202580
                                                    BLOCK
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    # 046
                                                    MPN: 10519224
                                                    WASHER
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10519201
                                                    # 047
                                                    MPN: 113647
                                                    NUT
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    # 048
                                                    MPN: 12637824
                                                    WASHER
                                                    - Valid for USA and CDN
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12637801 - and 1 more. Click to view details
                                                    # 049
                                                    MPN: 63765300
                                                    STRIKER FIXING PLATE
                                                    from £2.52
                                                    from £2.52
                                                    # 050
                                                    MPN: 65879900
                                                    PIN
                                                    from £12.80
                                                    from £12.80
