127 - Front and Rear Lights

Ferrari 550 Maranello Front and Rear Lights Parts Diagram

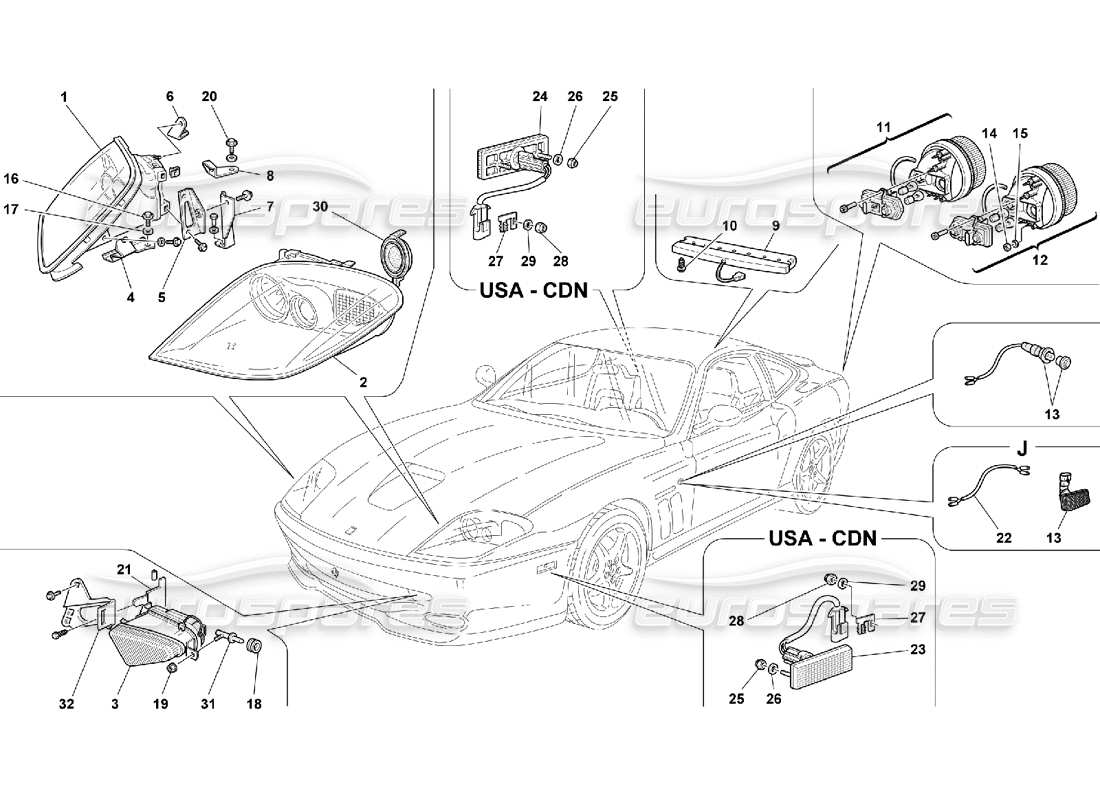

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price

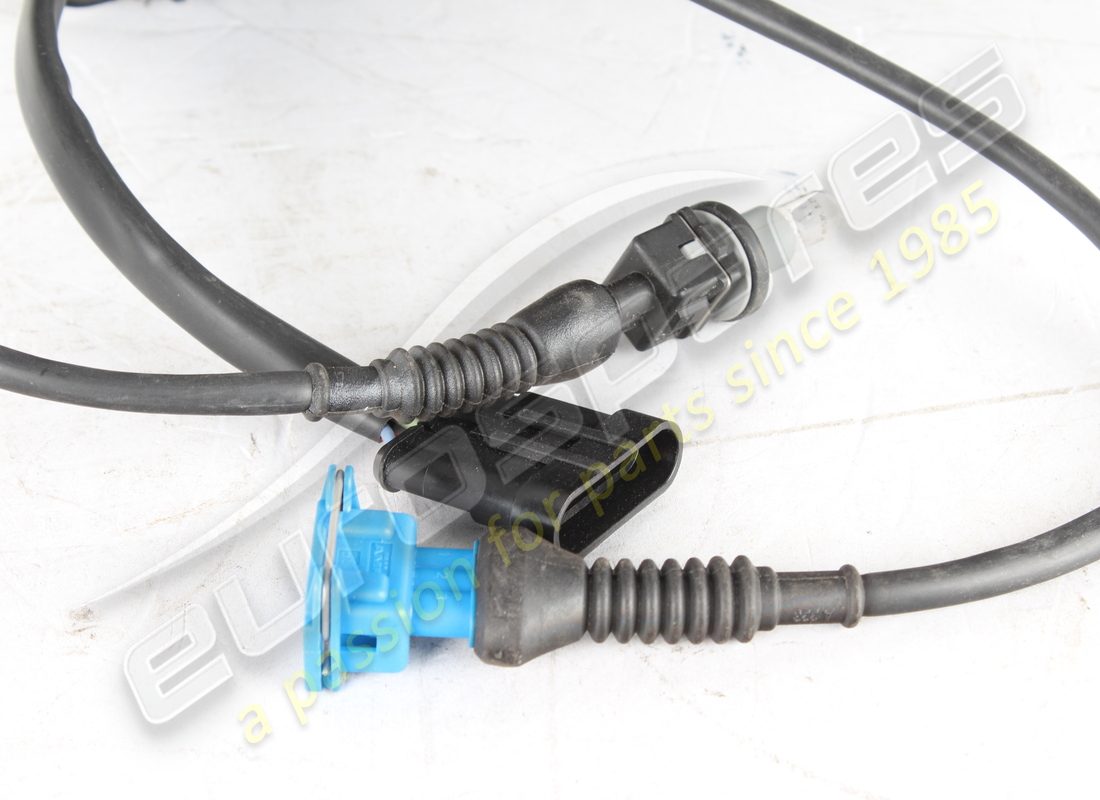

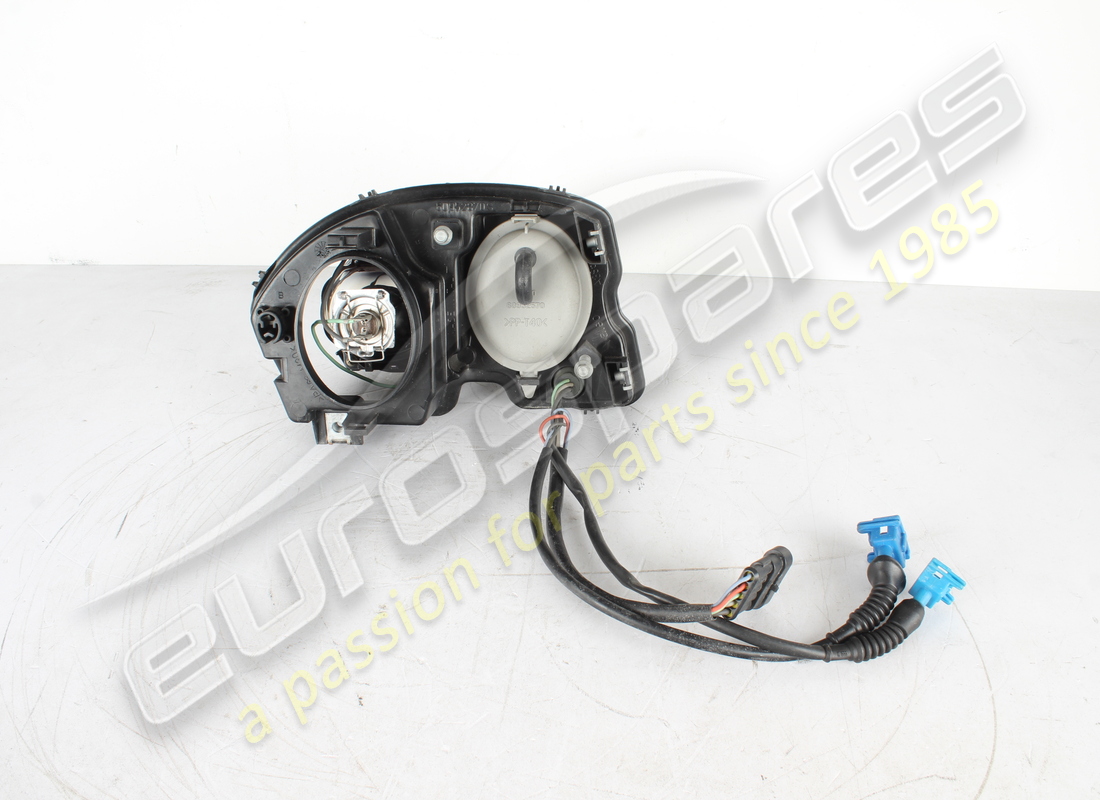

                                          # 000
                                          MPN: 672585999
                                          RH HEADLIGHT CONVERSION KIT
                                          FOR CONVERTING LEFT HAND DRIVE HEADLIGHT TO RIGHT HAND DRIVE
                                          # 000
                                          MPN: 672585999/A
                                          RH HEADLIGHT CONVERSION KIT
                                          FOR CONVERTING RIGHT HAND DRIVE HEADLIGHT TO LEFT HAND DRIVE
                                          from £624.75
                                          from £624.75
                                          # 000
                                          MPN: 672586999
                                          LH HEADLIGHT CONVERSION KIT
                                          FOR CONVERTING LEFT HAND DRIVE HEADLIGHT TO RIGHT HAND DRIVE
                                          from £624.75
                                          from £624.75
                                          # 001
                                          MPN: 65482251
                                          RH HEADLIGHT ASSY
                                          (red)
                                          from £1,044.75
                                          from £1,044.75
                                          # 001
                                          MPN: 65482252
                                          RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
                                          RHD - Barchetta red
                                          from £1,989.75
                                          from £1,989.75
                                          # 001
                                          MPN: 65482253
                                          RH HEADLIGHT ASSY
                                          (black)
                                          from £1,669.89
                                          from £1,669.89
                                          # 001
                                          MPN: 654822789
                                          RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
                                          RHD-Rosso Dino
                                          from £1,779.75
                                          from £1,779.75
                                          # 001
                                          MPN: 65482288
                                          RH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
                                          RHD - Blue Sebring
                                          from £1,989.75
                                          from £1,989.75
                                          # 001
                                          MPN: 65482493
                                          RH HEADLIGHT (VALID FOR LHD)
                                          Alloy Grey
                                          from £1,002.75
                                          from £1,002.75
                                          # 002
                                          MPN: 65338360
                                          LH HEADLIGHT(LE MANS BLUE)
                                          from £3,144.15
                                          from £3,144.15
                                          # 002
                                          MPN: 654823..
                                          LH HEADLIGHT ASSY
                                          RHD - Orange
                                          Supersession
                                          Supersession
                                          # 002
                                          MPN: 65482351
                                          LH HEADLIGHT ASSY
                                          RHD (Rosso Corsa Red)
                                          from £1,669.89
                                          from £1,669.89
                                          This part replaces part number 654823..
                                          # 002
                                          MPN: 65482353
                                          LH HEADLIGHT ASSY (RHD MODEL)
                                          (black)
                                          from £1,669.89
                                          from £1,669.89
                                          This part replaces part number 654823..
                                          # 002
                                          MPN: 65482372
                                          LH HEADLIGHT ASSY
                                          (Grigio Alloy)
                                          from £1,002.75
                                          from £1,002.75
                                          This part replaces part number 654823.. - and 1 more. Click to view details
                                          # 002
                                          MPN: 65482389
                                          LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
                                          RHD - Rosso barchetta
                                          from £971.25
                                          from £971.25
                                          # 002
                                          MPN: 65482393
                                          LH HEADLIGHT LOW/HIGH BEAM/POSITION/DIRECTION LIGHT
                                          RHD - Alloy grey
                                          from £1,989.75
                                          from £1,989.75
                                          # 002
                                          MPN: 69181795
                                          LH HEADLIGHT
                                          Silver, Valid for LHD Not for USA/CDN
                                          from £1,150.23
                                          from £1,150.23
                                          This part replaces part number 68925595 - and 1 more. Click to view details
                                          # 003
                                          MPN: 168229
                                          RH FOG LIGHT
                                          from £337.00
                                          from £337.00
                                          # 003
                                          MPN: 168230
                                          LH FOG LIGHT
                                          from £562.16
                                          from £562.16
                                          # 004
                                          MPN: 64559600
                                          LH FRONT BRACKET
                                          from £42.30
                                          from £42.30
                                          # 004
                                          MPN: 64559700
                                          RH FRONT BRACKET
                                          from £74.55
                                          from £74.55
                                          # 005
                                          MPN: 64559000
                                          LH BRACKET
                                          from £69.79
                                          from £69.79
                                          # 005
                                          MPN: 64559100
                                          RH BRACKET
                                          from £69.79
                                          from £69.79
                                          # 006
                                          MPN: 64560600
                                          LH OUTER REAR BRACKET
                                          from £5.11
                                          from £5.11
                                          # 006
                                          MPN: 64786700
                                          RH OUTER REAR BRACKET
                                          from £5.11
                                          from £5.11
                                          # 007
                                          MPN: 64786500
                                          LH INNER REAR BRACKET
                                          from £42.22
                                          from £42.22
                                          # 007
                                          MPN: 64786600
                                          RH INNER REAR BRACKET
                                          from £42.22
                                          from £42.22
                                          # 008
                                          MPN: 64765600
                                          CENTRAL REAR BRACKET
                                          from £4.83
                                          from £4.83
                                          # 009
                                          MPN: 167958
                                          ADDITIONAL STOP LIGHT
                                          from £75.92
                                          from £75.92
                                          This part replaces part number 68708400 - and 1 more. Click to view details
                                          # 010
                                          MPN: 15782601
                                          SCREW
                                          from £0.71
                                          from £0.71
                                          # 011
                                          MPN: 157513
                                          RH INNER REAR LIGHT
                                          - Not for USA and CDN
                                          from £250.00
                                          from £250.00
                                          # 011
                                          MPN: 157514
                                          LH INNER REAR LIGHT
                                          - Not for USA and CDN
                                          from £177.90
                                          from £177.90
                                          # 011
                                          MPN: 157524
                                          RH INNER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £267.57
                                          from £267.57
                                          # 011
                                          MPN: 157525
                                          LH INNER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £267.57
                                          from £267.57
                                          # 012
                                          MPN: 157515
                                          RH OUTER REAR LIGHT
                                          - Not for USA and CDN
                                          from £297.19
                                          from £297.19
                                          # 012
                                          MPN: 157516
                                          LH OUTER REAR LIGHT
                                          - Not for USA and CDN
                                          from £282.33
                                          from £282.33
                                          # 012
                                          MPN: 157522
                                          RH OUTER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £103.95
                                          from £103.95
                                          # 012
                                          MPN: 157523
                                          LH OUTER REAR LIGHT
                                          - Valid for USA and CDN
                                          from £261.36
                                          from £261.36
                                          # 013
                                          MPN: 165558
                                          FRONT SIDE DIRECTION LIGHT
                                          - Not for USA, CDN and J
                                          from £9.34
                                          from £9.34
                                          This part replaces part number 180415 - and 1 more. Click to view details
                                          # 013
                                          MPN: 173616
                                          RH FRONT SIDE DIRECTION LIGHT
                                          - Valid for J
                                          from £125.16
                                          from £125.16
                                          # 013
                                          MPN: 175506
                                          LH FRONT SIDE DIRECTION LIGHT
                                          - Valid for J
                                          from £9.04
                                          from £9.04
                                          # 014
                                          MPN: 102741
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                          # 015
                                          MPN: 10519424
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                          # 016
                                          MPN: 11612524
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 017
                                          MPN: 12648978
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12643770
                                          # 018
                                          MPN: 10399580
                                          CABLE GROMMET
                                          from £0.47
                                          from £0.47
                                          # 019
                                          MPN: 13046114
                                          NUT
                                          from £0.47
                                          from £0.47
                                          # 020
                                          MPN: 11612424
                                          SCREW
                                          from £0.86
                                          from £0.86
                                          # 021
                                          MPN: 65183600
                                          RH RETAINER
                                          from £4.49
                                          from £4.49
                                          # 021
                                          MPN: 65183700
                                          LH RETAINER
                                          from £4.49
                                          from £4.49
                                          # 022
                                          MPN: 174580
                                          CABLE
                                          - Valid for J
                                          from £9.12
                                          from £9.12
                                          # 023
                                          MPN: 147563
                                          FRONT SIDE-MARKER LAMP
                                          - Valid for USA and CDN
                                          from £12.36
                                          from £12.36
                                          # 024
                                          MPN: 140594
                                          REAR SIDE-MARKER LIGHT
                                          - Valid for USA and CDN
                                          from £12.36
                                          from £12.36
                                          # 025
                                          MPN: 14084111
                                          NUT
                                          - Valid for USA and CDN
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14084100
                                          # 026
                                          MPN: 12638124
                                          WASHER VALID FOR USA AND CDN
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12638101 - and 1 more. Click to view details
                                          # 027
                                          MPN: 156198
                                          CLIP
                                          - Valid for USA and CDN
                                          from £8.53
                                          from £8.53
                                          # 028
                                          MPN: 113647
                                          NUT
                                          - Valid for USA and CDN
                                          from £0.47
                                          from £0.47
                                          # 029
                                          MPN: 12637824
                                          WASHER
                                          - Valid for USA and CDN
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12637801 - and 1 more. Click to view details
                                          # 030
                                          MPN: 65898400
                                          PLUG FOR LIGHTS
                                          from £10.27
                                          from £10.27
                                          # 031
                                          MPN: 65023200
                                          PIN
                                          from £25.00
                                          from £25.00
                                          # 032
                                          MPN: 65189500
                                          RH BRACKET
                                          from £8.96
                                          from £8.96
                                          # 032
                                          MPN: 65189600
                                          LH BRACKET
                                          from £5.99
                                          from £5.99
