133 - Windscreen Wiper, Windscreen Washer and Horns

Ferrari 550 Maranello Windscreen Wiper, Windscreen Washer and Horns Parts Diagram

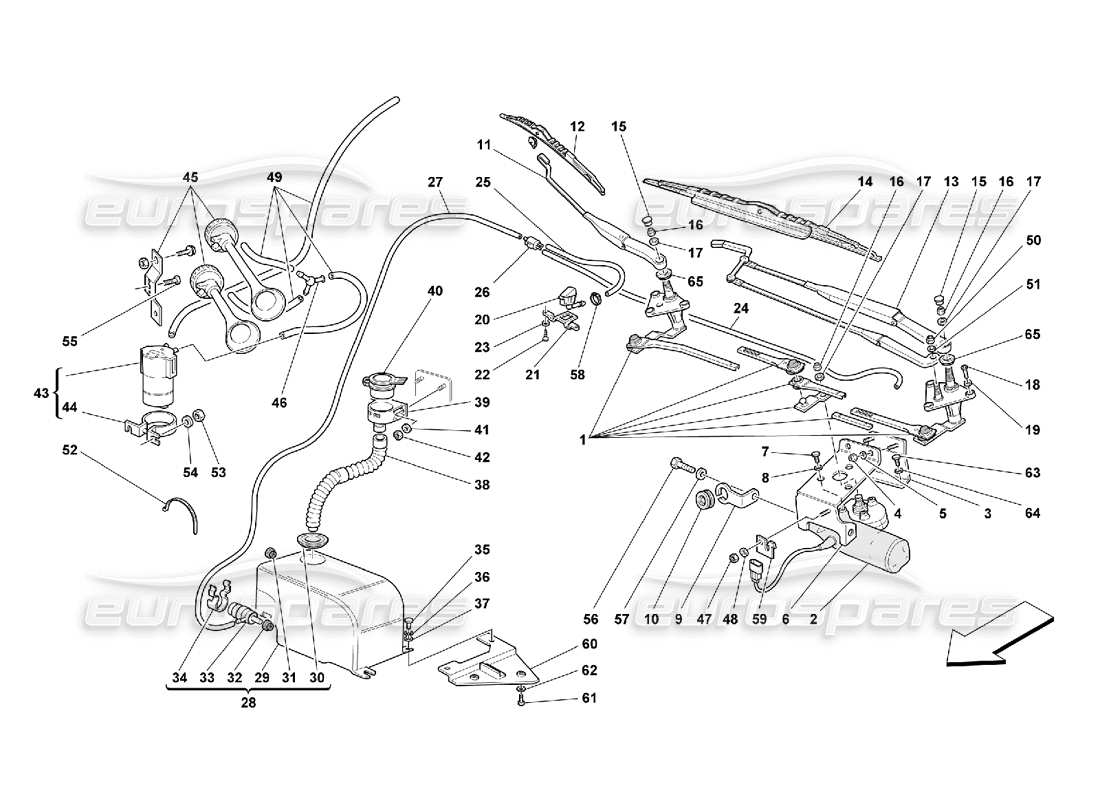

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Price
                                                                                                                # 001
                                                                                                                MPN: 65081300
                                                                                                                COMPLETE WINDSHIELD WIPER LEVERAGE
                                                                                                                - Not for GD
                                                                                                                from £317.77
                                                                                                                from £317.77
                                                                                                                # 001
                                                                                                                MPN: 65202600
                                                                                                                COMPLETE WINDSHIELD WIPER LEVERAGE
                                                                                                                - Valid for GD
                                                                                                                from £510.21
                                                                                                                from £510.21
                                                                                                                # 002
                                                                                                                MPN: 63780200
                                                                                                                LHD WINDSHIELD WIPER MOTOR
                                                                                                                - Not for GD
                                                                                                                from £293.08
                                                                                                                from £293.08
                                                                                                                # 002
                                                                                                                MPN: 64275500
                                                                                                                WINDSHIELD WIPER MOTOR
                                                                                                                - Valid for GD
                                                                                                                from £167.87
                                                                                                                from £167.87
                                                                                                                # 003
                                                                                                                MPN: 63878800
                                                                                                                WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                                                                - Not for GD
                                                                                                                from £42.00
                                                                                                                from £42.00
                                                                                                                # 003
                                                                                                                MPN: 65206000
                                                                                                                WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                                                                - Valid for GD
                                                                                                                from £273.90
                                                                                                                from £273.90
                                                                                                                # 004
                                                                                                                MPN: 104030
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 16104125
                                                                                                                # 006
                                                                                                                MPN: 64549400
                                                                                                                WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                                                - Not for GD - Valid till car Nr. 106398
                                                                                                                from £15.75
                                                                                                                from £15.75
                                                                                                                This part replaces part number 64049400 - and 1 more. Click to view details
                                                                                                                # 006
                                                                                                                MPN: 65098800
                                                                                                                WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                                                - Not for GD - Valid from car Nr. 106399
                                                                                                                from £35.78
                                                                                                                from £35.78
                                                                                                                # 006
                                                                                                                MPN: 65205900
                                                                                                                WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                                                - Valid for GD - Valid till car Nr. 110755
                                                                                                                from £855.93
                                                                                                                from £855.93
                                                                                                                # 006
                                                                                                                MPN: 65454400
                                                                                                                WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                                                - Valid for GD - Valid from car Nr. 110756
                                                                                                                from £66.26
                                                                                                                from £66.26
                                                                                                                # 007
                                                                                                                MPN: 10902224
                                                                                                                SCREW
                                                                                                                from £0.52
                                                                                                                from £0.52
                                                                                                                # 008
                                                                                                                MPN: 127494
                                                                                                                WASHER
                                                                                                                (minimum order quantity = 20)
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details

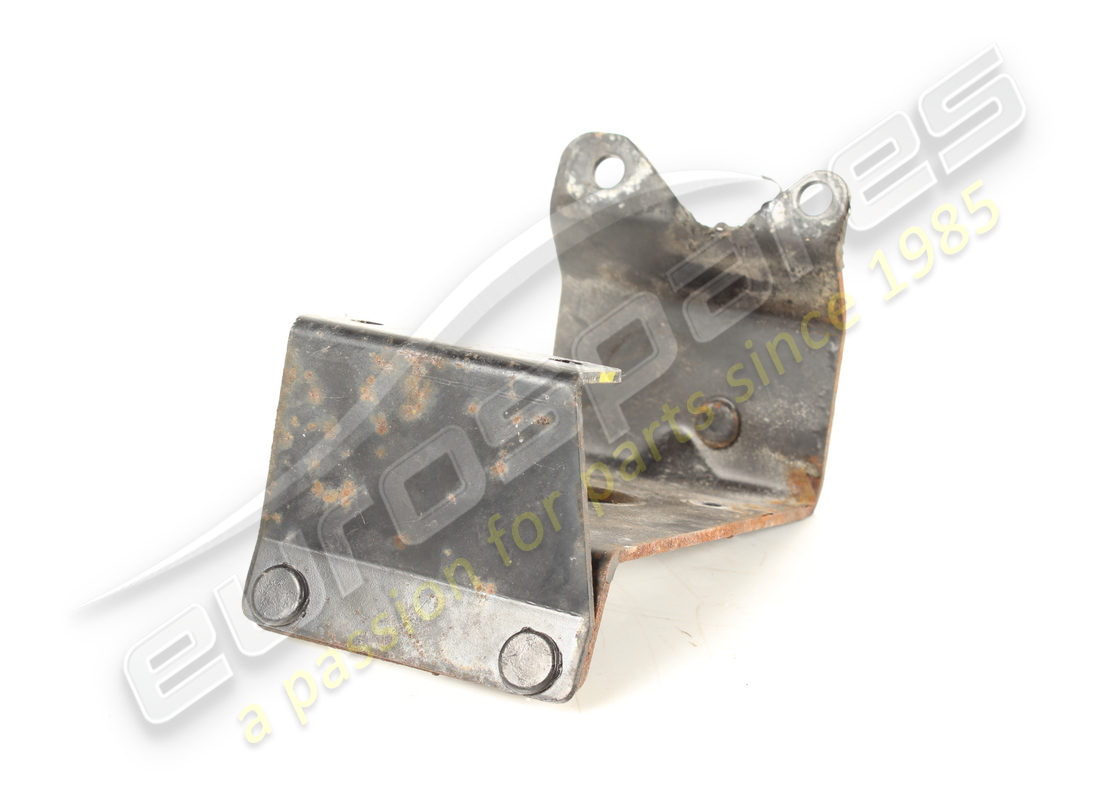

                                                                                                                # 009
                                                                                                                MPN: 168239
                                                                                                                BRACKET
                                                                                                                - Valid till stock exhaustion
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 009
                                                                                                                MPN: 175257
                                                                                                                BRACKET
                                                                                                                - Valid after stock exhaustion of 168239
                                                                                                                from £44.50
                                                                                                                from £44.50
                                                                                                                This part replaces part number 168239
                                                                                                                # 010
                                                                                                                MPN: 10396680
                                                                                                                CABLE GROMMET
                                                                                                                from £1.11
                                                                                                                from £1.11
                                                                                                                # 011
                                                                                                                MPN: 65081400
                                                                                                                PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                                                                - Not for GD
                                                                                                                from £86.37
                                                                                                                from £86.37
                                                                                                                # 011
                                                                                                                MPN: 65202800
                                                                                                                PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                                                                - Valid for GD
                                                                                                                from £181.68
                                                                                                                from £181.68
                                                                                                                # 012
                                                                                                                MPN: 65081600
                                                                                                                PASSENGER SIDE WIPER BRUSH
                                                                                                                from £61.83
                                                                                                                from £61.83
                                                                                                                This part replaces part number 63756100 which we have in stock - and 1 more. Click to view details
                                                                                                                # 013
                                                                                                                MPN: 65081500
                                                                                                                DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                                                - Not for GD
                                                                                                                from £236.82
                                                                                                                from £236.82
                                                                                                                # 013
                                                                                                                MPN: 65202700
                                                                                                                DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                                                - Valid for GD
                                                                                                                from £434.49
                                                                                                                from £434.49
                                                                                                                # 015
                                                                                                                MPN: 65190900
                                                                                                                SMALL COVER
                                                                                                                from £0.71
                                                                                                                from £0.71
                                                                                                                # 016
                                                                                                                MPN: 147985
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 017
                                                                                                                MPN: 12601374
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                # 018
                                                                                                                MPN: 13312970
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 019
                                                                                                                MPN: 62794700
                                                                                                                WASHER
                                                                                                                from £0.69
                                                                                                                from £0.69
                                                                                                                # 020
                                                                                                                MPN: 65191000
                                                                                                                JET FOR WINDOW WASHING
                                                                                                                from £0.84
                                                                                                                from £0.84
                                                                                                                This part replaces part number 80131500 - and 2 more. Click to view details
                                                                                                                # 021
                                                                                                                MPN: 65191700
                                                                                                                BRACKET
                                                                                                                from £3.22
                                                                                                                from £3.22
                                                                                                                # 022
                                                                                                                MPN: 15957077
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 023
                                                                                                                MPN: 10519278
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                                                # 024
                                                                                                                MPN: 65191400
                                                                                                                PIPE FROM VALVE TO LH JET
                                                                                                                from £3.39
                                                                                                                from £3.39
                                                                                                                # 025
                                                                                                                MPN: 65191500
                                                                                                                PIPE FROM VALVE TO RH JET
                                                                                                                from £3.30
                                                                                                                from £3.30
                                                                                                                # 026
                                                                                                                MPN: 61648100
                                                                                                                NONRETURN VALVE
                                                                                                                from £16.60
                                                                                                                from £16.60
                                                                                                                # 027
                                                                                                                MPN: 65191600
                                                                                                                PIPE FROM PUMP TO VALVE
                                                                                                                from £1.72
                                                                                                                from £1.72
                                                                                                                # 028
                                                                                                                MPN: 63970100
                                                                                                                COMPLETE WINDSHIELD WIPER CONTAINER
                                                                                                                from £470.26
                                                                                                                from £470.26
                                                                                                                # 029
                                                                                                                MPN: 63970200
                                                                                                                WINDSHIELD WIPER CONTAINER
                                                                                                                from £76.35
                                                                                                                from £76.35
                                                                                                                # 030
                                                                                                                MPN: 63954700
                                                                                                                TUBE TIGHTENING RING
                                                                                                                from £10.70
                                                                                                                from £10.70
                                                                                                                # 031
                                                                                                                MPN: 63291000
                                                                                                                CAP FOR BRETHER HOLE
                                                                                                                from £0.81
                                                                                                                from £0.81
                                                                                                                # 032
                                                                                                                MPN: 63290900
                                                                                                                RUBBER BUSHING
                                                                                                                from £0.80
                                                                                                                from £0.80
                                                                                                                # 034
                                                                                                                MPN: 63290800
                                                                                                                SPRING
                                                                                                                from £13.37
                                                                                                                from £13.37
                                                                                                                # 035
                                                                                                                MPN: 10902324
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                                # 036
                                                                                                                MPN: 127494
                                                                                                                WASHER
                                                                                                                (minimum order quantity = 20)
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                # 037
                                                                                                                MPN: 12640624
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                                                # 038
                                                                                                                MPN: 65141100
                                                                                                                PLASTIC HOSE
                                                                                                                from £96.02
                                                                                                                from £96.02
                                                                                                                # 039
                                                                                                                MPN: 63449500
                                                                                                                UNION
                                                                                                                from £82.97
                                                                                                                from £82.97
                                                                                                                # 040
                                                                                                                MPN: 63118500
                                                                                                                PLUG
                                                                                                                from £1.59
                                                                                                                from £1.59
                                                                                                                # 041
                                                                                                                MPN: 14496324
                                                                                                                WASHER
                                                                                                                from £1.43
                                                                                                                from £1.43
                                                                                                                This part replaces part number 14496301
                                                                                                                # 042
                                                                                                                MPN: 169180
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12574121
                                                                                                                # 043
                                                                                                                MPN: 225757
                                                                                                                ELECTRO-COMPRESSOR
                                                                                                                from £138.82
                                                                                                                from £138.82
                                                                                                                This part replaces part number 139920
                                                                                                                # 044
                                                                                                                MPN: 60741200
                                                                                                                BRACKET
                                                                                                                from £0.58
                                                                                                                from £0.58
                                                                                                                # 045
                                                                                                                MPN: 189428
                                                                                                                ELECTRO-PNEUMATIC HORN
                                                                                                                from £34.57
                                                                                                                from £34.57
                                                                                                                This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
                                                                                                                # 046
                                                                                                                MPN: 60741100
                                                                                                                3-WAY UNION
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 61741100
                                                                                                                # 047
                                                                                                                MPN: 113647
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 048
                                                                                                                MPN: 12637824
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                                # 049
                                                                                                                MPN: 155904
                                                                                                                PIPE FOR COMPRESSOR
                                                                                                                from £5.54
                                                                                                                from £5.54
                                                                                                                # 050
                                                                                                                MPN: 15896472
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 15896416
                                                                                                                # 051
                                                                                                                MPN: 12601176
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                # 052
                                                                                                                MPN: 145854
                                                                                                                CLAMP
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 053
                                                                                                                MPN: 169180
                                                                                                                NUT
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12574121
                                                                                                                # 054
                                                                                                                MPN: 12637824
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                                # 055
                                                                                                                MPN: 10902124
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                # 056
                                                                                                                MPN: 16043324
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 16043321
                                                                                                                # 057
                                                                                                                MPN: 127496
                                                                                                                WASHER
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                # 058
                                                                                                                MPN: 157990
                                                                                                                SCREW COLLAR
                                                                                                                from £1.05
                                                                                                                from £1.05
                                                                                                                This part replaces part number 12179090
                                                                                                                # 059
                                                                                                                MPN: 156198
                                                                                                                CLIP
                                                                                                                from £8.53
                                                                                                                from £8.53
                                                                                                                # 060
                                                                                                                MPN: 65335400
                                                                                                                PAN SUPPORTING BRACKET
                                                                                                                from £18.87
                                                                                                                from £18.87
                                                                                                                # 061
                                                                                                                MPN: 62791600
                                                                                                                SCREW
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                # 062
                                                                                                                MPN: 12638124
                                                                                                                WASHER
                                                                                                                from £0.47
                                                                                                                from £0.47
                                                                                                                This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                                                # 063
                                                                                                                MPN: 10902224
                                                                                                                SCREW
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                # 064
                                                                                                                MPN: 127494
                                                                                                                WASHER
                                                                                                                (minimum order quantity = 20)
                                                                                                                from £0.53
                                                                                                                from £0.53
                                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                # 065
                                                                                                                MPN: 65504100
                                                                                                                GASKET
                                                                                                                from £0.97
                                                                                                                from £0.97
                                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
