012 - Fuel Tank Union and Piping Not for USA and CDN

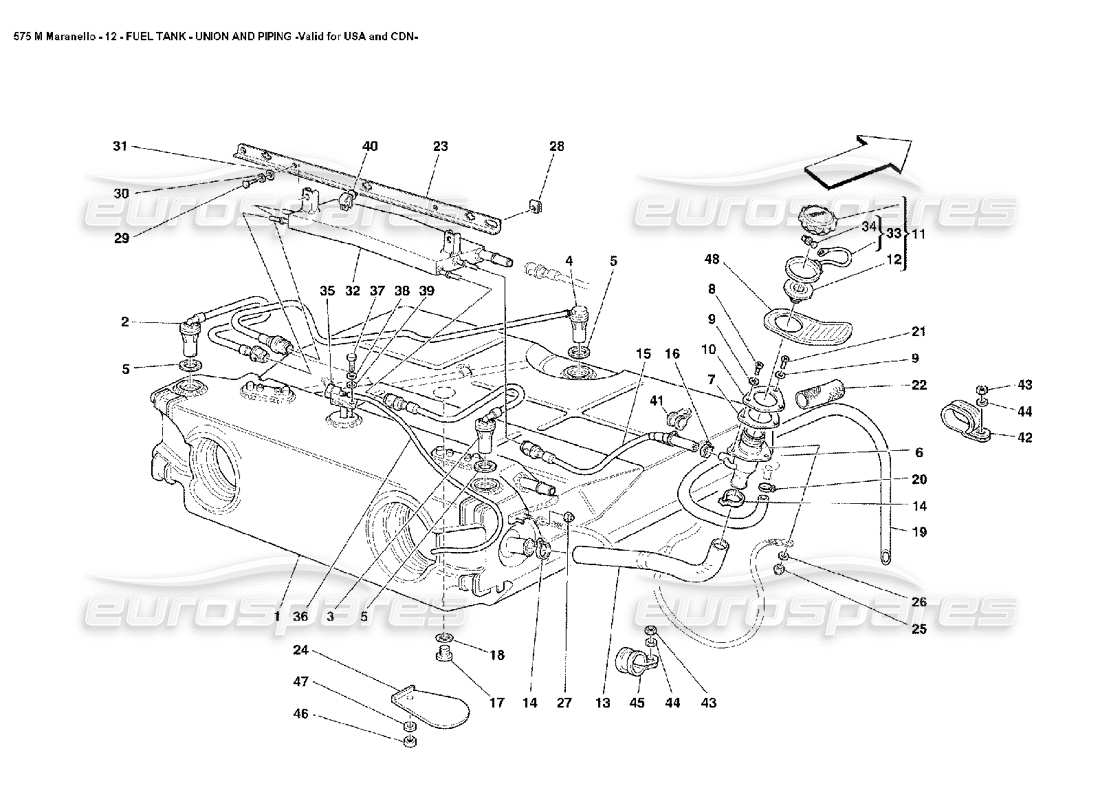

Ferrari 575M Maranello Fuel Tank Union and Piping Not for USA and CDN Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182614

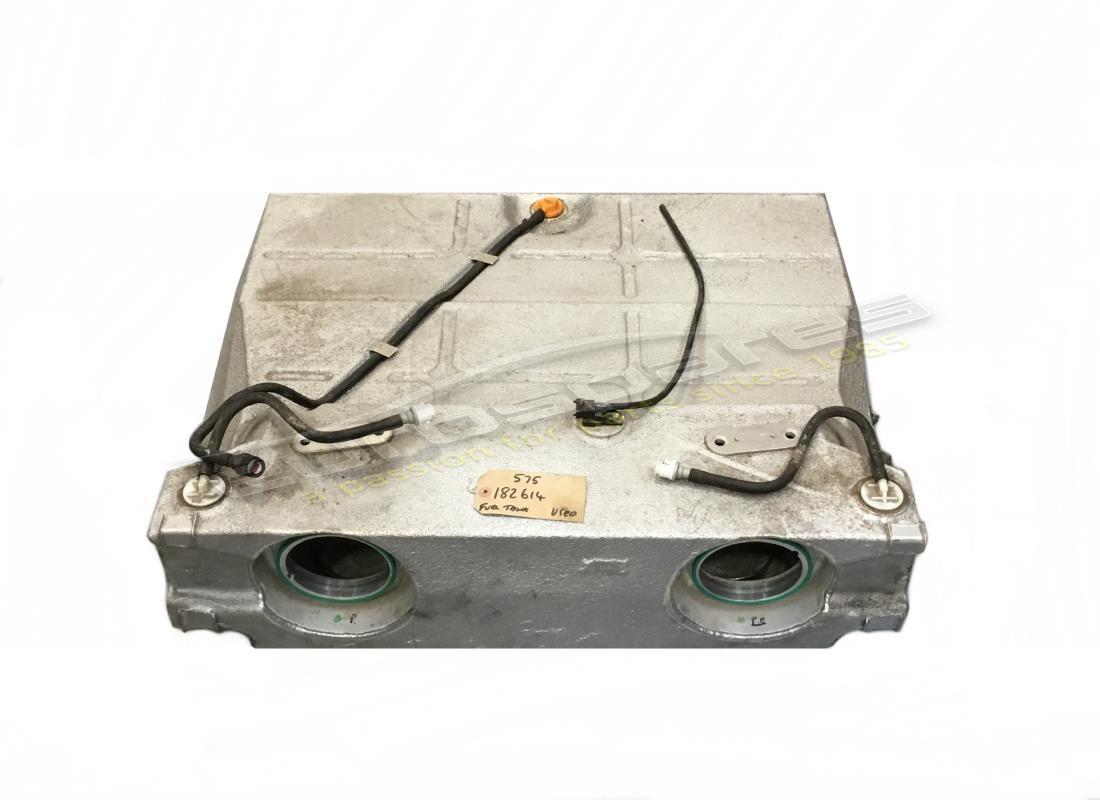

FUEL TANK
from £939.75
from £939.75
# 002
MPN: 181935
LH VALVE COMPLETED WITH PIPING
from £93.90
from £93.90
# 003
MPN: 181936
RH VALVE COMPLETED WITH PIPING
from £93.90
from £93.90
# 004
MPN: 180469
VALVE COMPLETED WITH PIPING
- Valid till stock exhaustion
Supersession
Supersession
# 004
MPN: 196488
VALVE COMPLETED WITH
from £109.38
from £109.38
This part replaces part number 180469
# 005
MPN: 195049
GASKET
- Valid till stock exhaustion
from £2.40
from £2.40
This part replaces part number 169938
# 005
MPN: 195049
GASKET
from £2.40
from £2.40
This part replaces part number 169938
# 006
MPN: 181932
FILLER
from £85.98
from £85.98
# 007
MPN: 174095
GASKET
from £3.58
from £3.58
This part replaces part number 123897
# 008
MPN: 62926700
SCREW
from £0.71
from £0.71
This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
# 009
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 010
MPN: 174093
FLANGE
from £4.26
from £4.26
# 011
MPN: 226444
PLUG
from £155.68
from £155.68
This part replaces part number 185780
# 012
MPN: 180119
GASKET
from £29.79
from £29.79
# 013
MPN: 181977
FILLER PIPE
Supersession
Supersession
# 014
MPN: 170127
SCREW COLLAR
from £0.99
from £0.99
# 015
MPN: 182265
PIPE FOR VAPOR RECYCLING
from £65.95
from £65.95
# 016
MPN: 13432070
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 13125570
# 017
MPN: 148045
THREADED PLUG
from £9.18
from £9.18
# 018
MPN: 123622
O.R. GASKET
from £0.79
from £0.79
# 019
MPN: 179851
RUBBER HOSE
from £27.05
from £27.05
# 020
MPN: 161490
SCREW COLLAR
from £1.02
from £1.02
# 021
MPN: 14778418
SCREW
from £0.47
from £0.47
# 022
MPN: 171163
PROTECTION SHEATH
from £25.64
from £25.64
# 023
MPN: 187725
BRACKET
- Valid till stock exhaustion
Supersession
Supersession
# 023
MPN: 196078
BRACKET
from £4.96
from £4.96
This part replaces part number 187725
# 024
MPN: 66849400
FUEL EXHAUST SEAL DOOR
from £6.90
from £6.90
# 025
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 026
MPN: 12648277
WASHER
from £0.47
from £0.47
# 027
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 4 more. Click to view details
# 028
MPN: 62766300
CLIP
from £0.47
from £0.47
# 029
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 030
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 031
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 032
MPN: 181931
DISAREATOR
from £106.87
from £106.87
# 033
MPN: 186866
COMPLETE RUBBER RING
from £10.22
from £10.22
# 034
MPN: 186172
RETAINER
from £0.47
from £0.47
# 035
MPN: 179137
FUEL PRESSURE SENSOR
from £234.82
from £234.82
# 036
MPN: 118502
RUBBER HOSE
from £18.37
from £18.37
This part replaces part number 115148 - and 3 more. Click to view details
# 037
MPN: 10977724
SCREW
from £0.47
from £0.47
This part replaces part number 10977711
# 038
MPN: 12601174
WASHER
from £0.47
from £0.47
This part replaces part number 12601173 - and 5 more. Click to view details
# 039
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 - and 1 more. Click to view details
# 040
MPN: 178430
FIXING CLIP
from £0.47
from £0.47
# 041
MPN: 10441990
BRACKET WITH SHEATH
from £0.47
from £0.47
# 042
MPN: 61712500
BRACKET WITH SHEATH
from £0.88
from £0.88
# 043
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 4 more. Click to view details
# 044
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 045
MPN: 172995
BRACKET WITH SHEATH
from £1.65
from £1.65
# 046
MPN: 14058411
NUT
from £0.47
from £0.47
# 047
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 - and 3 more. Click to view details
# 048
MPN: 67194500
RUBBER PROTECTION
from £10.76
from £10.76
