021 - Rear Exhaust System

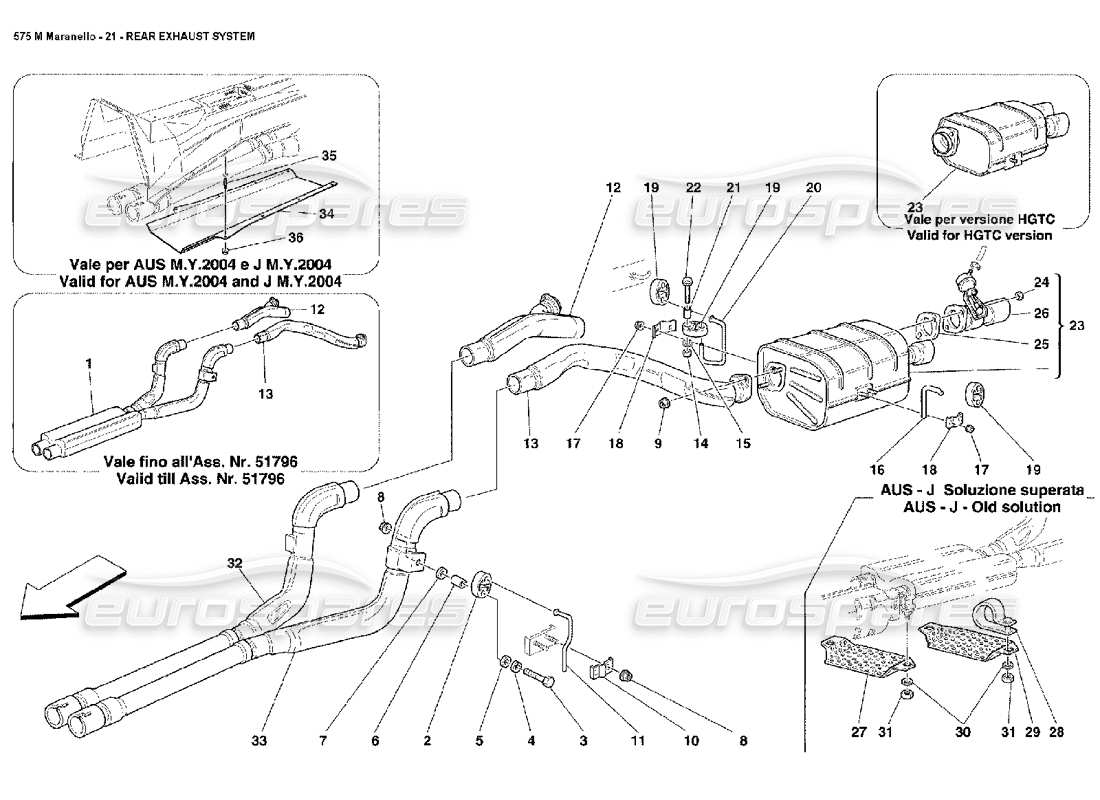

Ferrari 575M Maranello Rear Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 181794
CENTRAL MUFFLER
- Valid till Ass. Nr. 51796
from £586.17
from £586.17
# 002
MPN: 187804
MUFFLER BUFFER FOR SUPPORT
Supersession
Supersession
# 003
MPN: 16044324
SCREW
from £0.53
from £0.53
# 004
MPN: 106852
SPLIT WASHER
Supersession
Supersession
This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
# 005
MPN: 12642078
WASHER
from £0.51
from £0.51
This part replaces part number 12642006 which we have in stock
# 006
MPN: 154016
SPACER
from £9.10
from £9.10
# 007
MPN: 184953
SPACER
from £3.27
from £3.27
# 008
MPN: 14058519
NUT
from £0.53
from £0.53
# 009
MPN: 114748
NUT
from £9.07
from £9.07
# 010
MPN: 154116
BRACKET
from £5.69
from £5.69
# 011
MPN: 191421
REAR SUPPORT
from £12.80
from £12.80
# 012
MPN: 181795
RH EXHAUST EXTENSION
from £323.57
from £323.57
# 013
MPN: 181796
LH EXHAUST EXTENSION
from £581.44
from £581.44
# 014
MPN: 14058519
NUT
from £0.53
from £0.53
# 015
MPN: 12642078
WASHER
from £0.51
from £0.51
This part replaces part number 12642006 which we have in stock
# 016
MPN: 154110
OUTER SUPPORT
from £42.91
from £42.91
# 017
MPN: 14058519
NUT
from £0.51
from £0.51
# 018
MPN: 154116
BRACKET
from £5.69
from £5.69
# 019
MPN: 156968
MUFFLER BUFFER FOR SUPPORT
from £36.90
from £36.90
# 020
MPN: 161548
LH INNER SUPPORT
from £71.85
from £71.85
This part replaces part number 156840
# 020
MPN: 161549
RH INNER SUPPORT
from £135.87
from £135.87
This part replaces part number 156849
# 021
MPN: 154016
SPACER
from £9.10
from £9.10
# 022
MPN: 16287524
SCREW
from £0.74
from £0.74
This part replaces part number 16287521
# 023
MPN: 181797
RH REAR SILENCER
- Valid till Ass. Nr.51796
from £624.99
from £624.99
# 023
MPN: 181798
LH REAR SILENCER
- Valid till Ass. Nr.51796
from £637.49
from £637.49
# 023
MPN: 200997
RH REAR SILENCER
- Valid from Ass. Nr.51797
from £3,595.57
from £3,595.57
# 023
MPN: 200998
LH REAR SILENCER
- Valid from Ass. Nr.51797
from £3,573.38
from £3,573.38
# 023
MPN: 212805
RH REAR SILENCER
- Versione HGTC
from £2,312.34
from £2,312.34
# 023
MPN: 212806
LH REAR SILENCER
- Versione HGTC
from £2,653.09
from £2,653.09
# 024
MPN: 114748
NUT
from £9.07
from £9.07
# 025
MPN: 170041
GASKET
from £30.53
from £30.53
# 026
MPN: 170028
COMPLETE RH BY
from £1,084.56
from £1,084.56
# 026
MPN: 170029
COMPLETE LH BY
- PASS VALVE - PASS VALVE
from £675.61
from £675.61
# 027
MPN: 174314
FRONT HEAT PROTECTION SHIELD
- Valid for AUS and J - Not for M.Y. 2004
from £26.12
from £26.12
# 028
MPN: 174316
CLAMP
- Valid for AUS and J - Not for M.Y. 2004
from £2.90
from £2.90
# 029
MPN: 188910
REAR HEAT PROTECTION SHIELD
- Valid for AUS and J - Not for M.Y. 2004
from £169.69
from £169.69
# 030
MPN: 12643724
WASHER
- Valid for AUS and J - Not for M.Y. 2004
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 031
MPN: 14048327
NUT
- Valid for AUS and J - Not for M.Y. 2004
from £0.50
from £0.50
# 032
MPN: 200995
RH EXHAUST EXTENSION
- Valid from Ass. Nr.51797
from £1,212.48
from £1,212.48
# 033
MPN: 200996
LH EXHAUST EXTENSION
- Valid from Ass. Nr.51797
from £1,212.48
from £1,212.48
# 034
MPN: 202393
FRONT HEAT PROTECTION SHIELD
- Valid for AUS M.Y. 2004 and J M.Y. 2004
from £215.88
from £215.88
# 035
MPN: 67972900
STUD
- Valid for AUS M.Y. 2004 and J M.Y. 2004
from £4.95
from £4.95
# 036
MPN: 14058419
NUT
- Valid for AUS M.Y. 2004 and J M.Y. 2004
from £0.47
from £0.47
