061 - air conditioning system

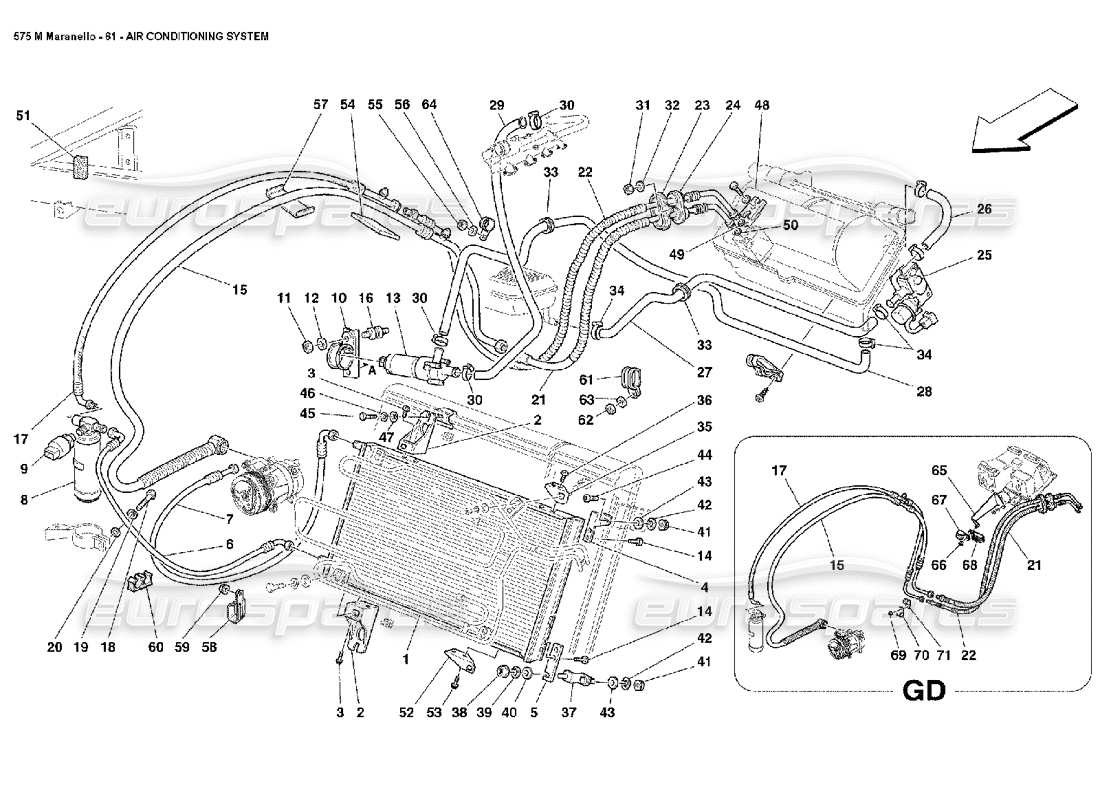

Ferrari 575M Maranello Air Conditioning System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165395
A.C. CONDENSER
from £209.64
from £209.64
# 002
MPN: 168481
RH BRACKET A.C. CONDENSER SUPPORT
from £42.83
from £42.83
# 003
MPN: 165136
SCREW
from £0.47
from £0.47
# 004
MPN: 165561
LH UPPER BRACKET
from £6.84
from £6.84
# 005
MPN: 168068
LH LOWER BRACKET
from £15.44
from £15.44
# 006
MPN: 66404300
PIPE FROM CONDENSER TO DEHYDRATOR FILTER
from £89.58
from £89.58
# 007
MPN: 66404200
PIPE FROM COMPRESSOR TO CONDENSER
from £109.48
from £109.48
# 008
MPN: 64894200
DEHYDRATOR FILTER
from £38.16
from £38.16
This part replaces part number 64799500 - and 2 more. Click to view details
# 009
MPN: 66374400
A.C. PRESSOSTAT
from £65.91
from £65.91
This part replaces part number 64799700 - and 1 more. Click to view details
# 010
MPN: 63994900
COMPLETE BRACKET
from £4.14
from £4.14
This part replaces part number 64246500
# 011
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 012
MPN: 10571570
WASHER
from £0.84
from £0.84
# 013
MPN: 65460300
WATER PUMP
from £130.15
from £130.15
This part replaces part number 70000900 - and 3 more. Click to view details
# 014
MPN: 165137
SCREW
from £1.30
from £1.30
# 015
MPN: 65190300
PIPE FROM HOSE TO COMPRESSOR
Not for GD
from £162.85
from £162.85
# 015
MPN: 67083700
PIPE FROM HOSE TO COMPRESSOR
Valid for GD
from £306.93
from £306.93
# 016
MPN: 142202
ANTI VIBRATION SUPPORT
from £14.37
from £14.37
# 017
MPN: 66926400
PIPE FROM DEHYDRATOR FILTER TO HOSE
Not for GD
from £135.27
from £135.27
# 017
MPN: 67083800
PIPE FROM DEHYDRATOR FILTER TO HOSE
Valid for GD
from £253.57
from £253.57
# 018
MPN: 10902424
SCREW
from £0.53
from £0.53
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 019
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 020
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 021
MPN: 64791200
HOSE FROM EVAPORATOR TO PIPE
Not for GD
from £84.73
from £84.73
# 021
MPN: 65237700
HOSE FROM EVAPORATOR TO PIPE
Valid for GD
from £203.03
from £203.03
# 022
MPN: 64791300
HOSE FROM PIPE TO EVAPORATOR
Not for GD
from £78.34
from £78.34
# 022
MPN: 65237800
HOSE FROM PIPE TO EVAPORATOR
Valid for GD
from £181.10
from £181.10
# 023
MPN: 63961900
PIPE HOLDER FRAME
from £5.64
from £5.64
# 024
MPN: 63961800
RUBBER PIPE HOLDER
from £16.09
from £16.09
# 025
MPN: 64999000
VALVE
from £82.32
from £82.32
# 026
MPN: 65201000
RETURN PIPE FROM EVAPORATOR TO VALVE
Valid for GD
from £14.04
from £14.04
# 026
MPN: 66288900
RETURN PIPE FROM EVAPORATOR TO VALVE
Not for GD
from £17.98
from £17.98
# 027
MPN: 65237600
RETURN PIPE FROM VALVE TO NOURICE
Valid for GD
from £53.54
from £53.54
This part replaces part number 67417000
# 027
MPN: 66397400
RETURN PIPE FROM VALVE TO NOURICE
Not for GD
from £51.74
from £51.74
# 028
MPN: 65237500
DELIVERY PIPE FROM PUMP TO EVAPORATOR
Valid for GD
from £46.60
from £46.60
This part replaces part number 67416900
# 028
MPN: 66288800
DELIVERY PIPE FROM PUMP TO EVAPORATOR
Not for GD
from £84.18
from £84.18
# 029
MPN: 65122300
DELIVERY PIPE FROM ENGINE TO PUMP
Not for GD
from £129.66
from £129.66
This part replaces part number 65122100 - and 1 more. Click to view details
# 029
MPN: 65238100
DELIVERY PIPE FROM ENGINE TO PUMP
Valid for GD
from £191.88
from £191.88
# 030
MPN: 190345
SCREW COLLAR
from £0.47
from £0.47
# 031
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 032
MPN: 12638124
WASHER
from £0.47
from £0.47
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 033
MPN: 10459087
CABLE GROMMET
from £0.47
from £0.47
This part replaces part number 10396980 which we have in stock
# 034
MPN: 13000490
SCREW COLLAR
from £0.52
from £0.52
This part replaces part number 10169090 - and 3 more. Click to view details
# 035
MPN: 169463
BRACKET
from £4.80
from £4.80
# 036
MPN: 165136
SCREW
from £0.47
from £0.47
# 037
MPN: 156989
SMALL PLATE
from £4.69
from £4.69
# 038
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 039
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 040
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 041
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 042
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 043
MPN: 12648224
WASHER
from £0.47
from £0.47
# 044
MPN: 14778814
SCREW
from £1.01
from £1.01
# 045
MPN: 14778814
SCREW
from £1.00
from £1.00
# 046
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 047
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 048
MPN: 175836
BRACKET
from £2.21
from £2.21
# 049
MPN: 175835
O.R. GASKET
from £0.67
from £0.67
# 050
MPN: 177655
O.R. GASKET
from £25.54
from £25.54
# 051
MPN: 65357600
ANTI VIBRATION GASKET
from £4.38
from £4.38
# 052
MPN: 177507
BRACKET
from £5.83
from £5.83
# 053
MPN: 165136
SCREW
from £0.47
from £0.47
# 054
MPN: 142798
RUBBER THICKNESS
from £0.73
from £0.73
# 055
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 056
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 057
MPN: 159147
RUBBER THICKNESS
from £0.47
from £0.47
# 058
MPN: 139512
BRACKET WITH SHEATH
from £1.20
from £1.20
# 059
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 060
MPN: 140728
FIXING CLIP
from £0.47
from £0.47
# 061
MPN: 61712500
BRACKET WITH SHEATH
from £0.88
from £0.88
# 062
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 063
MPN: 10519424
WASHER
from £0.47
from £0.47
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 064
MPN: 10442090
BRACKET WITH SHEATH
from £0.47
from £0.47
# 065
MPN: 67118000
A.C. PIPES FIXING BRACKET
- Valid for F1 - Valid for GD
# 066
MPN: 102948
NUT
- Valid for F1 - Valid for GD
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 067
MPN: 10441590
BRACKET WITH SHEATH
- Valid for F1 - Valid for GD
from £0.47
from £0.47
This part replaces part number 10113600
# 068
MPN: 61712500
BRACKET WITH SHEATH
- Valid for F1 - Valid for GD
from £0.88
from £0.88
# 069
MPN: 102741
NUT
- Valid for GD
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 070
MPN: 10441390
BRACKET WITH SHEATH
- Valid for GD
from £0.47
from £0.47
# 071
MPN: 10441590
BRACKET WITH SHEATH
- Valid for GD
from £0.47
from £0.47
This part replaces part number 10113600
