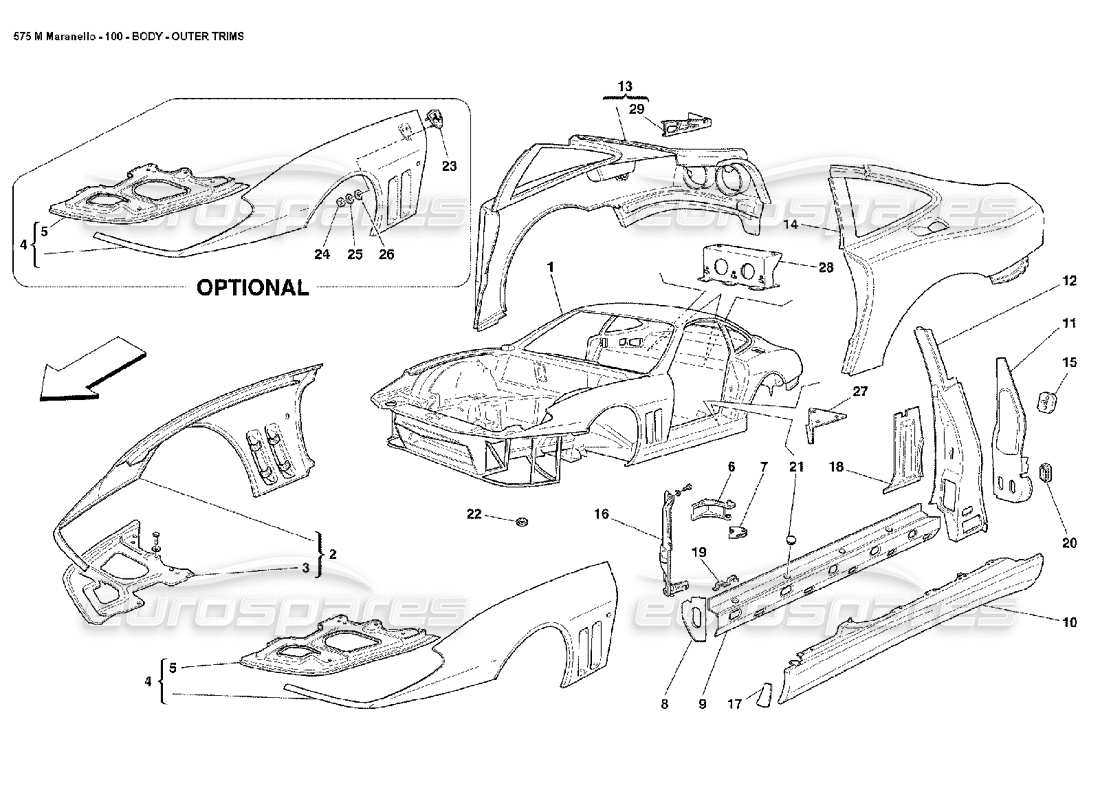

Ferrari 575M Maranello Body Outer Trims Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 002
MPN: 64716300
COMPLETE RH FRONT FENDER
- Not for USA and CDN - Not for version with ornament plate
from £1,469.18
from £1,469.18
COMPLETE RH FRONT FENDER Genuine Ferrari Part - Used In stock
RED - Not for version with ornament plate ( The badge on photo is a sticker)
RED - Not for version with ornament plate ( The badge on photo is a sticker)
# 002
MPN: 65218200
COMPLETE RH FRONT FENDER
- Valid for USA and CDN - Not for version with ornament plate
from £3,014.60
from £3,014.60
# 002
MPN: 65865611
COMPLETE RH FRONT FENDER
- Not for USA and CDN - Valid for version with ornament plate - Optional
from £2,671.24
from £2,671.24
This part replaces part number 65865600
# 002
MPN: 65866011
COMPLETE RH FRONT FENDER
- Valid for USA and CDN - Valid for version with ornament plate - Optional
from £3,055.97
from £3,055.97
This part replaces part number 65866000
# 003
MPN: 64559200
RH PLATE
from £105.61
from £105.61
# 004
MPN: 64716400
COMPLETE LH FRONT FENDER
- Not for USA and CDN - Not for version with ornament plate
from £2,671.24
from £2,671.24
# 004
MPN: 65218300
COMPLETE LH FRONT FENDER
- Valid for USA and CDN - Not for version with ornament plate
from £3,014.60
from £3,014.60
# 004
MPN: 65865711
COMPLETE LH FRONT FENDER
- Not for USA and CDN - Valid for version with ornament plate - Optional
from £2,671.24
from £2,671.24
This part replaces part number 65865700
# 004
MPN: 65866111
COMPLETE LH FRONT FENDER
- Valid for USA and CDN - Valid for version with ornament plate - Optional
from £4,320.24
from £4,320.24
This part replaces part number 65866100
# 005
MPN: 64559300
LH PLATE
from £105.61
from £105.61
# 006
MPN: 65184600
RH FIXED HINGE
from £331.46
from £331.46
# 006
MPN: 65184700
LH FIXED HINGE
from £470.21
from £470.21
# 007
MPN: 64567100
REINFORCEMENT RH BRACKET
from £36.20
from £36.20
# 007
MPN: 64567200
REINFORCEMENT LH BRACKET
from £36.20
from £36.20
# 008
MPN: 66616200
RH FRONT SEAL
from £16.20
from £16.20
# 008
MPN: 66616300
LH FRONT SEAL
from £16.20
from £16.20
# 009
MPN: 64551500
RH INSERT
from £390.65
from £390.65
# 009
MPN: 64551600
LH INSERT
from £260.43
from £260.43
# 010
MPN: 64716500
RH CROSSMEMBER COVER
from £628.97
from £628.97
# 010
MPN: 64716600
LH CROSSMEMBER COVER
from £628.97
from £628.97
# 011
MPN: 64557100
RH REAR CLOSING PANEL
from £165.72
from £165.72
# 011
MPN: 64557200
LH REAR CLOSING PANEL
from £235.11
from £235.11
# 012
MPN: 66405300
RH CENTRAL PILLAR
from £1,450.95
from £1,450.95
# 012
MPN: 66405400
LH CENTRAL PILLAR
from £1,969.77
from £1,969.77
# 013
MPN: 67250800

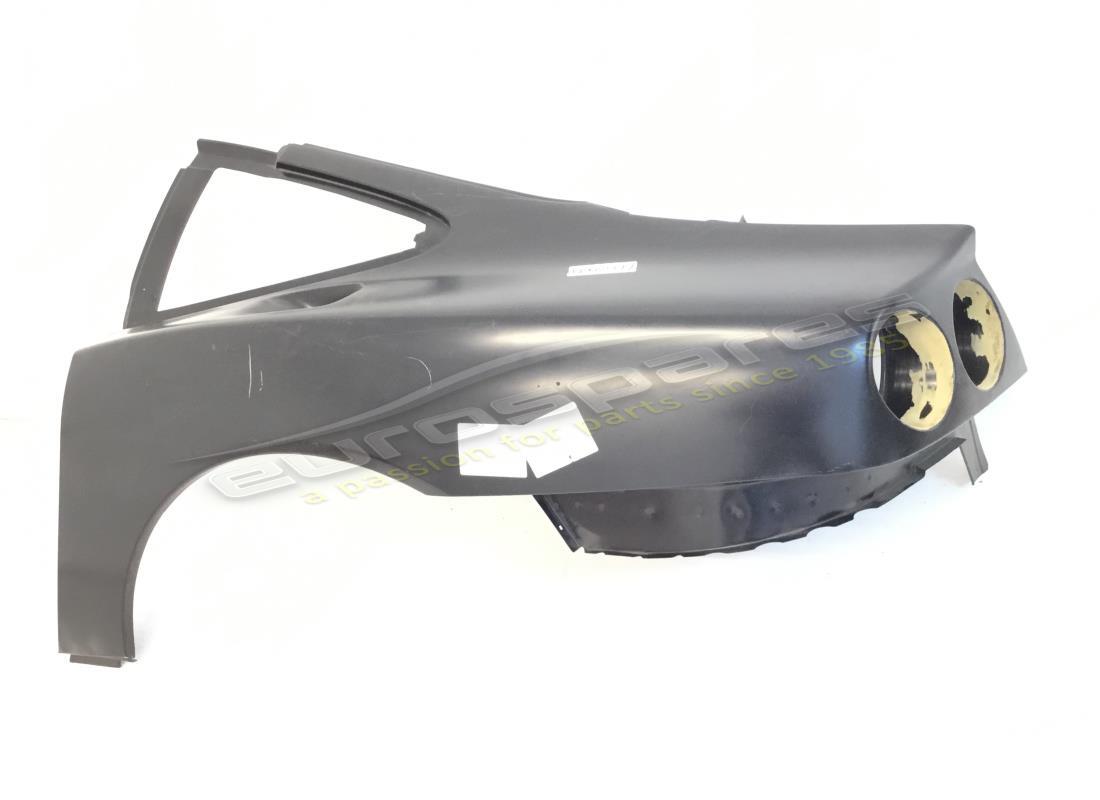

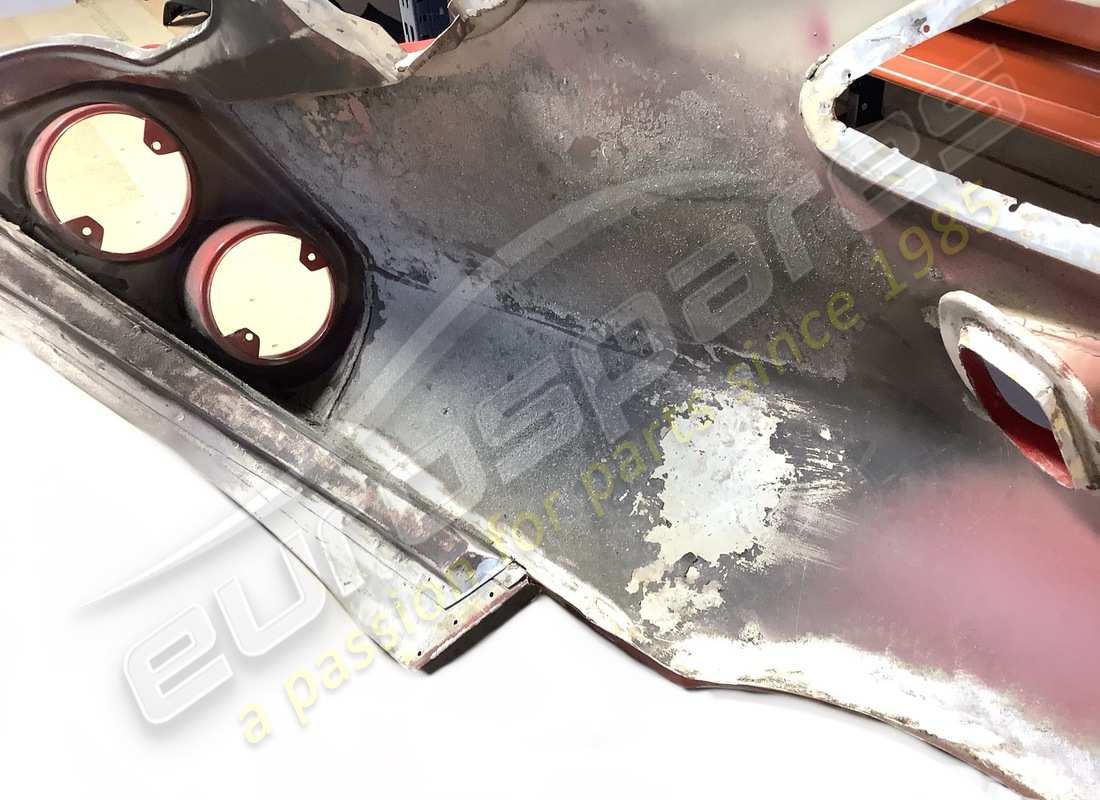

COMPLETE RH REAR FENDER
- Valid till stock exhaustion - Valid till car Ass. Nr. 49878
from £7,533.48
from £7,533.48
This part replaces part number 66830300
# 014
MPN: 66080600
COMPLETE LH REAR FENDER
- Not for USA and CDN
from £6,520.41
from £6,520.41
# 014
MPN: 66678900
COMPLETE LH REAR FENDER
- Valid for USA and CDN
from £1,643.47
from £1,643.47
# 015
MPN: 63128100
PLATE FOR STRIKER
from £10.54
from £10.54
# 016
MPN: 66221500
RH FRONT INSERT
from £132.59
from £132.59
# 016
MPN: 66221600
LH FRONT INSERT
from £132.59
from £132.59
# 017
MPN: 65513600
LH PROTECTION
from £11.20
from £11.20
This part replaces part number 65364000
# 017
MPN: 65513700
RH PROTECTION
from £18.03
from £18.03
This part replaces part number 65363900
# 018
MPN: 64556900
RH LOWERPILLAR FRAME
from £99.44
from £99.44
# 018
MPN: 64557000
LH LOWERPILLAR FRAME
from £99.44
from £99.44
# 019
MPN: 64658900
BRACKET
from £10.27
from £10.27
# 020
MPN: 62797700
PLUG
from £1.88
from £1.88
# 021
MPN: 14506987
PLUG
from £1.95
from £1.95
# 022
MPN: 14507787
PLUG
from £0.47
from £0.47
# 023
MPN: 66503800
FRONT FENDER ORNAMENT
- optional
from £389.16
from £389.16
# 024
MPN: 16101711
NUT
- optional
from £0.47
from £0.47
This part replaces part number 16101715
# 025
MPN: 12034470
WASHER
- optional
from £0.71
from £0.71
# 026
MPN: 12642878
WASHER
- optional
from £0.52
from £0.52
# 027
MPN: 175894
ROLL BAR RH LOWER CONNECTION
- Not for USA, CDN and AUS - Valid for roll bar version - Optional
from £103.58
from £103.58
# 027
MPN: 175895
ROLL BAR LH LOWER CONNECTION
- Not for USA, CDN and AUS - Valid for roll bar version - Optional
from £103.58
from £103.58
# 028
MPN: 65567200
FRAME CONNECTION BELTS
- Not for USA, CDN, AUS and J - Valid for 4 point belts version - Optional
from £413.43
from £413.43
# 029
MPN: 190244
BRACKET FOR CD CHARGER FIXING
- Optional - Valid till car Ass. Nr. 49878
from £134.57
from £134.57
# 029
MPN: 67506000
BRACKET FOR CD CHARGER FIXING
- Optional - Valid from car Ass. Nr. 49879
from £84.97
from £84.97
