102 - Front Structures and Components

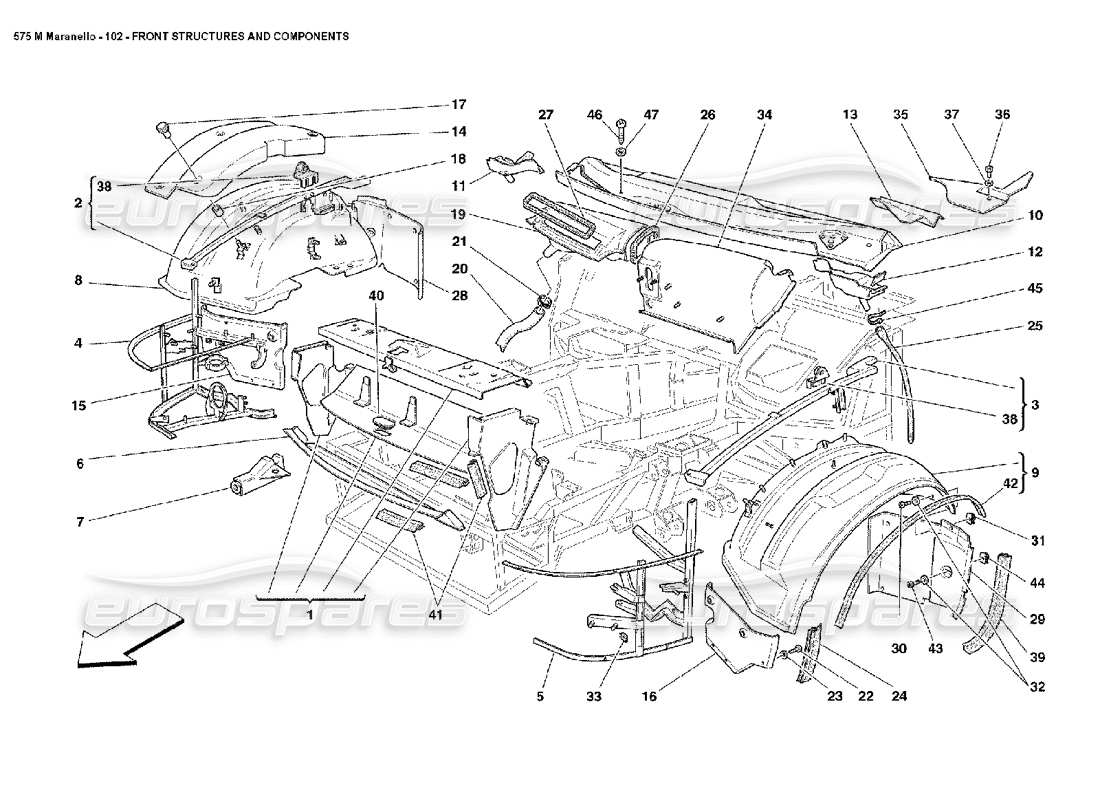

Ferrari 575M Maranello Front Structures and Components Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66173100
COMPLETE FRONT CROSS MEMBER
from £1,731.96
from £1,731.96
# 002
MPN: 66172800
RH SIDE FRAME
- Not for GD
from £865.50
from £865.50
# 002
MPN: 66634600
RH SIDE FRAME
- Valid for GD
from £592.04
from £592.04
# 003
MPN: 66172900
LH SIDE FRAME
- Not for GD
from £514.34
from £514.34
# 003
MPN: 66634700
LH SIDE FRAME
- Valid for GD
from £592.04
from £592.04
# 004
MPN: 66172600
RH FRONT FRAME
from £777.71
from £777.71
# 005
MPN: 66172700
LH FRONT FRAME
from £777.71
from £777.71
# 006
MPN: 66173600
LOWER CONVEYOR
from £899.63
from £899.63
# 007
MPN: 66170900
TOW HOOK BRACKET
from £218.44
from £218.44
# 008
MPN: 66286800
RH FRONT WHEELHOUSE
- Not for GD
from £394.98
from £394.98
# 008
MPN: 66634800
RH FRONT WHEELHOUSE
- Valid for GD
from £568.45
from £568.45
# 009
MPN: 66287400
LH FRONT WHEELHOUSE
- Not for GD
from £355.14
from £355.14
# 009
MPN: 66634900
LH FRONT WHEELHOUSE
- Valid for GD
from £568.45
from £568.45
# 010
MPN: 64787200
WINDSHIELD LOWER CROSS MEMBER
- Not for GD
from £197.46
from £197.46
This part replaces part number 64741300
# 010
MPN: 65210700
WINDSHIELD LOWER CROSS MEMBER
- Valid for GD
from £765.12
from £765.12
# 011
MPN: 64789400
RH COMPLETE FRONT INSERT
from £47.94
from £47.94
This part replaces part number 64561900
# 012
MPN: 64789500
LH COMPLETE FRONT INSERT
from £47.94
from £47.94
This part replaces part number 64562000
# 013
MPN: 64561700
RH LOWER SEAL
from £73.38
from £73.38
# 013
MPN: 64561800
LH LOWER SEAL
from £51.37
from £51.37
# 014
MPN: 66611200
RH WHEELHOUSE COVER
- Not for GD
from £28.89
from £28.89
# 014
MPN: 66611300
LH WHEELHOUSE COVER
from £28.89
from £28.89
# 014
MPN: 67083900
RH WHEELHOUSE COVER
- Valid for GD
from £59.77
from £59.77
# 015
MPN: 66085700
RH FRONT GRAVEL GUARD
from £107.27
from £107.27
# 016
MPN: 66085800
LH FRONT GRAVEL GUARD
from £123.09
from £123.09
# 017
MPN: 63198900
RING NUT
from £19.89
from £19.89
# 018
MPN: 13604115
SPACER
from £0.91
from £0.91
This part replaces part number 13604111
# 019
MPN: 67801400
AIR DUCTING
- Not for GD
from £62.01
from £62.01
This part replaces part number 63200700 - and 2 more. Click to view details
# 019
MPN: 67801500
AIR DUCTING
- Valid for GD
from £118.46
from £118.46
This part replaces part number 65500700
# 020
MPN: 63200800
WATER EXHAUST TUBE
- Not for GD - Not as spare part - Replaced by 64537300
from £21.88
from £21.88
# 020
MPN: 64537300
WATER EXHAUST TUBE
from £27.68
from £27.68
# 021
MPN: 13000690
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 12174090 - and 2 more. Click to view details
# 022
MPN: 14778418
SCREW
(minimum order quantity = 10)
from £0.53
from £0.53
# 023
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.49
from £0.49
This part replaces part number 12643777 - and 1 more. Click to view details
# 024
MPN: 65260100
GASKET
from £1.82
from £1.82
# 025
MPN: 65195300
WATER EXHAUST TUBE
from £4.50
from £4.50
# 026
MPN: 65192200
GASKET
from £2.90
from £2.90
# 027
MPN: 63201100
GASKET
from £6.11
from £6.11
# 028
MPN: 64560400
RH LOWER FRONT WHEELHOUSE
from £89.25
from £89.25
# 029
MPN: 64560500
LH LOWER FRONT WHEELHOUSE
from £84.00
from £84.00
# 030
MPN: 14778418
SCREW
(minimum order quantity = 10)
from £0.54
from £0.54
# 031
MPN: 62766300
CLIP
from £0.51
from £0.51
# 032
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.49
from £0.49
This part replaces part number 12643777 - and 1 more. Click to view details
# 033
MPN: 60659100
NUT WITH CAGE
from £0.58
from £0.58
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 034
MPN: 170688
PROTECTION FOR AIR CONDITIONING
- Valid for GD
from £286.34
from £286.34
# 034
MPN: 185924
PROTECTION FOR AIR CONDITIONING
- Not for GD
from £324.95
from £324.95
# 035
MPN: 65194100
RH LATERAL COVER
from £6.09
from £6.09
# 035
MPN: 65194200
LH LATERAL COVER
from £11.08
from £11.08
# 036
MPN: 64460500
SCREW
from £0.83
from £0.83
# 037
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 038
MPN: 65886700
HOOD GAS SHOCK ABSORBER BRACKET
from £16.07
from £16.07
# 039
MPN: 65747600
GASKET
from £3.70
from £3.70
# 040
MPN: 62797700
PLUG
from £2.12
from £2.12
# 041
MPN: 63403200
GASKET
from £9.14
from £9.14
# 042
MPN: 62926100
GASKET
from £86.48
from £86.48
# 043
MPN: 15688375
SCREW
(minimum order quantity = 30)
from £0.54
from £0.54
This part replaces part number 15688306 which we have in stock
# 044
MPN: 14202782
BLOCK
from £0.71
from £0.71
# 045
MPN: 145855
CLAMP
from £0.54
from £0.54
This part replaces part number 14560287 - and 1 more. Click to view details
# 046
MPN: 15915977
SCREW
from £0.71
from £0.71
This part replaces part number 64428200
# 047
MPN: 13338047
WASHER
from £0.71
from £0.71
This part replaces part number 62765300
