ferrari 575m maranello doors opening control and hinges parts diagram

119 - Doors Opening Control and Hinges

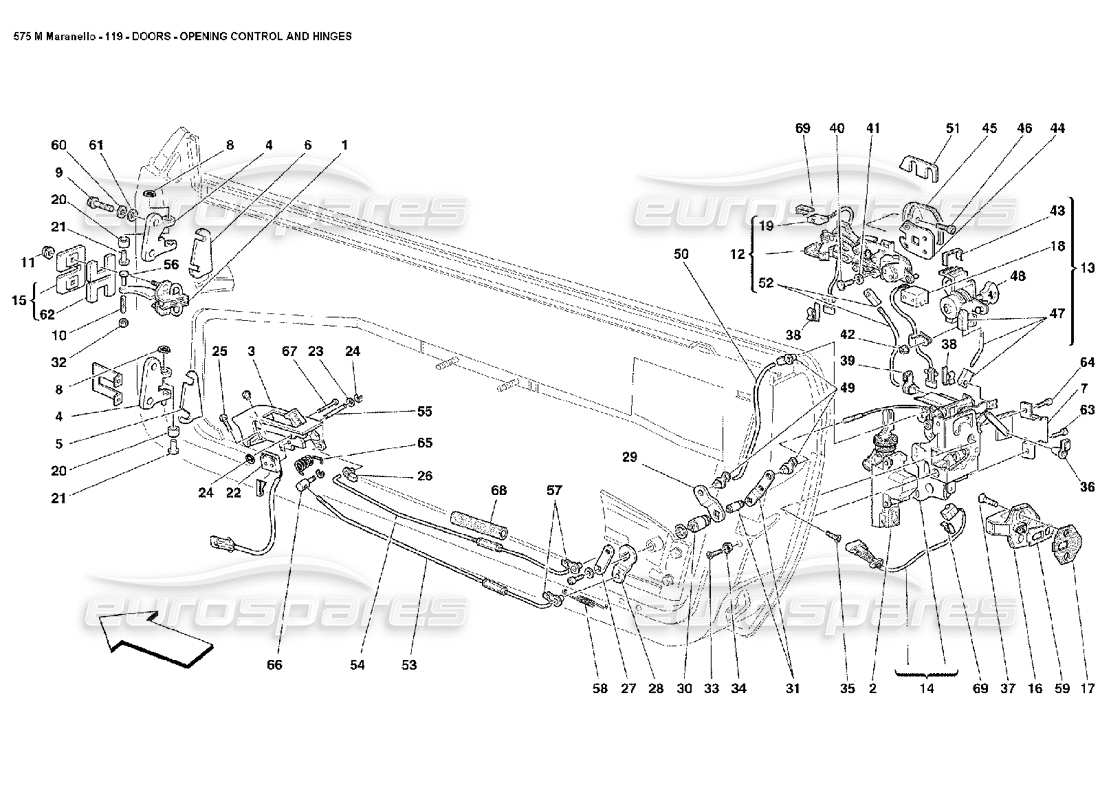

Ferrari 575M Maranello Doors Opening Control and Hinges Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                          #
                                                                                                                                          Part number
                                                                                                                                          Description
                                                                                                                                          Price
                                                                                                                                          # 001
                                                                                                                                          MPN: 65195200
                                                                                                                                          TIE ROD
                                                                                                                                          from £174.24
                                                                                                                                          from £174.24
                                                                                                                                          This part replaces part number 63896900 - and 1 more. Click to view details
                                                                                                                                          # 002
                                                                                                                                          MPN: 63487400

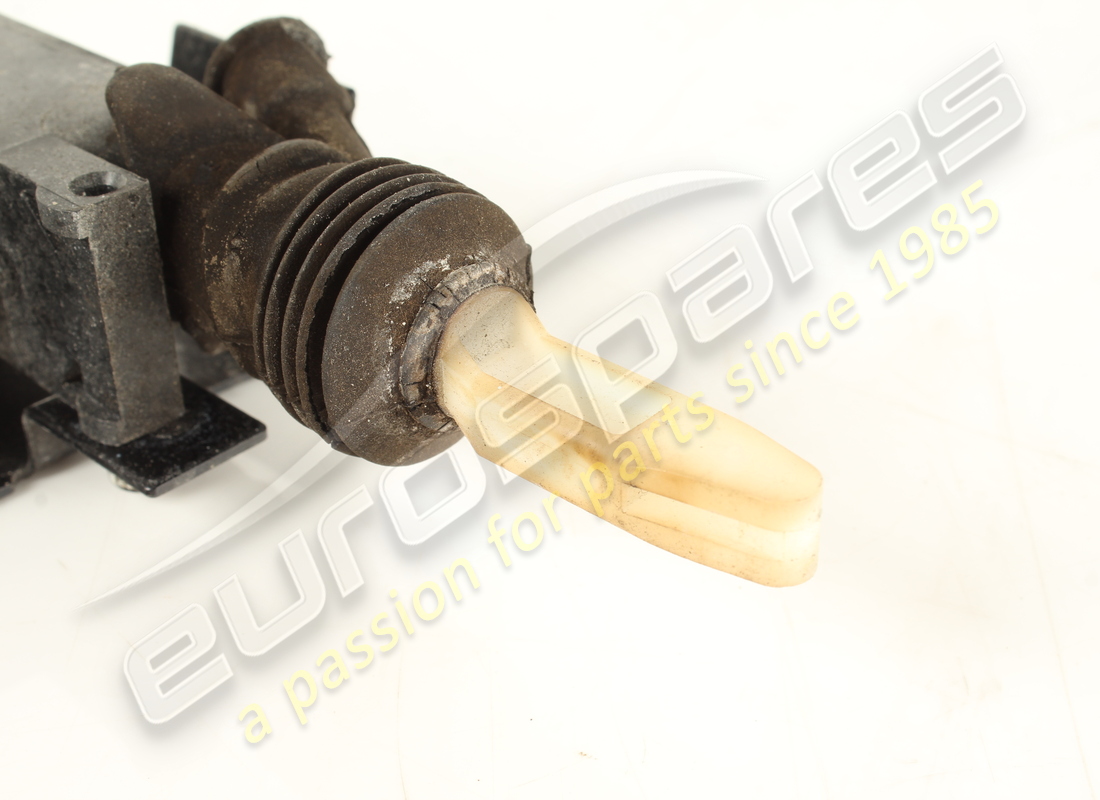

                                                                                                                                          CENTRALIZED LOCKING DEVICE
                                                                                                                                          from £330.57
                                                                                                                                          from £330.57
                                                                                                                                          # 003
                                                                                                                                          MPN: 66089200

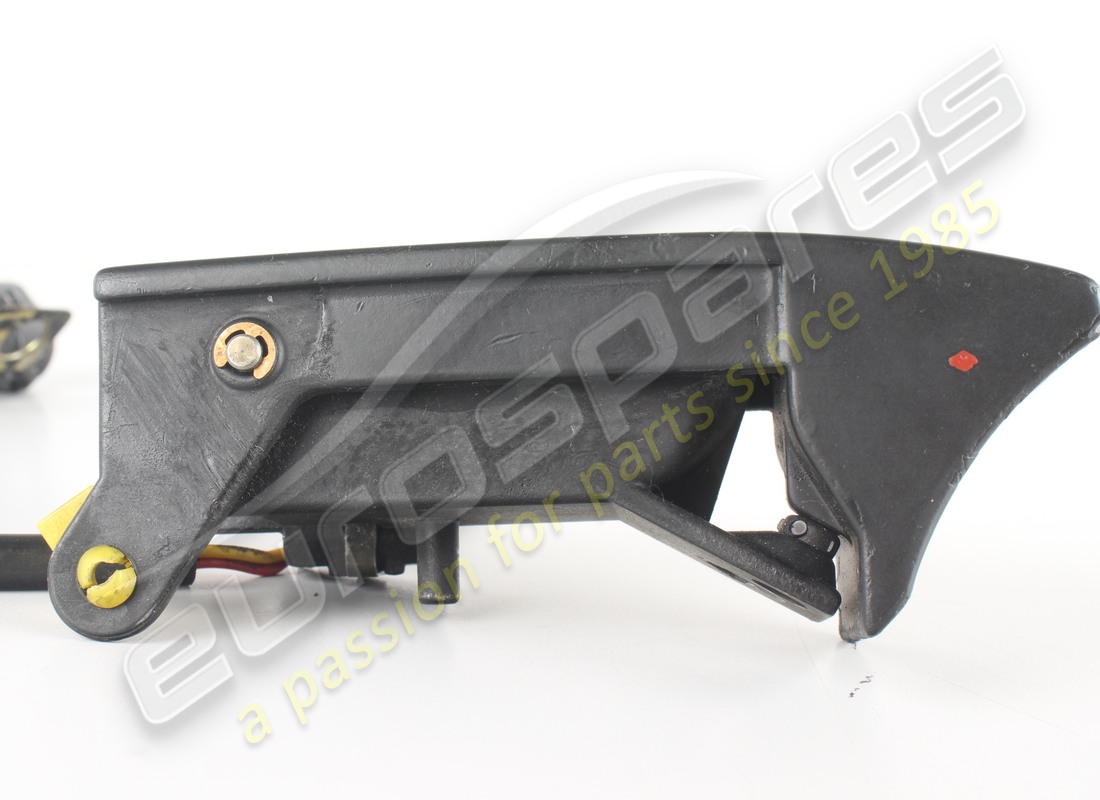

                                                                                                                                          RH INNER HANDLE FOR DOOR OPENING
                                                                                                                                          from £151.70
                                                                                                                                          from £151.70
                                                                                                                                          # 003
                                                                                                                                          MPN: 66089500
                                                                                                                                          LH INNER HANDLE FOR DOOR OPENING
                                                                                                                                          from £275.81
                                                                                                                                          from £275.81
                                                                                                                                          # 004
                                                                                                                                          MPN: 65184400

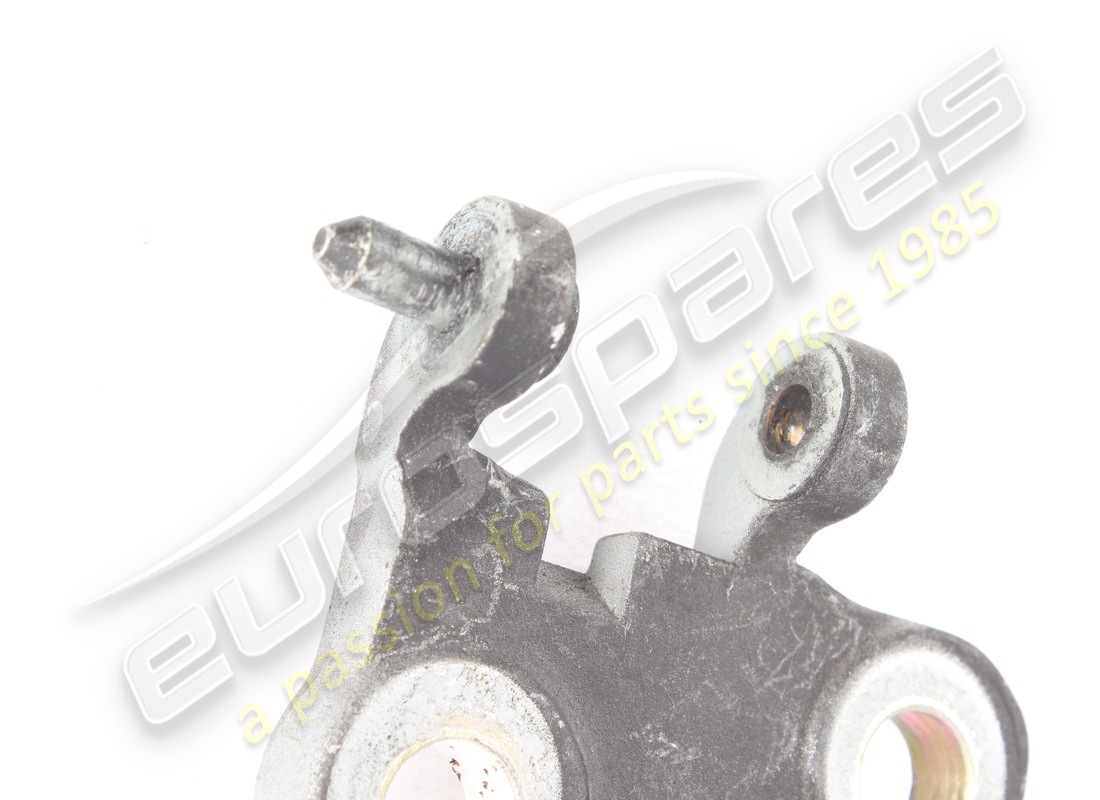

                                                                                                                                          RH DOOR MOBILE HINGE
                                                                                                                                          from £188.33
                                                                                                                                          from £188.33
                                                                                                                                          This part replaces part number 64579100 - and 1 more. Click to view details

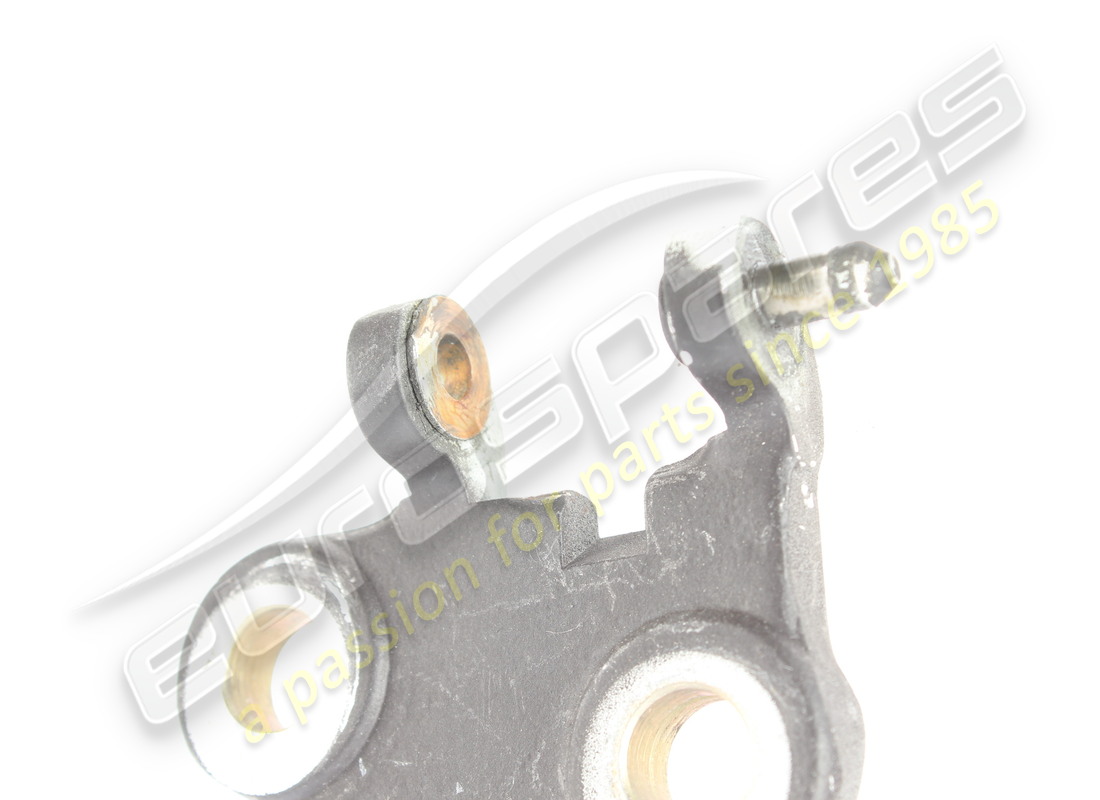

                                                                                                                                          # 004
                                                                                                                                          MPN: 65184500
                                                                                                                                          LH DOOR MOBILE HINGE
                                                                                                                                          from £188.33
                                                                                                                                          from £188.33
                                                                                                                                          This part replaces part number 64579200 - and 1 more. Click to view details
                                                                                                                                          # 005
                                                                                                                                          MPN: 65404200
                                                                                                                                          LOWER THICKNESS
                                                                                                                                          from £6.05
                                                                                                                                          from £6.05
                                                                                                                                          This part replaces part number 63747200
                                                                                                                                          # 006
                                                                                                                                          MPN: 63747100
                                                                                                                                          UPPER THICKNESS
                                                                                                                                          from £10.04
                                                                                                                                          from £10.04
                                                                                                                                          # 007
                                                                                                                                          MPN: 169958
                                                                                                                                          CONNECTOR FIXING BRACKET
                                                                                                                                          from £2.80
                                                                                                                                          from £2.80
                                                                                                                                          # 008
                                                                                                                                          MPN: 11087776
                                                                                                                                          SEEGER RING
                                                                                                                                          from £0.48
                                                                                                                                          from £0.48

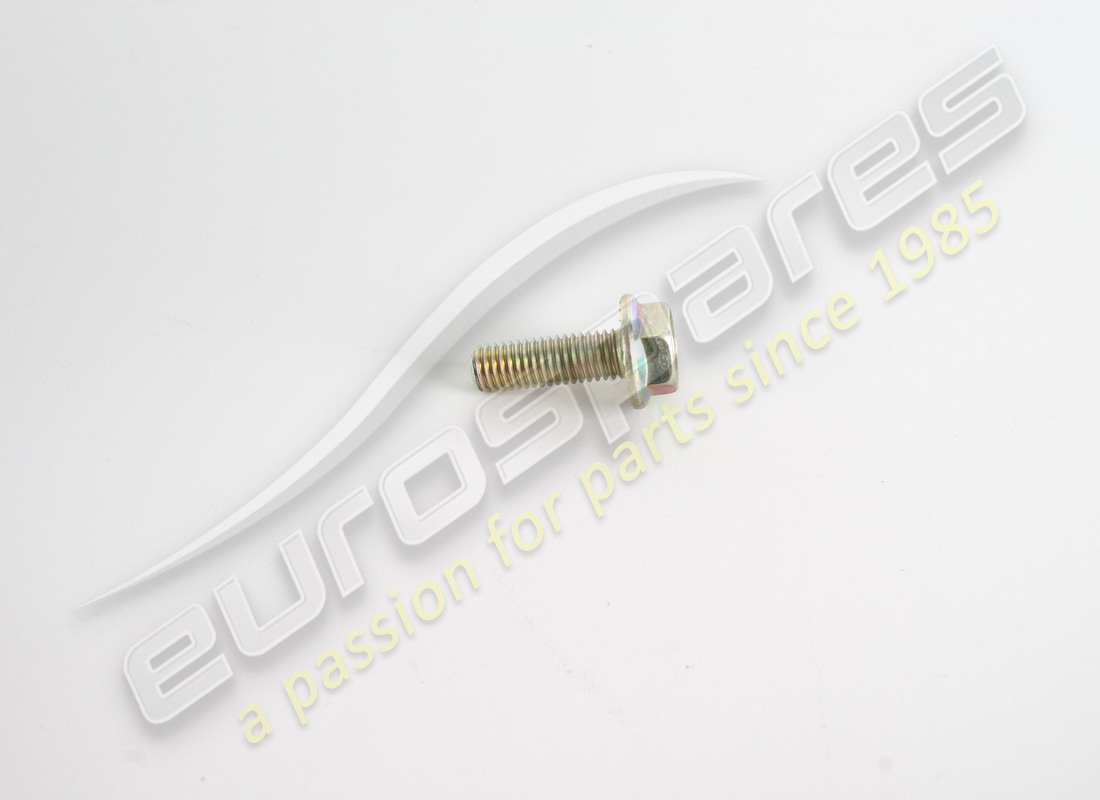

                                                                                                                                          # 009
                                                                                                                                          MPN: 13839221
                                                                                                                                          SCREW
                                                                                                                                          (minimum order quantity = 25)
                                                                                                                                          from £1.19
                                                                                                                                          from £1.19
                                                                                                                                          # 010
                                                                                                                                          MPN: 66842800
                                                                                                                                          PIN
                                                                                                                                          from £2.16
                                                                                                                                          from £2.16
                                                                                                                                          This part replaces part number 65274600
                                                                                                                                          # 011
                                                                                                                                          MPN: 14039614
                                                                                                                                          NUT
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 012
                                                                                                                                          MPN: 64715600
                                                                                                                                          RH OUTER HANDLE
                                                                                                                                          from £204.18
                                                                                                                                          from £204.18
                                                                                                                                          # 012
                                                                                                                                          MPN: 64715700
                                                                                                                                          LH OUTER HANDLE
                                                                                                                                          from £204.18
                                                                                                                                          from £204.18
                                                                                                                                          # 013
                                                                                                                                          MPN: 64658000
                                                                                                                                          RH COMPLETE LOCK CONTROL BLOCK
                                                                                                                                          from £262.50
                                                                                                                                          from £262.50
                                                                                                                                          # 013
                                                                                                                                          MPN: 64658100
                                                                                                                                          LH COMPLETE LOCK CONTROL BLOCK
                                                                                                                                          from £221.03
                                                                                                                                          from £221.03
                                                                                                                                          # 014
                                                                                                                                          MPN: 64657600

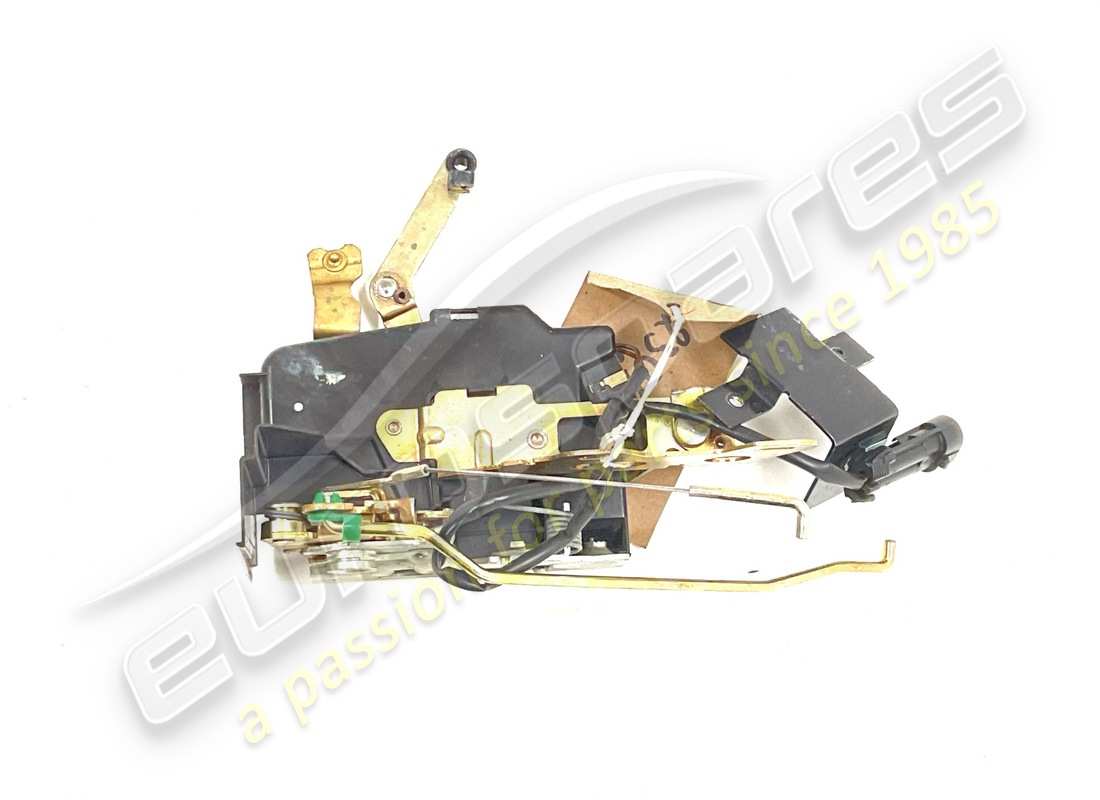

                                                                                                                                          RH COMPLETE DOOR LOCK
                                                                                                                                          from £681.36
                                                                                                                                          from £681.36
                                                                                                                                          # 014
                                                                                                                                          MPN: 64657700
                                                                                                                                          LH COMPLETE DOOR LOCK
                                                                                                                                          from £953.21
                                                                                                                                          from £953.21
                                                                                                                                          # 015
                                                                                                                                          MPN: 63895400
                                                                                                                                          RH SMALL PLATE
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 015
                                                                                                                                          MPN: 63895500
                                                                                                                                          LH SMALL PLATE
                                                                                                                                          Supersession
                                                                                                                                          Supersession
                                                                                                                                          # 016
                                                                                                                                          MPN: 63157000
                                                                                                                                          DOOR CLOSING STRIKER
                                                                                                                                          from £110.48
                                                                                                                                          from £110.48
                                                                                                                                          # 017
                                                                                                                                          MPN: 63877300
                                                                                                                                          PLATE
                                                                                                                                          from £2.06
                                                                                                                                          from £2.06
                                                                                                                                          # 018
                                                                                                                                          MPN: 63859200
                                                                                                                                          DOORS LOCKING MICRO SWITCH
                                                                                                                                          from £158.50
                                                                                                                                          from £158.50
                                                                                                                                          This part replaces part number 63859300
                                                                                                                                          # 019
                                                                                                                                          MPN: 63859800
                                                                                                                                          OUTER DOOR HANDLE MICRO SWITCH
                                                                                                                                          from £224.18
                                                                                                                                          from £224.18
                                                                                                                                          # 020
                                                                                                                                          MPN: 63189600
                                                                                                                                          BUSHING
                                                                                                                                          from £10.42
                                                                                                                                          from £10.42
                                                                                                                                          # 021
                                                                                                                                          MPN: 63189800
                                                                                                                                          PIN
                                                                                                                                          from £6.38
                                                                                                                                          from £6.38
                                                                                                                                          # 022

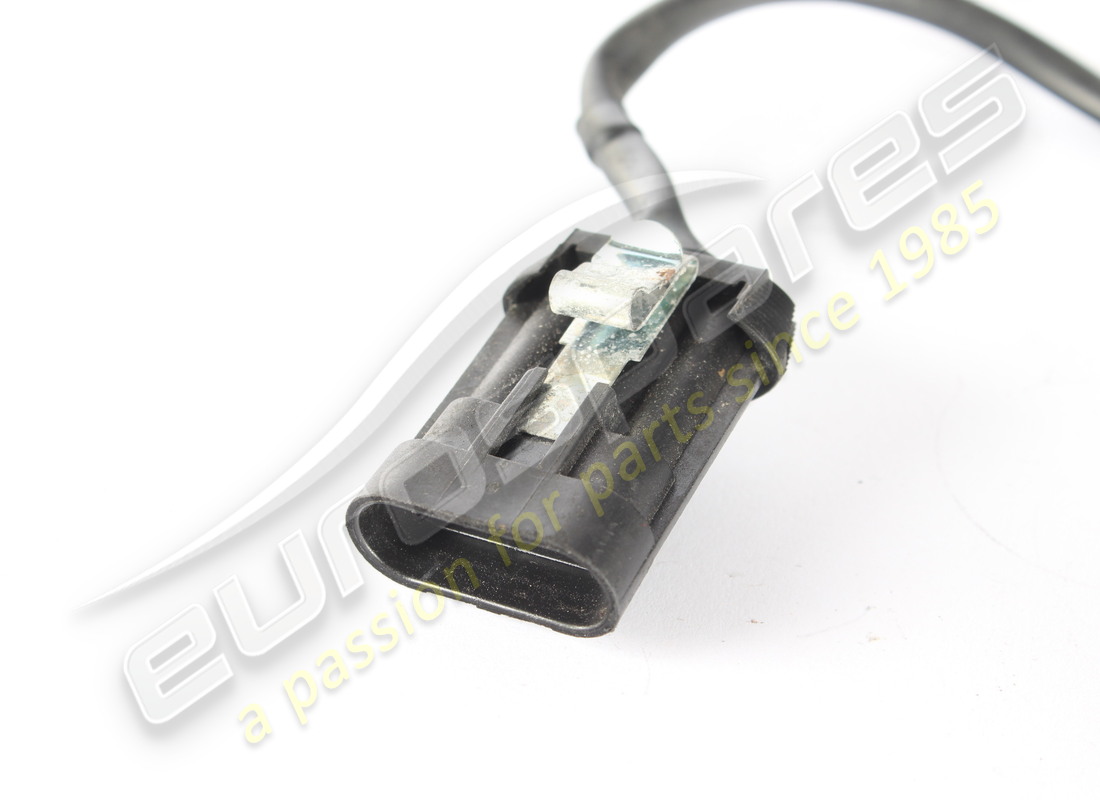

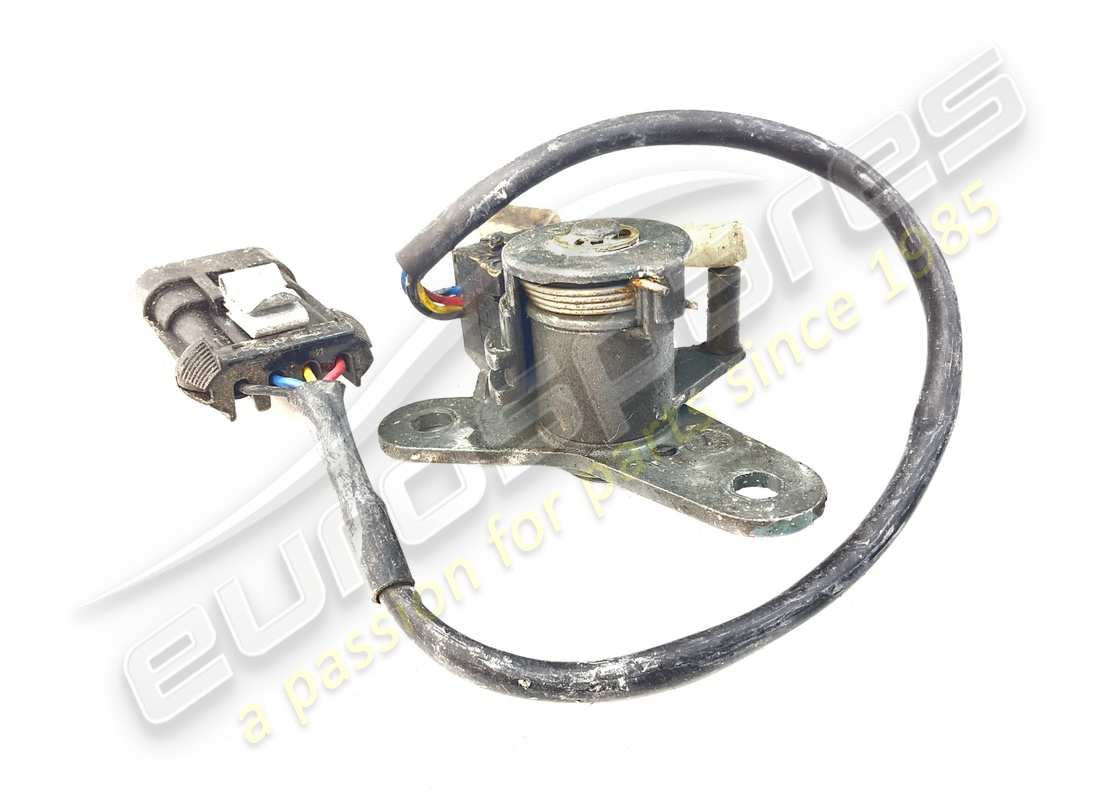

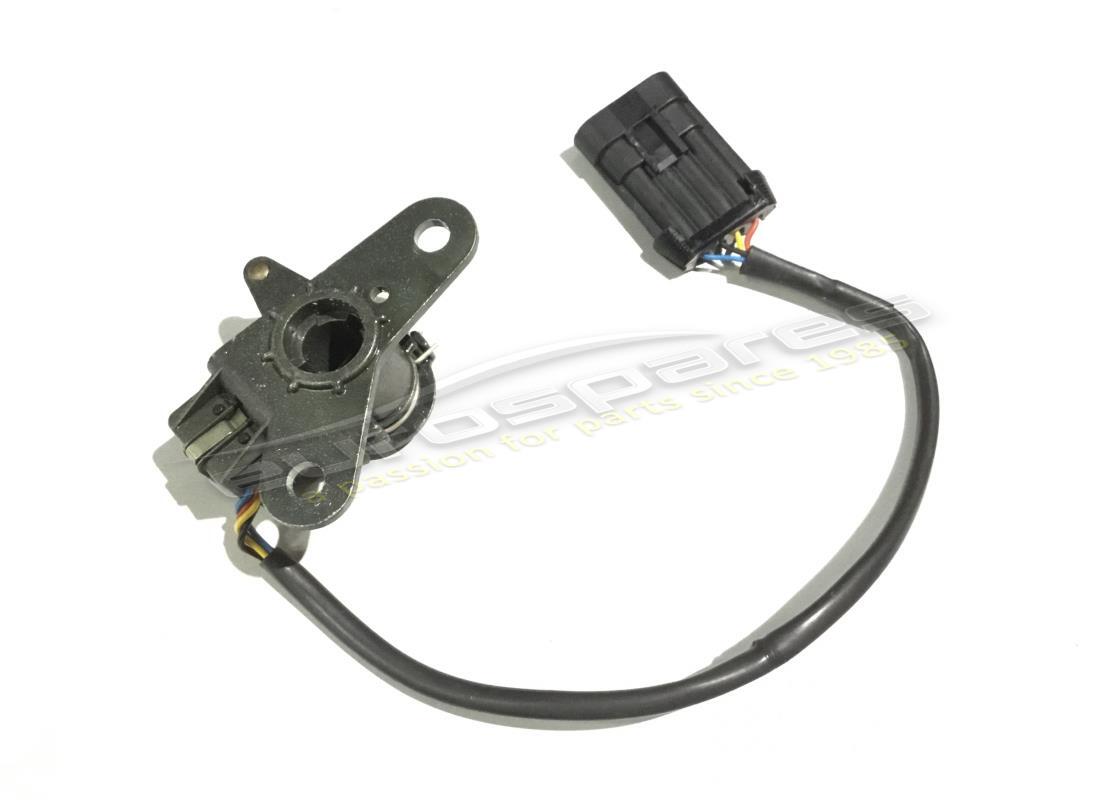

                                                                                                                                          MPN: 171120
                                                                                                                                          INNER DOOR HANDLE MICRO SWITCH
                                                                                                                                          from £83.37
                                                                                                                                          from £83.37
                                                                                                                                          # 023
                                                                                                                                          MPN: 64203800
                                                                                                                                          WASHER
                                                                                                                                          from £0.51
                                                                                                                                          from £0.51
                                                                                                                                          # 024
                                                                                                                                          MPN: 11087476
                                                                                                                                          FLEXIBLE RING
                                                                                                                                          from £3.76
                                                                                                                                          from £3.76
                                                                                                                                          # 025
                                                                                                                                          MPN: 13309277
                                                                                                                                          SCREW
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          This part replaces part number 13309211
                                                                                                                                          # 026
                                                                                                                                          MPN: 65700900
                                                                                                                                          TIE ROD RETAINING CLIP
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 027
                                                                                                                                          MPN: 65100500
                                                                                                                                          HANDLE PRIMARY LEVER
                                                                                                                                          from £5.26
                                                                                                                                          from £5.26
                                                                                                                                          # 028
                                                                                                                                          MPN: 65046000
                                                                                                                                          RH SAFETY DEVICE PRIMARY LEVER
                                                                                                                                          from £10.61
                                                                                                                                          from £10.61
                                                                                                                                          # 028
                                                                                                                                          MPN: 65046100
                                                                                                                                          LH SAFETY DEVICE PRIMARY LEVER
                                                                                                                                          from £42.93
                                                                                                                                          from £42.93
                                                                                                                                          # 029
                                                                                                                                          MPN: 63167900
                                                                                                                                          SAFETY DEVICE SECONDARY LEVER
                                                                                                                                          from £60.12
                                                                                                                                          from £60.12
                                                                                                                                          # 030
                                                                                                                                          MPN: 63168600
                                                                                                                                          SAFETY DEVICE TRANSMISSION PIN
                                                                                                                                          from £10.88
                                                                                                                                          from £10.88
                                                                                                                                          # 031
                                                                                                                                          MPN: 65424400
                                                                                                                                          COMPLETE HANDLE SECONDARY LEVER
                                                                                                                                          from £28.78
                                                                                                                                          from £28.78
                                                                                                                                          This part replaces part number 65100600 - and 1 more. Click to view details
                                                                                                                                          # 032
                                                                                                                                          MPN: 102741
                                                                                                                                          NUT
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                          # 033
                                                                                                                                          MPN: 62797600
                                                                                                                                          SCREW
                                                                                                                                          from £0.60
                                                                                                                                          from £0.60
                                                                                                                                          This part replaces part number 68989900
                                                                                                                                          # 034
                                                                                                                                          MPN: 62794700
                                                                                                                                          WASHER
                                                                                                                                          from £0.69
                                                                                                                                          from £0.69
                                                                                                                                          # 035
                                                                                                                                          MPN: 62940900
                                                                                                                                          SCREW
                                                                                                                                          from £0.85
                                                                                                                                          from £0.85
                                                                                                                                          This part replaces part number 67352400
                                                                                                                                          # 036
                                                                                                                                          MPN: 64215300
                                                                                                                                          CLIP
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 037
                                                                                                                                          MPN: 14442434
                                                                                                                                          SCREW
                                                                                                                                          from £0.51
                                                                                                                                          from £0.51
                                                                                                                                          # 038
                                                                                                                                          MPN: 155978
                                                                                                                                          CLIP
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 039
                                                                                                                                          MPN: 14578180
                                                                                                                                          TIE ROD RETAINING CLIP
                                                                                                                                          from £9.56
                                                                                                                                          from £9.56
                                                                                                                                          This part replaces part number 14578283 - and 1 more. Click to view details
                                                                                                                                          # 040
                                                                                                                                          MPN: 10445224
                                                                                                                                          SCREW
                                                                                                                                          from £0.51
                                                                                                                                          from £0.51
                                                                                                                                          # 041
                                                                                                                                          MPN: 64222800
                                                                                                                                          WASHER
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 042
                                                                                                                                          MPN: 14084011
                                                                                                                                          NUT
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 043
                                                                                                                                          MPN: 63179700
                                                                                                                                          CLIP
                                                                                                                                          from £7.16
                                                                                                                                          from £7.16
                                                                                                                                          # 044
                                                                                                                                          MPN: 64659500
                                                                                                                                          PLATE
                                                                                                                                          from £19.41
                                                                                                                                          from £19.41
                                                                                                                                          # 045
                                                                                                                                          MPN: 64657410
                                                                                                                                          RH OUTER DOOR HANDLE
                                                                                                                                          from £10.70
                                                                                                                                          from £10.70
                                                                                                                                          # 045
                                                                                                                                          MPN: 64657510
                                                                                                                                          LH OUTER DOOR HANDLE
                                                                                                                                          from £7.79
                                                                                                                                          from £7.79
                                                                                                                                          # 046
                                                                                                                                          MPN: 64214600
                                                                                                                                          SCREW
                                                                                                                                          from £1.30
                                                                                                                                          from £1.30
                                                                                                                                          # 047
                                                                                                                                          MPN: 64658500
                                                                                                                                          RH TIE ROD
                                                                                                                                          from £8.77
                                                                                                                                          from £8.77
                                                                                                                                          This part replaces part number 64658700
                                                                                                                                          # 047
                                                                                                                                          MPN: 64658600
                                                                                                                                          LH TIE ROD
                                                                                                                                          from £13.16
                                                                                                                                          from £13.16
                                                                                                                                          This part replaces part number 64658800
                                                                                                                                          # 048
                                                                                                                                          MPN: 170010
                                                                                                                                          BLANK KEY
                                                                                                                                          from £669.90
                                                                                                                                          from £669.90
                                                                                                                                          This part replaces part number 170010 ASM - and 1 more. Click to view details
                                                                                                                                          # 049
                                                                                                                                          MPN: 64215300
                                                                                                                                          CLIP
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 050
                                                                                                                                          MPN: 64657800
                                                                                                                                          RH TIE ROD
                                                                                                                                          from £3.91
                                                                                                                                          from £3.91
                                                                                                                                          # 050
                                                                                                                                          MPN: 64657900
                                                                                                                                          LH TIE ROD
                                                                                                                                          from £3.91
                                                                                                                                          from £3.91
                                                                                                                                          # 051
                                                                                                                                          MPN: 65249000
                                                                                                                                          THICKNESS
                                                                                                                                          from £1.53
                                                                                                                                          from £1.53
                                                                                                                                          # 052
                                                                                                                                          MPN: 64658200
                                                                                                                                          RH TIE ROD
                                                                                                                                          from £7.08
                                                                                                                                          from £7.08
                                                                                                                                          This part replaces part number 64658400
                                                                                                                                          # 052
                                                                                                                                          MPN: 64658300
                                                                                                                                          LH TIE ROD
                                                                                                                                          from £7.08
                                                                                                                                          from £7.08
                                                                                                                                          # 053
                                                                                                                                          MPN: 66089300
                                                                                                                                          TIE ROD
                                                                                                                                          from £120.38
                                                                                                                                          from £120.38
                                                                                                                                          # 054
                                                                                                                                          MPN: 66089400
                                                                                                                                          TIE ROD
                                                                                                                                          from £240.75
                                                                                                                                          from £240.75
                                                                                                                                          # 055
                                                                                                                                          MPN: 65582700
                                                                                                                                          PIN
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 64203900
                                                                                                                                          # 056
                                                                                                                                          MPN: 10903280
                                                                                                                                          SCREW
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 057
                                                                                                                                          MPN: 64215300
                                                                                                                                          CLIP
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          # 058
                                                                                                                                          MPN: 64074200
                                                                                                                                          SPRING
                                                                                                                                          from £17.64
                                                                                                                                          from £17.64
                                                                                                                                          # 059
                                                                                                                                          MPN: 64058500
                                                                                                                                          PLATE
                                                                                                                                          from £5.13
                                                                                                                                          from £5.13
                                                                                                                                          # 060
                                                                                                                                          MPN: 127496
                                                                                                                                          WASHER
                                                                                                                                          from £0.53
                                                                                                                                          from £0.53
                                                                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                          # 061
                                                                                                                                          MPN: 12646724
                                                                                                                                          WASHER
                                                                                                                                          from £0.52
                                                                                                                                          from £0.52
                                                                                                                                          This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                                                                                                          # 062
                                                                                                                                          MPN: 63892300
                                                                                                                                          GASKET
                                                                                                                                          from £2.66
                                                                                                                                          from £2.66
                                                                                                                                          # 063
                                                                                                                                          MPN: 15688175
                                                                                                                                          SCREW
                                                                                                                                          from £0.54
                                                                                                                                          from £0.54
                                                                                                                                          This part replaces part number 15688108
                                                                                                                                          # 064
                                                                                                                                          MPN: 15688075
                                                                                                                                          SCREW
                                                                                                                                          from £0.54
                                                                                                                                          from £0.54
                                                                                                                                          This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                                                                                                          # 065
                                                                                                                                          MPN: 63724600
                                                                                                                                          RH SPRING
                                                                                                                                          from £3.01
                                                                                                                                          from £3.01
                                                                                                                                          # 065
                                                                                                                                          MPN: 63724700
                                                                                                                                          LH SPRING
                                                                                                                                          from £3.01
                                                                                                                                          from £3.01
                                                                                                                                          # 066
                                                                                                                                          MPN: 63722800
                                                                                                                                          COUPLING
                                                                                                                                          from £6.78
                                                                                                                                          from £6.78
                                                                                                                                          # 067
                                                                                                                                          MPN: 65582700
                                                                                                                                          FLEXIBLE PIN
                                                                                                                                          from £0.47
                                                                                                                                          from £0.47
                                                                                                                                          This part replaces part number 64203900
                                                                                                                                          # 068
                                                                                                                                          MPN: 65498900
                                                                                                                                          TIE ROD PIPE
                                                                                                                                          from £0.99
                                                                                                                                          from £0.99
                                                                                                                                          # 069
                                                                                                                                          MPN: 63179900
                                                                                                                                          CLIP
                                                                                                                                          from £1.26
                                                                                                                                          from £1.26
                                                                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
