Eurospares
132 - Outside Finishings

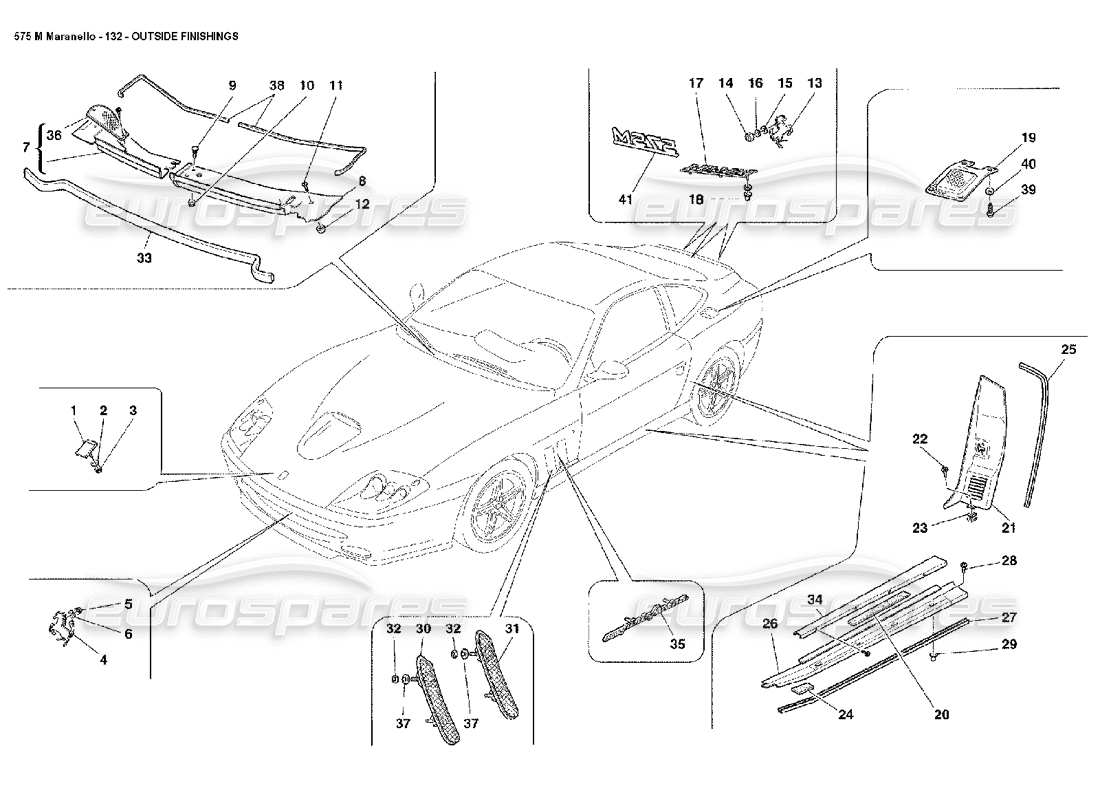

Ferrari 575M Maranello Outside Finishings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62673100
FRONT ORNAMENT
from £125.00
from £125.00
# 002
MPN: 12638124
WASHER
from £0.47
from £0.47
This part replaces part number 12638101 - and 1 more. Click to view details
# 003
MPN: 113647
NUT
from £0.47
from £0.47
# 003
MPN: 64449900
NUT
- Not as spare part - Replaced by 113647
from £3.99
from £3.99
# 004
MPN: 66406800
CAVALLINO RAMPANTE
- Not for cars with opt. front - bumper grill 250 GT2 type
from £41.45
from £41.45
# 004
MPN: 67904300
CAVALLINO RAMPANTE
- Valid for cars with opt. front - bumper grill 250 GT2 type
from £36.13
from £36.13
# 005
MPN: 16101715
NUT
(minimum order quantity = 20)
Supersession
Supersession
# 006
MPN: 12600474
WASHER
from £0.54
from £0.54
This part replaces part number 12600479

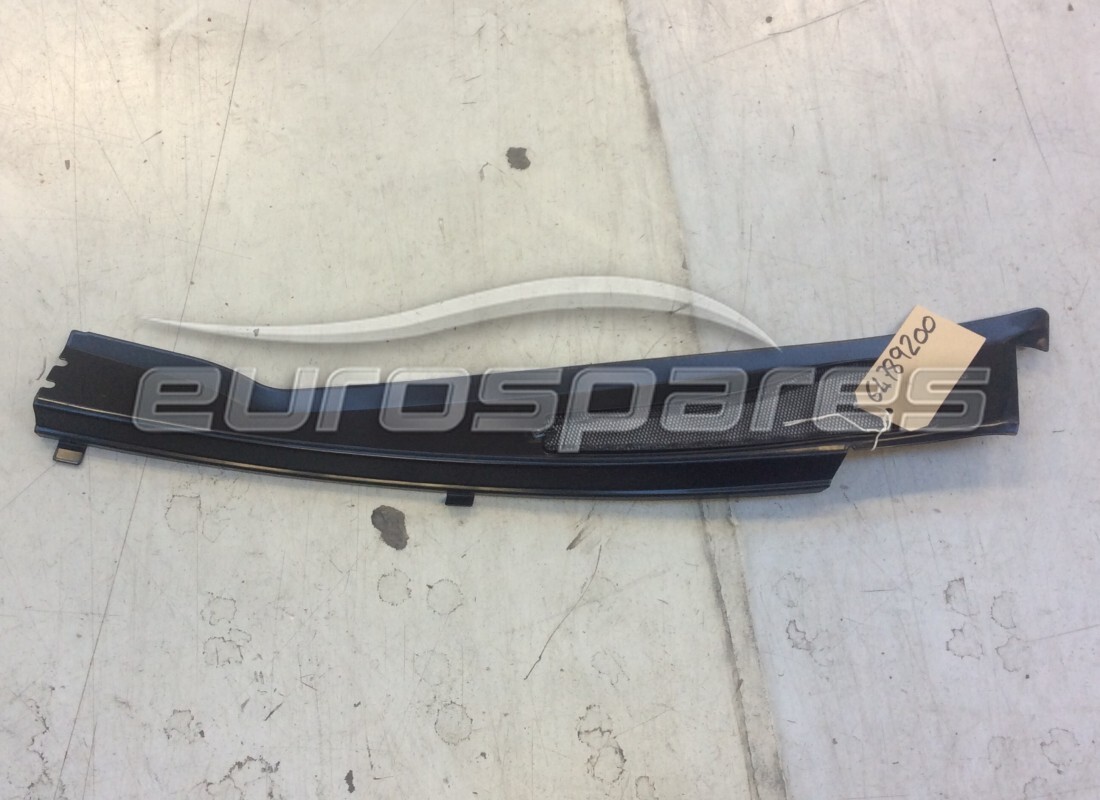

# 007
MPN: 64789200
RH OUTER MOLDING
- Not for GD
from £141.08
from £141.08
# 007
MPN: 65241700
RH OUTER MOLDING
- Valid for GD
from £194.49
from £194.49
# 008
MPN: 64948500
LH OUTER MOLDING
- Not for GD
from £210.00
from £210.00
# 008
MPN: 65241900
LH OUTER MOLDING
- Valid for GD
from £194.49
from £194.49
# 009
MPN: 15965814
SCREW
from £1.58
from £1.58
# 010
MPN: 159601
NUT
from £0.47
from £0.47
This part replaces part number 12578121
# 011
MPN: 62771900
SCREW
from £0.47
from £0.47
This part replaces part number 68391900
# 012
MPN: 62765000
NUT SCREW
from £1.19
from £1.19
# 013
MPN: 63233900
CHROME HORSE
(113mm x 76mm)
from £32.88
from £32.88
This part replaces part number 50097202 - and 5 more. Click to view details
# 014
MPN: 62790300
NUT
from £0.47
from £0.47
This part replaces part number 12574011 - and 1 more. Click to view details
# 015
MPN: 60995100
RUBBER RING
from £1.39
from £1.39
# 016
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201
# 017
MPN: 63482200
Ferrari SCRIPT
Light Alloy type - 3 Pin
from £26.77
from £26.77
# 018
MPN: 60324506
CLIP
from £1.60
from £1.60
This part replaces part number 62773000
# 019
MPN: 66081400
COMPLETE AIR INTAKE GRILLE
from £23.47
from £23.47
# 020
MPN: 65357500
ANTI VIBRATION GASKET
- Not for carbon version
from £1.63
from £1.63
# 021
MPN: 64557500
COVER FOR RH DOOR STRIP
from £39.76
from £39.76
# 021
MPN: 64557600
COVER FOR LH DOOR STRIP
from £39.76
from £39.76
# 022
MPN: 16083501
SCREW
from £0.47
from £0.47
# 023
MPN: 14211580
NUT SCREW
Supersession
Supersession
# 024
MPN: 65357600
ANTI VIBRATION GASKET
from £4.13
from £4.13
# 025
MPN: 65182400
RH GASKET
from £48.24
from £48.24
# 025
MPN: 65182500
LH GASKET
from £48.24
from £48.24
# 026
MPN: 64552200
RH KICK PLATE
from £56.60
from £56.60
# 026
MPN: 64552300
LH KICK PLATE
from £643.95
from £643.95

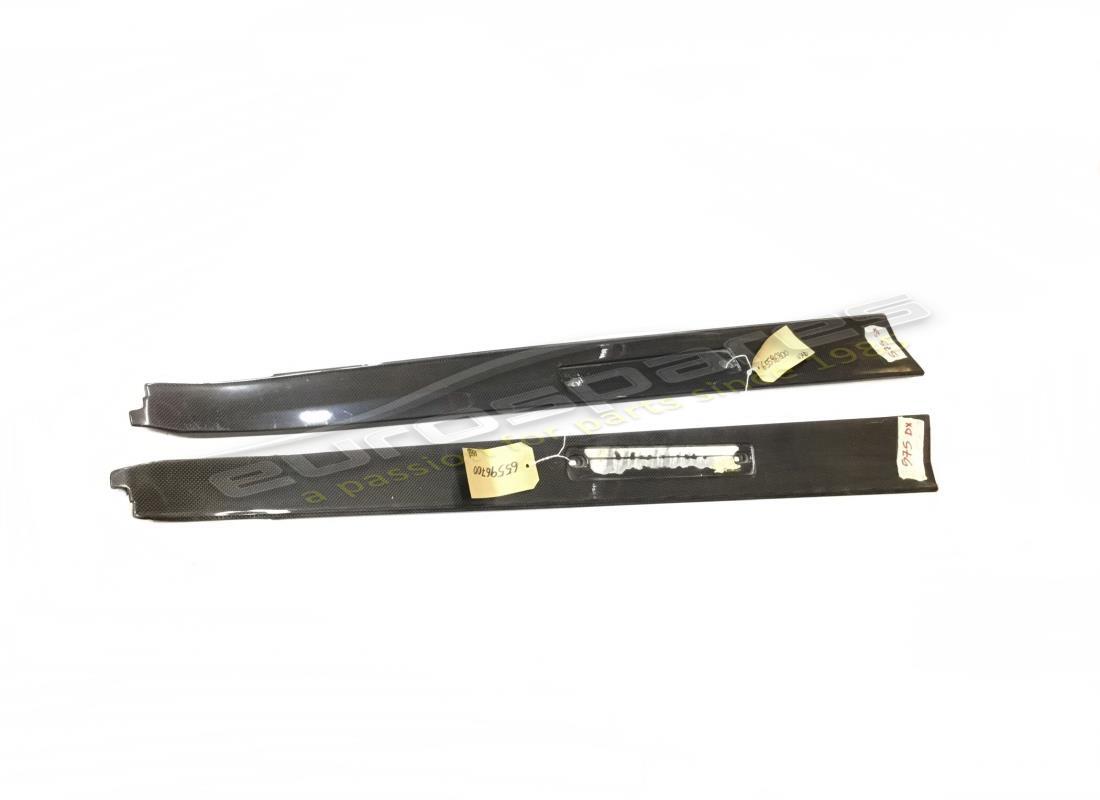

# 026
MPN: 65596700
RH KICK PLATE
- Carbon - Optional
from £442.85
from £442.85

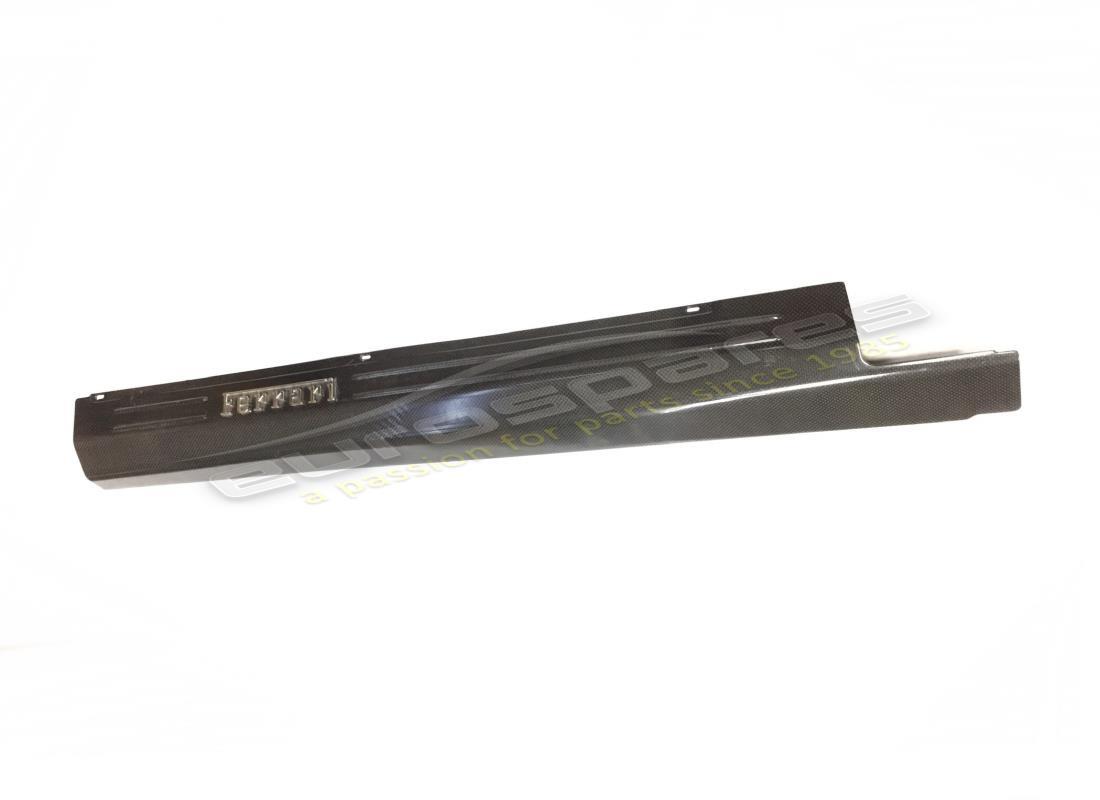

RH KICK PLATE Genuine Ferrari Part - Used In stock
some light scratches (sold as a pair 65596700 and 65596800)
some light scratches (sold as a pair 65596700 and 65596800)

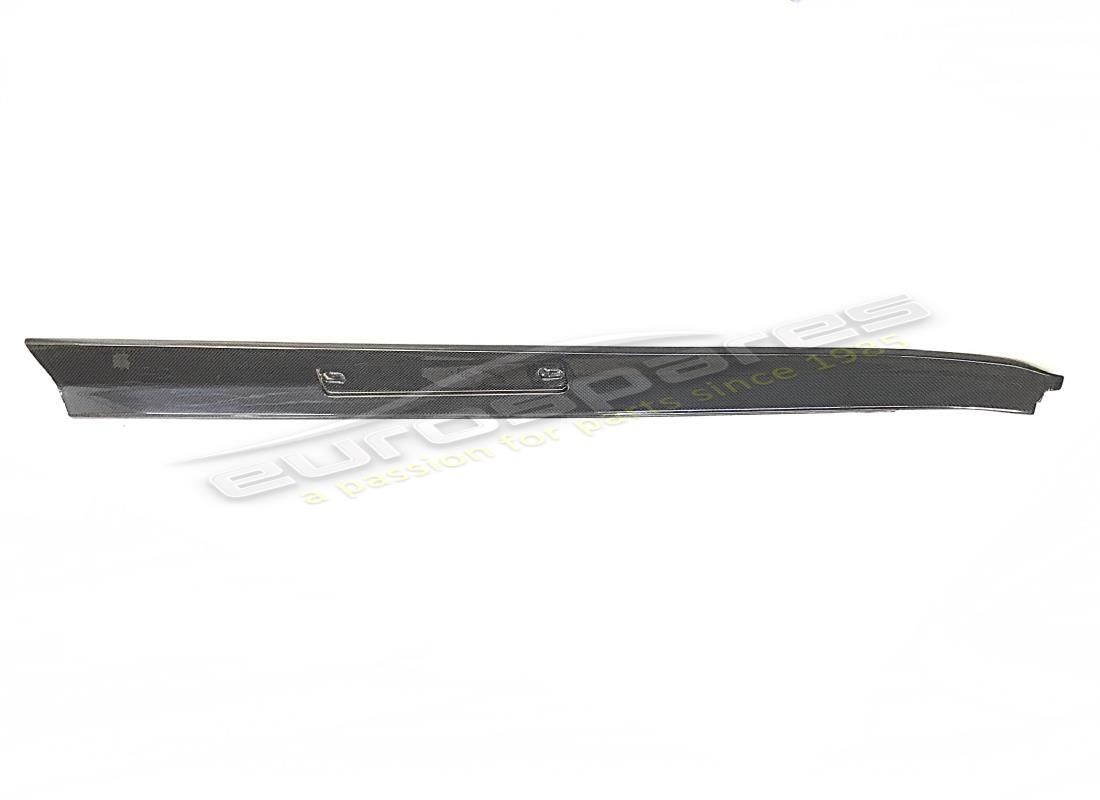

# 026
MPN: 65596800
LH KICK PLATE
- Carbon - Optional
from £243.57
from £243.57
# 026
MPN: 65599700
ALUMINIUM CARPET SHIELD WITH Ferrari INSCRIPTION
- Carbon - Optional
from £102.91
from £102.91
# 027
MPN: 64787700
GASKET
from £48.57
from £48.57
# 028
MPN: 62564800
SCREW
from £1.23
from £1.23
# 029
MPN: 14211580
NUT SCREW
Supersession
Supersession

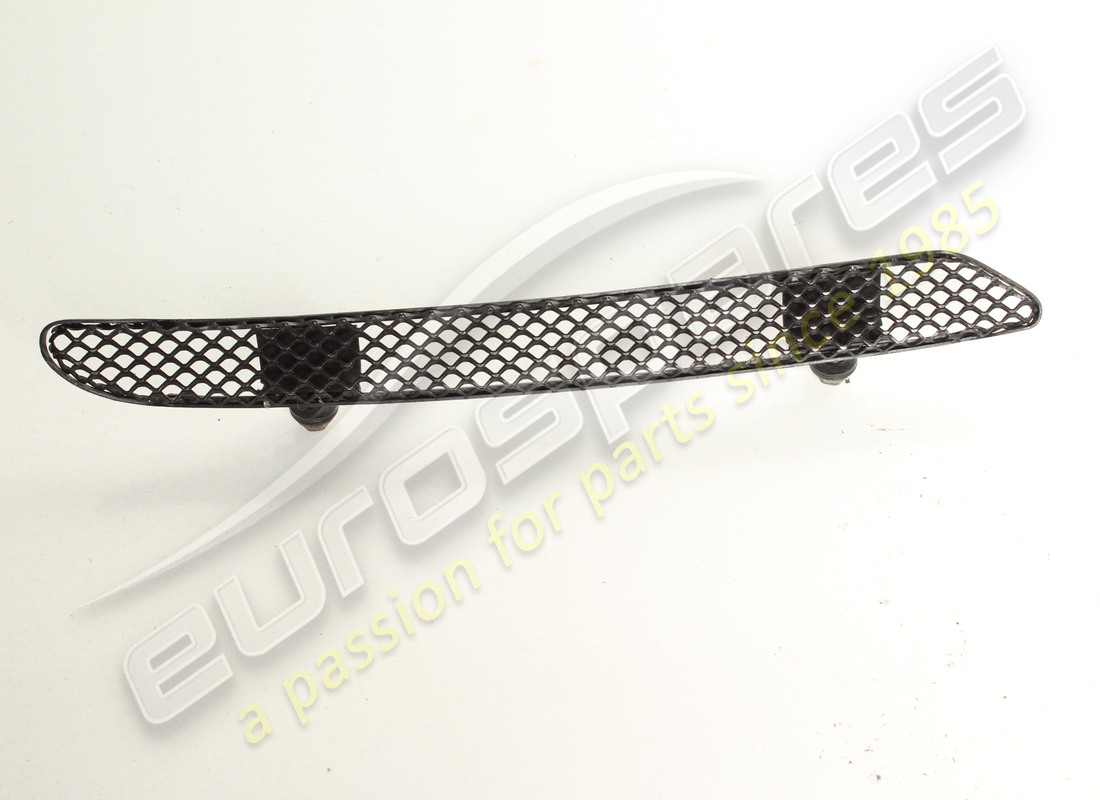

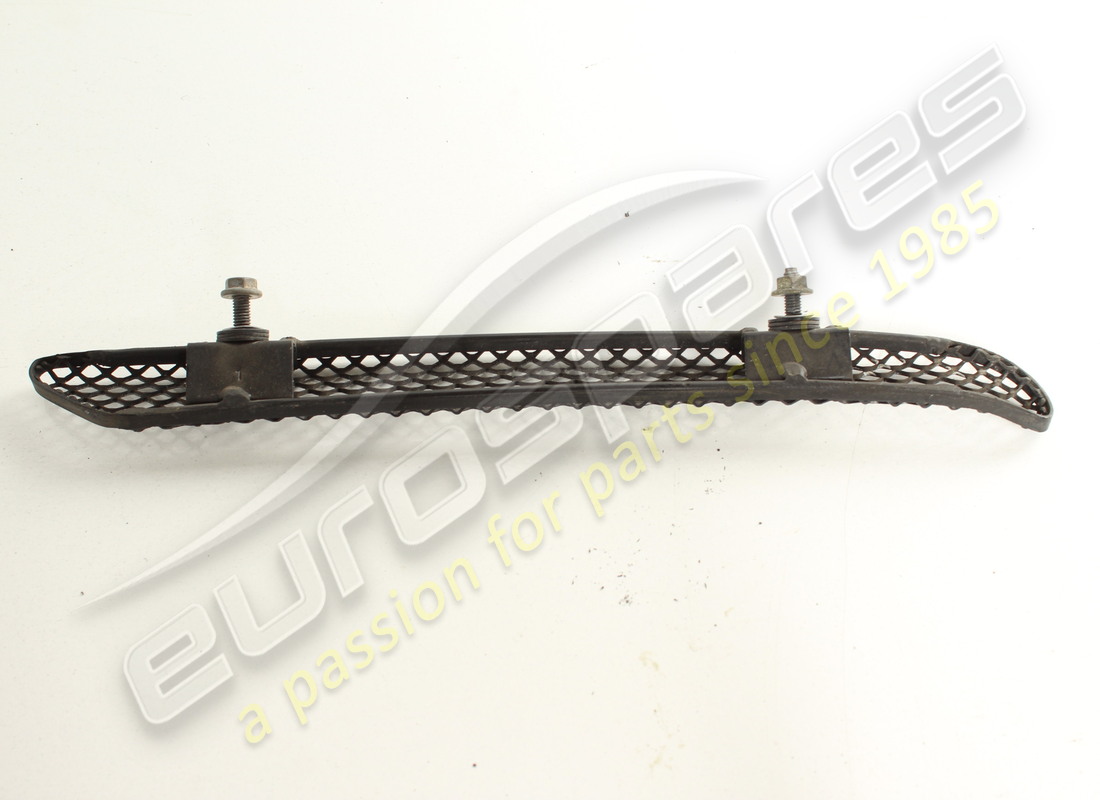

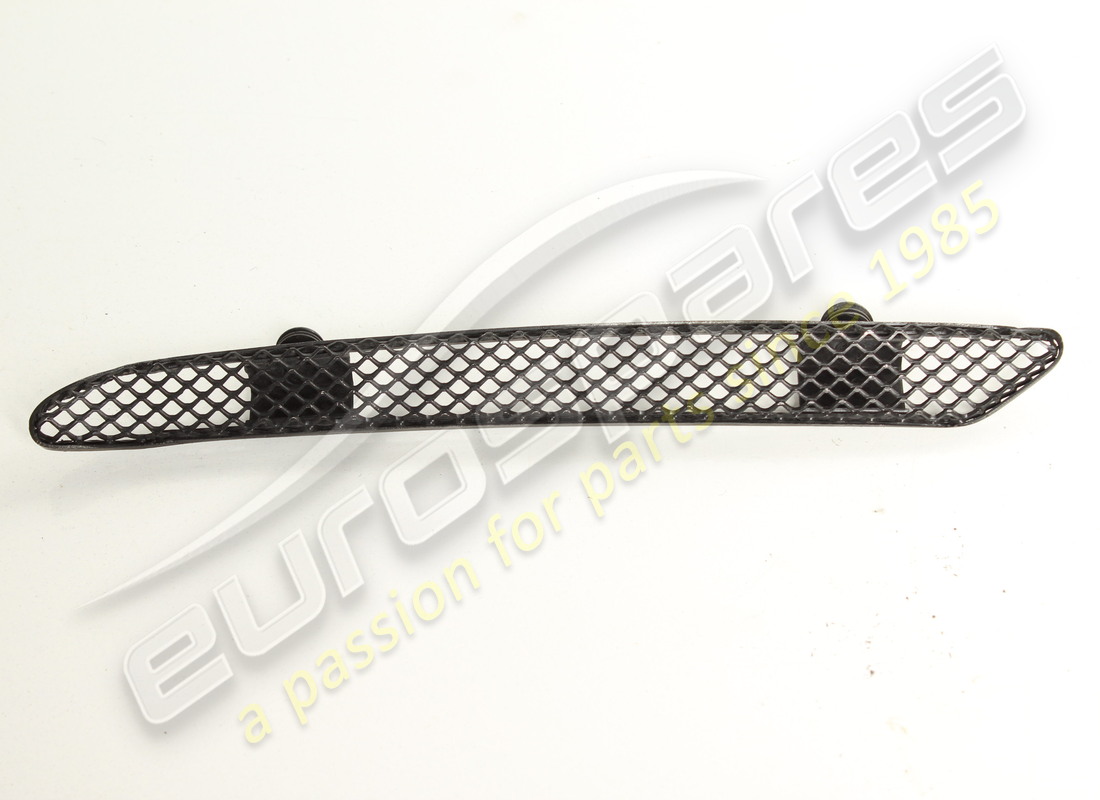

# 030
MPN: 64656800
RH FRONT GRILL
from £131.84
from £131.84
# 030
MPN: 64656900
LH FRONT GRILL
from £76.92
from £76.92
# 031
MPN: 64657000
RH REAR GRILL
from £95.21
from £95.21
# 031
MPN: 64657100
LH REAR GRILL
from £95.21
from £95.21
# 032
MPN: 14059111
NUT
from £0.47
from £0.47
# 033
MPN: 64718700
RUBBER GASKET
from £35.60
from £35.60
# 034
MPN: 65221600
RH KICK PLATE INSERT
- Not for carbon version
from £27.32
from £27.32
This part replaces part number 63213000 which we have in stock - and 5 more. Click to view details
# 034
MPN: 65221700
LH KICK PLATE INSERT
- Not for carbon version
from £27.32
from £27.32
This part replaces part number 63213100 - and 4 more. Click to view details
# 035
MPN: 64780500
PININFARINA ORNAMENT
from £33.72
from £33.72
# 036
MPN: 63897800
POLLEN FILTER
- Not for GD
from £65.10
from £65.10
This part replaces part number 63869800
# 036
MPN: 64241800
POLLEN FILTER
- Valid for GD
from £61.96
from £61.96
# 037
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 - and 3 more. Click to view details
# 038
MPN: 62948800
GASKET
from £2.41
from £2.41
# 039
MPN: 15689675
SCREW
from £0.71
from £0.71
# 040
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 - and 3 more. Click to view details

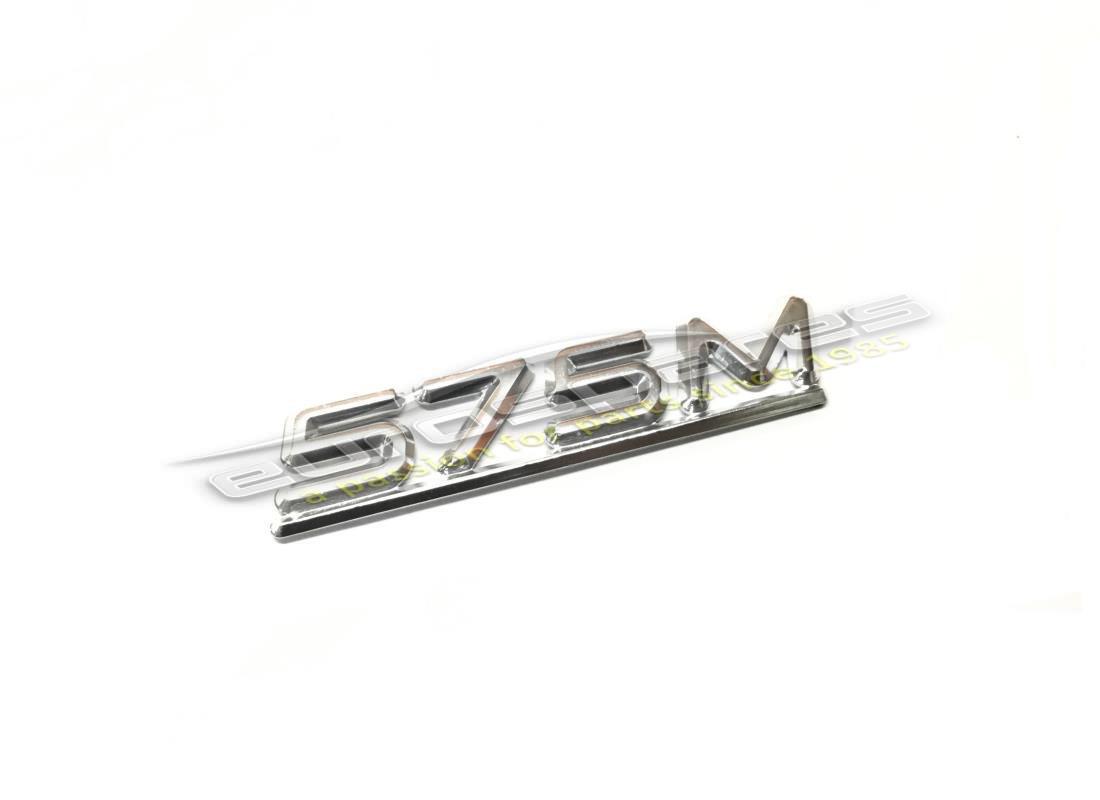

# 041
MPN: 67966200
575M INSCRIPTION
from £183.75
from £183.75
