133 - electrical system

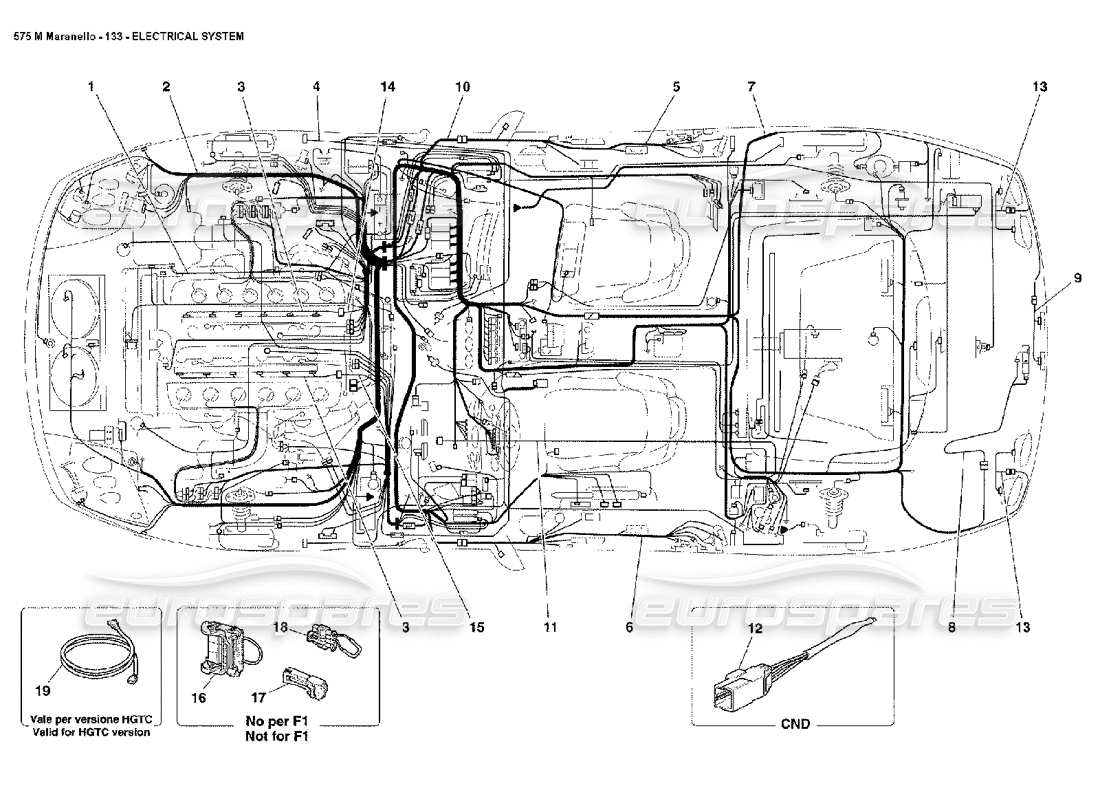

Ferrari 575M Maranello Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 183062
CONNECTION CABLES FOR MOTOR DEVICES
- Not for GD
from £105.08
from £105.08
# 001
MPN: 189491
CONNECTION CABLES FOR MOTOR DEVICES
- Valid for GD
from £78.96
from £78.96
# 002
MPN: 188920
ABS FRONT CABLES
- Not for GD - Not as spare part - Replaced by 200682
from £340.22
from £340.22
# 002
MPN: 189519
ABS FRONT CABLES
- Valid for GD - Not as spare part - Replaced by 200681
Supersession
Supersession
# 002
MPN: 200681
ABS FRONT CABLES
- Valid for GD
Supersession
Supersession
This part replaces part number 189519
# 002
MPN: 200682
ABS FRONT CABLES
- Not for GD
from £340.22
from £340.22
This part replaces part number 188920 which we have in stock - and 1 more. Click to view details

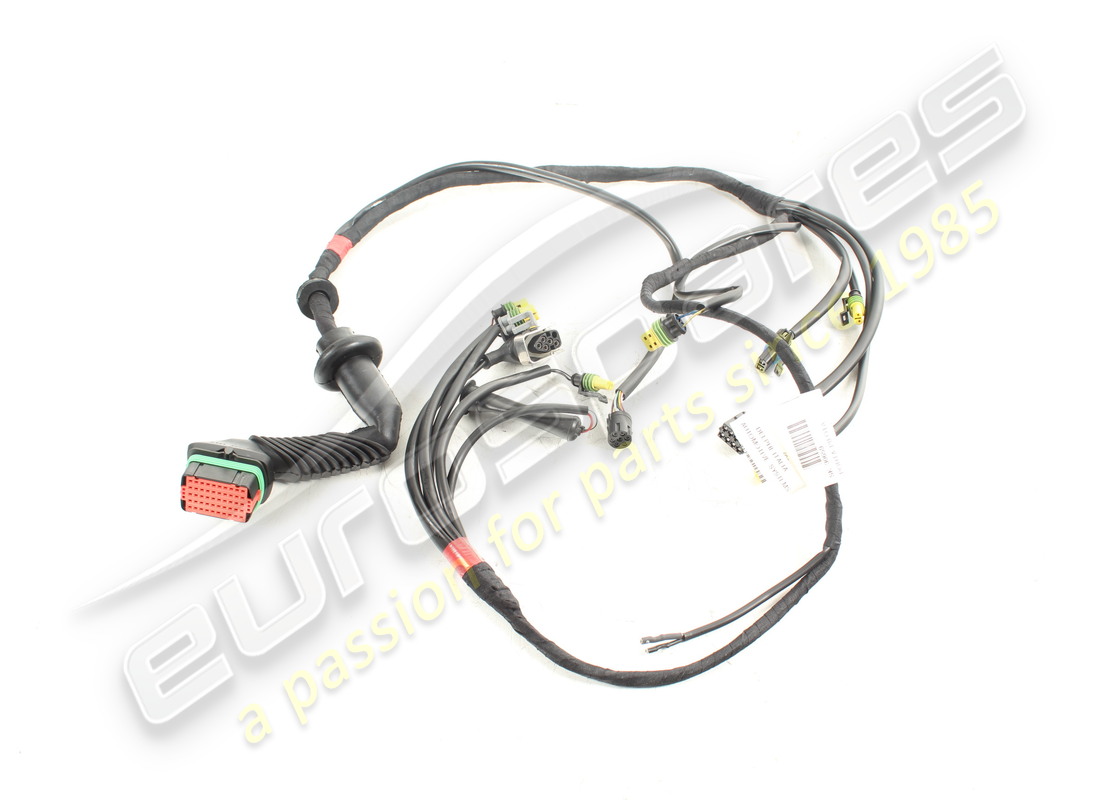

# 003
MPN: 182192
INJECTORS CONNECTING CABLES
- Not for GD and J - Not as spare part - Replaced by 200727
from £110.07
from £110.07
# 004
MPN: 185185
TYRES PRESSURE CONTROL CABLES
from £108.44
from £108.44
# 004
MPN: 189729
TYRES PRESSURE CONTROL CABLES
- Valid for GD - Not for J - Not as spare part - Replaced by 200726
Supersession
Supersession
# 004
MPN: 200726
TYRES PRESSURE CONTROL CABLES
- Valid for GD - Not for J
from £260.66
from £260.66
This part replaces part number 189729
# 004
MPN: 200727
TYRES PRESSURE CONTROL CABLES
- Not for GD and J
from £352.74
from £352.74
This part replaces part number 185185 which we have in stock
# 005
MPN: 193196
PASSENGER SIDE DOOR CONNECTION CABLES
- Not as spare part - Replaced by 200688
Supersession
Supersession
# 005
MPN: 200688
PASSENGER SIDE DOOR CONNECTION CABLES
from £254.10
from £254.10
This part replaces part number 193196 - and 1 more. Click to view details
# 006
MPN: 193195
DRIVER SIDE DOOR CONNECTION CABLES
- Not for GD - Not as spare part - Replaced by 200687
Supersession
Supersession
# 006
MPN: 193844
DRIVER SIDE DOOR CONNECTION CABLES
- Valid for GD - Not as spare part - Replaced by 200686
Supersession
Supersession
# 006
MPN: 20068607
DRIVER SIDE DOOR CONNECTION CABLES
- Valid for GD
# 006
MPN: 200687
DRIVER SIDE DOOR CONNECTION CABLES
- Not for GD
from £96.27
from £96.27
This part replaces part number 193195 - and 1 more. Click to view details

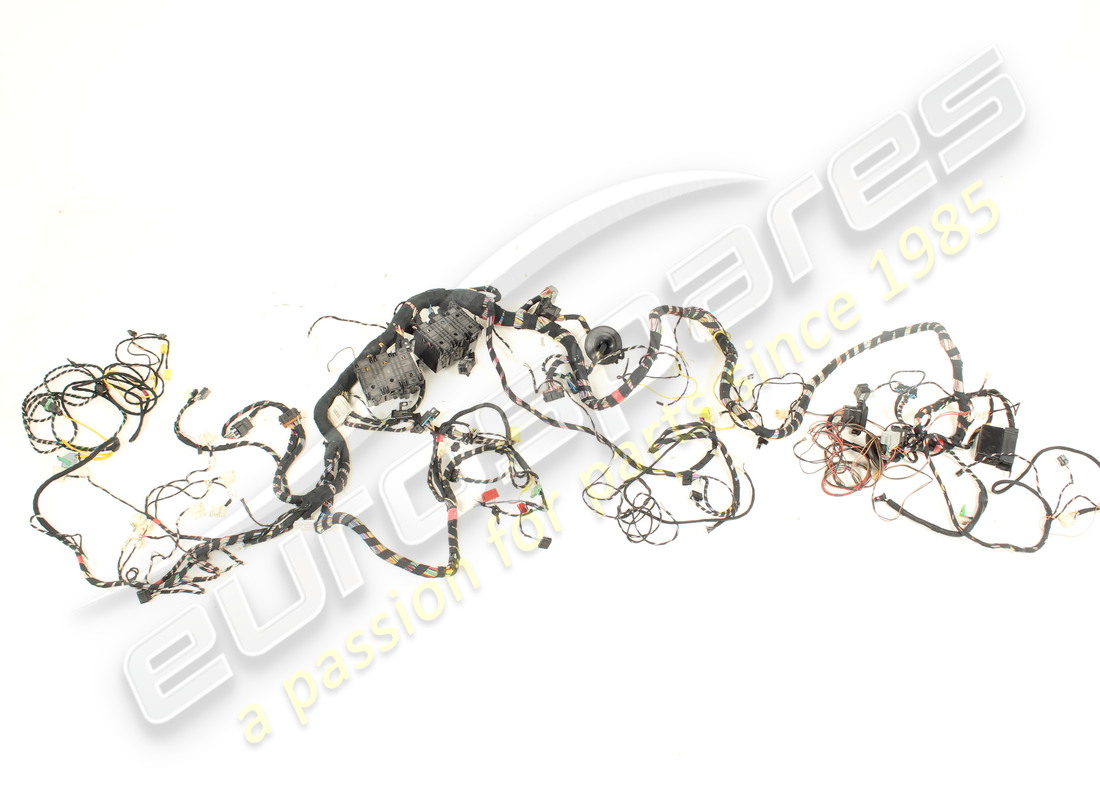

# 007
MPN: 191261
REAR CABLES
- Not as spare part - Replaced by 200685
from £178.50
from £178.50
# 007
MPN: 200685
REAR CABLES
from £2,589.64
from £2,589.64
This part replaces part number 191261 which we have in stock
# 008
MPN: 183283
REAR HOOD OPENING CONNECTING CABLES
- Not as spare part - Replaced by 200720
Supersession
Supersession
# 008
MPN: 200720
REAR HOOD OPENING CONNECTING CABLES
from £110.91
from £110.91
This part replaces part number 183283

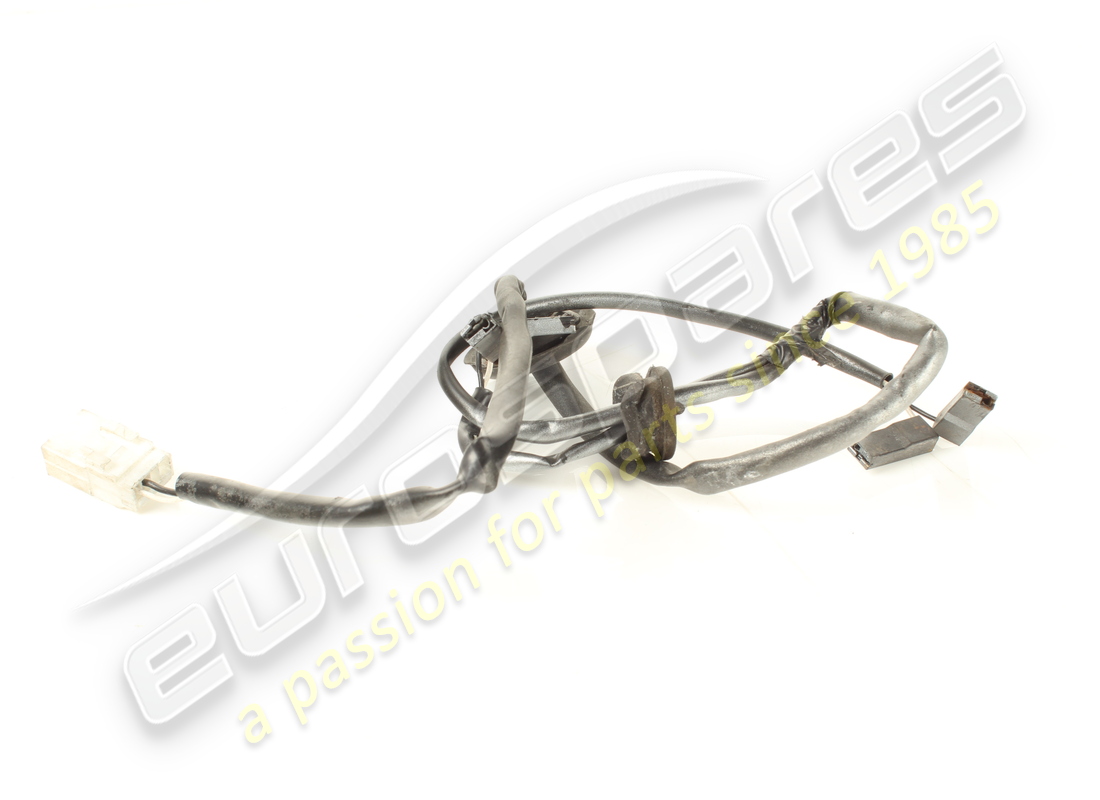

# 009
MPN: 174492
CABLES FOR NUMBER PLATE LIGHTS
- Not for USA and CDN - Not as spare part - Replaced by 200723
from £500.50
from £500.50
# 009
MPN: 193648
CABLES FOR NUMBER PLATE LIGHTS AND SIDE - MARKER
- Valid for USA and CDN
from £72.24
from £72.24
# 009
MPN: 200723
CABLES FOR NUMBER PLATE LIGHTS
- Not for USA and CDN
from £16.54
from £16.54

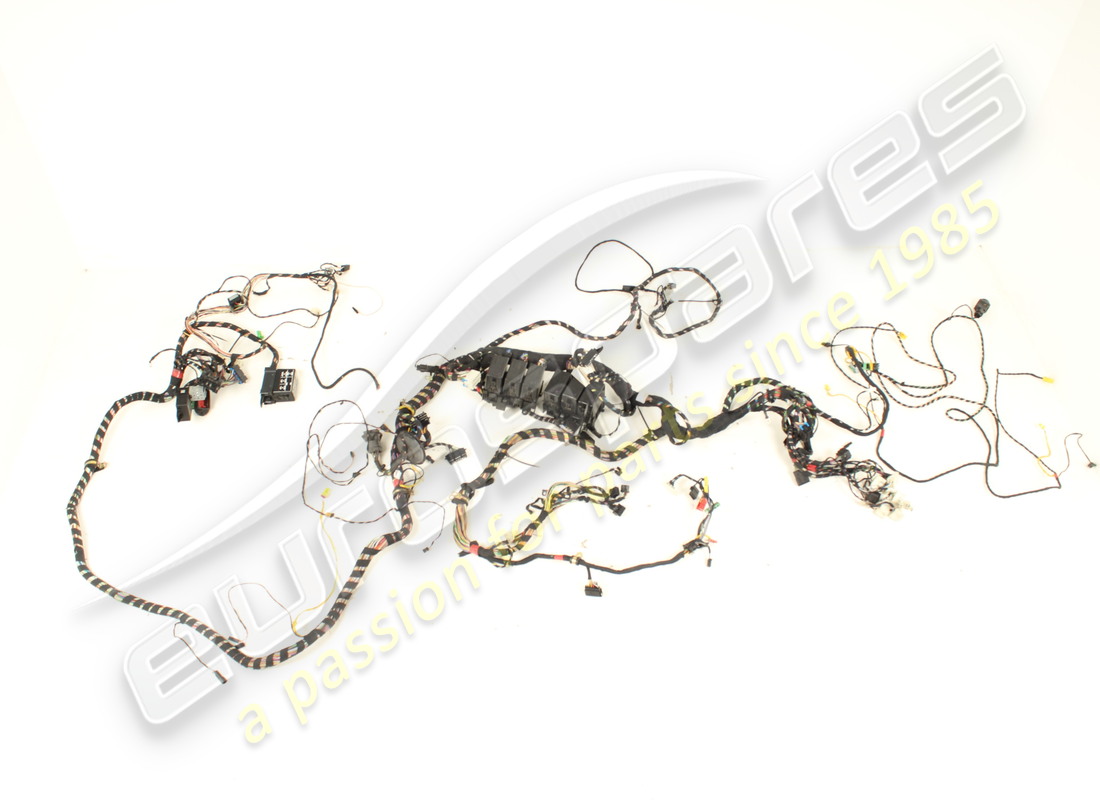

# 010
MPN: 194356
AIR BAG CABLES DASHBOARD CONNECTION
- Not for GD - Not as spare part - Replaced by 200684
from £1,215.94
from £1,215.94
# 010
MPN: 194357
AIR BAG CABLES DASHBOARD CONNECTION
- Valid for GD - Not as spare part - Replaced by 200683
Supersession
Supersession
# 010
MPN: 200683
AIR BAG CABLES DASHBOARD CONNECTION
- Valid for GD - Valid till Ass. Nr. 52555
from £1,759.65
from £1,759.65
This part replaces part number 194357
# 010
MPN: 200684
AIR BAG CABLES DASHBOARD CONNECTION
- Not for GD - Valid till Ass. Nr. 52555
from £1,903.10
from £1,903.10
This part replaces part number 194356 which we have in stock
# 010
MPN: 205433
AIR BAG CABLES DASHBOARD CONNECTION
- Not for GD - Valid from Ass. Nr. 52556
from £3,043.68
from £3,043.68
# 010
MPN: 205434
AIR BAG CABLES DASHBOARD CONNECTION
- Valid for GD - Valid from Ass. Nr. 52556
from £2,873.83
from £2,873.83
# 011
MPN: 183063
F1 GEARBOX CONNECTION CABLES
- Valid for F1 - Not as spare part - Replaced by 200689
from £600.45
from £600.45
# 011
MPN: 200689
F1 GEARBOX CONNECTION CABLES
- Valid for F1 - Valid till Ass. Nr. 52555
from £4,235.65
from £4,235.65
This part replaces part number 183063 which we have in stock
# 011
MPN: 207542
F1 GEARBOX CONNECTION CABLES
- Valid for F1 - Included relay 194909 Tab. 137 Ref. 5 - Valid from Ass. Nr. 52556 - Valid till Ass. Nr.90576
from £613.64
from £613.64
# 011
MPN: 214569
F1 GEARBOX CONNECTION CABLES
- Valid for F1 - Valid from Ass. Nr. 90577
from £611.28
from £611.28
# 012
MPN: 174109
BRACKET FOR DIURNAL LIGHTS
- Valid for CDN - Not as spare part - Replaced by 200852
Supersession
Supersession
# 012
MPN: 200852
BRACKET FOR DIURNAL LIGHTS
- Valid for CDN
from £25.80
from £25.80
This part replaces part number 174109
# 013
MPN: 175648
REAR LIGHT CONNECTION CABLES
- Not for USA and CDN - Not as spare part - Replaced by 200724
from £267.59
from £267.59
# 013
MPN: 176986
REAR LIGHT CONNECTION CABLES
- Valid for USA and CDN - Not as spare part - Replaced by 200725
from £40.02
from £40.02
# 013
MPN: 200724
REAR LIGHT CONNECTION CABLES
- Not for USA and CDN
from £53.69
from £53.69
# 013
MPN: 200725
REAR LIGHT CONNECTION CABLES
- Valid for USA and CDN
from £148.40
from £148.40

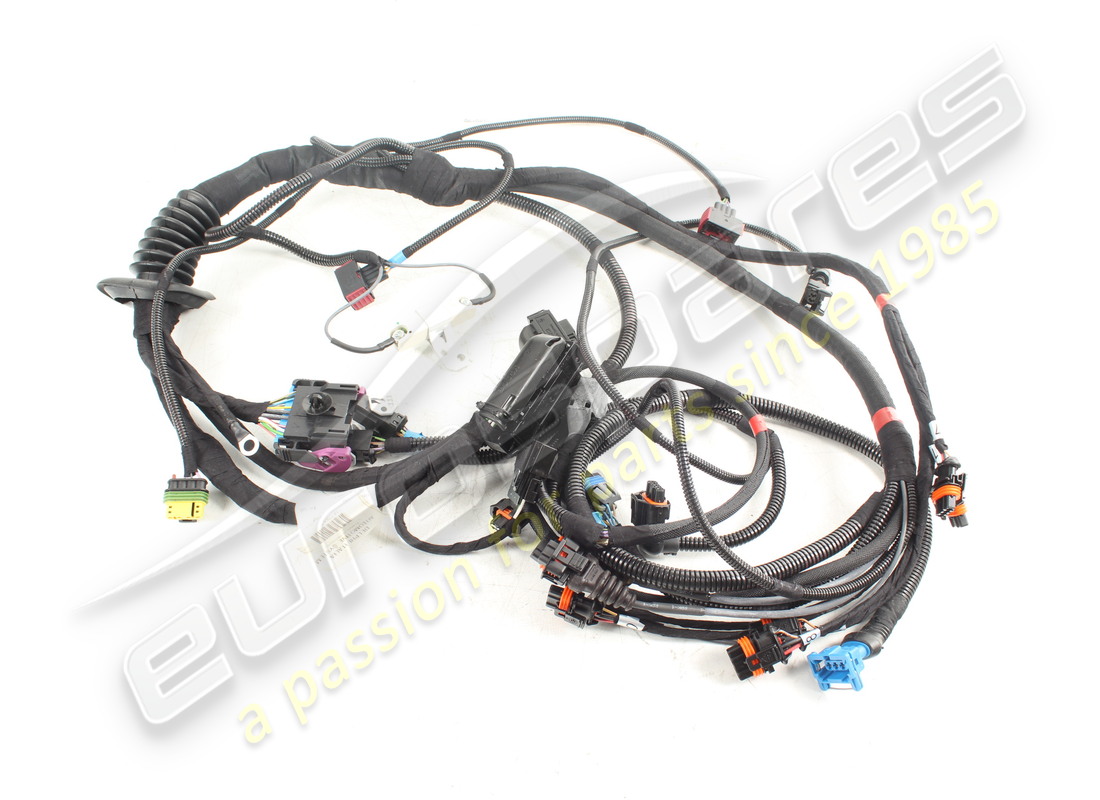

# 014
MPN: 187764
RH SIDE ENGINE CONNECTING CABLES
- Not for GD - Valid till engine Nr. 72330
from £740.47
from £740.47
# 014
MPN: 189489
RH SIDE ENGINE CONNECTING CABLES
- Valid for GD - Valid till engine Nr. 72330
from £531.90
from £531.90
# 014
MPN: 196495
RH SIDE ENGINE CONNECTING CABLES
- Not for GD - Valid from engine Nr. 72331
from £1,015.67
from £1,015.67
# 014
MPN: 196496
RH SIDE ENGINE CONNECTING CABLES
- Valid for GD - Valid from engine Nr. 72331
from £929.21
from £929.21
# 015
MPN: 187765
LH SIDE ENGINE CONNECTING CABLES
- Not for GD
from £740.47
from £740.47
# 015
MPN: 189490
LH SIDE ENGINE CONNECTING CABLES
- Valid for GD
from £531.90
from £531.90
# 016
MPN: 183653
BRACKET FOR GEARBOX
- Not for F1 - Not as spare part - Replaced by 200718
Supersession
Supersession
# 016
MPN: 200718
BRACKET FOR GEARBOX
- Not for F1
from £8.01
from £8.01
This part replaces part number 183653

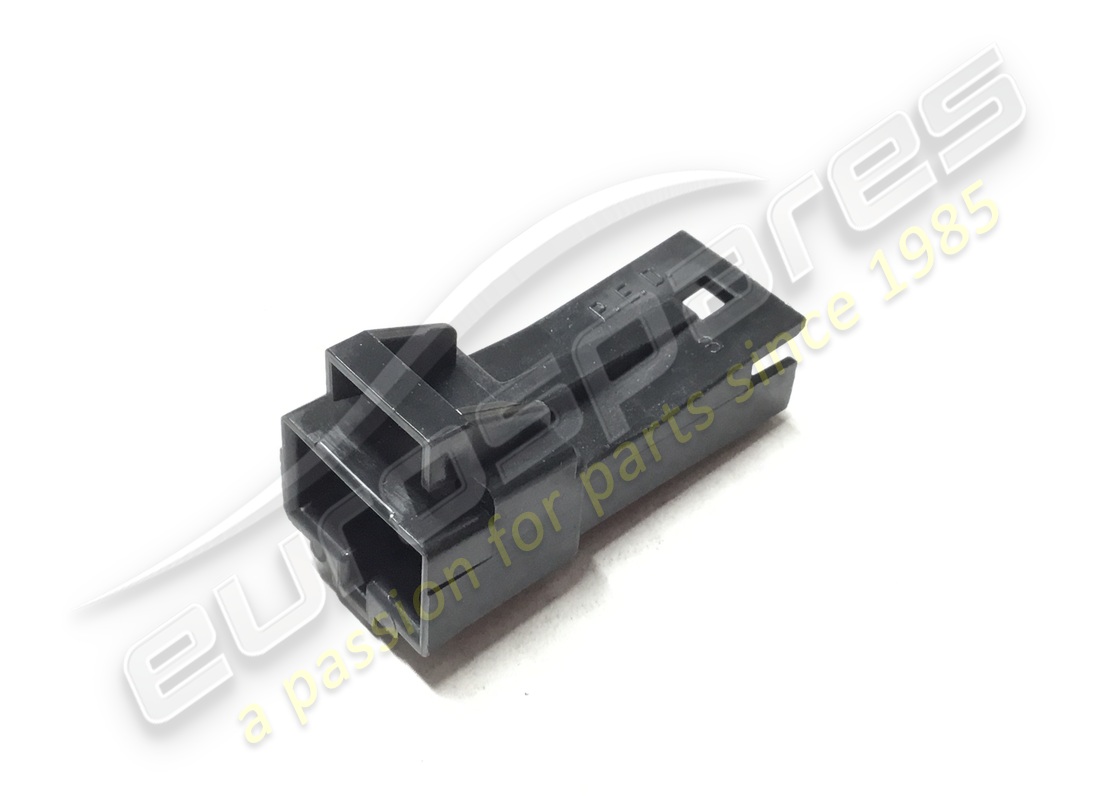

# 017
MPN: 167699
CONNECTOR
- Not for F1
from £2.48
from £2.48
# 018
MPN: 179192
BRACKET FOR CAN LINE WITH RESISTANCE
- Not for F1 - Not as spare part - Replaced by 200722
from £7.89
from £7.89
# 018
MPN: 200722
BRACKET FOR CAN LINE WITH RESISTANCE
- Not for F1
from £7.62
from £7.62
# 019
MPN: 215116
CABLE
from £361.65
from £361.65
