026 - Cooling System - Radiator and Nourice

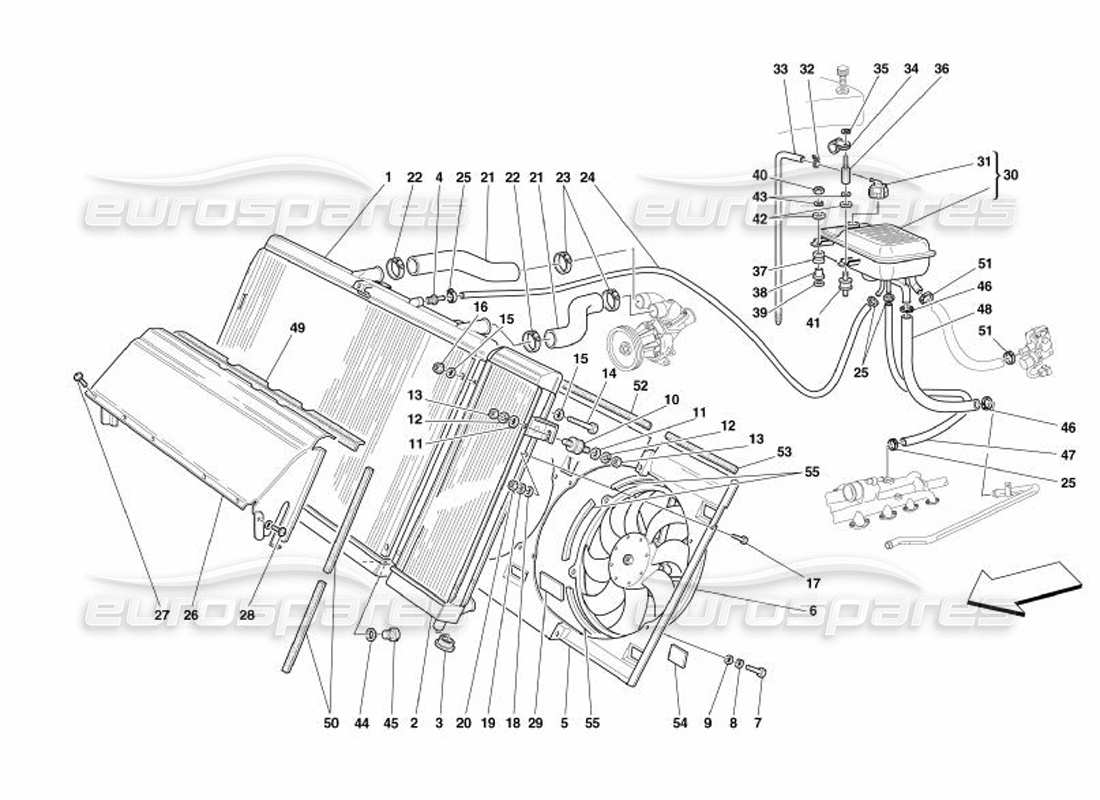

Ferrari 575 Superamerica Cooling System - Radiator and Nourice Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 171772
COMPLETE WATER RADIATOR
from £2,207.20
from £2,207.20
This part replaces part number 167838 - and 3 more. Click to view details
# 002
MPN: 168213
COMPLETE OIL RADIATOR
from £789.07
from £789.07
# 003
MPN: 138926
RUBBER
from £2.29
from £2.29
# 004
MPN: 157160
UNION (METRIC THREAD)
from £6.57
from £6.57
# 004
MPN: 174220
UNION (THREAD INCHES)
from £74.77
from £74.77
# 005
MPN: 181601
HOOD FOR ELECTROFANS
from £270.51
from £270.51
# 006
MPN: 208819
COMPLETE ELECTROFAN
from £208.37
from £208.37
This part replaces part number 186917 - and 2 more. Click to view details
# 007
MPN: 14304324
SCREW
from £0.61
from £0.61
# 008
MPN: 127493
WASHER
from £0.48
from £0.48
This part replaces part number 106849 - and 1 more. Click to view details
# 009
MPN: 12637824
WASHER
from £0.52
from £0.52
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 010
MPN: 157650
FIXING PAD
from £4.28
from £4.28
# 011
MPN: 12646724
WASHER
from £0.53
from £0.53
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 012
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 013
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 014
MPN: 15201024
SCREW
from £0.47
from £0.47
# 015
MPN: 12637824
WASHER
from £0.54
from £0.54
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 016
MPN: 14058311
NUT
from £0.54
from £0.54
# 017
MPN: 14305224
SCREW
from £0.51
from £0.51
# 018
MPN: 12648224
WASHER
from £0.47
from £0.47
# 019
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 020
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 021
MPN: 179037
SLEEVE
from £67.94
from £67.94
This part replaces part number 155604 - and 5 more. Click to view details
# 022
MPN: 13000690
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12174090 - and 2 more. Click to view details
# 023
MPN: 13000790
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12173190 - and 1 more. Click to view details
# 024
MPN: 157746
VENT PIPE FROM RADIATOR TO EXPANSION TANK
Valid for GD
from £10.14
from £10.14
# 024
MPN: 171668
VENT PIPE FROM RADIATOR TO EXPANSION TANK
Not for GD
from £16.24
from £16.24
# 025
MPN: 177995
SCREW COLLAR
from £0.63
from £0.63
# 026
MPN: 65206300
AIR CONVEYOR
from £286.52
from £286.52
# 027
MPN: 62940900
SCREW
from £0.72
from £0.72
This part replaces part number 67352400
# 028
MPN: 14305234
SCREW
from £0.54
from £0.54
This part replaces part number 14305287
# 029
MPN: 155441
STRAP
from £1.29
from £1.29
# 030
MPN: 171974
COMPLETE WATER CANISTER
Not for GD
from £367.86
from £367.86
# 030
MPN: 192608
COMPLETE FUEL CANISTER
Valid for GD
from £127.77
from £127.77
# 031
MPN: 145030
PLUG
from £13.25
from £13.25
# 032
MPN: 13423171
ELASTIC COLLAR
from £0.71
from £0.71
# 033
MPN: 156082
VENT PIPE
from £95.80
from £95.80
# 034
MPN: 10441490
BRACKET WITH SHEATH
from £0.53
from £0.53
# 035
MPN: 12637824
WASHER
from £0.54
from £0.54
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 036
MPN: 189069
STUD
from £6.03
from £6.03
# 037
MPN: 103549
CABLE GROMMET
from £0.71
from £0.71
# 038
MPN: 149707
SPACER
from £0.64
from £0.64
# 039
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 040
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 041
MPN: 102947
ANTIVIBRATION PAD
from £6.83
from £6.83
This part replaces part number 102007 - and 14 more. Click to view details
# 042
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 4 more. Click to view details
# 043
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 044
MPN: 174539
O.R. GASKET
from £6.06
from £6.06
# 045
MPN: 174538
PLUG
Supersession
Supersession
# 046
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 047
MPN: 180741
RUBBER PIPE FROM ENGINE TO EXPANSION TANK
- Valid for GD
Supersession
Supersession
# 047
MPN: 207763
RUBBER PIPE FROM ENGINE TO EXPANSION TANK
- Not for GD
from £59.60
from £59.60
# 048
MPN: 194911
RUBBER PIPE FROM EXPANSION TANK TO ENGINE
from £42.19
from £42.19
This part replaces part number 135189 - and 2 more. Click to view details
# 049
MPN: 63762800
UPPER GASKET
from £1.08
from £1.08
# 050
MPN: 62765800
ANTI-VIBRATIONS
from £0.68
from £0.68
# 051
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 052
MPN: 194255
ANTI-VIBRATIONS
from £0.56
from £0.56
# 053
MPN: 194256
ANTI-VIBRATIONS
from £0.47
from £0.47
# 054
MPN: 183649
STRAP
from £1.23
from £1.23
# 055
MPN: 195910
GASKET
from £2.72
from £2.72
