049 - Hydraulic Steering Box

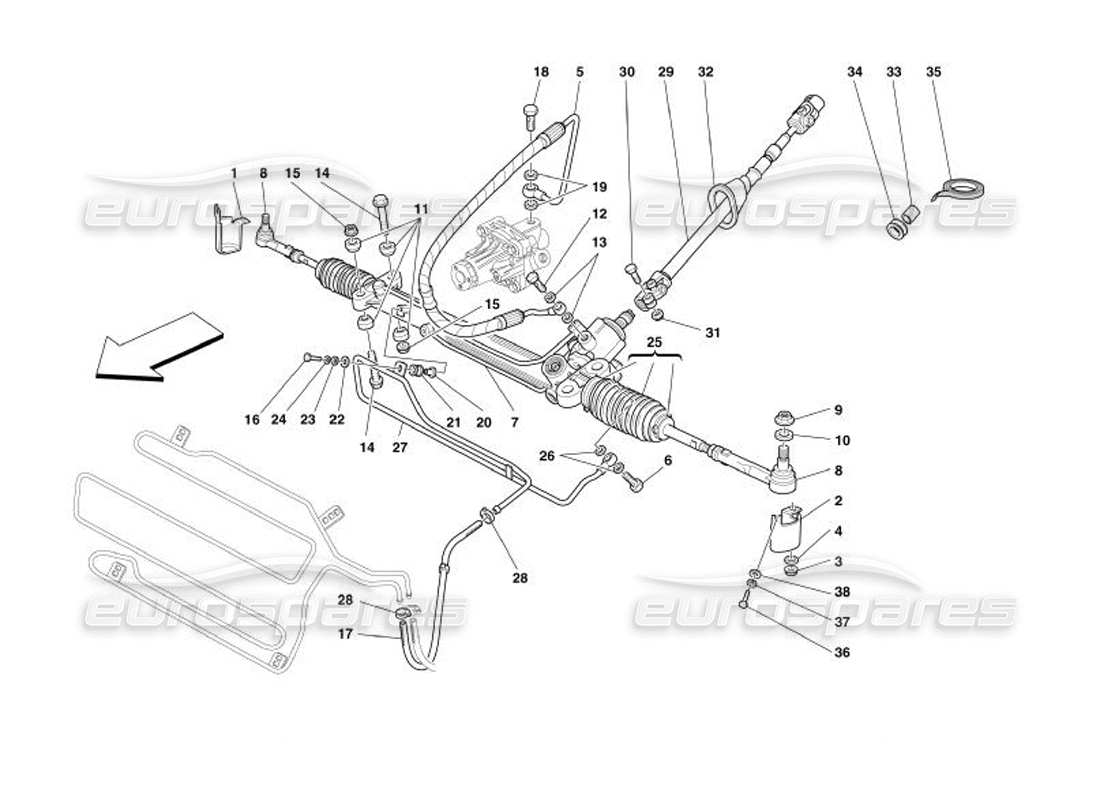

Ferrari 575 Superamerica Hydraulic Steering Box Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 150879
LH BALL JOINT PROTECTION
from £3.84
from £3.84
# 002
MPN: 150878
RH BALL JOINT PROTECTION
from £5.39
from £5.39
# 003
MPN: 14058314
NUT
from £0.53
from £0.53
# 004
MPN: 62764900
WASHER
from £0.47
from £0.47
# 005
MPN: 170860
PIPE FROM PUMP TO STEERING BOX
Not for GD
from £165.06
from £165.06
# 005
MPN: 171813
PIPE FROM PUMP TO STEERING BOX
Valid for GD
from £407.72
from £407.72
# 006
MPN: 10185111
UNION
from £2.25
from £2.25
# 007
MPN: 169888
RACK STEERING BOX
Valid for GD
from £4,072.74
from £4,072.74
# 007
MPN: 170858
Steering Rack
(suitable for LHD)
from £3,172.40
from £3,172.40
# 008
MPN: 158016
BALL JOINT
from £110.00
from £110.00
# 009
MPN: 149807
NUT
from £0.63
from £0.63
# 010
MPN: 155002
WASHER
from £6.78
from £6.78
# 011
MPN: 155567
SILENTBLOCK
from £72.32
from £72.32
# 012
MPN: 170862
UNION-VALVE
from £15.04
from £15.04
# 013
MPN: 10280060
GASKET
from £0.47
from £0.47
This part replaces part number 100501 - and 3 more. Click to view details
# 014
MPN: 175701
SCREW
from £1.33
from £1.33
This part replaces part number 16287634 which we have in stock
# 015
MPN: 175283
NUT
from £0.47
from £0.47
# 016
MPN: 10445224
SCREW
from £0.47
from £0.47
# 017
MPN: 178184
RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL
Not for GD
from £44.30
from £44.30
# 017
MPN: 193026
RUBBER PIPE FROM STEERING BOX TO REFRIGERATING COIL
Valid for GD
from £53.83
from £53.83
# 018
MPN: 10184411
UNION-VALVE
from £30.02
from £30.02
# 019
MPN: 10278660
GASKET
from £0.47
from £0.47
# 020
MPN: 149707
SPACER
from £0.66
from £0.66
# 021
MPN: 103549
CABLE GROMMET
from £0.70
from £0.70
# 022
MPN: 10523424
WASHER
from £0.54
from £0.54
# 023
MPN: 12642878
WASHER
from £0.47
from £0.47
# 024
MPN: 10615274
WASHER
from £0.47
from £0.47
This part replaces part number 10615270 - and 2 more. Click to view details
# 025
MPN: 171702
COMPLETE RUBBER BOOT
from £133.04
from £133.04
# 026
MPN: 10280060
GASKET
from £0.47
from £0.47
This part replaces part number 100501 - and 3 more. Click to view details
# 027
MPN: 172848
PIPE FROM STEERING BOX WITH UNION
Valid for GD
# 027
MPN: 177395
PIPE FROM STEERING BOX WITH UNION
Not for GD
from £55.43
from £55.43
# 028
MPN: 161490
SCREW COLLAR
from £1.02
from £1.02
# 029
MPN: 167168
STEERING CARDANIC TRASMISSION
Not for GD
from £1,243.23
from £1,243.23
# 029
MPN: 172848
PIPE FROM STEERING BOX WITH UNION
Valid for GD
# 030
MPN: 150427
SCREW
from £3.17
from £3.17
This part replaces part number 150428 which we have in stock
# 031
MPN: 150428
NUT
from £0.42
from £0.42
# 032
MPN: 167341
GASKET
from £21.87
from £21.87
This part replaces part number 154807
# 033
MPN: 167379
RUBBER HOSE
from £6.96
from £6.96
# 034
MPN: 167376
SEAL RING
from £0.83
from £0.83
# 035
MPN: 195293
FILM FOR CARDANIC TRASMISSION
from £7.14
from £7.14
This part replaces part number 179038
# 036
MPN: 10977524
SCREW
from £0.53
from £0.53
# 037
MPN: 10730014
WASHER
from £0.51
from £0.51
# 038
MPN: 127493
WASHER
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
