058 - Tyres Pressure Control System -Not for J-

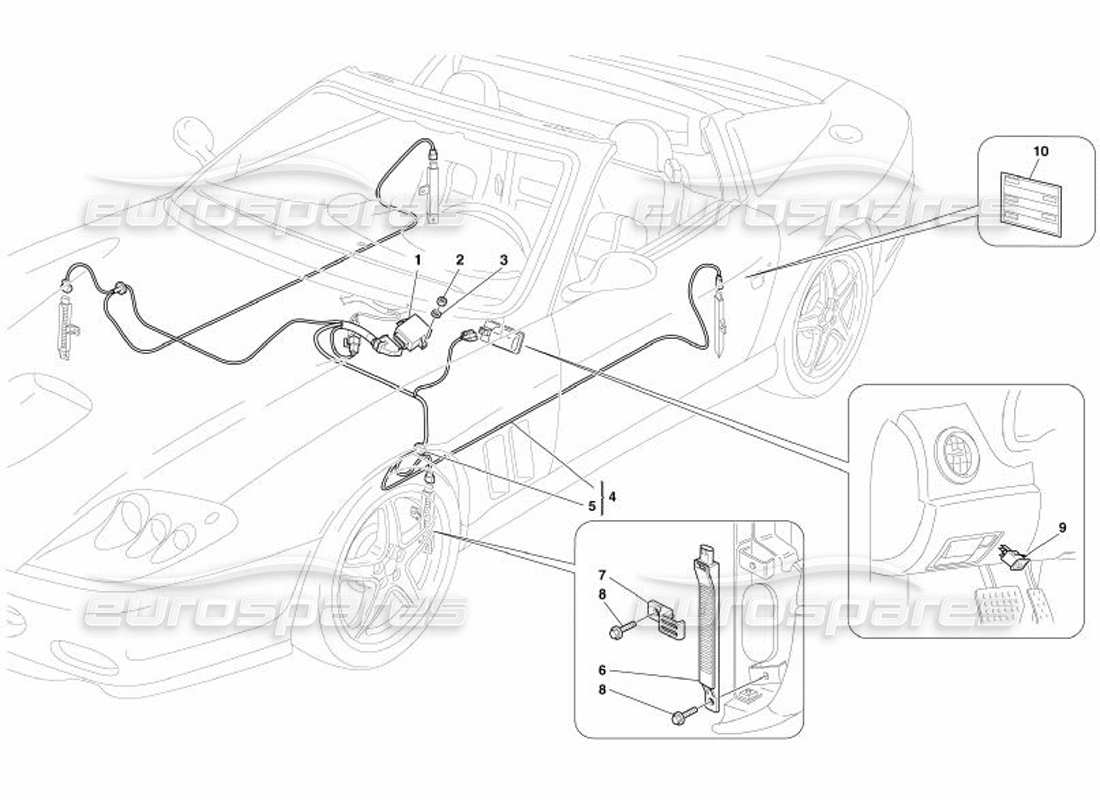

Ferrari 575 Superamerica Tyres Pressure Control System -Not for J- Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 211762
TYRES PRESSURE CONTROL STATION
Not for USA and CDN
from £314.47
from £314.47
This part replaces part number 207778
# 001
MPN: 211763
TYRES PRESSURE CONTROL STATION
Valid for USA and CDN
from £339.76
from £339.76
This part replaces part number 207779
# 002
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 003
MPN: 12637824
WASHER
from £0.54
from £0.54
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 004
MPN: 200726
TYRES PRESSURE CONTROL CABLES
Valid for GD
from £273.69
from £273.69
This part replaces part number 189729
# 004
MPN: 200727
TYRES PRESSURE CONTROL CABLES
Not for GD
from £352.74
from £352.74
This part replaces part number 185185 which we have in stock
# 005
MPN: 185188
CABLE GROMMET
from £1.38
from £1.38
# 006
MPN: 185184
TYRES PRESSURE CONTROL ANTENNA
Not for USA and CDN
from £12.99
from £12.99
# 006
MPN: 195588
TYRES PRESSURE CONTROL ANTENNA
Valid for USA and CDN
from £23.62
from £23.62
This part replaces part number 185333
# 007
MPN: 187504
CLIP
from £0.79
from £0.79
# 008
MPN: 16286024
SCREW
from £0.48
from £0.48
# 009
MPN: 184615
TYRES PRESSURE CONTROL SYSTEM GAUGING SWITCH
Supersession
Supersession
# 009
MPN: 195271
DUMMY SWITCH
Valid for J
from £40.57
from £40.57
# 010
MPN: 194621
SYSTEM TYRE PRESSURE PLATE
from £13.20
from £13.20
