115 - Boot Upholstery

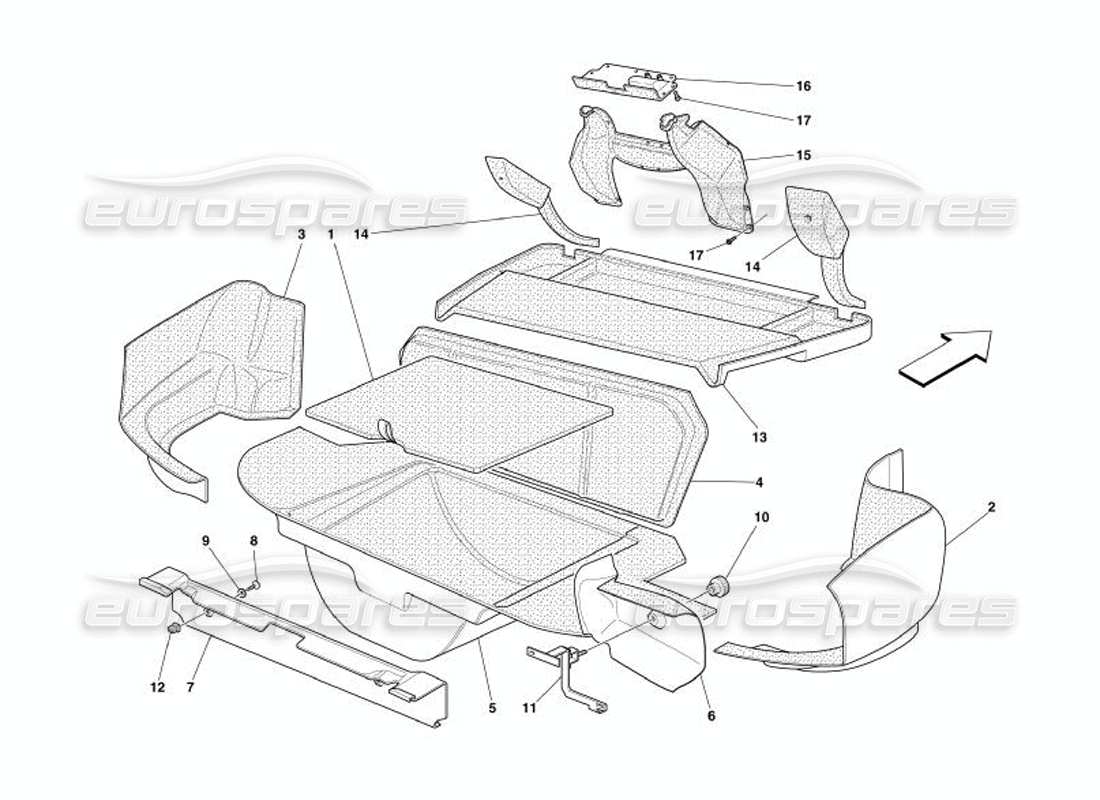

Ferrari 575 Superamerica Boot Upholstery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 693859..
COMPLETE CARPET SERIES FOR TRUNK COMPARTMENT
# 001
MPN: 649206..
COVER FOR LUGGAGE COMPARTMENT BOTTOM
Supersession
Supersession
# 002
MPN: 685459..
RH WHEEL PROTECTION CARPET
# 003
MPN: 685460..
LH WHEEL PROTECTION CARPET
# 004
MPN: 685463..
FUEL TANK WALL CARPET
# 005
MPN: 690804..
TRUNK BOTTOM CARPET
Supersession
Supersession
# 006
MPN: 685461..
RH REAR LIGHT COVER
# 006
MPN: 685462..
LH REAR LIGHT COVER
# 007
MPN: 669242..
MOULDING
Supersession
Supersession
# 008
MPN: 12678707
SCREW
from £1.13
from £1.13
# 009
MPN: 12611307
WASHER
from £0.71
from £0.71
# 010
MPN: 62931000
KNOB
from £2.55
from £2.55
# 011
MPN: 65044200
RH BRACKET
from £4.82
from £4.82
# 011
MPN: 65044400
LH BRACKET
from £4.82
from £4.82
# 012
MPN: 65032900
BLOCK
from £0.53
from £0.53
# 013
MPN: 690896..
UNDER REAR WINDOW CARPET
Supersession
Supersession
# 014
MPN: 69076800
PROTECTION
# 015
MPN: 69217300
AESTHETIC INNER COVER
from £332.88
from £332.88
This part replaces part number 68546400
# 016
MPN: 69217400
AESTHETIC LOCK COVER
from £154.48
from £154.48
This part replaces part number 68994100
# 017
MPN: 64460500
SCREW
from £0.60
from £0.60
