0133 - electrical system

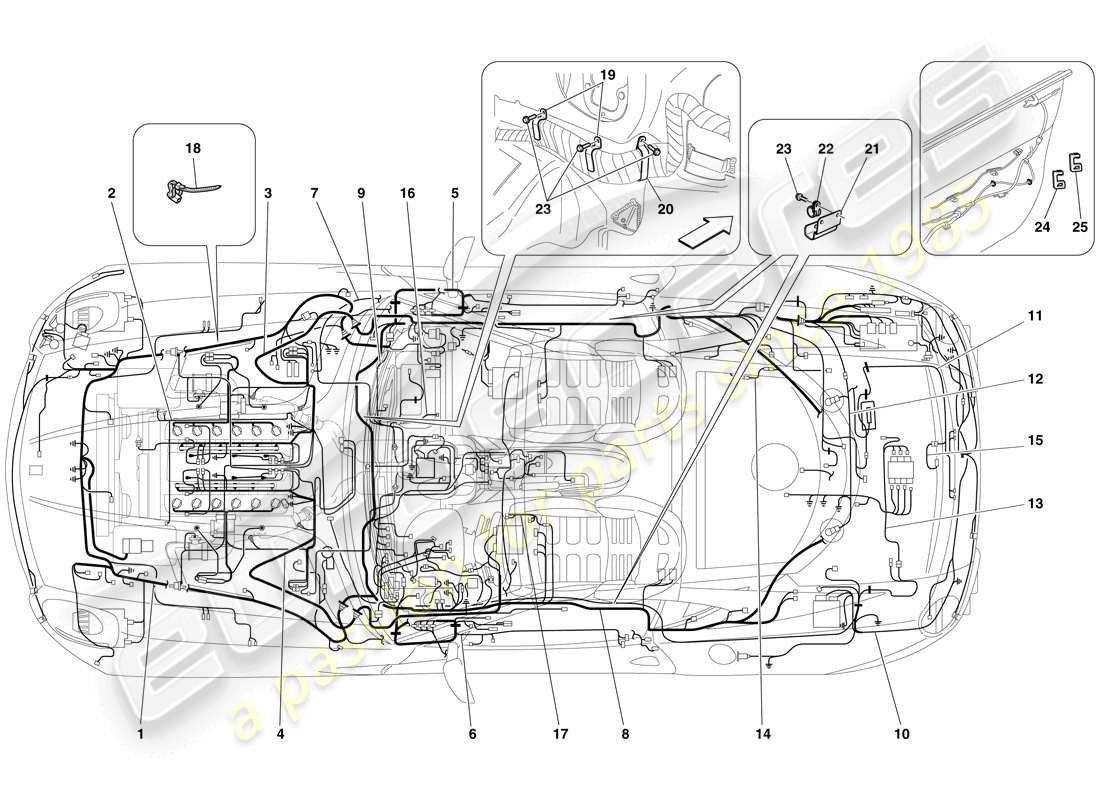

Ferrari 599 GTB Fiorano (Europe) ELECTRICAL SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 218657
ENGINE COMPARTMENT CABLE
-Applicable for GD- -Applicable up to Ass. No. 70359-
from £1,327.48
from £1,327.48
# 001
MPN: 223292
ENGINE COMPARTMENT CABLE
-Full house- -Not for GD- -No longer supplied- -Replaced by 232419-
Supersession
Supersession
# 001
MPN: 230465
ENGINE COMPARTMENT CABLE
-Standard- -Not for USA, CDN, GD- -Applicable up to Ass. No. 70359-
from £2,264.25
from £2,264.25
# 001
MPN: 230466
ENGINE COMPARTMENT CABLE
-Standard- -Applicable for USA, CDN- -Applicable up to Ass. No. 70359-
from £1,210.93
from £1,210.93
# 001
MPN: 232419
ENGINE COMPARTMENT CABLE
-Full house- -Not for GD- -Applicable from Ass. No. 70360- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 223292
# 001
MPN: 232419
ENGINE COMPARTMENT CABLE
-Full house- -Applicable for USA, CDN- -Applicable up to Ass. No. 86364- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 223292
# 001
MPN: 232420
ENGINE COMPARTMENT CABLE
-Standard- -Not for USA, CDN, GD- -Applicable from Ass. No. 70360-
from £1,409.42
from £1,409.42
# 001
MPN: 232421
ENGINE COMPARTMENT CABLE
-Standard- -Applicable for USA, CDN- -Applicable from Ass. No. 70360-
from £1,025.45
from £1,025.45
# 001
MPN: 232422
ENGINE COMPARTMENT CABLE
-Applicable for GD- -Applicable from Ass. No. 70360- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 259517
ENGINE COMPARTMENT CABLE
-Full house- -Applicable from MY 10- -Applicable for USA, CDN- -Applicable from Ass. No. 86365- -Applicable until depletion-
Supersession
Supersession
# 001
MPN: 264972
ENGINE COMPARTMENT CABLE
-Full house- -Applicable from MY 10- -Applicable for USA, CDN- -Not for GD- -Applicable from Ass. No. 86365- -Applicable after depletion of 259517-
from £1,223.74
from £1,223.74
This part replaces part number 259517
# 001
MPN: 264974
ENGINE COMPARTMENT CABLE
-Full house- -Not for GD- -Applicable after depletion of 232419-
from £1,188.02
from £1,188.02
This part replaces part number 232419
# 001
MPN: 264974
ENGINE COMPARTMENT CABLE
-Full house- -Applicable for USA, CDN- -Applicable up to Ass. No. 86364- -Applicable after depletion of 232419-
from £1,188.02
from £1,188.02
This part replaces part number 232419
# 001
MPN: 264976
ENGINE COMPARTMENT CABLE
-Applicable for GD- -Applicable from Ass. No. 70360- -Applicable after depletion of 232422-
from £1,401.82
from £1,401.82
This part replaces part number 232422
# 002
MPN: 218663
ENGINE ANCILLARY CONNECTOR CABLES
-Applicable for GD- -Applicable until depletion-
from £325.38
from £325.38
This part replaces part number 233220
# 002
MPN: 224637
ENGINE ANCILLARY CONNECTOR CABLES
-Not for GD- -Applicable until depletion-
from £229.59
from £229.59
This part replaces part number 233219
# 002
MPN: 233219
ENGINE ANCILLARY CONNECTOR CABLES
-Not for GD- -Applicable after depletion of 224637-
Supersession
Supersession
# 002
MPN: 233220
ENGINE ANCILLARY CONNECTOR CABLES
-Applicable for GD- -Applicable after depletion of 218663-
Supersession
Supersession
# 003
MPN: 223252
RH CYLINDER BANK CONNECTOR CABLES
-Not for USA, CDN, GD- -Applicable up to Ass. No. 69001- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 223254
RH CYLINDER BANK CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable up to Ass. No. 74103- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 223788
RH CYLINDER BANK CONNECTOR CABLES
-Applicable for GD- -Applicable up to Ass. No. 74103- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 230648
RH CYLINDER BANK CONNECTOR CABLES
-Not for USA, CDN, GD- -Applicable from Ass. No. 69002 up to Ass. No. 74103- -Applicable after depletion of 223252- -Applicable until depletion-
Supersession
Supersession
# 003
MPN: 235877
RH CYLINDER BANK CONNECTOR CABLES
-Not for USA, CDN, GD- -Applicable from Ass. No. 74104- -Applicable after depletion of 235877-
from £963.33
from £963.33
This part replaces part number 223252 - and 1 more. Click to view details
# 003
MPN: 235878
RH CYLINDER BANK CONNECTOR CABLES
-Applicable for USA, CDN- -Applicable from Ass. No. 74104 up to Ass. No. 86364- -Applicable after depletion of 223254-
from £1,080.40
from £1,080.40
This part replaces part number 223254
# 003
MPN: 235879
RH CYLINDER BANK CONNECTOR CABLES
-Applicable for GD- -Applicable from Ass. No. 74104- -Applicable after depletion of 223788-
from £987.39
from £987.39
This part replaces part number 223788
# 003
MPN: 259915
RH CYLINDER BANK CONNECTOR CABLES
-Applicable from MY 10- -Applicable for USA, CDN- -Applicable from Ass. No. 86365-
# 004
MPN: 223253
LH CYLINDER BANK CONNECTOR CABLES
-Not for USA, CDN-
from £870.26
from £870.26
# 004
MPN: 223255
LH CYLINDER BANK CONNECTOR CABLES
-Applicable for USA, CDN-
from £840.28
from £840.28
# 005
MPN: 218662
PASSENGER SIDE DOOR CONNECTOR CABLES
-Applicable for GD- -Applicable until depletion-
from £98.26
from £98.26
# 005
MPN: 226232
PASSENGER SIDE DOOR CONNECTOR CABLES
-Not for GD- -Applicable until depletion-
from £94.84
from £94.84
This part replaces part number 204713 - and 1 more. Click to view details
# 005
MPN: 264494
PASSENGER SIDE DOOR CONNECTOR CABLES
-Not for GD- -Applicable after depletion of 226232-
from £209.34
from £209.34
This part replaces part number 226232 which we have in stock
# 005
MPN: 264968
PASSENGER SIDE DOOR CONNECTOR CABLES
-Applicable for GD- -Applicable after depletion of 218662-
from £216.91
from £216.91
This part replaces part number 218662 which we have in stock
# 006
MPN: 218661
DRIVER SIDE DOOR CONNECTOR CABLES
-Applicable for GD- -Applicable until depletion-
from £126.00
from £126.00
# 006
MPN: 226231
DRIVER SIDE DOOR CONNECTOR CABLES
-Not for GD- -Applicable until depletion-
from £181.98
from £181.98
This part replaces part number 204712 - and 1 more. Click to view details
# 006
MPN: 264490
DRIVER SIDE DOOR CONNECTOR CABLES
-Not for GD- -Applicable after depletion of 226231-
from £401.70
from £401.70
This part replaces part number 226231 which we have in stock
# 006
MPN: 264967
DRIVER SIDE DOOR CONNECTOR CABLES
-Applicable for GD- -Applicable after depletion of 218661-
from £237.71
from £237.71
This part replaces part number 218661 which we have in stock
# 007
MPN: 204716
BATTERY POSITIVE CABLE
-Not for GD-
from £67.28
from £67.28
# 007
MPN: 218747
BATTERY POSITIVE CABLE
-Applicable for GD-
from £232.60
from £232.60
# 008
MPN: 218659
PASSENGER COMPARTMENT CABLE
-Standard- -Applicable for GD- -Applicable up to Ass. No. 71822-
from £1,768.19
from £1,768.19
# 008
MPN: 218660
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Applicable for GD- -Applicable up to Ass. No. 71822- -Applicable up to engine No. 122778-
from £1,666.32
from £1,666.32
# 008
MPN: 228663
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Not for GD- -Applicable up to Ass. No. 71822- -Applicable up to engine No. 122778- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 217838
# 008
MPN: 228664
PASSENGER COMPARTMENT CABLE
-Full house- -Not for Hi-Fi version- -Not for GD- -Applicable up to Ass. No. 71822- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 217837
# 008
MPN: 230467
PASSENGER COMPARTMENT CABLE
-Standard- -Not for USA, CDN, GD-
from £1,562.44
from £1,562.44
# 008
MPN: 230469
PASSENGER COMPARTMENT CABLE
-Standard- -Applicable for USA, CDN-
from £2,151.42
from £2,151.42
# 008
MPN: 235628
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Not for GD- -Applicable from Ass. No. 71823- -Applicable up to engine No. 122778- -Applicable after depletion of 228663- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 228663
# 008
MPN: 235629
PASSENGER COMPARTMENT CABLE
-Full house- -Not for Hi-Fi version- -Not for GD- -Applicable from Ass. No. 71823 up to Ass. No. 73891- -Applicable after depletion of 228664- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 228664
# 008
MPN: 235630
PASSENGER COMPARTMENT CABLE
-Standard- -Applicable for GD- -Applicable from Ass. No. 71823 up to Ass. No. 73891- -Applicable until depletion-
Supersession
Supersession
# 008
MPN: 235631
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Applicable for GD- -Applicable from Ass. No. 71823 up to Ass. No. 73891- -Applicable up to engine No. 122778- -Applicable until depletion-
Supersession
Supersession
# 008
MPN: 235873
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Not for GD- -Applicable from Ass. No. 73892- -Applicable up to engine No. 122778- -Applicable after depletion of 235628-
from £1,126.31
from £1,126.31
This part replaces part number 235628 - and 1 more. Click to view details
# 008
MPN: 235874
PASSENGER COMPARTMENT CABLE
-Full house- -Not for Hi-Fi version- -Not for GD- -Applicable from Ass. No. 73892- -Applicable after depletion of 235629- -No longer supplied- -Replaced by 265233-
Supersession
Supersession
This part replaces part number 235629
# 008
MPN: 235875
PASSENGER COMPARTMENT CABLE
-Standard- -Applicable for GD- -Applicable from Ass. No. 73892- -Applicable after depletion of 235630- -No longer supplied- -Replaced by 265251-
Supersession
Supersession
This part replaces part number 235630
# 008
MPN: 235876
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Applicable from Ass. No. 73892- -Applicable up to engine No. 122778- -Applicable after depletion of 235631-
from £2,254.38
from £2,254.38
This part replaces part number 235631
# 008
MPN: 257321
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Reduced consumption- -Not for GD- -Applicable from engine No. 122779- -Applicable until depletion-
Supersession
Supersession
# 008
MPN: 257324
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Reduced consumption- -Applicable for GD- -Applicable from engine No. 122779- -Applicable until depletion-
Supersession
Supersession
# 008
MPN: 264964
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Reduced consumption- -Not for GD- -Applicable from engine No. 122779- -Applicable after depletion of 257321-
from £2,452.44
from £2,452.44
This part replaces part number 257321
# 008
MPN: 264966
PASSENGER COMPARTMENT CABLE
-Full house- -Hi-Fi version- -Reduced consumption- -Applicable for GD- -Applicable from engine No. 122779- -Applicable after depletion of 257324-
from £2,691.57
from £2,691.57
This part replaces part number 257324
# 008
MPN: 265233
PASSENGER COMPARTMENT CABLE
-Full house- -Not for Hi-Fi version- -Not for GD-
from £2,015.41
from £2,015.41
This part replaces part number 235874
# 008
MPN: 265251
PASSENGER COMPARTMENT CABLE
-Standard- -Applicable for GD-
from £1,873.50
from £1,873.50
This part replaces part number 235875
# 009
MPN: 218658
DASHBOARD CABLE
-Applicable for GD- -No longer supplied- -Replaced by 231545-
Supersession
Supersession
# 009
MPN: 228201
DASHBOARD CABLE
-Not for GD- -No longer supplied- -Replaced by 231544-
Supersession
Supersession
This part replaces part number 204709
# 009
MPN: 231544
DASHBOARD CABLE
-Not for GD- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 228201
# 009
MPN: 231545
DASHBOARD CABLE
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 218658
# 009
MPN: 264491
DASHBOARD CABLE
-Not for GD- -Applicable after depletion of 231544-
from £325.16
from £325.16
This part replaces part number 231544
# 009
MPN: 264962
DASHBOARD CABLE
-Applicable for GD- -Applicable after depletion of 231545-
from £338.41
from £338.41
This part replaces part number 231545
# 010
MPN: 222067
LUGGAGE COMPARTMENT CABLE
-Applicable up to Ass. No. 71112- -Applicable for F1 gearbox-
from £613.45
from £613.45
# 010
MPN: 222068
LUGGAGE COMPARTMENT CABLE
-Applicable up to Ass. No. 71112- -Not for F1 gearbox-
from £847.78
from £847.78
# 010
MPN: 231509
LUGGAGE COMPARTMENT CABLE
-Applicable from Ass. No. 71113- -Not for F1 gearbox- -Applicable until depletion-
Supersession
Supersession
# 010
MPN: 231510
LUGGAGE COMPARTMENT CABLE
-Applicable from Ass. No. 73247- -Applicable for F1 gearbox- -Applicable until depletion-
Supersession
Supersession
# 010
MPN: 235285
LUGGAGE COMPARTMENT CABLE
-Applicable from Ass. No. 73248- -Applicable for F1 gearbox- -Applicable after depletion of 231510- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 231510
# 010
MPN: 264970
LUGGAGE COMPARTMENT CABLE
-Applicable from Ass. No. 73248- -Applicable for F1 gearbox- -Applicable after depletion of 235285-
from £1,217.69
from £1,217.69
This part replaces part number 235285
# 010
MPN: 264971
LUGGAGE COMPARTMENT CABLE
-Applicable from Ass. No. 71113- -Not for F1 gearbox- -Applicable after depletion of 231509-
from £920.11
from £920.11
This part replaces part number 231509
# 011
MPN: 222066
TAILGATE CABLE
-Applicable until depletion-
from £24.56
from £24.56
# 011
MPN: 264492
TAILGATE CABLE
-Applicable after depletion of 222066-
from £54.22
from £54.22
This part replaces part number 222066 which we have in stock
# 012
MPN: 222999
FUEL TANK CABLE
-Applicable until depletion-
from £30.50
from £30.50
# 012
MPN: 264493
FUEL TANK CABLE
-Applicable after depletion of 222999-
from £67.34
from £67.34
This part replaces part number 222999 which we have in stock
# 013
MPN: 225790
ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES
-Applicable for F1 gearbox-
from £49.73
from £49.73
# 014
MPN: 221710
HEATED REAR SCREEN WIRING HARNESS
from £6.34
from £6.34
# 015
MPN: 221090
THIRD STOP LIGHT WIRING HARNESS
-Applicable for light 164834 Tab. 130 Pos. 4- -Applicable until depletion-
from £38.78
from £38.78
# 015
MPN: 241683
THIRD STOP LIGHT WIRING HARNESS
-Applicable after depletion of 221090- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 221090 which we have in stock
# 015
MPN: 264982
THIRD STOP LIGHT WIRING HARNESS
-Applicable after depletion of 241683-
from £18.93
from £18.93
This part replaces part number 241683
# 016
MPN: 214919
GLOVE COMPARTMENT WIRING HARNESS
-Applicable until depletion-
Supersession
Supersession
# 016
MPN: 264977
GLOVE COMPARTMENT WIRING HARNESS
-Applicable after depletion of 214919-
from £17.86
from £17.86
This part replaces part number 214919
# 017
MPN: 215271
STEERING COLUMN RELAY WIRING HARNESS
-Not for GD- -Applicable until depletion-
Supersession
Supersession
# 017
MPN: 223446
STEERING COLUMN RELAY WIRING HARNESS
-Applicable for GD- -Applicable until depletion-
Supersession
Supersession
# 017
MPN: 264979
STEERING COLUMN RELAY WIRING HARNESS
-Not for GD- -Applicable after depletion of 215271-
from £62.37
from £62.37
This part replaces part number 215271
# 017
MPN: 264980
STEERING COLUMN RELAY WIRING HARNESS
-Applicable for GD- -Applicable after depletion of 223446-
from £85.16
from £85.16
This part replaces part number 223446
# 018
MPN: 177553
CLAMP
from £0.47
from £0.47
# 019
MPN: 217823
OPEN BRACKET
from £4.31
from £4.31
# 020
MPN: 217824
CLOSED BRACKET
from £134.17
from £134.17
# 021
MPN: 69359900
BRACKET
from £6.08
from £6.08
# 022
MPN: 10442290
BRACKET WITH SHEATH
from £0.47
from £0.47
# 023
MPN: 16297024
SCREW
from £0.47
from £0.47
# 024
MPN: 175871
CONNECTOR FASTENER CLIP
from £0.47
from £0.47
# 025
MPN: 162606
CLIP
from £0.76
from £0.76
-part-diagram-0134.webp "FERRARI 599 GTB FIORANO (EUROPE) MOTION SENSOR PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI 599 GTB FIORANO (EUROPE) ENGINE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI 599 GTB FIORANO (EUROPE) PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI 599 GTB FIORANO (EUROPE) LUGGAGE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI 599 GTB FIORANO (EUROPE) ANTITHEFT SYSTEM ECUS AND DEVICES PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI 599 GTB FIORANO (EUROPE) HI-FI SYSTEM PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI 599 GTB FIORANO (EUROPE) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI 599 GTB FIORANO (EUROPE) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI 599 GTB FIORANO (EUROPE) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI 599 GTB FIORANO (EUROPE) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI 599 GTB FIORANO (EUROPE) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI 599 GTB FIORANO (EUROPE) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI 599 GTB FIORANO (EUROPE) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI 599 GTB FIORANO (EUROPE) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI 599 GTB FIORANO (EUROPE) TIMING SYSTEM - TAPPETS AND SHAFTS PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI 599 GTB FIORANO (EUROPE) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI 599 GTB FIORANO (EUROPE) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI 599 GTB FIORANO (EUROPE) FUEL PUMP PARTS DIAGRAM")
-part-diagram-0009.webp "FERRARI 599 GTB FIORANO (EUROPE) FUEL TANK - FILLER NECK AND PIPES PARTS DIAGRAM")
-part-diagram-0010.webp "FERRARI 599 GTB FIORANO (EUROPE) FUEL TANK - INSULATION AND PROTECTION PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI 599 GTB FIORANO (EUROPE) EVAPORATIVE EMISSIONS CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI 599 GTB FIORANO (EUROPE) INJECTION - IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI 599 GTB FIORANO (EUROPE) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI 599 GTB FIORANO (EUROPE) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI 599 GTB FIORANO (EUROPE) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI 599 GTB FIORANO (EUROPE) AIR INTAKE PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI 599 GTB FIORANO (EUROPE) REAR EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI 599 GTB FIORANO (EUROPE) BLOW-BY SYSTEM PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI 599 GTB FIORANO (EUROPE) LUBRICATION SYSTEM - TANK PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI 599 GTB FIORANO (EUROPE) OIL / WATER PUMP PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI 599 GTB FIORANO (EUROPE) COOLING SYSTEM - RADIATOR AND HEADER TANK PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI 599 GTB FIORANO (EUROPE) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI 599 GTB FIORANO (EUROPE) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI 599 GTB FIORANO (EUROPE) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI 599 GTB FIORANO (EUROPE) DIFFERENTIAL CASE AND GEARBOX COOLING RADIATOR PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI 599 GTB FIORANO (EUROPE) PRIMARY GEARBOX SHAFT GEARS AND GEARBOX OIL PUMP PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI 599 GTB FIORANO (EUROPE) SECONDARY GEARBOX SHAFT GEARS PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI 599 GTB FIORANO (EUROPE) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI 599 GTB FIORANO (EUROPE) INTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI 599 GTB FIORANO (EUROPE) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI 599 GTB FIORANO (EUROPE) ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI 599 GTB FIORANO (EUROPE) DIFFERENTIAL AND AXLE SHAFT PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI 599 GTB FIORANO (EUROPE) HYDRAULIC BRAKE AND CLUTCH CONTROL PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI 599 GTB FIORANO (EUROPE) ELECTRONIC ACCELERATOR PEDAL PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI 599 GTB FIORANO (EUROPE) PEDAL BOARD PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI 599 GTB FIORANO (EUROPE) F1 CLUTCH HYDRAULIC CONTROL PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI 599 GTB FIORANO (EUROPE) POWER UNIT AND TANK PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI 599 GTB FIORANO (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI 599 GTB FIORANO (EUROPE) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT BRAKE CALLIPER PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI 599 GTB FIORANO (EUROPE) REAR BRAKE CALLIPER PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI 599 GTB FIORANO (EUROPE) PARKING BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI 599 GTB FIORANO (EUROPE) HYDRAULIC POWER STEERING BOX PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI 599 GTB FIORANO (EUROPE) HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI 599 GTB FIORANO (EUROPE) STEERING CONTROL PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT SUSPENSION - ARMS AND STABILISER BAR PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI 599 GTB FIORANO (EUROPE) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI 599 GTB FIORANO (EUROPE) REAR SUSPENSION - ARMS AND STABILISER BAR PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI 599 GTB FIORANO (EUROPE) WHEELS PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI 599 GTB FIORANO (EUROPE) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI 599 GTB FIORANO (EUROPE) BATTERY PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI 599 GTB FIORANO (EUROPE) ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI 599 GTB FIORANO (EUROPE) AC SYSTEM - FREON PIPES PARTS DIAGRAM")
-part-diagram-0056.webp "FERRARI 599 GTB FIORANO (EUROPE) AC SYSTEM - WATER PIPES PARTS DIAGRAM")
-part-diagram-0057.webp "FERRARI 599 GTB FIORANO (EUROPE) EVAPORATOR UNIT AND CONTROLS PARTS DIAGRAM")
-part-diagram-0058.webp "FERRARI 599 GTB FIORANO (EUROPE) TOOL KIT PARTS DIAGRAM")
-part-diagram-0059.webp "FERRARI 599 GTB FIORANO (EUROPE) DOCUMENTATION AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0060.webp "FERRARI 599 GTB FIORANO (EUROPE) SPARE WHEEL AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI 599 GTB FIORANO (EUROPE) BODYSHELL - EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI 599 GTB FIORANO (EUROPE) BODYSHELL - ROOF PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI 599 GTB FIORANO (EUROPE) ROLLBAR PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI 599 GTB FIORANO (EUROPE) STRUCTURES AND ELEMENTS, FRONT OF VEHICLE PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI 599 GTB FIORANO (EUROPE) STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI 599 GTB FIORANO (EUROPE) STRUCTURES AND ELEMENTS, REAR OF VEHICLE PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI 599 GTB FIORANO (EUROPE) FLAT UNDERTRAY AND WHEELHOUSES PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI 599 GTB FIORANO (EUROPE) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI 599 GTB FIORANO (EUROPE) ENGINE COMPARTMENT FIREWALL INSULATION PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI 599 GTB FIORANO (EUROPE) PASSENGER COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI 599 GTB FIORANO (EUROPE) LUGGAGE COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI 599 GTB FIORANO (EUROPE) PASSENGER COMPARTMENT TRIM AND MATS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI 599 GTB FIORANO (EUROPE) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI 599 GTB FIORANO (EUROPE) LUGGAGE COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI 599 GTB FIORANO (EUROPE) ENGINE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI 599 GTB FIORANO (EUROPE) LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI 599 GTB FIORANO (EUROPE) DOORS - SUBSTRUCTURE AND TRIM PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI 599 GTB FIORANO (EUROPE) DOORS - OPENING MECHANISM AND HINGES PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI 599 GTB FIORANO (EUROPE) DOORS - POWER WINDOWS AND REAR-VIEW MIRROR PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI 599 GTB FIORANO (EUROPE) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI 599 GTB FIORANO (EUROPE) COMPLETE FRONT SEAT AND SEAT BELTS PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT SEAT - TRIM AND INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT SEAT - GUIDES AND ADJUSTMENT MECHANISMS PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI 599 GTB FIORANO (EUROPE) FRONT RACING SEAT - RAILS AND MECHANISM PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI 599 GTB FIORANO (EUROPE) TUNNEL - SUBSTRUCTURE AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI 599 GTB FIORANO (EUROPE) INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI 599 GTB FIORANO (EUROPE) DASHBOARD PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI 599 GTB FIORANO (EUROPE) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI 599 GTB FIORANO (EUROPE) AIRBAG PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI 599 GTB FIORANO (EUROPE) INSTRUMENTATION PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI 599 GTB FIORANO (EUROPE) HEADLIGHTS AND TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI 599 GTB FIORANO (EUROPE) EXTERIOR TRIM PARTS DIAGRAM")
