ferrari 599 gtb fiorano (usa) luggage compartment ecus parts diagram

0137 - LUGGAGE COMPARTMENT ECUs

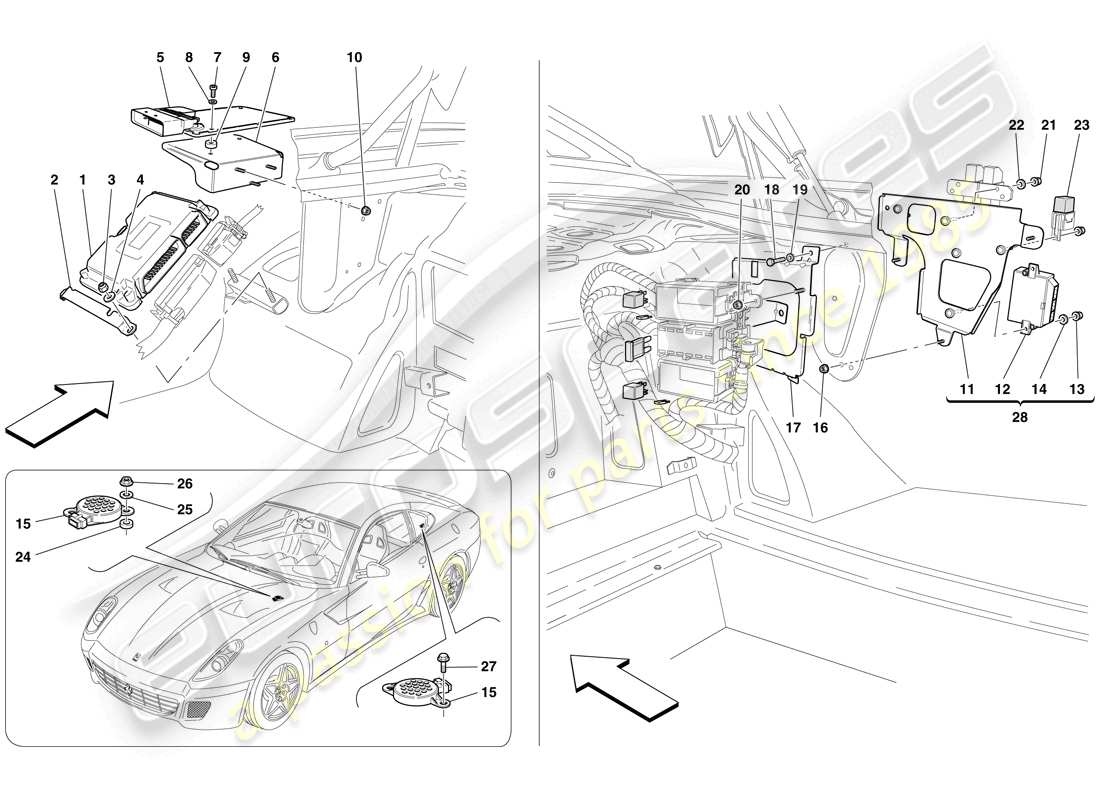

Ferrari 599 GTB Fiorano (USA) LUGGAGE COMPARTMENT ECUs Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 230866
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Not for USA, CDN- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 236507-
                                Supersession
                                Supersession
                                This part replaces part number 230865
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 231283
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for USA, CDN- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 236509-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 234805
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for Taiwan- -Applicable for F1 gearbox- -No longer supplied- -Replaced by 236508-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 236507
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable up to engine No. 122778-
                                from £1,032.51
                                from £1,032.51
                                This part replaces part number 230866
                                GEARBOX CONTROL UNIT - Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 236508
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for Taiwan- -Applicable for F1 gearbox- -Applicable up to engine No. 122778-
                                from £1,202.15
                                from £1,202.15
                                This part replaces part number 234805
                                ELECTRONICALLY CONTROLLED GEARBOX ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 236509
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for USA, CDN- -Applicable for F1 gearbox- -Applicable up to engine No. 124965-
                                from £868.28
                                from £868.28
                                This part replaces part number 231283
                                GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 236510
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for J- -Applicable for F1 gearbox- -Applicable up to engine No. 122778-
                                from £630.78
                                from £630.78
                                GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 240658
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable from engine No. 122779- -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 240659
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for USA, CDN- -Applicable for F1 gearbox- -Applicable from engine No. 124966- -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 240661
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for J- -Applicable for F1 gearbox- -Applicable from engine No. 122779- -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 243624
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for Taiwan- -Reduced consumption- -Applicable for F1 gearbox- -Applicable from engine No. 122779- -No longer supplied- -Replaced by 246028-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 244132
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable from engine No. 122779 up to engine No. 138821- -Applicable after depletion of 240658- -Applicable until depletion-
                                Supersession
                                Supersession
                                This part replaces part number 240658
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 244133
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for USA, CDN, USA LIGHT- -Applicable for F1 gearbox- -Applicable from engine No. 124966 up to engine No. 138821- -Applicable after depletion of 240659- -Applicable until depletion-
                                Supersession
                                Supersession
                                This part replaces part number 240659
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 244134
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for J- -Applicable for F1 gearbox- -Applicable from engine No. 122779 up to engine No. 138821- -Applicable after depletion of 240661- -Applicable until depletion-
                                Supersession
                                Supersession
                                This part replaces part number 240661
                                Genuine Ferrari Part (no longer available to order)
                                # 001
                                MPN: 246028
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Not for USA, CDN- -Applicable for F1 gearbox- -Applicable from engine No. 138822- -Applicable after depletion of 244132-
                                from £1,032.51
                                from £1,032.51
                                This part replaces part number 243624 - and 1 more. Click to view details
                                GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 246028
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for Taiwan- -Reduced consumption- -Applicable for F1 gearbox- -Applicable from engine No. 122779-
                                from £1,032.51
                                from £1,032.51
                                This part replaces part number 243624 - and 1 more. Click to view details
                                GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 246029
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for USA, CDN- -Applicable up to Ass. No. 86364- -Applicable for F1 gearbox- -Applicable from engine No. 138822- -Applicable after depletion of 244133-
                                from £1,112.69
                                from £1,112.69
                                This part replaces part number 244133
                                GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 246030
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for J- -Applicable for F1 gearbox- -Applicable from engine No. 138822- -Applicable after depletion of 244134-
                                from £916.73
                                from £916.73
                                This part replaces part number 244134
                                ELECTRONICALLY CONTROLLED GEARBOX ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 249131
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Reduced consumption- -Applicable for USA LIGHT- -Applicable for F1 gearbox- -Applicable from engine No. 138822- -Applicable after depletion of 244133-
                                from £1,262.25
                                from £1,262.25
                                ELECTRONICALLY CONTROLLED GEARBOX ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 258643
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for HGTE version- -Not for USA, CDN, J-
                                from £815.80
                                from £815.80
                                GEARBOX CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 258644
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for HGTE version- -Applicable for J-
                                from £815.80
                                from £815.80
                                GEARBOX CONTROL UNIT -VALID Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 258645
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable from MY 10- -Applicable for HGTE version- -Applicable for USA, CDN- -Applicable from Ass. No. 86365- -Applicable for F1 gearbox-
                                from £815.80
                                from £815.80
                                GEARBOX CONTROL UNIT -VALID Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 258646
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for HGTE version- -Applicable for USA LIGHT- -Applicable from Ass. No. 86365- -Applicable for F1 gearbox-
                                from £815.80
                                from £815.80
                                ELECTRONICALLY CONTROLLED GEARBOX ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 259671
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for USA, CDN- -Applicable from Ass. No. 86365- -Applicable for F1 gearbox-
                                from £1,202.15
                                from £1,202.15
                                ELECTRONICALLY CONTROLLED GEARBOX ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 260392
                                ELECTRONICALLY CONTROLLED GEARBOX ECU
                                -Applicable for USA LIGHT- -Applicable from Ass. No. 86365- -Applicable for F1 gearbox-
                                from £1,202.15
                                from £1,202.15
                                ELECTRONICALLY CONTROLLED GEARBOX ECU Genuine Ferrari Part - New (to order)
                                # 002
                                MPN: 191530
                                F1 ECU MOUNTING BRACKET
                                -Applicable for F1 gearbox-
                                from £10.92
                                from £10.92
                                F1 CONTROL STATION SUPPORTIN Genuine Ferrari Part - New (to order)
                                # 003
                                MPN: 14059214
                                NUT
                                -Applicable for F1 gearbox-
                                from £0.53
                                from £0.53
                                NUT. Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New (to order)
                                # 004
                                MPN: 12620374
                                WASHER
                                -Applicable for F1 gearbox-
                                from £0.53
                                from £0.53
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER FOR EXTERIOR COWL Genuine Maserati Part - New (to order)
                                # 005
                                MPN: 216484
                                SUSPENSION ECU
                                -Standard-
                                from £552.30
                                from £552.30
                                SUSPENSIONS CONTROL STATION Genuine Ferrari Part - New In stock
                                SUSPENSIONS CONTROL STATION Genuine Ferrari Part - Used In stock
                                # 005
                                MPN: 256955
                                SUSPENSION ECU
                                -Applicable for HGTE and HGTE 60 F1 versions-
                                from £1,449.94
                                from £1,449.94
                                CONTROL UNIT Genuine Ferrari Part - New (to order)
                                # 006
                                MPN: 204789
                                ECU MOUNTING BRACKET
                                from £35.32
                                from £35.32
                                BRACKET Genuine Ferrari Part - New In stock
                                # 007
                                MPN: 14304324
                                SCREW
                                from £0.65
                                from £0.65
                                SCREW Genuine Ferrari Part - New In stock
                                SCREW Genuine Maserati Part - New (to order)
                                # 008
                                MPN: 12637824
                                WASHER
                                from £0.53
                                from £0.53
                                This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER FOR CENTER CONSOLE Genuine Maserati Part - New (to order)
                                # 009
                                MPN: 13604115
                                SHIM
                                from £0.81
                                from £0.81
                                This part replaces part number 13604111
                                SPACER Genuine Ferrari Part - New In stock
                                SPACER Genuine Maserati Part - New (to order)
                                # 010
                                MPN: 14039614
                                NUT
                                from £0.53
                                from £0.53
                                NUT Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New In stock
                                # 011
                                MPN: 204761
                                ECU FASTENER BRACKET
                                -Parking sensors- -After depletion order compl. ref. 28- -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 012
                                MPN: 212304
                                PARKING SENSOR NODE
                                -Parking sensors- -Applicable until depletion-
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 013
                                MPN: 14059214
                                NUT
                                -Parking sensors- -No longer supplied-
                                from £0.53
                                from £0.53
                                NUT. Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New (to order)
                                # 013
                                MPN: 15896411
                                NUT
                                -Parking sensors- -No longer supplied- -Replaced by 14059214-
                                Supersession
                                Supersession
                                This part replaces part number 15896401
                                Genuine Ferrari Part (no longer available to order)
                                Genuine Maserati Part (no longer available to order)
                                # 014
                                MPN: 12620474
                                WASHER
                                -Parking sensors- -No longer supplied-
                                from £0.54
                                from £0.54
                                This part replaces part number 12620479 - and 1 more. Click to view details
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER Genuine Maserati Part - New In stock
                                # 014
                                MPN: 13579101
                                WASHER
                                -Parking sensors- -No longer supplied- -Replaced by 12620474-
                                from £0.47
                                from £0.47
                                WASHER. Genuine Ferrari Part - New (to order)
                                WASHER Genuine Maserati Part - New In stock
                                # 016
                                MPN: 14059214
                                NUT
                                from £0.53
                                from £0.53
                                NUT. Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New (to order)
                                # 017
                                MPN: 204762
                                FUSE BRACKET
                                from £30.19
                                from £30.19
                                BRACKET Genuine Ferrari Part - New (to order)
                                # 018
                                MPN: 13274114
                                SCREW
                                from £0.71
                                from £0.71
                                This part replaces part number 13274111 which we have in stock
                                SCREW 5X14 Genuine Ferrari Part - New (to order)
                                # 019
                                MPN: 13579106
                                WASHER
                                from £0.71
                                from £0.71
                                WASHER Genuine Ferrari Part - New (to order)
                                # 020
                                MPN: 15896214
                                NUT
                                from £0.47
                                from £0.47
                                This part replaces part number 15896211
                                NUT Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New In stock
                                # 021
                                MPN: 14059111
                                NUT
                                from £0.53
                                from £0.53
                                NUT Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New In stock
                                # 022
                                MPN: 12620374
                                WASHER
                                from £0.53
                                from £0.53
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER FOR EXTERIOR COWL Genuine Maserati Part - New (to order)
                                # 023
                                MPN: 228646
                                F1 PUMP RELAY
                                -No longer supplied- -Replaced by 233100-
                                from £23.58
                                from £23.58
                                RELAY 50 A. Genuine Ferrari Part - New In stock
                                RELE' 12V 50A Genuine Maserati Part - New (to order)
                                # 023
                                MPN: 233100
                                F1 PUMP RELAY
                                from £6.14
                                from £6.14
                                RELAY 50 AMP Genuine Ferrari Part - New In stock
                                RELAY 50 AMP, 12V Genuine Maserati Part - New (to order)
                                # 024
                                MPN: 125516
                                WASHER
                                from £2.63
                                from £2.63
                                WASHER Genuine Ferrari Part - New (to order)
                                STUD-3/8 UNF/C X4.35 Genuine Aston Martin - New (to order)
                                # 025
                                MPN: 14497701
                                WASHER
                                from £0.53
                                from £0.53
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER Genuine Maserati Part - New (to order)
                                # 026
                                MPN: 10721911
                                NUT
                                from £0.47
                                from £0.47
                                NUT Genuine Ferrari Part - New In stock
                                # 027
                                MPN: 16285127
                                SCREW
                                -M5 X 16-
                                from £0.53
                                from £0.53
                                SCREW Genuine Ferrari Part - New In stock
                                # 028
                                MPN: 222661
                                COMPL. ECU MOUNTING BRACKET
                                -Parking sensors-
                                from £227.07
                                from £227.07
                                This part replaces part number 204761 - and 1 more. Click to view details
                                CONTROL UNIT FIXING BRACKET Genuine Ferrari Part - New (to order)
