ferrari 599 gto (usa) doors - opening mechanism and hinges parts diagram

0118 - DOORS - OPENING MECHANISM AND HINGES

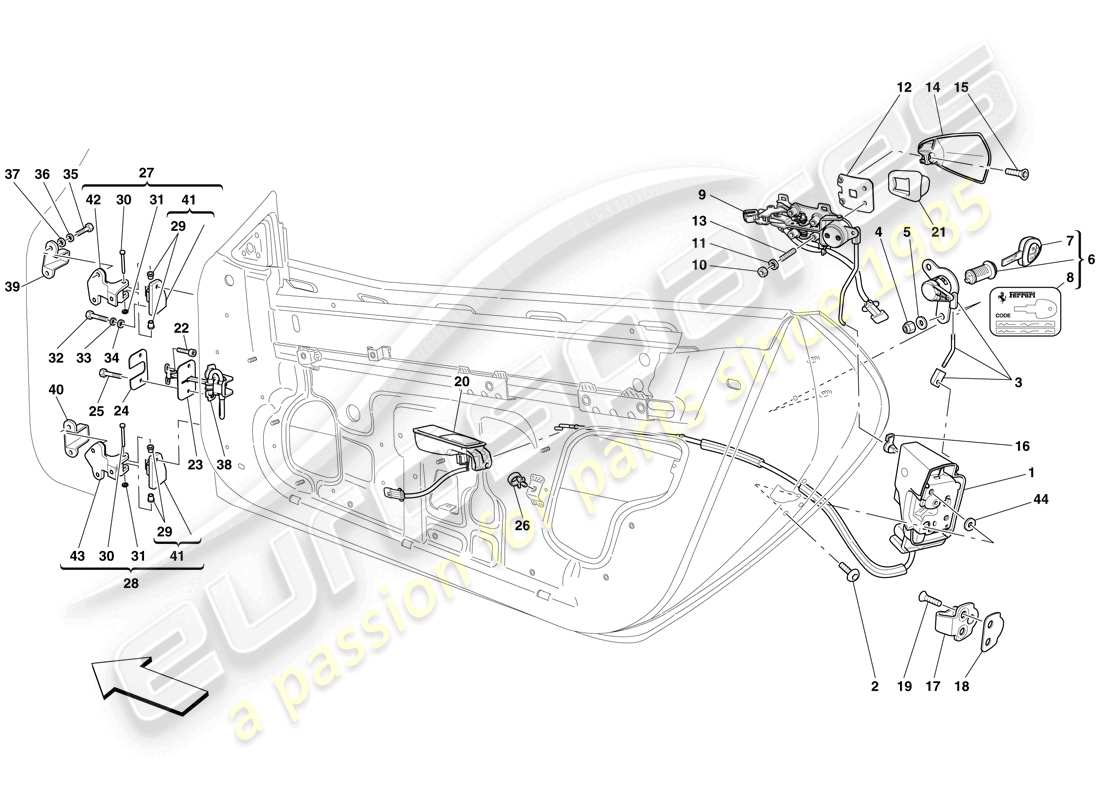

Ferrari 599 GTO (USA) DOORS - OPENING MECHANISM AND HINGES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 67935400
                                                                              RH DOOR LOCK
                                                                              from £92.31
                                                                              from £92.31
                                                                              This part replaces part number 69353000 which we have in stock - and 2 more. Click to view details
                                                                              # 001
                                                                              MPN: 67935500
                                                                              LH DOOR LOCK
                                                                              from £92.31
                                                                              from £92.31
                                                                              This part replaces part number 69353100 which we have in stock - and 2 more. Click to view details
                                                                              # 001
                                                                              MPN: 69353000
                                                                              RH DOOR LOCK
                                                                              -No longer supplied- -Replaced by 67935400-
                                                                              from £78.40
                                                                              from £78.40
                                                                              # 001
                                                                              MPN: 69353100
                                                                              LH DOOR LOCK
                                                                              -No longer supplied- -Replaced by 67935500-
                                                                              from £78.35
                                                                              from £78.35
                                                                              # 002
                                                                              MPN: 67077900
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 003
                                                                              MPN: 67130400
                                                                              RH CONTROL LINKAGE
                                                                              from £92.36
                                                                              from £92.36
                                                                              # 003
                                                                              MPN: 67130500
                                                                              LH CONTROL LINKAGE
                                                                              from £92.36
                                                                              from £92.36
                                                                              # 004
                                                                              MPN: 13046011
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 005
                                                                              MPN: 13577724
                                                                              WASHER
                                                                              from £1.00
                                                                              from £1.00
                                                                              # 006
                                                                              MPN: 223867
                                                                              COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS
                                                                              from £771.88
                                                                              from £771.88
                                                                              # 007
                                                                              MPN: 227551
                                                                              UNCODED KEY
                                                                              from £348.94
                                                                              from £348.94
                                                                              # 008
                                                                              MPN: 153603
                                                                              Ferrari CODE CARD
                                                                              from £33.89
                                                                              from £33.89
                                                                              This part replaces part number 194003
                                                                              # 009
                                                                              MPN: 67129600
                                                                              RH EXTERNAL HANDLE
                                                                              from £301.85
                                                                              from £301.85
                                                                              # 009
                                                                              MPN: 67129700
                                                                              LH EXTERNAL HANDLE
                                                                              from £301.85
                                                                              from £301.85
                                                                              # 010
                                                                              MPN: 10721910
                                                                              NUT
                                                                              from £0.76
                                                                              from £0.76
                                                                              # 011
                                                                              MPN: 13550078
                                                                              WASHER
                                                                              from £0.48
                                                                              from £0.48
                                                                              # 012
                                                                              MPN: 64659500
                                                                              PLATE
                                                                              from £19.14
                                                                              from £19.14
                                                                              # 012
                                                                              MPN: 69960100
                                                                              PLATE
                                                                              -Installed if necessary-
                                                                              from £4.72
                                                                              from £4.72
                                                                              # 013
                                                                              MPN: 67447300
                                                                              STUD BOLT
                                                                              from £22.59
                                                                              from £22.59
                                                                              # 014
                                                                              MPN: 67130210
                                                                              EXTERNAL DOOR HANDLE
                                                                              from £23.73
                                                                              from £23.73
                                                                              This part replaces part number 67130200 - and 1 more. Click to view details
                                                                              # 015
                                                                              MPN: 64214600
                                                                              SCREW
                                                                              from £1.31
                                                                              from £1.31
                                                                              # 016
                                                                              MPN: 14569480
                                                                              CLIP
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 81580800
                                                                              # 017
                                                                              MPN: 68308800
                                                                              STRIKER PLATE
                                                                              from £5.76
                                                                              from £5.76
                                                                              This part replaces part number 67877100 - and 5 more. Click to view details
                                                                              # 018
                                                                              MPN: 69718300
                                                                              SHIM
                                                                              from £4.72
                                                                              from £4.72
                                                                              # 019
                                                                              MPN: 14442434
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 020
                                                                              MPN: 68559400
                                                                              RH INNER DOOR HANDLE
                                                                              from £81.63
                                                                              from £81.63
                                                                              This part replaces part number 67108300 - and 7 more. Click to view details
                                                                              # 020
                                                                              MPN: 68559500
                                                                              LH INNER DOOR HANDLE
                                                                              from £69.22
                                                                              from £69.22
                                                                              This part replaces part number 67108400 - and 7 more. Click to view details
                                                                              # 021
                                                                              MPN: 69866000
                                                                              HANDLE SEAL
                                                                              from £57.74
                                                                              from £57.74
                                                                              # 022
                                                                              MPN: 13027024
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 023
                                                                              MPN: 67440800
                                                                              GASKET
                                                                              from £12.69
                                                                              from £12.69
                                                                              # 024
                                                                              MPN: 67440700
                                                                              PLATE
                                                                              from £18.26
                                                                              from £18.26
                                                                              # 025
                                                                              MPN: 67926800
                                                                              SCREW
                                                                              from £8.15
                                                                              from £8.15
                                                                              # 026
                                                                              MPN: 14569880
                                                                              CLIP
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 027
                                                                              MPN: 69124700
                                                                              COMPLETE UPPER RH HINGE
                                                                              -Applicable until depletion-
                                                                              from £79.28
                                                                              from £79.28
                                                                              # 027
                                                                              MPN: 69124800
                                                                              COMPLETE UPPER LH HINGE
                                                                              -Applicable until depletion-
                                                                              from £79.28
                                                                              from £79.28
                                                                              # 028
                                                                              MPN: 69124900
                                                                              COMPLETE LOWER RH HINGE
                                                                              -Applicable until depletion-
                                                                              from £79.28
                                                                              from £79.28
                                                                              # 028
                                                                              MPN: 69125000
                                                                              COMPLETE LOWER LH HINGE
                                                                              -Applicable until depletion-
                                                                              from £178.77
                                                                              from £178.77
                                                                              # 029
                                                                              MPN: 62825300
                                                                              BUSHING
                                                                              from £18.10
                                                                              from £18.10
                                                                              # 030
                                                                              MPN: 67332700
                                                                              PIN
                                                                              from £8.11
                                                                              from £8.11
                                                                              # 031
                                                                              MPN: 11087974
                                                                              RING
                                                                              from £0.48
                                                                              from £0.48
                                                                              This part replaces part number 11087976
                                                                              # 032
                                                                              MPN: 16043934
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16043921 - and 1 more. Click to view details
                                                                              # 033
                                                                              MPN: 12601377
                                                                              WASHER
                                                                              from £0.84
                                                                              from £0.84
                                                                              # 034
                                                                              MPN: 14496524
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14496525 - and 1 more. Click to view details
                                                                              # 035
                                                                              MPN: 16043834
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 16043824
                                                                              # 036
                                                                              MPN: 12601377
                                                                              WASHER
                                                                              from £0.84
                                                                              from £0.84
                                                                              # 037
                                                                              MPN: 14496524
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 14496525 - and 1 more. Click to view details
                                                                              # 038
                                                                              MPN: 67105900
                                                                              DOOR ARRESTER TIE-ROD
                                                                              from £22.06
                                                                              from £22.06
                                                                              # 039
                                                                              MPN: 69358300
                                                                              RH UPPER FRONT REINFORCEMENT
                                                                              -Applicable for USA, CDN-
                                                                              from £17.32
                                                                              from £17.32
                                                                              # 039
                                                                              MPN: 69358400
                                                                              LH UPPER FRONT REINFORCEMENT
                                                                              -Applicable for USA, CDN-
                                                                              from £33.50
                                                                              from £33.50
                                                                              # 040
                                                                              MPN: 69358500
                                                                              RH LOWER FRONT REINFORCEMENT
                                                                              -Applicable for USA, CDN-
                                                                              from £17.32
                                                                              from £17.32
                                                                              # 040
                                                                              MPN: 69358600
                                                                              LH LOWER FRONT REINFORCEMENT
                                                                              -Applicable for USA, CDN-
                                                                              from £33.50
                                                                              from £33.50
                                                                              # 041
                                                                              MPN: 80205400
                                                                              RH MOBILE DOOR HINGE
                                                                              from £205.22
                                                                              from £205.22
                                                                              # 041
                                                                              MPN: 80205500
                                                                              LH MOBILE DOOR HINGE
                                                                              from £205.22
                                                                              from £205.22
                                                                              # 042
                                                                              MPN: 68055900
                                                                              UPPER RH FIXED DOOR HINGE
                                                                              from £153.91
                                                                              from £153.91
                                                                              # 042
                                                                              MPN: 68056000
                                                                              UPPER LH FIXED DOOR HINGE
                                                                              from £153.91
                                                                              from £153.91
                                                                              # 043
                                                                              MPN: 68552900
                                                                              LOWER RH FIXED DOOR HINGE
                                                                              # 043
                                                                              MPN: 68553000
                                                                              LOWER LH FIXED DOOR HINGE
                                                                              # 044
                                                                              MPN: 12644478
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
