0016 - AIR INTAKE

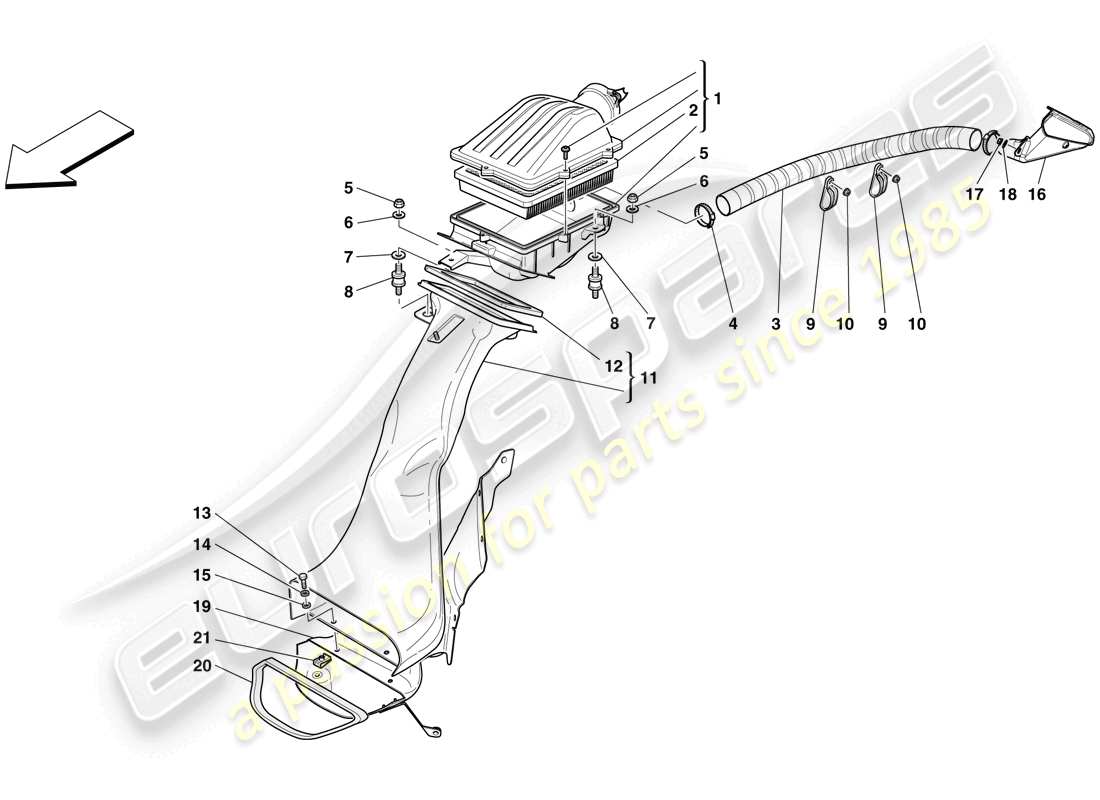

Ferrari 599 SA Aperta (Europe) AIR INTAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 258764
                                          COMPLETE RH AIR INTAKE
                                          from £807.18
                                          from £807.18
                                          # 001
                                          MPN: 258766
                                          COMPLETE LH AIR INTAKE
                                          from £615.87
                                          from £615.87
                                          # 002
                                          MPN: 223039
                                          AIR FILTER
                                          from £56.49
                                          from £56.49
                                          # 003
                                          MPN: 219439
                                          RESONATOR PIPE
                                          from £86.60
                                          from £86.60
                                          # 004
                                          MPN: 13000790
                                          SCREW COLLAR
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12173190 - and 1 more. Click to view details
                                          # 005
                                          MPN: 14054513
                                          NUT
                                          -Outer side-
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 15896214
                                          NUT
                                          -Inner side-
                                          from £0.54
                                          from £0.54
                                          This part replaces part number 15896211
                                          # 006
                                          MPN: 127494
                                          WASHER
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                          # 007
                                          MPN: 12643724
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 109684 - and 4 more. Click to view details
                                          # 008
                                          MPN: 142202
                                          VIBRATION DAMPER
                                          from £14.43
                                          from £14.43
                                          # 009
                                          MPN: 219472
                                          BRACKET WITH SHEATH
                                          Supersession
                                          Supersession
                                          # 010
                                          MPN: 14059214
                                          NUT
                                          from £0.47
                                          from £0.47
                                          # 011
                                          MPN: 220613
                                          RH INTAKE DUCT
                                          from £189.20
                                          from £189.20
                                          # 011
                                          MPN: 220614
                                          LH INTAKE DUCT
                                          from £189.20
                                          from £189.20
                                          # 012
                                          MPN: 197983

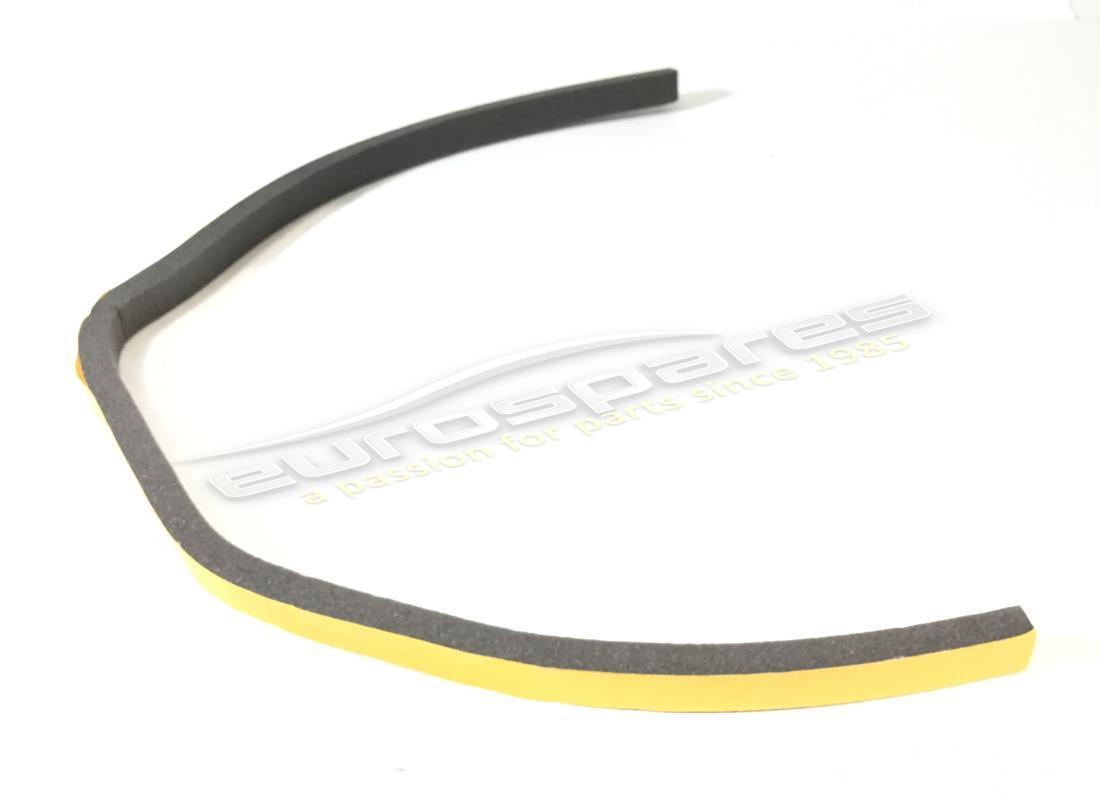

                                          GASKET
                                          from £0.63
                                          from £0.63
                                          # 013
                                          MPN: 10902524
                                          SCREW
                                          from £0.51
                                          from £0.51
                                          # 014
                                          MPN: 12624178
                                          WASHER
                                          from £0.51
                                          from £0.51
                                          This part replaces part number 12624177
                                          # 015
                                          MPN: 12644424
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12644401 - and 1 more. Click to view details
                                          # 016
                                          MPN: 69014400

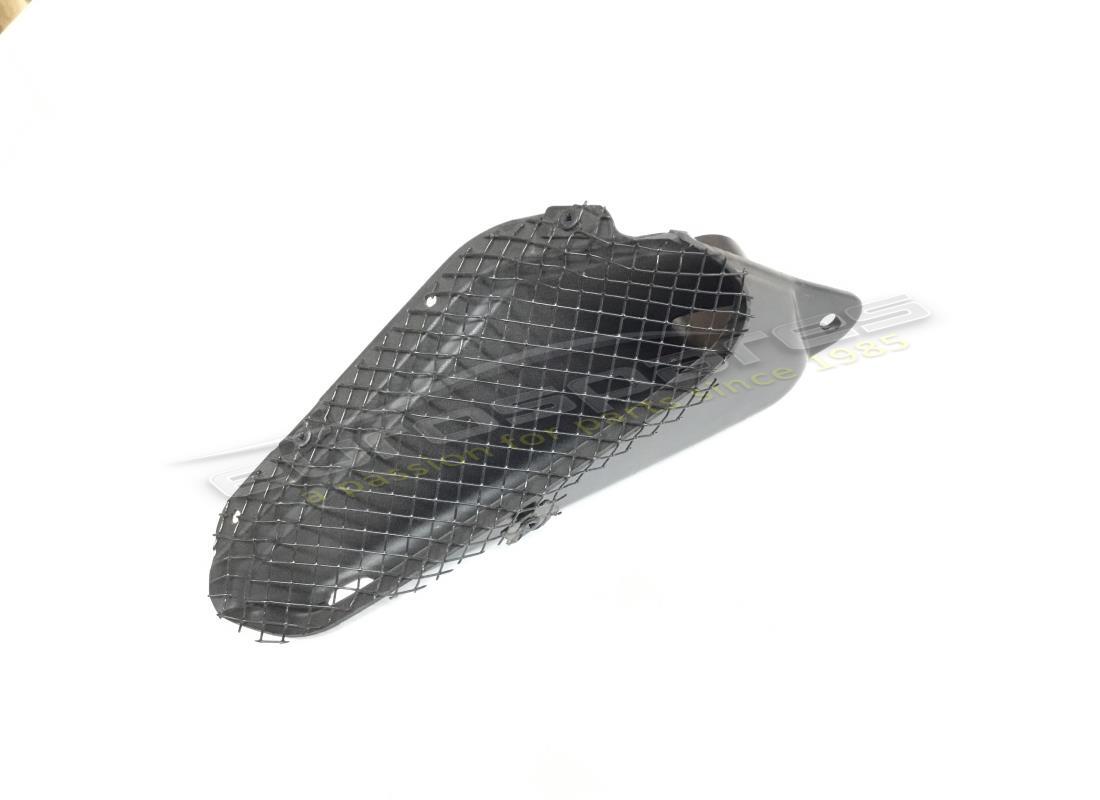

                                          RH AIR DUCT
                                          from £81.16
                                          from £81.16
                                          # 016
                                          MPN: 69014500

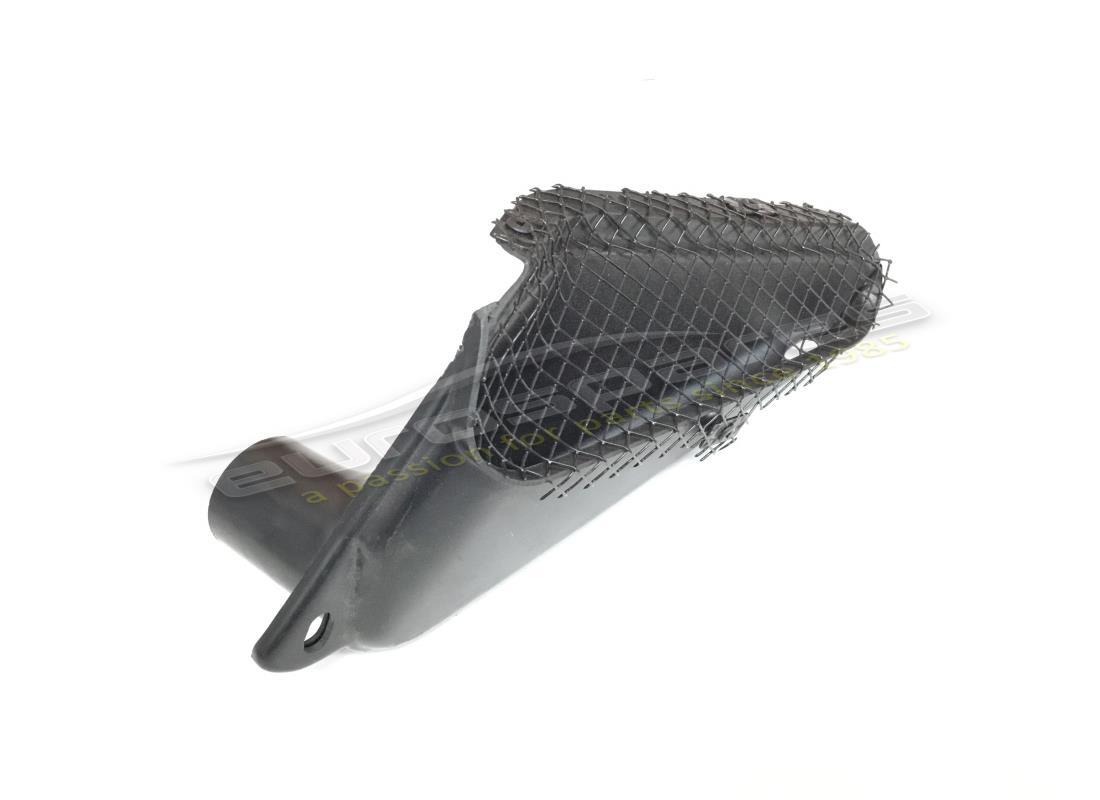

                                          LH AIR DUCT
                                          from £81.16
                                          from £81.16
                                          # 017
                                          MPN: 14059214
                                          NUT
                                          from £0.47
                                          from £0.47
                                          # 018
                                          MPN: 12601274
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12601221 - and 5 more. Click to view details
                                          # 019
                                          MPN: 68785000
                                          RH BRAKE AIR DUCT
                                          from £220.29
                                          from £220.29
                                          # 019
                                          MPN: 68785100
                                          LH BRAKE AIR DUCT
                                          from £220.29
                                          from £220.29
                                          # 020
                                          MPN: 80214700
                                          GASKET
                                          from £102.06
                                          from £102.06
                                          This part replaces part number 69365200
                                          # 021
                                          MPN: 66927700
                                          BRACKET WITH COLLAR
                                          from £0.75
                                          from £0.75
