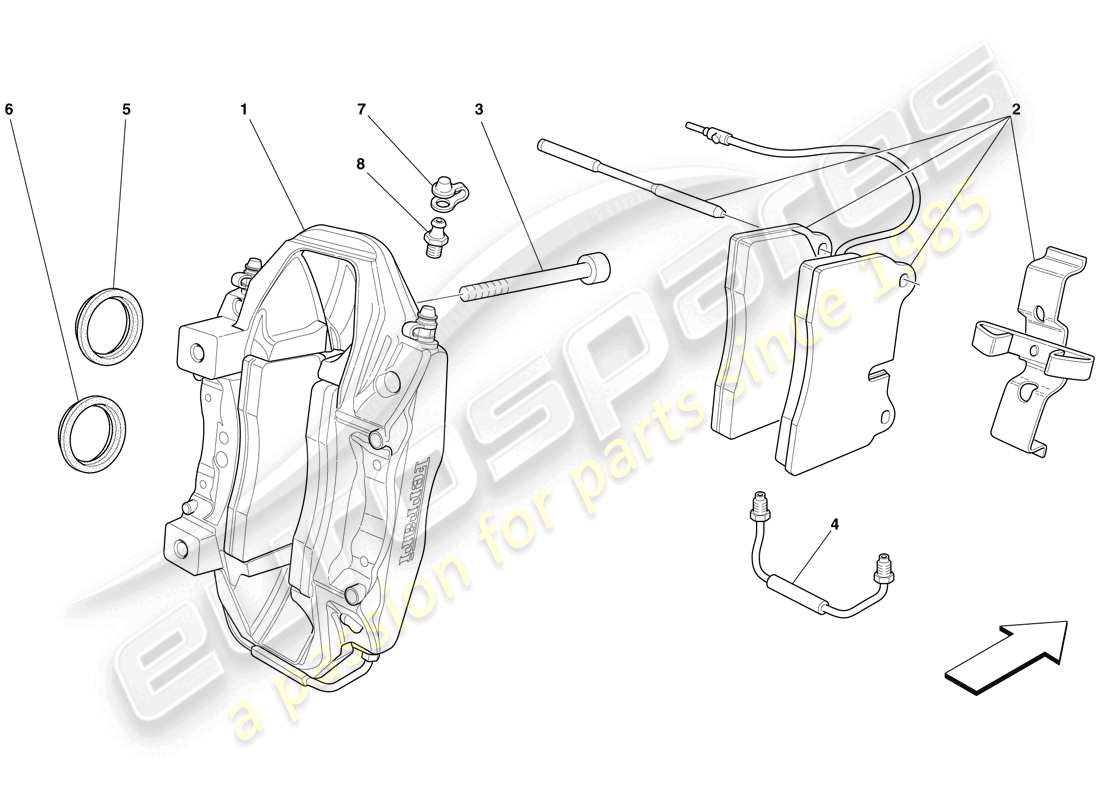

0038 - REAR BRAKE CALLIPER

Ferrari 599 SA Aperta (Europe) REAR BRAKE CALLIPER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 227809
            REAR LH CALIPER WITH PADS
            -Black-
            from £1,510.52
            from £1,510.52
            This part replaces part number 216829
            # 001
            MPN: 227810
            REAR RH CALIPER WITH PADS
            -Black-
            from £1,510.52
            from £1,510.52
            This part replaces part number 216830
            # 001
            MPN: 227811
            REAR LH CALIPER WITH PADS
            -Red-
            from £704.15
            from £704.15
            This part replaces part number 219249 - and 1 more. Click to view details
            # 001
            MPN: 227812
            REAR RH CALIPER WITH PADS
            -Red-
            from £830.79
            from £830.79
            This part replaces part number 219250 - and 1 more. Click to view details
            # 001
            MPN: 227813
            REAR LH CALIPER WITH PADS
            -Grey-
            from £1,510.52
            from £1,510.52
            This part replaces part number 219251
            # 001
            MPN: 227814
            REAR RH CALIPER WITH PADS
            -Grey-
            from £1,280.28
            from £1,280.28
            This part replaces part number 219252
            # 001
            MPN: 227815
            REAR LH CALIPER WITH PADS
            -Modena Yellow-
            from £1,510.52
            from £1,510.52
            This part replaces part number 219253
            # 001
            MPN: 227816
            REAR RH CALIPER WITH PADS
            -Modena Yellow-
            from £830.79
            from £830.79
            This part replaces part number 219254 - and 1 more. Click to view details
            # 001
            MPN: 234576
            REAR LH CALIPER WITH PADS
            -Scuderia Red-
            from £1,280.28
            from £1,280.28
            This part replaces part number 219255
            # 001
            MPN: 234577
            REAR RH CALIPER WITH PADS
            -Scuderia Red-
            from £1,280.28
            from £1,280.28
            This part replaces part number 219256
            # 001
            MPN: 248522
            REAR RH CALIPER WITH PADS
            -Anodised Black-
            # 001
            MPN: 248523
            REAR LH CALIPER WITH PADS
            -Anodised Black-
            # 002
            MPN: 70001120
            REAR PAD SET WITH SPRING
            from £657.81
            from £657.81
            # 003
            MPN: 196837
            SCREW
            from £5.63
            from £5.63
            This part replaces part number 217656 - and 1 more. Click to view details
            # 004
            MPN: 203992
            LH CONNECTOR PIPE
            from £40.33
            from £40.33
            # 004
            MPN: 203993
            RH CONNECTOR PIPE
            from £40.33
            from £40.33
            # 005
            MPN: 207222
            CYLINDER CAP RING
            -D. 32-
            from £17.72
            from £17.72
            # 006
            MPN: 152953
            CYLINDER CAP RING
            -D. 36-
            from £15.82
            from £15.82
            # 007
            MPN: 215666
            CAP
            from £17.23
            from £17.23
            # 008
            MPN: 152954
            BLEED SCREW
            from £3.18
            from £3.18
            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
