0039 - PARKING BRAKE CONTROL

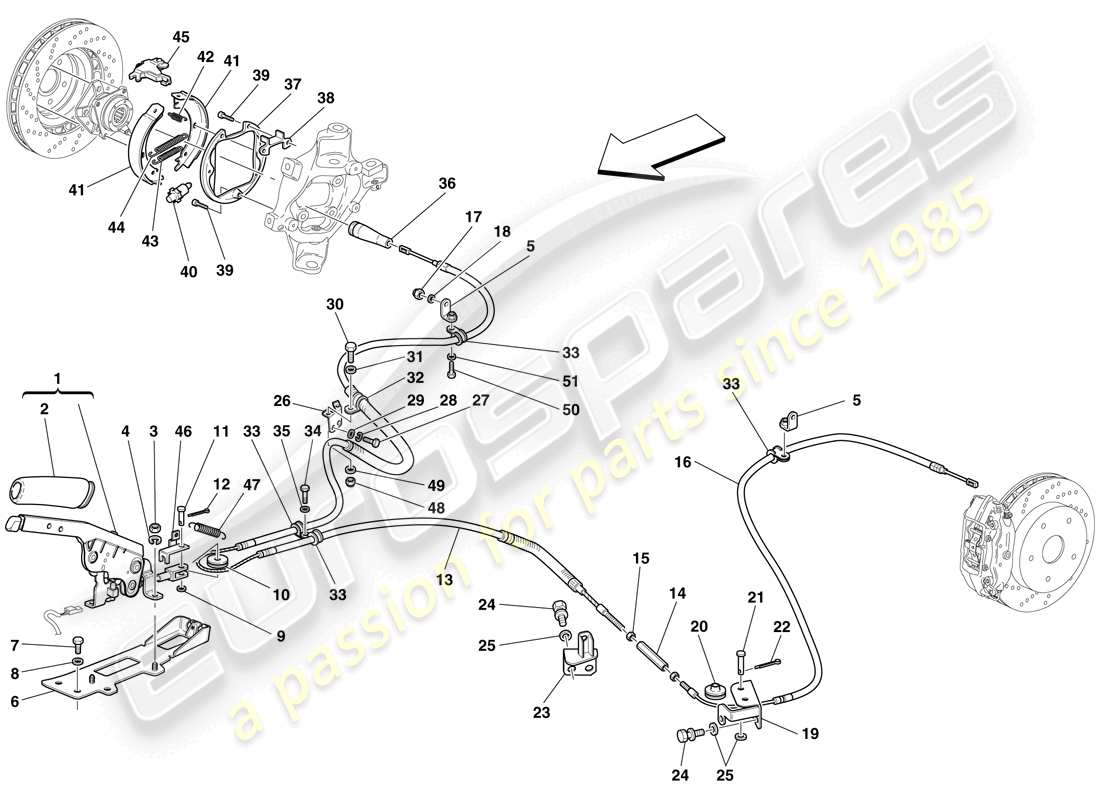

Ferrari 599 SA Aperta (Europe) PARKING BRAKE CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 80769100
                                                                                            COMPL. PARKING BRAKE LEVER
                                                                                            -STC1- -STC2-
                                                                                            from £445.94
                                                                                            from £445.94
                                                                                            This part replaces part number 807691.. which we have in stock - and 3 more. Click to view details
                                                                                            # 002
                                                                                            MPN: 197229
                                                                                            GRIP FOR LEVER
                                                                                            -Not supplied- -Supplied with 80769100 ref. 1-
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 003
                                                                                            MPN: 14058519
                                                                                            NUT
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 004
                                                                                            MPN: 10519624
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                            # 005
                                                                                            MPN: 142060
                                                                                            BRACKET
                                                                                            from £3.42
                                                                                            from £3.42
                                                                                            # 006
                                                                                            MPN: 263205
                                                                                            LEVER MOUNTING
                                                                                            -Not for GD-
                                                                                            from £62.93
                                                                                            from £62.93
                                                                                            # 006
                                                                                            MPN: 263721
                                                                                            LEVER MOUNTING
                                                                                            -Applicable for GD-
                                                                                            from £139.85
                                                                                            from £139.85
                                                                                            # 007
                                                                                            MPN: 16287024
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 008
                                                                                            MPN: 12602474
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 11270074
                                                                                            # 009
                                                                                            MPN: 12601374
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                            # 010
                                                                                            MPN: 122091
                                                                                            PULLEY
                                                                                            from £4.17
                                                                                            from £4.17
                                                                                            # 011
                                                                                            MPN: 10050814
                                                                                            FLAT-HEAD PIN
                                                                                            from £1.29
                                                                                            from £1.29
                                                                                            This part replaces part number 10050811
                                                                                            # 012
                                                                                            MPN: 10734301
                                                                                            SPLIT PIN
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 013
                                                                                            MPN: 216243
                                                                                            PARKING BRAKE CABLE
                                                                                            -Applicable for GD-
                                                                                            from £69.54
                                                                                            from £69.54
                                                                                            # 013
                                                                                            MPN: 228113
                                                                                            PARKING BRAKE CABLE
                                                                                            -Not for GD-
                                                                                            from £21.87
                                                                                            from £21.87
                                                                                            This part replaces part number 222211 - and 1 more. Click to view details
                                                                                            # 014
                                                                                            MPN: 10091014
                                                                                            ADJUSTER SLEEVE
                                                                                            from £46.19
                                                                                            from £46.19
                                                                                            This part replaces part number 10091011
                                                                                            # 015
                                                                                            MPN: 10727314
                                                                                            NUT
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 10727311
                                                                                            # 016
                                                                                            MPN: 228114
                                                                                            LH HANDBRAKE CABLE
                                                                                            from £92.01
                                                                                            from £92.01
                                                                                            This part replaces part number 222209
                                                                                            # 017
                                                                                            MPN: 169180
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12574121
                                                                                            # 018
                                                                                            MPN: 12638178
                                                                                            WASHER
                                                                                            -Carbon version-
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                            # 019
                                                                                            MPN: 198391
                                                                                            BRACKET
                                                                                            from £11.40
                                                                                            from £11.40
                                                                                            # 020
                                                                                            MPN: 176261
                                                                                            PULLEY
                                                                                            from £26.45
                                                                                            from £26.45
                                                                                            # 021
                                                                                            MPN: 10041214
                                                                                            FLAT-HEAD PIN
                                                                                            from £1.51
                                                                                            from £1.51
                                                                                            # 022
                                                                                            MPN: 10734208
                                                                                            SPLIT PIN
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 10734201
                                                                                            # 023
                                                                                            MPN: 198392
                                                                                            BRACKET
                                                                                            from £10.69
                                                                                            from £10.69
                                                                                            # 024
                                                                                            MPN: 16287024
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 025
                                                                                            MPN: 12646724
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601571 - and 3 more. Click to view details
                                                                                            # 026
                                                                                            MPN: 222210
                                                                                            RH BRACKET
                                                                                            from £17.89
                                                                                            from £17.89
                                                                                            # 027
                                                                                            MPN: 11668934
                                                                                            SCREW
                                                                                            from £3.88
                                                                                            from £3.88
                                                                                            # 028
                                                                                            MPN: 12646724
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601571 - and 3 more. Click to view details
                                                                                            # 029
                                                                                            MPN: 10571779
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 030
                                                                                            MPN: 10902224
                                                                                            SCREW
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 031
                                                                                            MPN: 12605374
                                                                                            WASHER
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                                            # 032
                                                                                            MPN: 10441490
                                                                                            BRACKET WITH SHEATH
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 033
                                                                                            MPN: 10441290
                                                                                            BRACKET WITH SHEATH
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 033
                                                                                            MPN: 10441390
                                                                                            BRACKET WITH SHEATH
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 034
                                                                                            MPN: 16285127
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 035
                                                                                            MPN: 12601174
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                            # 036
                                                                                            MPN: 192721
                                                                                            CABLE SLEEVE
                                                                                            from £46.56
                                                                                            from £46.56
                                                                                            # 037
                                                                                            MPN: 186574
                                                                                            BRAKE SHOE MOUNTING PLATE
                                                                                            from £43.14
                                                                                            from £43.14
                                                                                            # 038
                                                                                            MPN: 190814
                                                                                            GUIDE
                                                                                            from £37.66
                                                                                            from £37.66
                                                                                            # 039
                                                                                            MPN: 190870
                                                                                            SCREW
                                                                                            from £1.15
                                                                                            from £1.15
                                                                                            # 041
                                                                                            MPN: 206885
                                                                                            COMPLETE BRAKE SHOE
                                                                                            from £69.08
                                                                                            from £69.08
                                                                                            This part replaces part number 194876 - and 1 more. Click to view details
                                                                                            # 042
                                                                                            MPN: 190780
                                                                                            SPRING
                                                                                            from £1.71
                                                                                            from £1.71
                                                                                            # 043
                                                                                            MPN: 190779
                                                                                            SPRING
                                                                                            from £1.86
                                                                                            from £1.86
                                                                                            # 044
                                                                                            MPN: 190776
                                                                                            SPRING
                                                                                            from £9.57
                                                                                            from £9.57
                                                                                            # 045
                                                                                            MPN: 234658
                                                                                            Handbrake Lever
                                                                                            from £42.44
                                                                                            from £42.44
                                                                                            This part replaces part number 194060 - and 1 more. Click to view details
                                                                                            # 046
                                                                                            MPN: 234067
                                                                                            BRACKET
                                                                                            from £14.76
                                                                                            from £14.76
                                                                                            # 047
                                                                                            MPN: 101305
                                                                                            PEDAL RETURN SPRING
                                                                                            from £8.15
                                                                                            from £8.15
                                                                                            This part replaces part number 660343
                                                                                            # 048
                                                                                            MPN: 102741
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                            # 049
                                                                                            MPN: 14499324
                                                                                            WASHER
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 14499301 which we have in stock
                                                                                            # 050
                                                                                            MPN: 10902224
                                                                                            SCREW
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            # 051
                                                                                            MPN: 127494
                                                                                            WASHER
                                                                                            from £0.53
                                                                                            from £0.53
                                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
