0101 - BODYSHELL - ROOF

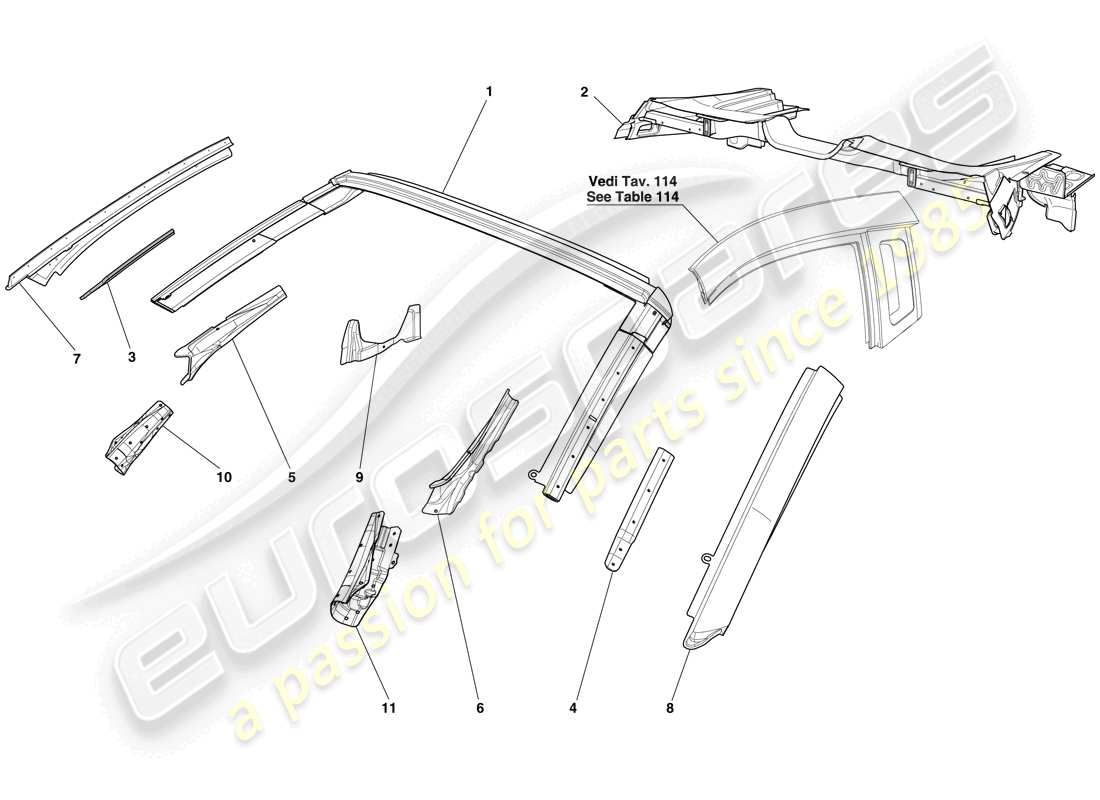

Ferrari 599 SA Aperta (Europe) BODYSHELL - ROOF Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 83106311
                        COMPL. WINDSCREEN SURROUND
                        from £2,984.77
                        from £2,984.77
                        # 002
                        MPN: 83106411
                        COMPL. TONNEAU COVER
                        from £5,572.84
                        from £5,572.84
                        # 003
                        MPN: 83166900
                        RH UPPER REINFORCEMENT
                        from £1,222.43
                        from £1,222.43
                        This part replaces part number 83166911
                        # 004
                        MPN: 83166800
                        LH UPPER REINFORCEMENT
                        from £1,222.43
                        from £1,222.43
                        This part replaces part number 83166811
                        # 005
                        MPN: 82989200
                        RH WINDSCREEN PILLAR BRACE
                        This part replaces part number 82989211
                        # 006
                        MPN: 82989100
                        LH WINDSCREEN PILLAR BRACE
                        This part replaces part number 82989111
                        # 007
                        MPN: 68042311
                        RH PILLAR TRIM
                        from £252.35
                        from £252.35
                        This part replaces part number 68042300
                        # 008
                        MPN: 68042411
                        LH PILLAR TRIM
                        from £252.35
                        from £252.35
                        This part replaces part number 68042400
                        # 009
                        MPN: 83118011
                        LH INTERNAL BRACKET
                        # 009
                        MPN: 83118111
                        RH INTERNAL BRACKET
                        # 010
                        MPN: 274893
                        RH LOWER CURVED REINFORCEMENT
                        from £240.09
                        from £240.09
                        # 011
                        MPN: 274890
                        LH LOWER CURVED REINFORCEMENT
                        from £240.09
                        from £240.09
