![ferrari 599 sa aperta (rhd) left hand cylinder head parts diagram](/img/CxIAAMTaOW5_lxTLYFkufV9SBGWIRqFBrutprvh-kWpB0wkHyWxjhwED/ferrari-599-sa-aperta-(rhd)-part-diagram-0004.webp)

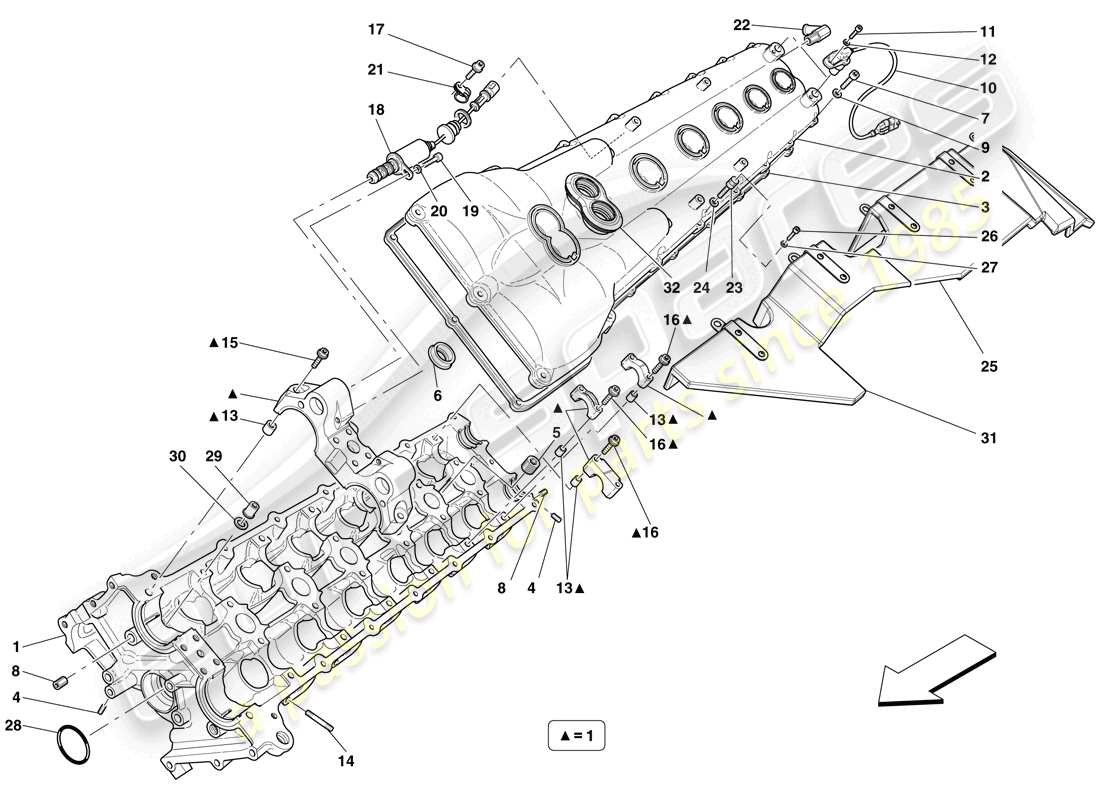

0004 - left hand cylinder head
Ferrari 599 SA Aperta (RHD) LEFT HAND CYLINDER HEAD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 258742
LH HEAD
from £3,389.60
from £3,389.60
# 002
MPN: 236703

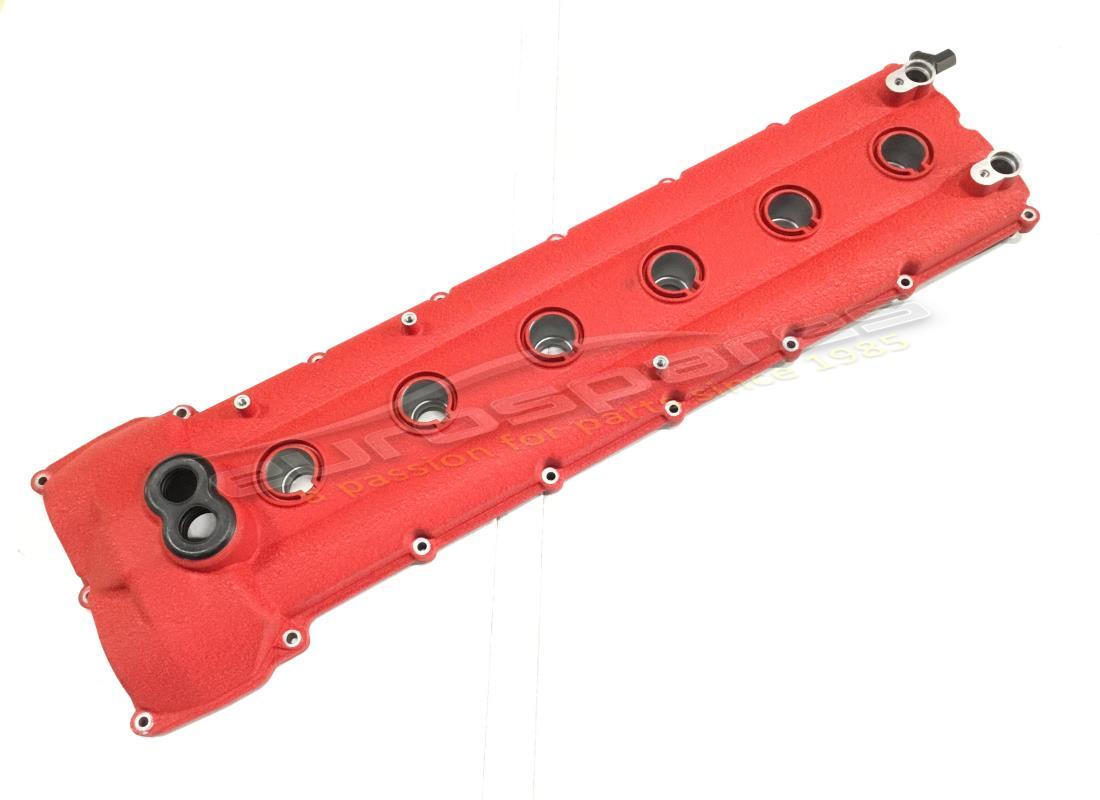

LH CYLINDER HEAD COVER
from £275.34
from £275.34
# 003
MPN: 208923
LH HEAD COVER GASKET
from £47.00
from £47.00
# 004
MPN: 199760
THREADED PLUG
from £0.47
from £0.47
# 005
MPN: 127635
THREADED PLUG
from £1.49
from £1.49
This part replaces part number 183447
# 006
MPN: 223982
SPARK PLUG TUBE SEAL
from £1.36
from £1.36
# 007
MPN: 157218
SCREW
from £0.47
from £0.47
# 008
MPN: 14326001
THREADED PLUG
from £0.47
from £0.47
This part replaces part number 194495
# 009
MPN: 11197774
WASHER
from £0.52
from £0.52
This part replaces part number 11197770 - and 3 more. Click to view details
# 010
MPN: 227046
TIMING SENSOR
-Exhaust-
from £155.70
from £155.70
# 010
MPN: 227048
TIMING SENSOR
-Intake-
from £155.70
from £155.70
# 011
MPN: 231617
SCREW
from £0.47
from £0.47
This part replaces part number 14433124 which we have in stock
# 012
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 013
MPN: 102725
CENTERING DOWEL
from £0.61
from £0.61
# 014
MPN: 13541224
STUD BOLT
-M6 X 12- -Shank length 22 mm-
from £35.23
from £35.23
This part replaces part number 13541221
# 014
MPN: 211641
STUD BOLT
-M6 X 16- -Shank length 24 mm-
from £0.51
from £0.51
# 015
MPN: 243720
SCREW
-M6 X 40-
from £0.53
from £0.53
# 015
MPN: 243721
SCREW WITH WASHER
-M6 X 45-
from £0.47
from £0.47
# 016
MPN: 243719
SCREW WITH WASHER
-M6 X 35-
from £0.47
from £0.47
# 017
MPN: 233600
SCREW
from £0.47
from £0.47
# 018
MPN: 249277
VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
-Applicable until depletion-
Supersession
Supersession
# 018
MPN: 269226
VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
-Applicable after depletion of 249277- -No longer supplied- -Replaced by 296016-
Supersession
Supersession
This part replaces part number 249277 - and 1 more. Click to view details
# 018
MPN: 296016
VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
from £102.90
from £102.90
This part replaces part number 269226
# 019
MPN: 14433124
SCREW
from £0.47
from £0.47
This part replaces part number 14433121
# 020
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 021
MPN: 10441590
BRACKET WITH SHEATH
from £0.47
from £0.47
This part replaces part number 10113600
# 022
MPN: 195510
THREADED CONNECTOR
from £3.91
from £3.91
This part replaces part number 224116
# 023
MPN: 214412
STUD BOLT
from £6.96
from £6.96
# 024
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 025
MPN: 268088
LH REAR HEAT SHIELD
from £334.65
from £334.65
# 026
MPN: 14305124
SCREW
from £0.47
from £0.47
This part replaces part number 14305121
# 027
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 028
MPN: 183010
GASKET
from £0.85
from £0.85
# 029
MPN: 183524
NUT
from £0.98
from £0.98
# 030
MPN: 151117
WASHER
from £0.33
from £0.33
# 031
MPN: 268087
LH FRONT HEAT SHIELD
from £385.60
from £385.60
# 032
MPN: 229353
SOLENOID VALVE GASKET
from £9.62
from £9.62
