0015 - INTAKE MANIFOLD

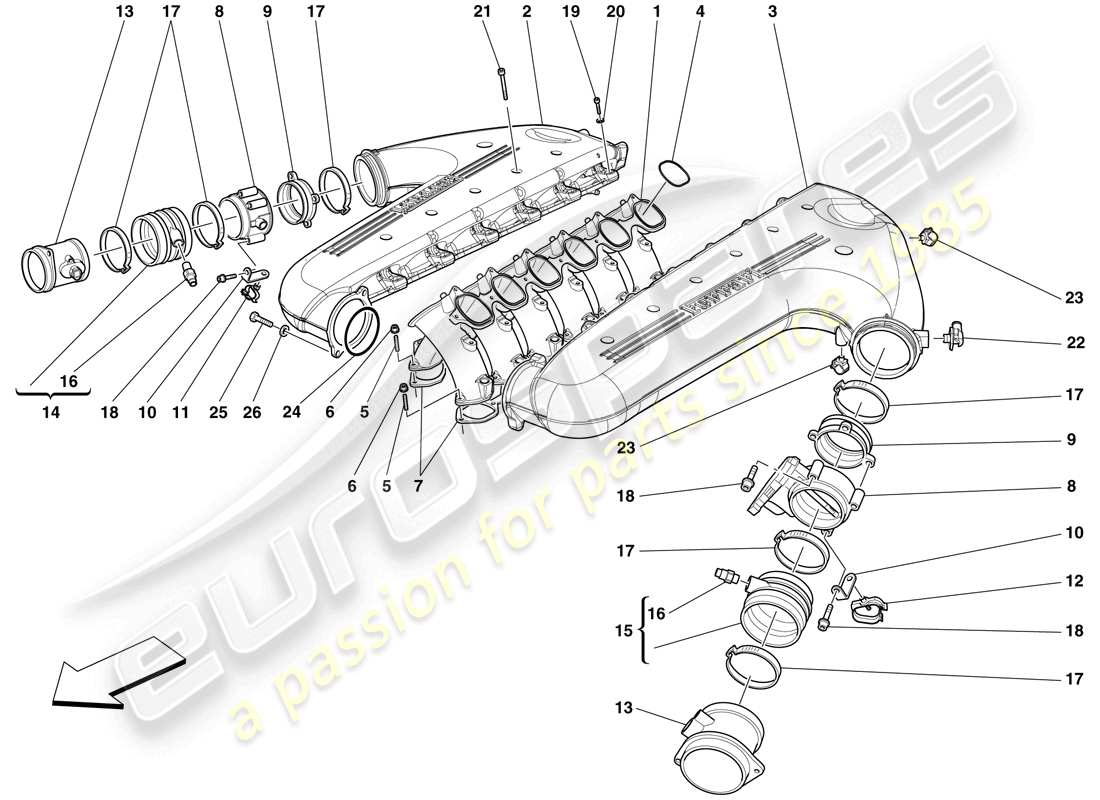

Ferrari 599 SA Aperta (RHD) INTAKE MANIFOLD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 263798
                                      INTAKE MANIFOLD
                                      from £2,638.27
                                      from £2,638.27
                                      # 002
                                      MPN: 263927
                                      RH INTAKE PLENUM
                                      from £2,391.93
                                      from £2,391.93
                                      # 003
                                      MPN: 263928
                                      LH INTAKE PLENUM
                                      from £2,089.94
                                      from £2,089.94
                                      # 004
                                      MPN: 263799
                                      GASKET
                                      from £4.24
                                      from £4.24
                                      # 005
                                      MPN: 11500524
                                      STUD BOLT
                                      from £0.48
                                      from £0.48
                                      This part replaces part number 11500521 which we have in stock
                                      # 006
                                      MPN: 228265
                                      NUT
                                      from £0.47
                                      from £0.47
                                      # 007
                                      MPN: 253809
                                      GASKET
                                      from £5.51
                                      from £5.51
                                      # 009
                                      MPN: 240262
                                      SHIM
                                      from £61.82
                                      from £61.82
                                      This part replaces part number 195206 which we have in stock
                                      # 010
                                      MPN: 219946
                                      BRACKET
                                      -Applicable for USA, CDN-
                                      from £2.27
                                      from £2.27
                                      # 010
                                      MPN: 265754
                                      BRACKET
                                      -Not for USA, CDN-
                                      from £6.83
                                      from £6.83
                                      # 011
                                      MPN: 149773
                                      CLIP
                                      from £0.54
                                      from £0.54
                                      # 012
                                      MPN: 149773
                                      CLIP
                                      from £0.54
                                      from £0.54
                                      # 012
                                      MPN: 224008
                                      CLIP
                                      -No longer supplied- -Replaced by 149773-
                                      from £0.54
                                      from £0.54
                                      # 013
                                      MPN: 255237
                                      AIR FLOW METER
                                      from £151.63
                                      from £151.63
                                      # 014
                                      MPN: 255553
                                      RH CONNECTOR PIPE
                                      -Not for USA, CDN-
                                      from £87.83
                                      from £87.83
                                      # 014
                                      MPN: 255556
                                      RH CONNECTOR PIPE
                                      -Applicable for USA, CDN-
                                      from £92.00
                                      from £92.00
                                      # 015
                                      MPN: 255554
                                      LH CONNECTOR PIPE
                                      -Not for USA, CDN-
                                      from £87.83
                                      from £87.83
                                      # 015
                                      MPN: 255558
                                      LH CONNECTOR PIPE
                                      -Applicable for USA, CDN-
                                      from £92.00
                                      from £92.00
                                      # 016
                                      MPN: 203150
                                      CONNECTOR
                                      -Applicable for USA, CDN-
                                      from £37.13
                                      from £37.13
                                      # 016
                                      MPN: 209132
                                      CONNECTOR
                                      -Not for USA, CDN-
                                      # 017
                                      MPN: 190151
                                      RING CLAMP
                                      from £2.01
                                      from £2.01
                                      This part replaces part number 204436
                                      # 018
                                      MPN: 231624
                                      SCREW
                                      -L. 45 mm-
                                      from £0.51
                                      from £0.51
                                      # 019
                                      MPN: 231621
                                      SCREW
                                      -L. 30 mm-
                                      from £0.50
                                      from £0.50
                                      This part replaces part number 216568
                                      # 020
                                      MPN: 10519478
                                      WASHER
                                      from £1.08
                                      from £1.08
                                      This part replaces part number 14496478
                                      # 021
                                      MPN: 216771
                                      SCREW
                                      from £1.40
                                      from £1.40
                                      # 022
                                      MPN: 243207
                                      CONNECTOR
                                      from £10.95
                                      from £10.95
                                      # 022
                                      MPN: 243208
                                      LH UNION
                                      from £13.13
                                      from £13.13
                                      # 023
                                      MPN: 206536
                                      CLIP
                                      -D. 14-
                                      from £0.53
                                      from £0.53
                                      # 023
                                      MPN: 222072
                                      CLIP
                                      -D. 18-
                                      from £1.91
                                      from £1.91
                                      # 024
                                      MPN: 263800
                                      GASKET
                                      from £8.65
                                      from £8.65
                                      # 025
                                      MPN: 10902224
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      # 026
                                      MPN: 12601279
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12601271 - and 2 more. Click to view details
