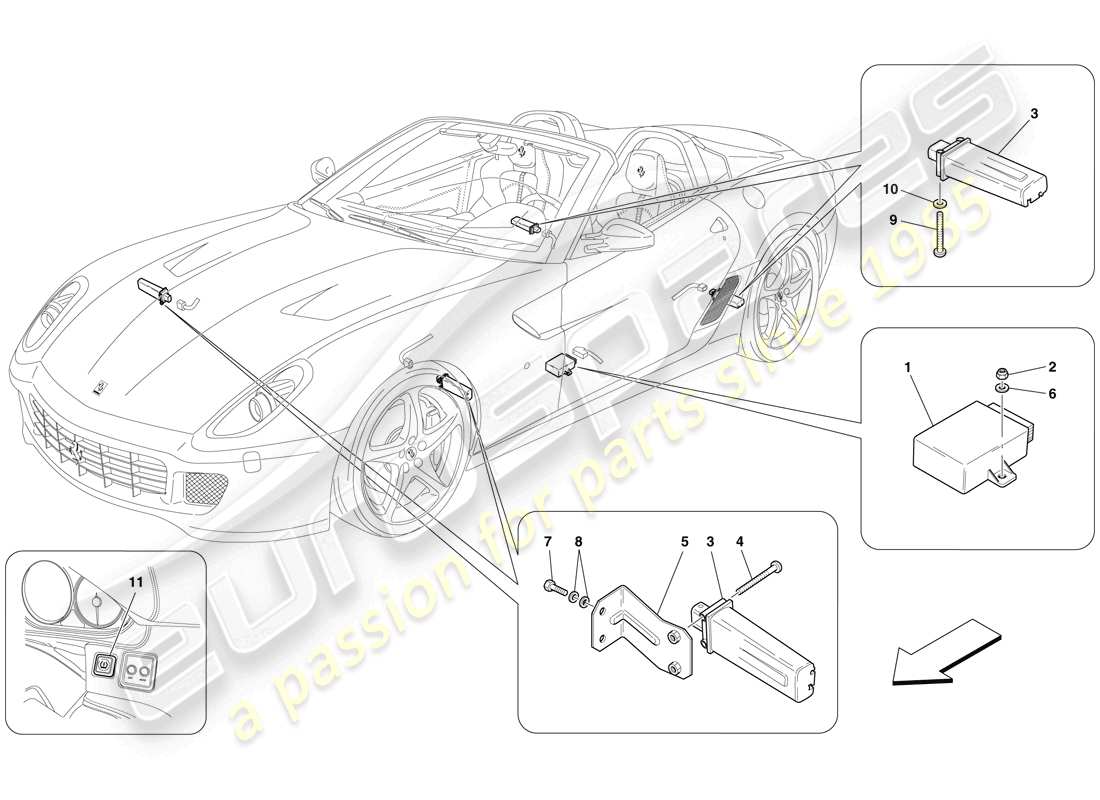

0048 - TYRE PRESSURE MONITORING SYSTEM

Ferrari 599 SA Aperta (RHD) TYRE PRESSURE MONITORING SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 235303
                      TYRE PRESSURE MONITORING SYSTEM ECU
                      from £361.64
                      from £361.64
                      This part replaces part number 200811
                      # 002
                      MPN: 14059111
                      NUT
                      from £0.47
                      from £0.47
                      # 003
                      MPN: 224562
                      TYRE PRESSURE MONITORING SYSTEM ANTENNA
                      -Not for J-
                      from £51.56
                      from £51.56
                      This part replaces part number 191443 - and 2 more. Click to view details
                      # 003
                      MPN: 224563
                      TYRE PRESSURE MONITORING SYSTEM ANTENNA
                      -Applicable for J-
                      from £85.56
                      from £85.56
                      This part replaces part number 191444
                      # 004
                      MPN: 13272824
                      SCREW
                      from £0.60
                      from £0.60
                      # 005
                      MPN: 191535
                      FRONT BRACKET
                      from £8.62
                      from £8.62
                      # 006
                      MPN: 12620374
                      WASHER
                      from £0.47
                      from £0.47
                      # 007
                      MPN: 16285014
                      SCREW
                      from £0.92
                      from £0.92
                      # 008
                      MPN: 12601174
                      WASHER
                      from £0.47
                      from £0.47
                      This part replaces part number 12601173 - and 5 more. Click to view details
                      # 009
                      MPN: 65071800
                      SCREW
                      from £0.65
                      from £0.65
                      # 010
                      MPN: 12620374
                      WASHER
                      from £0.47
                      from £0.47
                      # 011
                      MPN: 208848
                      TYRE PRESSURE CALIBRATION BUTTON
                      from £38.36
                      from £38.36
                      This part replaces part number 184615
