ferrari 599 sa aperta (rhd) luggage compartment trim parts diagram

0115 - LUGGAGE COMPARTMENT TRIM

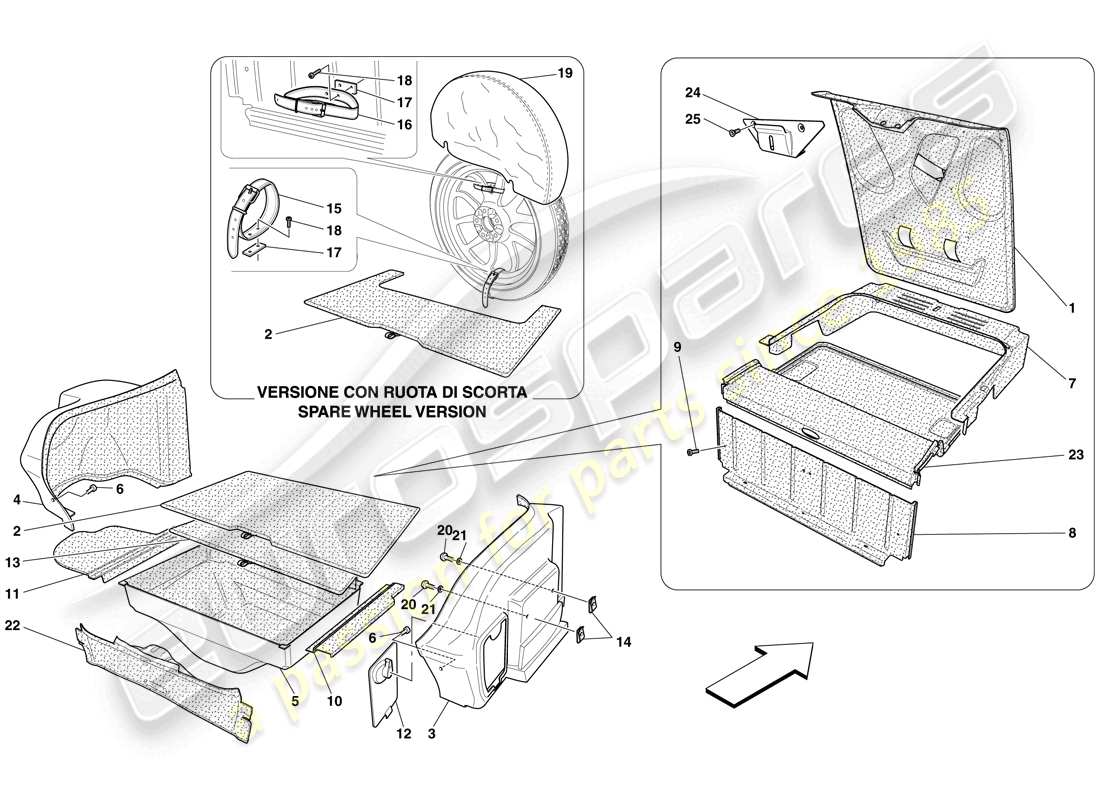

Ferrari 599 SA Aperta (RHD) LUGGAGE COMPARTMENT TRIM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 838797..
                        PREFORMED MAT
                        # 002
                        MPN: 671501..
                        LUGGAGE COMPARTMENT FLOOR MAT
                        -Version without spare wheel-
                        # 002
                        MPN: 844159..
                        LUGGAGE COMPARTMENT FLOOR MAT
                        -Version with spare wheel-
                        # 003
                        MPN: 838791..
                        RH BATTERY COVER PANEL
                        -Alcantara- -CD loader-
                        # 003
                        MPN: 838793..
                        RH BATTERY COVER PANEL
                        -Alcantara-
                        # 004
                        MPN: 838788..
                        RH TAILLIGHT COVER MAT
                        # 005
                        MPN: 68315000
                        PREFORMED MAT
                        -Leather-
                        from £594.18
                        from £594.18
                        # 006
                        MPN: 69869800
                        button
                        from £0.47
                        from £0.47
                        # 007
                        MPN: 838795..
                        TRIM UNDER PARCEL SHELF
                        -Version without spare wheel-
                        Supersession
                        Supersession
                        # 008
                        MPN: 836504..
                        FRONT LUGGAGE COMPARTMENT TRIM, LUGGAGE AREA
                        -No longer supplied- -Replaced by 843877..-
                        # 008
                        MPN: 843877..
                        FRONT LUGGAGE COMPARTMENT TRIM, LUGGAGE AREA
                        # 009
                        MPN: 66207700
                        SCREW
                        from £1.29
                        from £1.29
                        This part replaces part number 10558628
                        # 010
                        MPN: 687890..
                        RH LATERAL LUGG. COMPARTMENT FLOOR TRIM
                        -Version without spare wheel-
                        Supersession
                        Supersession
                        # 011
                        MPN: 699524..
                        LH LATERAL LUGG. COMPARTMENT FLOOR TRIM
                        -Version without spare wheel-
                        # 012
                        MPN: 690036..
                        HATCH
                        Supersession
                        Supersession
                        # 013
                        MPN: 697021..
                        LOWER SHELF
                        -Version without spare wheel-
                        Supersession
                        Supersession
                        # 014
                        MPN: 62766300
                        CLIP
                        from £0.47
                        from £0.47
                        # 015
                        MPN: 69865200
                        LOWER STRAP WITH BUCKLE
                        -Version with spare wheel-
                        from £33.29
                        from £33.29
                        # 016
                        MPN: 81208300
                        UPPER STRAP WITH BUCKLE
                        -Version with spare wheel- -Applicable for 20'' collapsible space saver spare wheel-
                        from £58.81
                        from £58.81
                        # 017
                        MPN: 69356800
                        PLATE
                        -Version with spare wheel-
                        from £63.87
                        from £63.87
                        # 018
                        MPN: 13311077
                        SCREW
                        -M5 X 16- -Version with spare wheel-
                        from £0.47
                        from £0.47
                        # 019
                        MPN: 81208400
                        SPACE SAVER SPARE WHEEL COVER
                        -Version with spare wheel- -Applicable for 20'' collapsible space saver spare wheel-
                        from £359.24
                        from £359.24
                        # 020
                        MPN: 65933500
                        SCREW
                        from £0.99
                        from £0.99
                        # 021
                        MPN: 13337507
                        WASHER FOR SCREW
                        from £0.73
                        from £0.73
                        # 022
                        MPN: 699564..
                        REAR PREFORMED LUGGAGE COMPARTMENT MAT
                        Supersession
                        Supersession
                        # 023
                        MPN: 836503..
                        LUGGAGE COMPARTMENT ROOF TRAY TRIM
                        Supersession
                        Supersession
                        # 024
                        MPN: 67135800
                        LUGGAGE COMPARTMENT LID STRIKER COVER
                        from £6.66
                        from £6.66
                        # 025
                        MPN: 13311077
                        SCREW
                        -M5 X 16-
                        from £0.47
                        from £0.47
                        # 025
                        MPN: 169815
                        SCREW
                        -M5 X 20-
                        from £1.03
                        from £1.03
                        This part replaces part number 270024
