ferrari 599 sa aperta (rhd) engine compartment ecus parts diagram

0135 - ENGINE COMPARTMENT ECUs

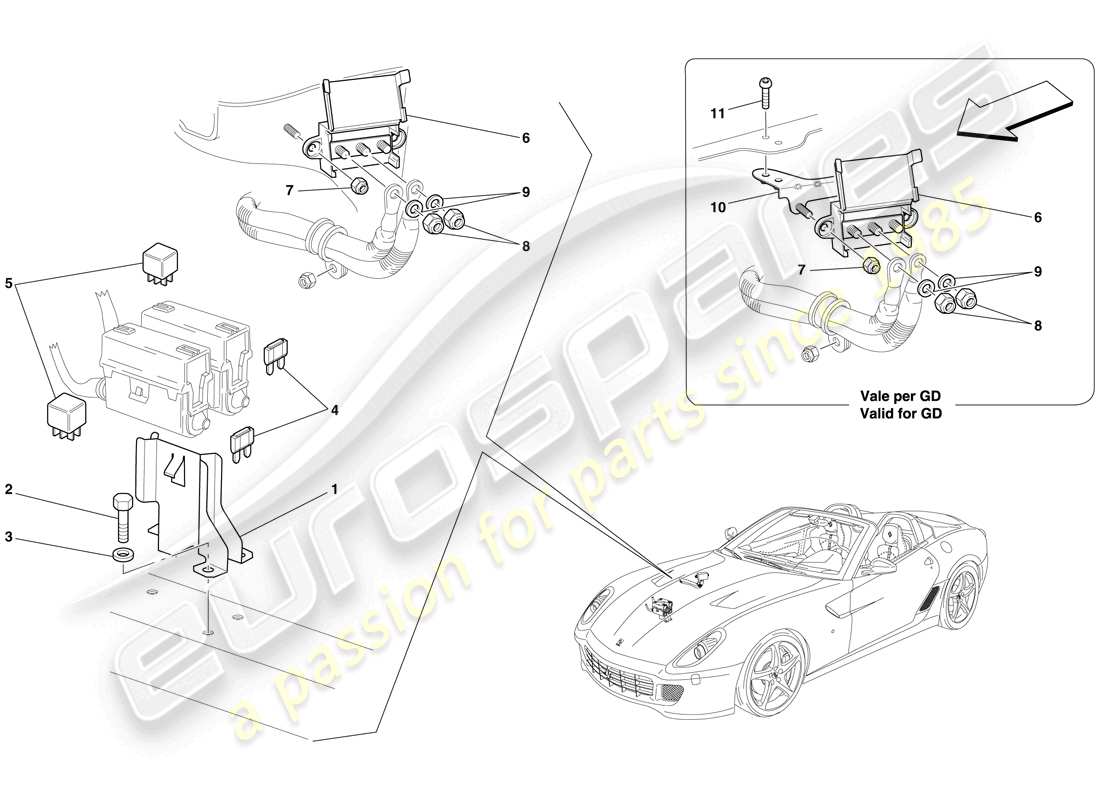

Ferrari 599 SA Aperta (RHD) ENGINE COMPARTMENT ECUs Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 204066
                    BRACKET
                    from £147.61
                    from £147.61
                    # 002
                    MPN: 16296924
                    SCREW
                    from £0.47
                    from £0.47
                    This part replaces part number 289834
                    # 003
                    MPN: 12620474
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 12620479 - and 1 more. Click to view details
                    # 004
                    MPN: 166835
                    40A MAXI FUSE
                    from £5.93
                    from £5.93
                    # 004
                    MPN: 172871
                    60 A MAXI FUSE
                    from £8.46
                    from £8.46
                    # 005
                    -
                    50 A RELAY
                    # 006
                    MPN: 170114
                    TERMINAL BLOCK
                    from £7.01
                    from £7.01
                    This part replaces part number 153357
                    # 007
                    MPN: 14059214
                    NUT
                    from £0.47
                    from £0.47
                    # 008
                    MPN: 104030
                    NUT
                    from £0.47
                    from £0.47
                    This part replaces part number 16104125
                    # 009
                    MPN: 10519224
                    WASHER
                    from £0.47
                    from £0.47
                    This part replaces part number 10519201
                    # 010
                    MPN: 217825
                    TERMINAL BLOCK MOUNTING BRACKET
                    -Applicable for GD-
                    from £20.60
                    from £20.60
                    # 011
                    MPN: 65864100
                    SCREW
                    -Applicable for GD-
                    from £0.76
                    from £0.76
                    This part replaces part number 65864200
