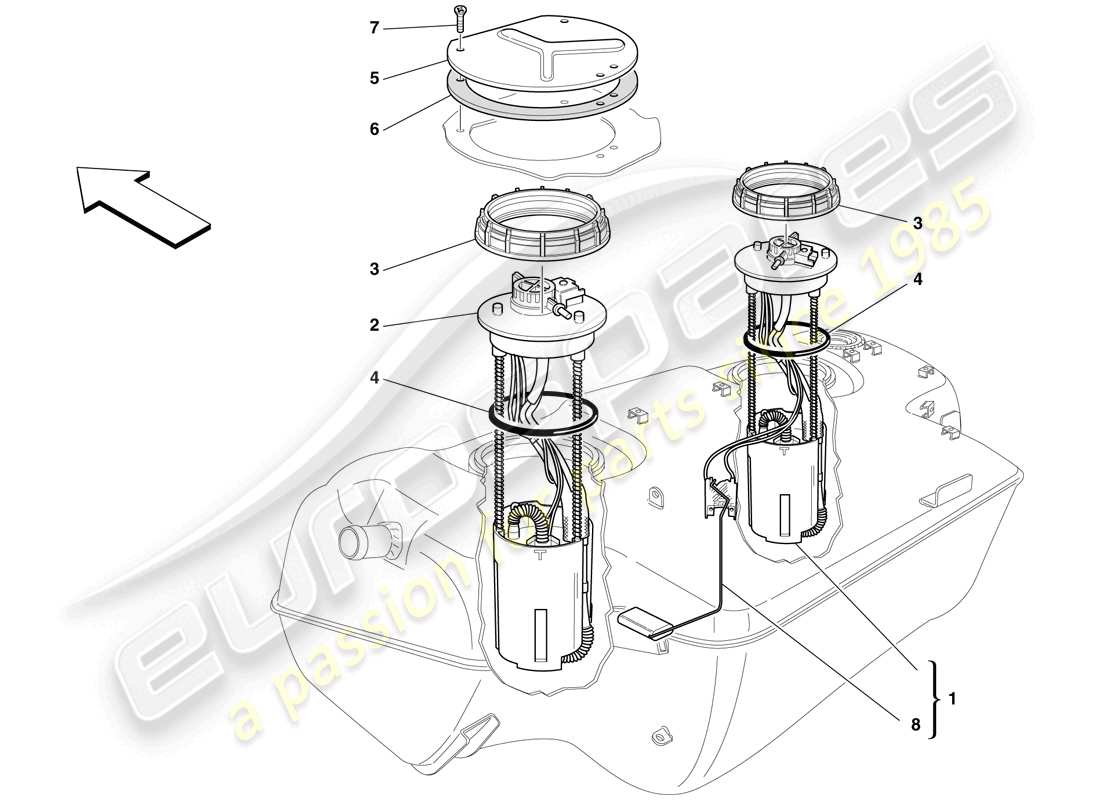

Ferrari 599 SA Aperta (USA) FUEL PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 004
                  MPN: 181681
                  GASKET
                  from £11.53
                  from £11.53
                  # 005
                  MPN: 67132600
                  TANK ACCESS CAP
                  from £15.03
                  from £15.03
                  # 006
                  MPN: 69126600
                  GASKET
                  from £25.80
                  from £25.80
                  # 007
                  MPN: 13313011
                  SCREW
                  from £0.47
                  from £0.47
                  # 008
                  MPN: 265262
                  FUEL LEVEL SENSOR
                  from £110.49
                  from £110.49
