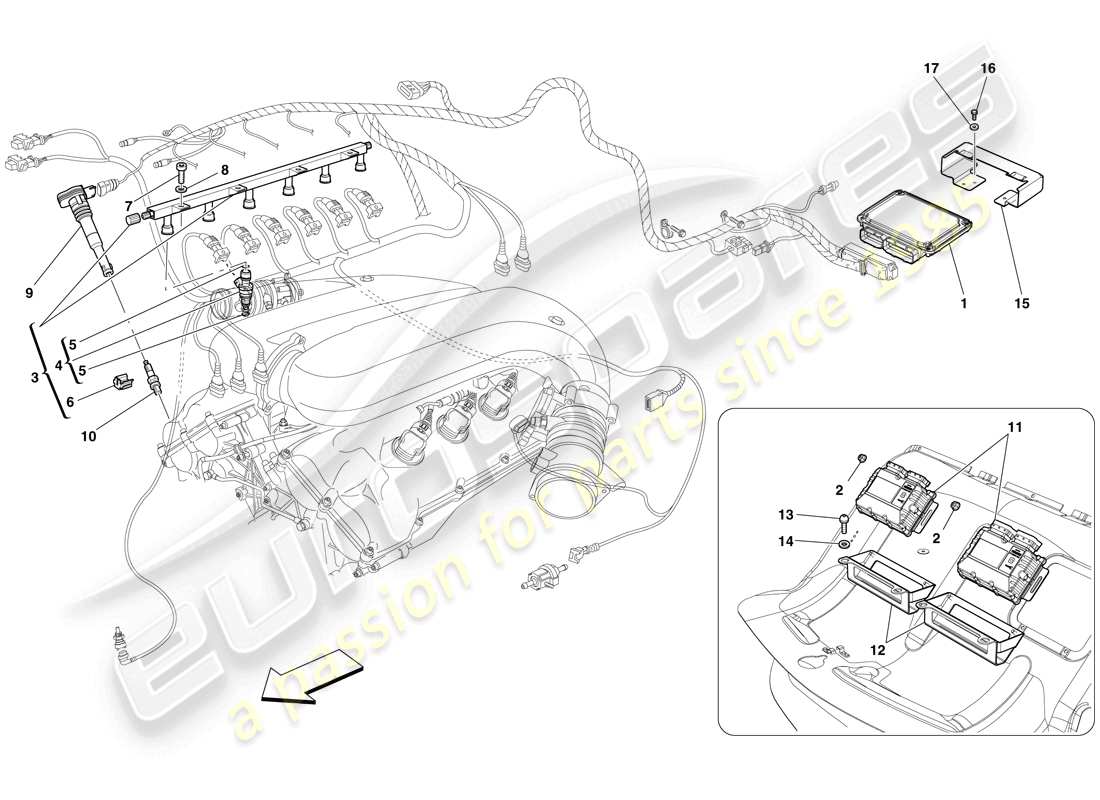

Ferrari 599 SA Aperta (USA) INJECTION - IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 272311
                                IGNITION ECU
                                -Not for USA, CDN, J, USA LIGHT-
                                from £1,544.15
                                from £1,544.15
                                IGNITION ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 272312
                                IGNITION ECU
                                -Applicable for USA, CDN-
                                from £1,544.15
                                from £1,544.15
                                IGNITION ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 276623
                                IGNITION ECU
                                -Applicable for J-
                                from £2,027.75
                                from £2,027.75
                                IGNITION ECU Genuine Ferrari Part - New (to order)
                                # 001
                                MPN: 277286
                                IGNITION ECU
                                -Applicable for USA LIGHT-
                                from £2,027.75
                                from £2,027.75
                                IGNITION ECU Genuine Ferrari Part - New (to order)
                                # 002
                                MPN: 14040611
                                NUT
                                from £0.53
                                from £0.53
                                NUT Genuine Ferrari Part - New In stock
                                NUT Genuine Maserati Part - New In stock
                                # 003
                                MPN: 216361
                                COMPLETE RH FUEL RAIL WITH ELECTROINJECTORS
                                from £830.53
                                from £830.53
                                INJECTORS COMPLETE RH TUBE Genuine Ferrari Part - New (to order)
                                # 003
                                MPN: 216362
                                COMPLETE LH FUEL RAIL WITH ELECTROINJECTORS
                                from £830.53
                                from £830.53
                                INJECTORS COMPLETE LH TUBE Genuine Ferrari Part - New (to order)
                                # 004
                                MPN: 213635
                                ELECTROINJECTOR
                                from £127.26
                                from £127.26
                                ELECTRO-INJECTOR Genuine Ferrari Part - New (to order)
                                ELECTRO-INJECTOR EV14 Genuine Maserati Part - New In stock
                                ELECTRO-INJECTOR Original Equipment - New (to order)
                                # 005
                                MPN: 133902
                                O-RING
                                from £3.29
                                from £3.29
                                INJECTOR O'RING Genuine Ferrari Part - New In stock
                                INJECTOR O'RING Genuine Maserati Part - New In stock
                                INJECTOR O'RING Eurospares Approved Part - New In stock
                                # 006
                                MPN: 144730
                                FASTENER CLIP
                                from £2.24
                                from £2.24
                                CLIP Genuine Ferrari Part - New (to order)
                                INJECTOR RETAINING CLIP Genuine Maserati Part - New In stock
                                # 007
                                MPN: 16043124
                                SCREW
                                from £0.29
                                from £0.29
                                This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                SCREW Genuine Ferrari Part - New In stock
                                M8 X 14
                                SCREW Genuine Maserati Part - New (to order)
                                SCREW Genuine Ferrari Part - Used In stock
                                Removed from 458 engine 178999
                                # 008
                                MPN: 12601374
                                WASHER
                                from £0.53
                                from £0.53
                                This part replaces part number 10615474 - and 6 more. Click to view details
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER Genuine Maserati Part - New (to order)
                                # 009
                                MPN: 248406
                                IGNITION COIL
                                -High end-
                                from £90.96
                                from £90.96
                                This part replaces part number 231359 - and 1 more. Click to view details
                                Genuine Ferrari Part (no longer available to order)
                                IGNITION COIL Genuine Ferrari Part - Used In stock
                                Removed from 458 engine 199088
                                # 010
                                MPN: 192637
                                SPARK PLUG
                                from £17.58
                                from £17.58
                                This part replaces part number 168325
                                SPARK PLUG Genuine Ferrari Part - New (to order)
                                Spark Plug (NGK) Genuine Maserati Part - New In stock
                                SPARK PLUG Eurospares Approved Part - New In stock
                                # 011
                                MPN: 253942
                                IONISING KNOCK SENSOR CONTROL UNIT
                                Supersession
                                Supersession
                                Genuine Ferrari Part (no longer available to order)
                                # 012
                                MPN: 255371
                                IONISING ECU BRACKET
                                from £60.55
                                from £60.55
                                IONISING ECU BRACKET Genuine Ferrari Part - New (to order)
                                # 013
                                MPN: 62940900
                                SCREW
                                from £0.83
                                from £0.83
                                This part replaces part number 67352400
                                SCREW Genuine Ferrari Part - New In stock
                                SOCKET PAN HEAD SCREW M6X15 Genuine Maserati Part - New (to order)
                                # 014
                                MPN: 12647724
                                WASHER
                                from £0.53
                                from £0.53
                                WASHER Genuine Ferrari Part - New In stock
                                WASHER FOR FRONT HOOD LOC Genuine Maserati Part - New (to order)
                                # 015
                                MPN: 247873
                                BRACKET
                                from £30.27
                                from £30.27
                                BRACKET Genuine Ferrari Part - New (to order)
                                # 016
                                MPN: 10977624
                                SCREW
                                from £0.50
                                from £0.50
                                This part replaces part number 10977611 - and 1 more. Click to view details
                                SCREW Genuine Ferrari Part - New In stock
                                SCREW FOR GEARBOX OIL FIL Genuine Maserati Part - New (to order)
                                # 017
                                MPN: 13506704
                                WASHER
                                from £0.87
                                from £0.87
                                WASHER Genuine Ferrari Part - New (to order)
