0031 - HYDRAULIC BRAKE AND CLUTCH CONTROL

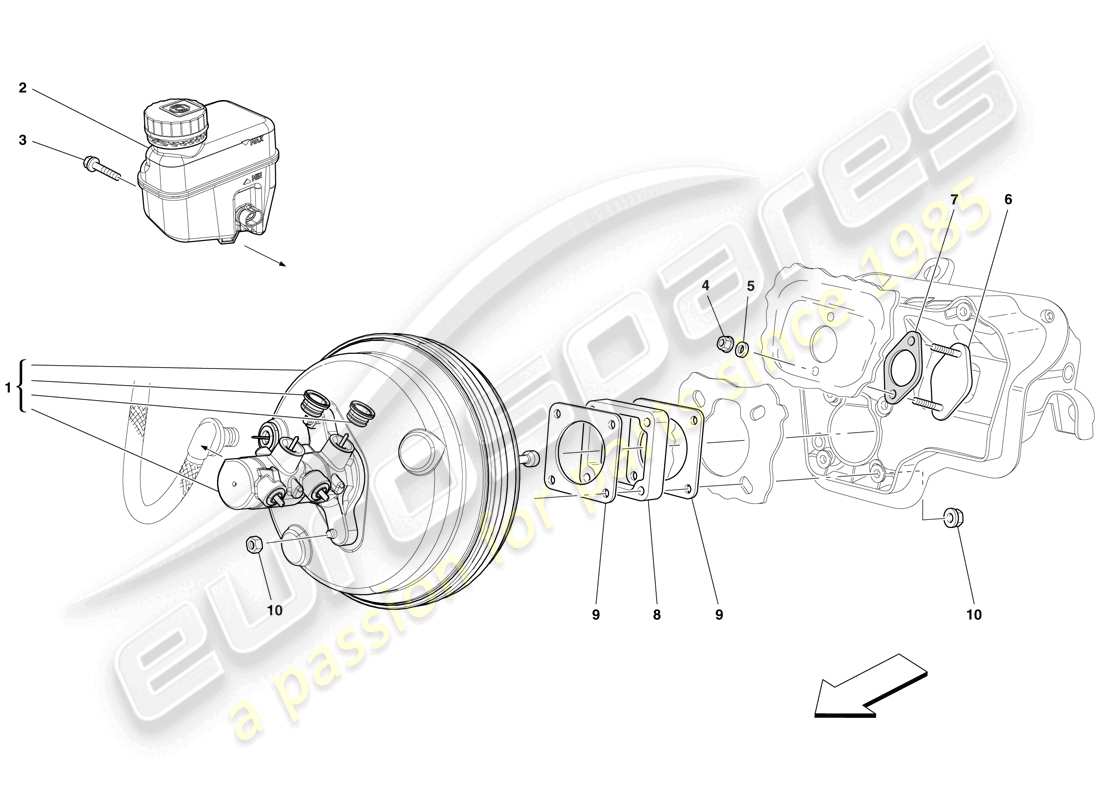

Ferrari 599 SA Aperta (USA) HYDRAULIC BRAKE AND CLUTCH CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 218441
                      BRAKE SERVO WITH PUMP
                      from £437.58
                      from £437.58
                      # 002
                      MPN: 234976
                      BRAKE FLUID RESERVOIR
                      from £71.89
                      from £71.89
                      This part replaces part number 199446
                      # 003
                      MPN: 16284914
                      SCREW
                      from £0.47
                      from £0.47
                      # 004
                      MPN: 177778
                      NUT
                      from £0.75
                      from £0.75
                      This part replaces part number 133215 - and 1 more. Click to view details
                      # 005
                      MPN: 12601374
                      WASHER
                      from £0.47
                      from £0.47
                      This part replaces part number 10615474 - and 6 more. Click to view details
                      # 006
                      MPN: 220310
                      CAP
                      from £8.78
                      from £8.78
                      # 007
                      MPN: 220309
                      GASKET
                      from £0.57
                      from £0.57
                      This part replaces part number 265142
                      # 008
                      MPN: 216078
                      SMALL PLATE FIXING PUMP
                      from £17.15
                      from £17.15
                      # 009
                      MPN: 190378
                      GASKET
                      from £0.73
                      from £0.73
                      # 010
                      MPN: 12578211
                      NUT
                      from £0.47
                      from £0.47
                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
