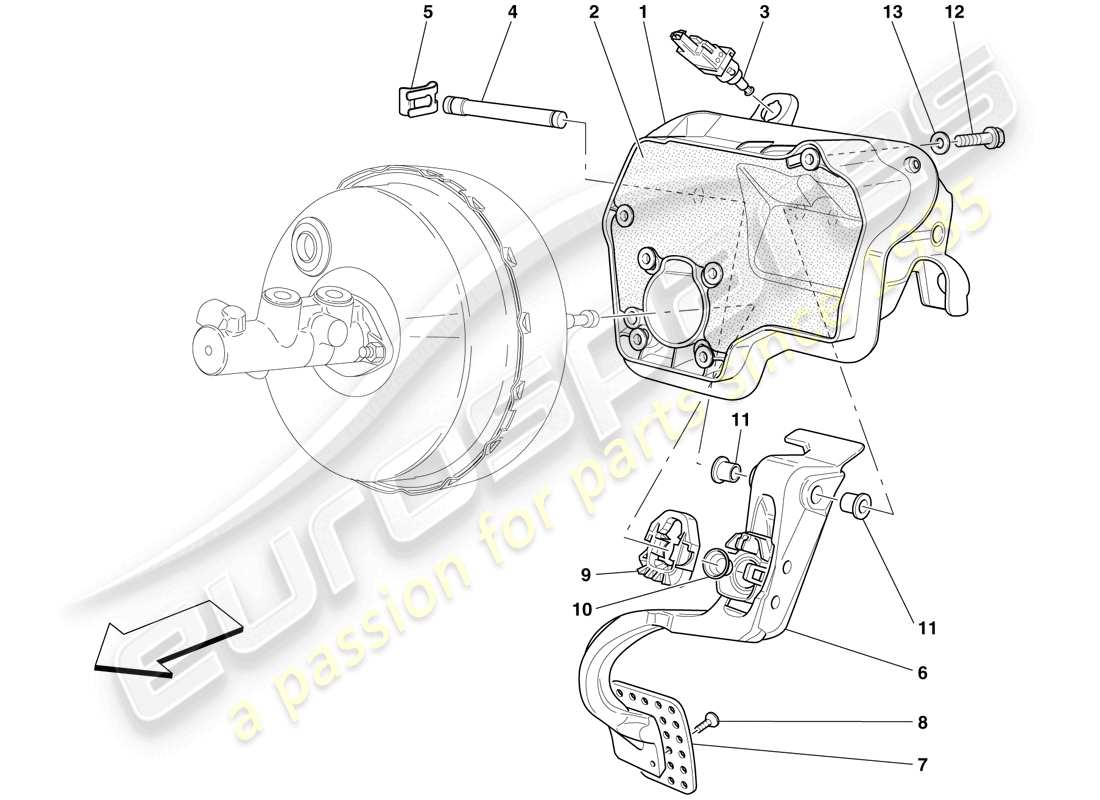

Ferrari 599 SA Aperta (USA) PEDAL BOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 204192
                        PEDAL BOARD MOUNTING
                        -Applicable for GD-
                        from £198.52
                        from £198.52
                        # 001
                        MPN: 245448
                        PEDAL SUPPORT
                        -Not for GD-
                        from £161.93
                        from £161.93
                        This part replaces part number 189858 - and 1 more. Click to view details
                        # 002
                        MPN: 193886
                        PEDAL BOARD SOUNDPROOFING
                        from £38.80
                        from £38.80
                        # 003
                        MPN: 201957
                        PUSHBUTTON SWITCH
                        from £12.69
                        from £12.69
                        This part replaces part number 187869 - and 3 more. Click to view details
                        # 005
                        MPN: 11064471
                        RETAINER
                        from £11.13
                        from £11.13
                        # 006
                        MPN: 191805
                        BRAKE PEDAL
                        -Not for GD-
                        from £364.62
                        from £364.62
                        # 006
                        MPN: 201376
                        BRAKE PEDAL
                        -Applicable for GD-
                        from £265.49
                        from £265.49
                        # 007
                        MPN: 191401
                        BRAKE PEDAL PLATE
                        from £97.55
                        from £97.55
                        # 008
                        MPN: 14441324
                        SCREW
                        from £0.47
                        from £0.47
                        # 009
                        MPN: 189863
                        RETAINER
                        from £16.77
                        from £16.77
                        # 010
                        MPN: 189864
                        CUP
                        from £21.11
                        from £21.11
                        # 011
                        MPN: 189869
                        BUSHING
                        from £24.24
                        from £24.24
                        # 012
                        MPN: 16287421
                        SCREW
                        Supersession
                        Supersession
                        # 013
                        MPN: 12601374
                        WASHER
                        from £0.47
                        from £0.47
                        This part replaces part number 10615474 - and 6 more. Click to view details
