ferrari 599 sa aperta (usa) steering control parts diagram

0042 - Steering Control

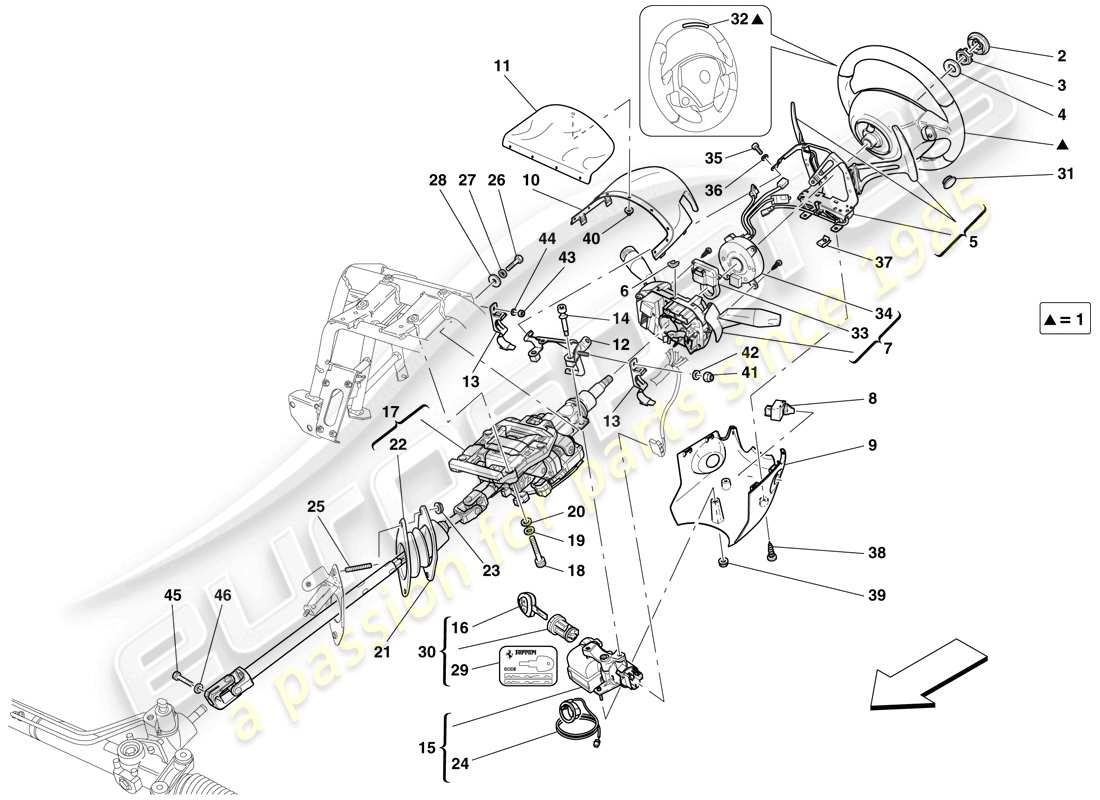

Ferrari 599 SA Aperta (USA) STEERING CONTROL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 001
                                                                                MPN: 808435..
                                                                                COMPLETE STEERING WHEEL
                                                                                -Without airbag module- -Carbon version- -STIC-
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 839648..
                                                                                COMPLETE STEERING WHEEL
                                                                                -Without airbag module- -STIC-
                                                                                Supersession
                                                                                Supersession
                                                                                # 002
                                                                                MPN: 199406
                                                                                NUT CAP
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 003
                                                                                MPN: 199222
                                                                                NUT
                                                                                from £0.71
                                                                                from £0.71
                                                                                # 004
                                                                                MPN: 152034
                                                                                WASHER
                                                                                from £3.36
                                                                                from £3.36
                                                                                # 005
                                                                                MPN: 226097
                                                                                LEVERS SET
                                                                                -Carbon- -No longer supplied- -Replaced by 278728-
                                                                                from £2,332.04
                                                                                from £2,332.04

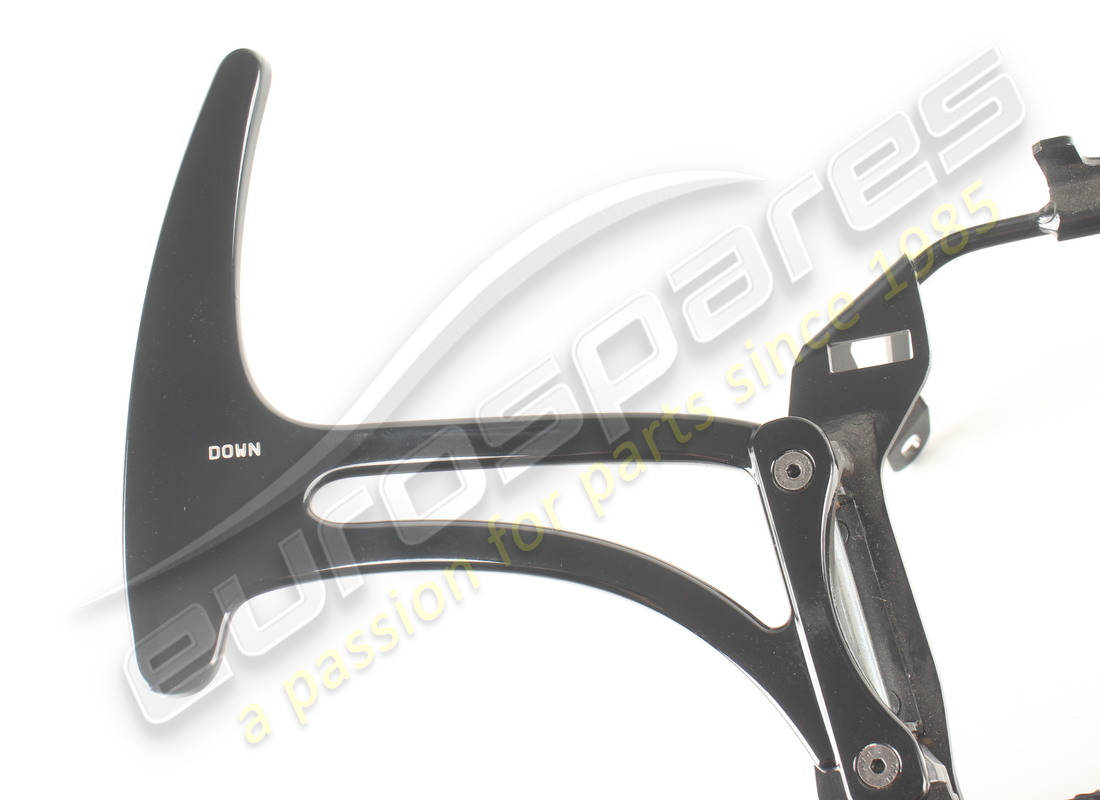

                                                                                # 005
                                                                                MPN: 271967
                                                                                F1 GEARBOX SHIFT PADDLE ASSEMBLY
                                                                                -Lacquered black-
                                                                                from £1,288.58
                                                                                from £1,288.58
                                                                                # 005
                                                                                MPN: 278728
                                                                                F1 GEARBOX SHIFT PADDLE ASSEMBLY
                                                                                -Carbon-
                                                                                from £1,770.16
                                                                                from £1,770.16
                                                                                # 006
                                                                                MPN: 68002000
                                                                                RUBBER PAD
                                                                                from £1.90
                                                                                from £1.90
                                                                                # 007
                                                                                MPN: 262168
                                                                                STEERING COLUMN SWITCH ASSEMBLY
                                                                                from £753.79
                                                                                from £753.79
                                                                                This part replaces part number 239692
                                                                                # 008
                                                                                MPN: 193862
                                                                                STEERING COLUMN ADJUSTMENT CONTROL
                                                                                -Applicable for comfort seats-
                                                                                from £21.36
                                                                                from £21.36
                                                                                # 008
                                                                                MPN: 215272
                                                                                STEERING COLUMN ADJUSTMENT CONTROL
                                                                                -Applicable for sport seats-
                                                                                from £39.00
                                                                                from £39.00
                                                                                # 009
                                                                                MPN: 804643..
                                                                                LOWER TRIM
                                                                                -Soft touch (coloured)- -With electrically adjustable driving position-
                                                                                Supersession
                                                                                Supersession
                                                                                # 010
                                                                                MPN: 804642..
                                                                                UPPER TRIM
                                                                                -Soft touch (coloured)-
                                                                                Supersession
                                                                                Supersession
                                                                                # 011
                                                                                MPN: 671673..
                                                                                REAR COVER
                                                                                -STC1- -STC2-
                                                                                Supersession
                                                                                Supersession
                                                                                # 012
                                                                                MPN: 204044
                                                                                BRACKET SUPPORT
                                                                                from £198.73
                                                                                from £198.73
                                                                                # 013
                                                                                MPN: 143120
                                                                                FASTENER CLIP
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 014
                                                                                MPN: 192053
                                                                                STEERING LOCK FASTENER SCREW
                                                                                from £2.47
                                                                                from £2.47
                                                                                # 015
                                                                                MPN: 222863
                                                                                STEERING LOCK
                                                                                from £77.88
                                                                                from £77.88
                                                                                # 016
                                                                                MPN: 227551
                                                                                UNCODED KEY
                                                                                from £350.44
                                                                                from £350.44
                                                                                # 017
                                                                                MPN: 209828
                                                                                COMPLETE STEERING COLUMN
                                                                                from £1,279.18
                                                                                from £1,279.18
                                                                                This part replaces part number 208106 - and 3 more. Click to view details
                                                                                # 018
                                                                                MPN: 14306924
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 14306921 which we have in stock
                                                                                # 019
                                                                                MPN: 10519624
                                                                                WASHER
                                                                                from £0.53
                                                                                from £0.53
                                                                                This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                # 020
                                                                                MPN: 11194074
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 11194077 - and 1 more. Click to view details
                                                                                # 021
                                                                                MPN: 195681
                                                                                PLATE
                                                                                from £13.61
                                                                                from £13.61
                                                                                # 023
                                                                                MPN: 14039614
                                                                                NUT
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 024
                                                                                MPN: 191664
                                                                                IMMOBILIZER ANTENNA
                                                                                from £18.08
                                                                                from £18.08
                                                                                # 025
                                                                                MPN: 13541224
                                                                                STUD BOLT
                                                                                -M6 X 12- -Shank length 22 mm-
                                                                                from £34.92
                                                                                from £34.92
                                                                                This part replaces part number 13541221
                                                                                # 026
                                                                                MPN: 10902324
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                # 027
                                                                                MPN: 12646624
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 028
                                                                                MPN: 11197774
                                                                                WASHER
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                # 029
                                                                                MPN: 153603
                                                                                Ferrari CODE CARD
                                                                                from £34.03
                                                                                from £34.03
                                                                                This part replaces part number 194003
                                                                                # 030
                                                                                MPN: 223867
                                                                                COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS
                                                                                from £771.88
                                                                                from £771.88
                                                                                # 031
                                                                                MPN: 14506587
                                                                                CAP
                                                                                from £0.53
                                                                                from £0.53
                                                                                # 032
                                                                                MPN: 214236
                                                                                LED SURROUND
                                                                                from £202.69
                                                                                from £202.69
                                                                                # 033
                                                                                MPN: 188171
                                                                                STEERING ANGLE SENSOR
                                                                                from £150.25
                                                                                from £150.25
                                                                                # 034
                                                                                MPN: 187750
                                                                                CLOCK SPRING CONTACT
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 13025787
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 036
                                                                                MPN: 12601174
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                # 037
                                                                                MPN: 14372171
                                                                                BRACKET
                                                                                from £0.54
                                                                                from £0.54
                                                                                # 038
                                                                                MPN: 15688875
                                                                                SCREW
                                                                                from £0.54
                                                                                from £0.54
                                                                                This part replaces part number 15688814
                                                                                # 039
                                                                                MPN: 14059114
                                                                                NUT
                                                                                from £0.54
                                                                                from £0.54
                                                                                # 040
                                                                                MPN: 60324506
                                                                                SAFETY CLIP
                                                                                from £1.55
                                                                                from £1.55
                                                                                This part replaces part number 62773000
                                                                                # 041
                                                                                MPN: 102948
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                # 042
                                                                                MPN: 10519424
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                # 043
                                                                                MPN: 169180
                                                                                NUT
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12574121
                                                                                # 044
                                                                                MPN: 12638124
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                # 045
                                                                                MPN: 245173
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 187006
                                                                                # 046
                                                                                MPN: 12604474
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12604479
